wiley

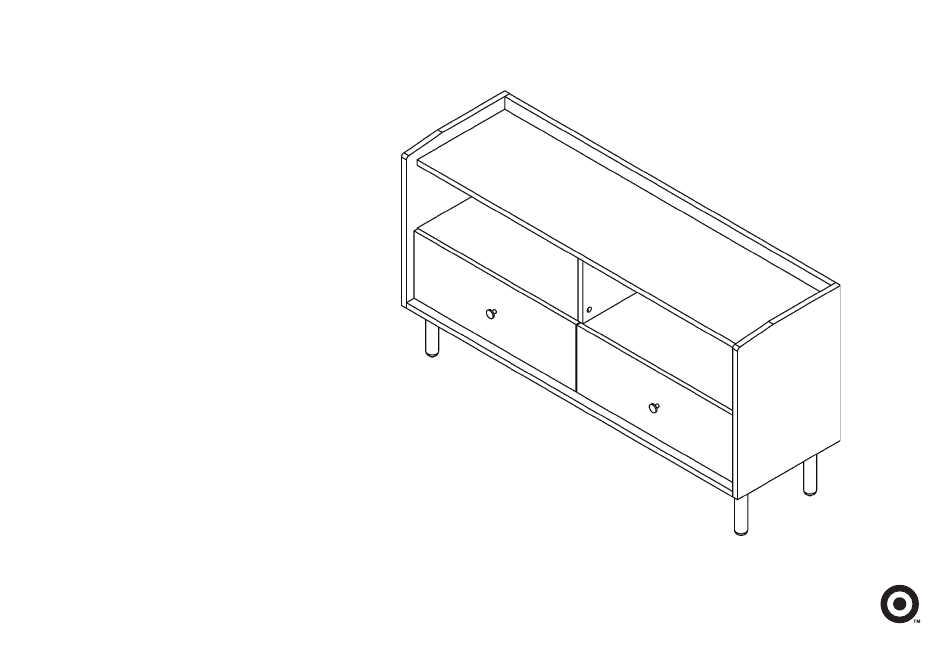

media cabinet
style # TGZLMEDXWH (true white)
dpci # 249-10-1972
tcin # 53546407
style # TGZLMEDXBL (orion blue)
dpci # 249-10-1973
tcin # 53546411
style # TGZLMEDXGY (gray)
dpci # 249-10-1974
tcin # 53546412
>> assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target wiley TGZLMEDXWH
Summary of Contents for Target wiley TGZLMEDXWH
- Page 1 # TGZLMEDXBL (orion blue) dpci # 249-10-1973 tcin # 53546411 style # TGZLMEDXGY (gray) dpci # 249-10-1974 tcin # 53546412 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 8-20 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 31 (H2) x 24 (H3) x 24 (H4) x 23 (H5) x 2 dowel cam bolt short pan head screw knob (H6) x 2 (H7) x 32 (H8) x 16 (H9) x 16 (H10) x 18 knob bolt short flat head screw bolt lock washer...
- Page 5 hardware (H16) x 1 (H17) x 1 (H18) x 8 (H19) x 8 wall strap long pan head screw long flat head screw corner block...
- Page 6 exploded diagram ITEM DESCRIPTION QUANTITY QUANTITY top panel left side panel right side panel bottom panel back panel upper rail upper partition fixed shelf lower partition drawer front left drawer side right drawer side drawer back drawer bottom foot center foot...
- Page 7 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
- Page 8 step 1: attach upper rail to top panel (H1) x 3 (H2) x 2 (H3) x 2 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in upper rail. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush in upper rail. 1.3.
- Page 9 step 2: attach top panel and fixed shelf to upper partition finished edge (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place in top panel and fixed shelf. Leave 1/2” of the dowels sticking out. 2.2.
- Page 10 step 3: attach lower partition and bottom panel finished edge (H1) x 4 (H2) x 4 (H3) x 4 wooden dowel cam bolt 3.1. Carefully tap small wooden dowels into place in fixed shelf and bottom panel. Leave 1/2” of the dowels sticking out. 3.2.
- Page 11 step 4: attach left side panel (H1) x 6 (H1) x 6 (H2) x 7 (H2) x 7 (H3) x 6 (H3) x 6 wooden dowel wooden dowel cam bolt cam bolt 4.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 4.2.
- Page 12 step 5: attach right side panel (H1) x 6 (H2) x 7 (H3) x 6 (H3) x 6 wooden dowel cam bolt 5.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 5.2.
- Page 13 step 6: attach upper rail (H3) x 2 6.1. Finish attaching upper rail by installing remaining cams. Finish attaching upper rail by installing remaining cams. 6.2. Refer to page 7 for instructions on how to use the cam lock system. Refer to page 7 for instructions on how to use the cam lock system.
- Page 14 step 7: attach back panel hole for anti-tip Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) If not, apply gentle pressure to the diagonally opposite...
- Page 15 step 8: attach mounting plate to foot (H12) x 4 (H13) x 8 mounting plate confirmat screw 8.1. Align confirmat screws with pre-drilled holes to attach mounting plate to foot. Do not over tighten screws.
- Page 16 step 9: attach feet (H8) x 16 (H9) x 16 (H10) x 16 (H11) x 1 (H11) x 1 bolt lock washer washer allen wrench allen wrench 9.1. Align bolts with pre-drilled holes to attach feet to bottom panel. Do not over tighten bolts. Align bolts with pre-drilled holes to attach feet to bottom panel.
- Page 17 step 10: attach drawer sides to drawer front (H1) x 8 (H7) x 32 (H19) x 8 dowel short flat head corner block screw 10.1. Align short flat head screws with pre-drilled holes to attach corner blocks to drawer front. Do not over tighten screws. 10.2.
- Page 18 step 11: attach drawer bottom and drawer back (H18) x 8 long flat head screw 11.1 Insert drawer bottom into grooves located on drawer sides and drawer face. 11.2. Align long flat head screws with pre-drilled holes to attach drawer back to drawer sides. Do not over tighten screws.
- Page 19 step 12: attach knobs and install drawers (H5) x 2 (H6) x 2 (H6) x 2 knob knob bolt knob bolt 12.1. Align knob bolts with pre-drilled holes to attach knob to drawer front. Do not over tighten bolts. 12.2. Carefully align glides on drawer sides with glides on cabinet to install drawer.
- Page 20 step 13: install anti-tip kit (H14) (H16) Position against wall Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole (H10) (H17) Tap in wall anchor (H10) (H15) Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
- Page 21 20 lbs. per drawer 1. WARNING - Death or serious injury may occur when children climb on audio and/ or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over on to the child.
- Page 22 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
