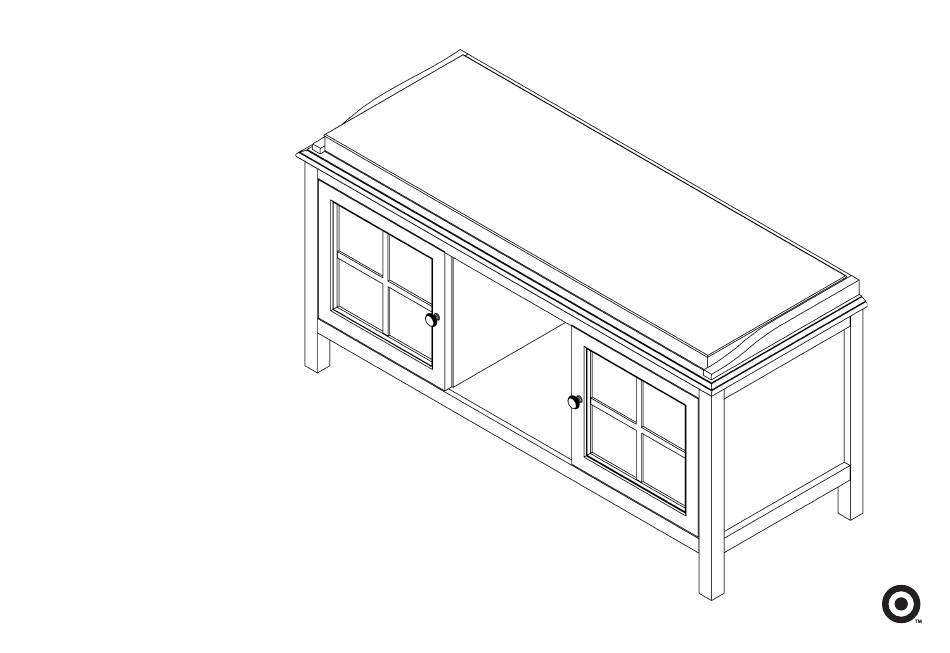

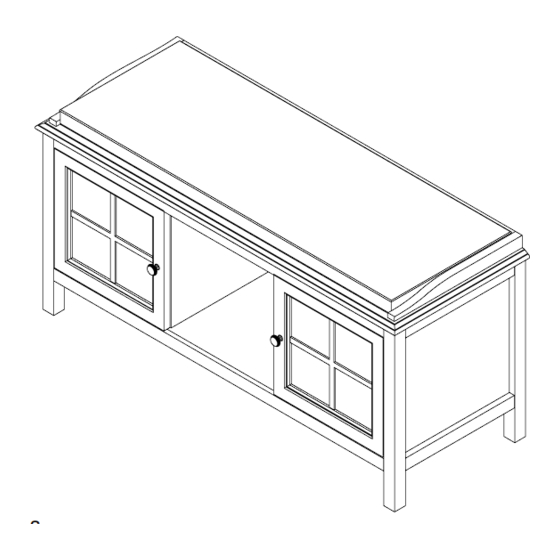

windham
entryway bench
style # WNBENCHXBK (black)
dpci # 249-18-0087
tcin # 14402891
style # WNBENCHXBL (teal)
dpci # 249-18-0086
tcin # 14402892
style # WNBENCHXRD (red)
dpci # 249-18-0173
tcin # 16511324
style # WNBENCHXWH (shell)
dpci # 249-18-0174
tcin # 16511323
style # WNBENCHXNV (navy)
dpci # 249-18-0175
tcin # 16511322
style # WNBENCHXGY (elephant)
dpci # 249-18-0374
tcin # 50541018
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target WINDHAM WNBENCHXBK
Summary of Contents for Target WINDHAM WNBENCHXBK
- Page 1 # 16511323 style # WNBENCHXNV (navy) dpci # 249-18-0175 tcin # 16511322 style # WNBENCHXGY (elephant) dpci # 249-18-0374 tcin # 50541018 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 16 (H2) x 8 (H3) x 8 (H4) x 22 (H5) x 2 wooden dowel cam bolt pan-head screw knob (H6) x 2 (H7) x 8 (H8) x 8 (H9) x 8 (H10) x 8 knob bolt flat-head screw allen head bolt lock washer...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY top panel left side assembly right side assembly bottom panel left partition right partition back panel left door right door foot support cushion... -
Page 6: How To Use The Cam Lock System
how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid... - Page 7 step 1: attach magnets to left/right partitions then attach to bottom panel finished edge (H1) x 4 (H2) x 4 (H3) x 4 (H4) x 4 (H12) x 2 wooden dowel cam bolt pan-head magnetic catch magnetic catch screw 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach right side assembly (H1) x 2 (H8) x 2 wooden dowel allen head bolt (H9) x 2 (H10) x 2 (H11) x 1 lock washer washer allen wrench 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach left side assembly and foot supports (H1) x 2 (H8) x 2 wooden dowel allen head bolt (H9) x 2 (H10) x 2 (H11) x 1 lock washer washer allen wrench 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 10 step 4: attach top panel (H1) x 8 (H2) x 4 (H3) x 4 wooden dowel cam bolt (H8) x 4 (H9) x 4 (H10) x 4 (H11) x 1 allen head bolt lock washer washer allen wrench 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 11 step 5: attach back panel Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. (If using a tape measure, the distance from one corner, diagonally to the other corner should be the same in both directions.) If not, apply gentle pressure to the diagonally opposite...
- Page 12 step 6: attach knobs and left/right doors (H5) x 2 (H6) x 2 (H7) x 8 (H7) x 8 knob knob bolt flat-head screw flat-head screw 6.1. Do not over tighten screws.
- Page 13 step 7: install cushion...
- Page 14 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 15 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
