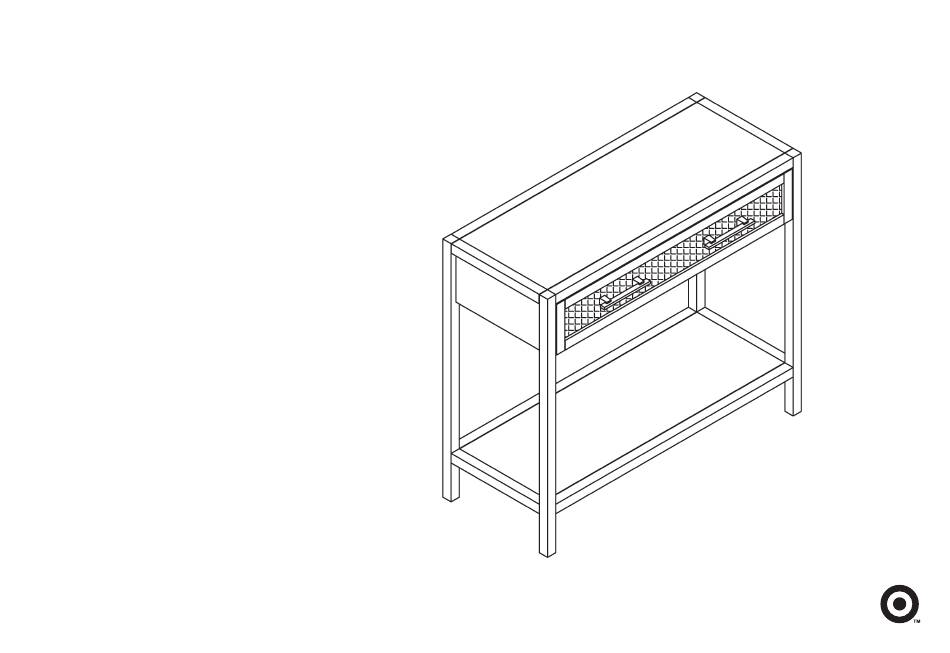

warwick
console table
style # FKWWCNTBBR (fawn brown)
dpci # 249-16-4845
tcin # 52716122
style # FKWWCNTBWH (white)
dpci # 249-17-3053
tcin # 54187472
>>
assembly instructions
© 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target warwick FKWWCNTBBR
Summary of Contents for Target warwick FKWWCNTBBR
- Page 1 # FKWWCNTBBR (fawn brown) dpci # 249-16-4845 tcin # 52716122 style # FKWWCNTBWH (white) dpci # 249-17-3053 tcin # 54187472 >> assembly instructions © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 18 (H2) x 9 (H3) x 9 (H4) x 2 (H5) x 4 wooden dowel cam bolt handle handle bolt (H6) x 5 (H7) x 1 (H8) x 8 (H9) x 8 (H10) x 10 flat head screw allen wrench bolt lock washer...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame back panel bottom panel drawer face left drawer side right drawer side drawer back drawer support drawer bottom...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
- Page 7 step 1: attach back panel to top panel (H2) x 2 (H3) x 2 cam bolt 1.1. Screw-In cam bolts must be screwed down flush in top panel. 1.2. Refer to page 6 for instructions on how to use the cam lock system. 1.3.
- Page 8 step 2: attach top panel and bottom panel to right side frame (H1) x 5 (H2) x 2 (H3) x 2 wooden dowel cam bolt (H8) x 4 (H9) x 4 (H10) x 4 (H7) x 1 (H7) x 1 bolt lock washer washer...
- Page 9 step 3: attach left side frame (H1) x 5 (H2) x 2 (H3) x 2 wooden dowel cam bolt (H8) x 4 (H9) x 4 (H10) x 4 (H7) x 1 (H7) x 1 bolt lock washer washer allen wrench allen wrench 3.1.
- Page 10 step 4: attach drawer sides, bottom, and support to drawer face (H1) x 6 (H2) x 3 (H3) x 3 wooden dowel cam bolt 4.1. Carefully tap small wooden dowels into place in drawer face. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place in drawer face.
- Page 11 step 5: attach drawer back and handle (H1) x 2 (H6) x 5 wooden dowel flat head screw (H5) x 4 (H4) x 2 handle bolt handle 5.1. Carefully tap small wooden dowels into place in drawer back. Leave 1/2” of the dowels sticking out. 5.2.
- Page 12 step 6: install drawer 6.1. Carefully align glides on drawer sides with glides on cabinet to install drawer.
- Page 13 step 7: install anti-tip kit (H12) (H11) Position against wall (H10) Mark position of strap hole on wall Mark position of strap hole on wall Drill 1/4” hole (H13) Tap in wall anchor (H10) (H14) Fasten anti-tip strap with wall screw Fasten anti-tip strap with wall screw provided provided...
- Page 14 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: Install tip-over restraint provided. • l b s Place heaviest items the lowest drawers. • Do not set TV's or other heavy objects on top •...
- Page 15 SALICE LIFETIME GUARANTEE AND LIMITED WARRANTY* Salice America, Inc., warrants that all hinges and/or Salice products contained in Quality That Lasts A Lifetime this product, (but not the product itself) against defects in material and workman- ship for as long as the original consumer purchaser owns the products. Salice will send the original consumer purchaser a new Salice hinge to replace any defective Salice hinge subject to this warranty without charge.
- Page 16 © 2018 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
