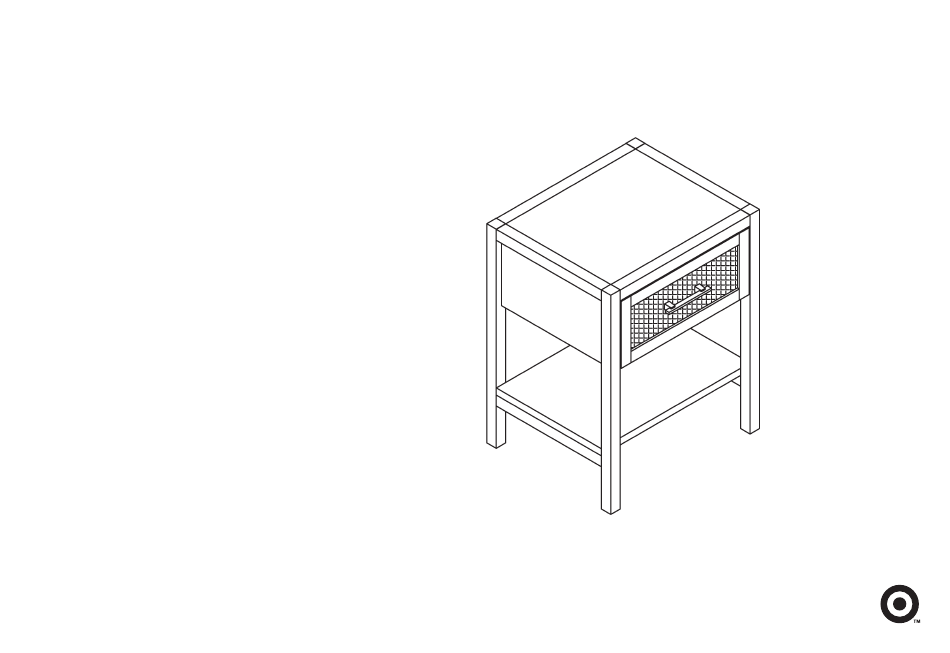

warwick
side table
style # FKWWSDTBBR (fawn brown)
dpci # 249-16-9341
tcin # 52416784
style # FKWWSDTBWH (white)
dpci # 249-17-3051
tcin # 54155832
>>
assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Warwick side table FKWWSDTBBR
Summary of Contents for Target Warwick side table FKWWSDTBBR
- Page 1 # FKWWSDTBBR (fawn brown) dpci # 249-16-9341 tcin # 52416784 style # FKWWSDTBWH (white) dpci # 249-17-3051 tcin # 54155832 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-12 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 14 (H2) x 6 (H3) x 6 (H4) x 8 (H5) x 8 wooden dowel cam bolt bolt lock washer (H6) x 8 (H7) x 1 (H8) x 2 (H9) x 1 (H10) x 4 washer allen wrench handle bolt handle flat head screw...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame shelf back panel drawer face left drawer side right drawer side drawer back drawer bottom...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach back panel to right side frame (H1) x 1 (H2) x 2 (H3) x 2 wooden dowel cam bolt finished edge 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2. Screw-In cam bolts must be screwed down flush. 1.3.
- Page 8 step 2: attach top panel (H1) x 2 (H4) x 2 wooden dowel bolt (H5) x 2 (H6) x 2 (H7) x 1 lock washer washer allen wrench 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2.
- Page 9 step 3: attach left side frame (H1) x 3 (H2) x 2 (H3) x 2 wooden dowel cam bolt (H4) x 2 (H5) x 2 (H6) x 2 (H7) x 1 bolt lock washer washer allen wrench 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach shelf (H1) x 4 (H4) x 4 wooden dowel bolt (H5) x 4 (H6) x 4 (H7) x 1 lock washer washer allen wrench 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: assemble drawer starting with drawer sides / finish assembly with handle (H1) x 4 (H1) x 4 (H2) x 2 (H2) x 2 (H3) x 2 (H3) x 2 (H8) x 2 (H8) x 2 (H9) x 1 (H9) x 1 (H10) x 4 (H10) x 4...
- Page 12 step 6: install drawer...
- Page 13 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 14 LIFETIME GUARANTEE AND LIMITED WARRANTY* Salice America, Inc., warrants that all hinges and/or Salice products contained in Quality That Lasts A Lifetime this product, (but not the product itself) against defects in material and workman- ship for as long as the original consumer purchaser owns the products. Salice will send the original consumer purchaser a new Salice hinge to replace any defective Salice hinge subject to this warranty without charge.
- Page 15 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
