windham
accent cabinet with drawer
style # WNCBDW2DBK (black)
dpci # 249-16-0022
style # WNCBDW2DRD (red)
dpci # 249-16-0023
style # WNCBDW2DBL (teal)
dpci # 249-16-0021
style # WNCBDW2DGY (grey)
dcpi # 249-16-0026
style # WNCBDW2DWH (shell)
dpci # 249-16-0013
style # WNCBDW2DYL (yellow)
dpci # 249-16-0029
style # WNCBDW2DGG (green garnish)
dpci # 249-16-4302
style # WNCBDW2DOV (overcast)
dpci # 249-16-4306
style # WNCBDW2DBN (banana split)
dpci # 249-16-4315
>>

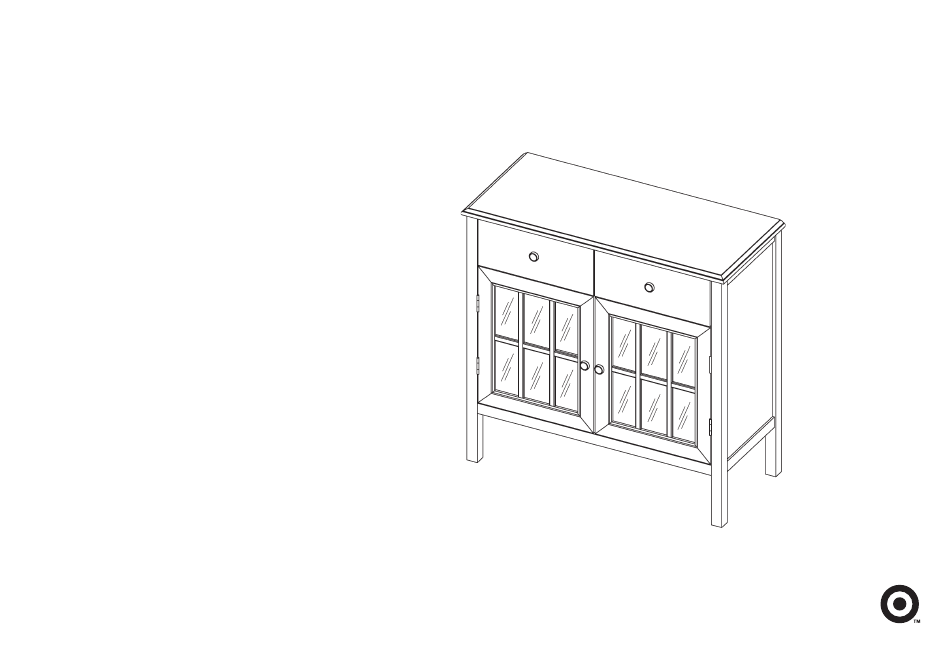

assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target Windham WNCBDW2DBK
Summary of Contents for Target Windham WNCBDW2DBK
- Page 1 # WNCBDW2DGG (green garnish) dpci # 249-16-4302 style # WNCBDW2DOV (overcast) dpci # 249-16-4306 style # WNCBDW2DBN (banana split) dpci # 249-16-4315 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 8-17 how to adjust door alignment QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number ready when calling.
-
Page 4: Table Of Contents
hardware (H1) x 16 (H2) x 6 (H3) x 6 (H4) x 4 (H5) x 6 wooden dowel cam bolt bolt washer (H6) x 4 (H7) x 1 (H8) x 19 (H9) x 4 (H10) x 4 lock washer allen wrench 5/8’’... - Page 5 hardware (H16) x 1 (H17) x 1 (H18) x 1 (H19) x 1 wall anchor 38mm wall screw wall strap 19mm pan-head screw...
- Page 6 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side panel right side panel bottom panel adjustable shelf left door right door back panel trim drawer front left drawer side right drawer side drawer back drawer panel drawer rail...
- Page 7 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cross-bored Push cam into panel - arrow feature hole(s) and insert all the way until on cam top points to panel edge panels are flush Rotate cam(s) clockwise 180°...
-
Page 8: (H1) X 4
step 1: attach trim and bottom panel to left side panel finished edge (H1) x 4 (H2) x 3 (H3) x 3 wooden dowel cam bolt 1.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out. 1.2. - Page 9 step 2: attach right side panel (H1) x 4 (H2) x 3 (H3) x 3 wooden dowel cam bolt 2.1. Carefully tap small wooden dowels into place in right side panel. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush in right side panel. 2.3.
- Page 10 step 3: attach top panel (H1) x 4 (H4) x 4 (H5) x 4 (H6) x 4 (H7) x 1 wooden dowel bolt washer lock washer allen wrench 3.1. Carefully tap small wooden dowels into place in top panel. Leave 1/2” of the dowels sticking out. 3.2.
-
Page 11: (H8) X 19
step 4: attach back panel **FAILURE TO FOLLOW ALL DIRECTIONS ON THIS PAGE MAY RESULT IN UNEVEN DOOR ALIGNMENT** pre-drilled holes hole for anti-tip strap Begin by installing all of the screws along one edge of the back panel. Next, using a square or tape measure, make sure that the cabinet is square. -
Page 12: (H10) X 2
step 5: attach knobs to doors (H9) x 2 (H10) x 2 knob knob bolt 5.1 Align knob bolts with pre-drilled holes to attach knobs to doors. Do not over tighten bolts. - Page 13 step 6: attach doors to cabinet (H11) x 8 short flat-head screw 6.1 Align flat-head screws with pre-drilled holes to attach doors to cabinet. Do not over tighten screws.
- Page 14 step 7: install adjustable shelves (H12) x 4 shelf supports 7.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 7.1. Insert shelf supports into desired hole. Different holes accommodate different shelf heights. 7.2. Angle shelf to fit between the rails and set on top of shelf supports. 7.2.
-
Page 15: (H15) X 8
step 8: assemble drawer box arrowed sticker will point to the back side of drawer face. (H1) x 4 (H13) x 2 (H14) x 2 (H15) x 8 wooden dowel small cam bolt small cam long flat-head screw 8.1. Align flat-head screws with pre-drilled holes to attach drawer sides to drawer front. Do not over tighten screws. Align flat-head screws with pre-drilled holes to attach drawer sides to drawer front. - Page 16 step 9: install drawer and knob (H9) x 2 (H10) x 2 knob knob bolt 9.1 Align knob bolts with pre-drilled holes to attach knobs to drawer. Do not over tighten bolts. 9.2 Align tracks on drawer box with tracks on left side panel and right side panel.
- Page 17 step 10: install anti-tip kit (H18) (H5) (H19) (H16) Position against wall Mark position of strap hole on Mark position of strap hole on wall wall Drill 1/4’’ hole Tap in wall anchor Fasten anti-tip strap Fasten anti-tip strap with flat-head screw provided with flat-head screw provided (H17) (H5)
- Page 18 how to adjust door alignment Tips for proper door alignment: -Adjustable levelers will reduce minor door mis-alignments caused by an uneven floor. -Use a level to determine if the cabinet top is level. If not, start with the levelers retracted and adjust them as needed.To retract the levelers turn them counterclockwise.
- Page 19 WARNING Serious or fatal crushing injuries can occur from furniture tip-over. To help prevent tip-over: 80 lbs. • Install tip-over restraint provided. • Place heaviest items in the lowest drawers. 15 lbs. • Do not set TV's or other heavy objects on top of this product, unless the product is specifically designed to accommodate them.
- Page 20 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
