Installing the Cisco Remote PHY Shelf 7200

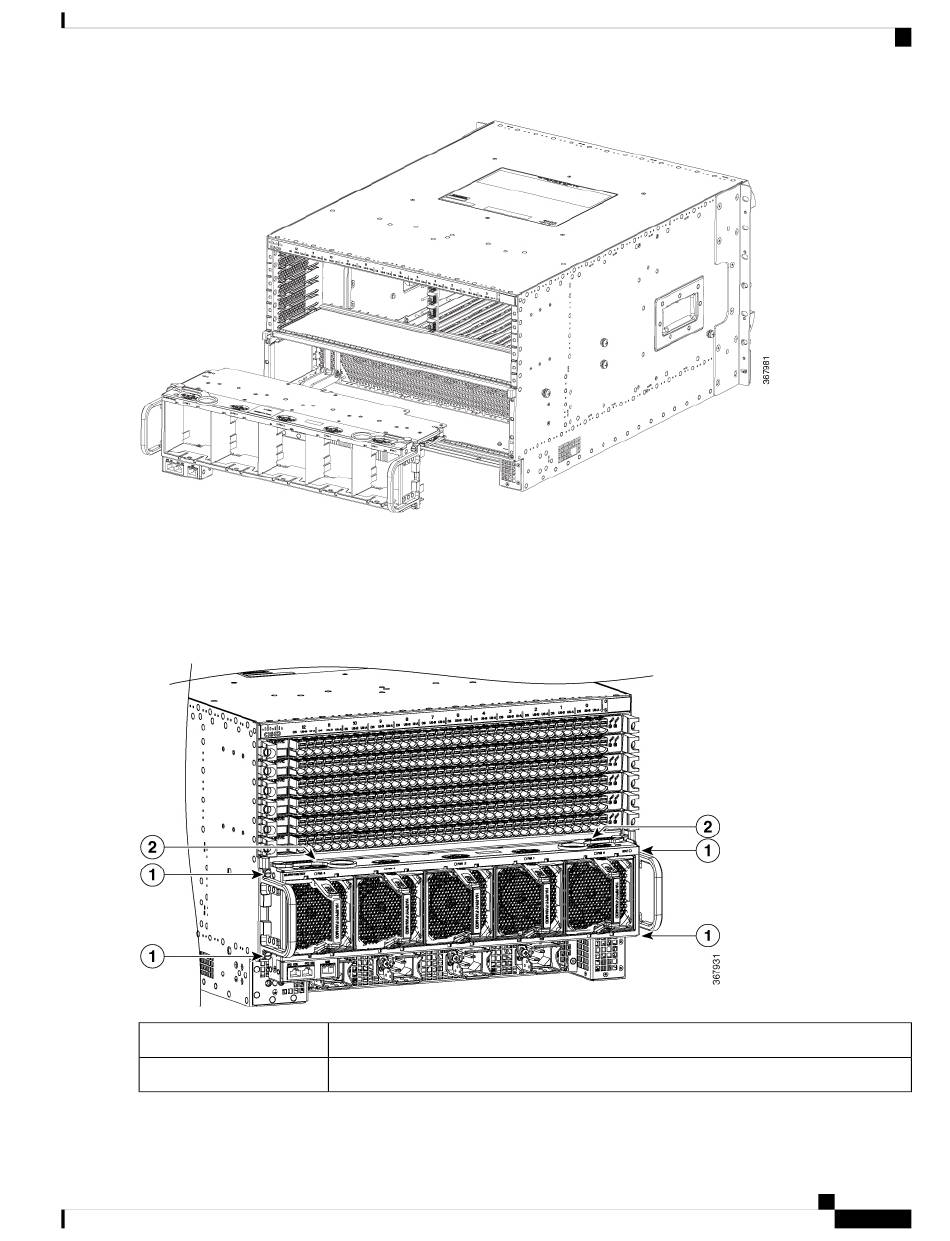

Step 2 Slide in the Fan Tray gently.
Step 3
Use both the ejectors at the same time to insert the Fan Tray.
Note Using only one ejector for Fan Tray installation could cause damage to the Fan Tray connector.
Step 4
Secure the 4 mounting screws on the Cisco Remote PHY Shelf 7200 Fan Tray to the chassis. Torque to 8 Lb-In.
1
2
Fan Tray Screws
Ejectors
Installing the Cisco Remote PHY Shelf 7200
Installing the Fan Tray
