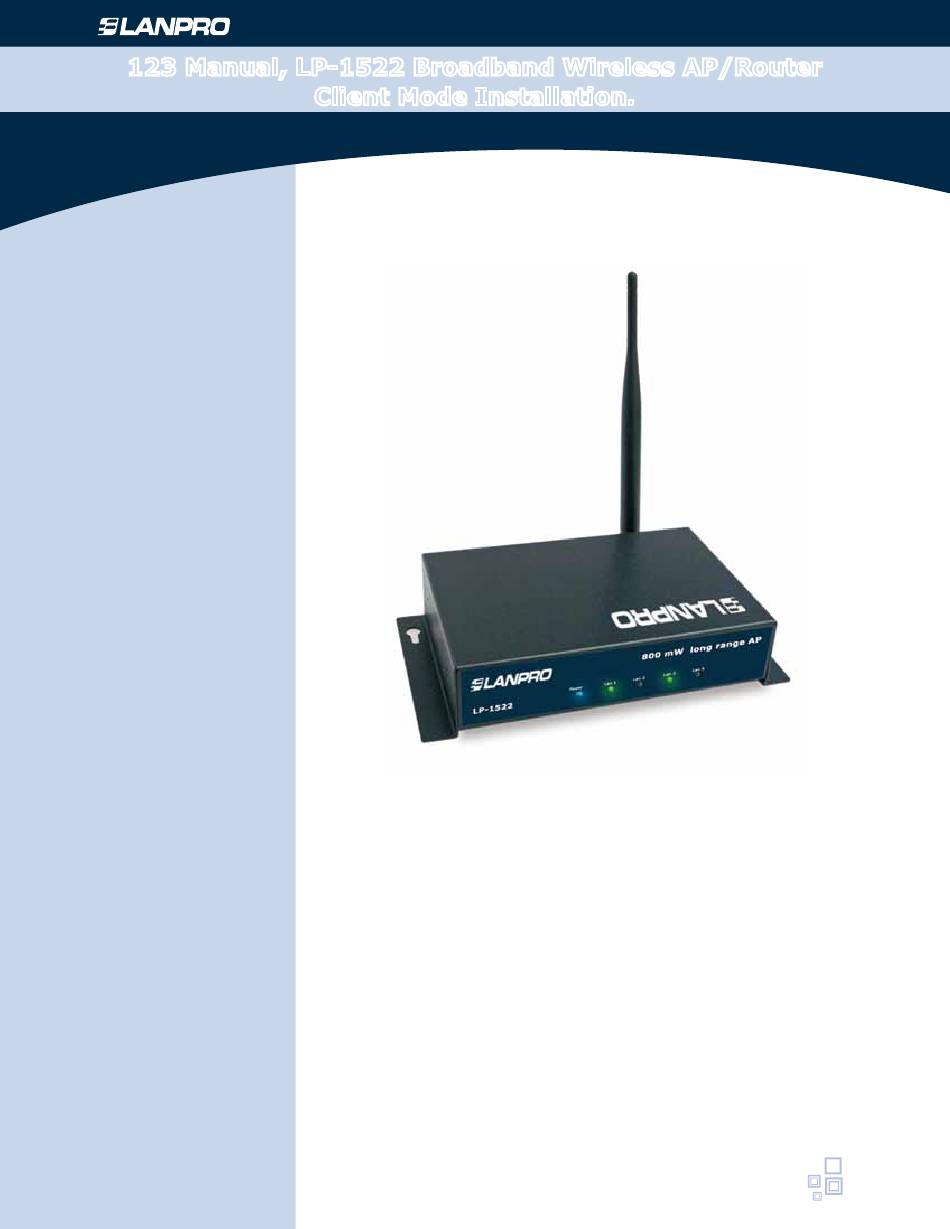

- Page 1 Wireless - Equipment 123 Manual, LP-1522 Broadband Wireless AP/Router Client Mode Installation. LP1522_M123_END02W 123 Manual, LP-1522 Broadband Wireless AP/Router Client Mode Installation. www.lanpro.com...
- Page 2 Wireless - Equipment - 2.4 GHz - 123 Manual - LP-1522 - Broadband Wireless AP/Router Wireless - Equipment - 2.4 GHz - 123 Manual Client Mode Installation LP1522- Client Mode Installation. Please check box contents, please see figure 1. Figure 1 Please screw the antenna to the antenna connector as shown in figure 2.
- Page 3 Wireless - Equipment - 2.4 GHz - 123 Manual - LP-1522 - Broadband Wireless AP/Router Client Mode Installation. Go to the Local Area Connection Properties window of your network card (shown in figure 5) and select: Internet Protocol, then: Properties.
- Page 4 Wireless - Equipment - 2.4 GHz - 123 Manual - LP-1522 - Broadband Wireless AP/Router Wireless - Equipment - 2.4 GHz - 123 Manual Client Mode Installation LP1522- Client Mode Installation. In this diagram, the destination network is the yellow colored one. In it, there exists a router that provides the Internet connection and has been enabled to deliver IP addresses in the segment: 192.168.1.x, with the rest as reserve.
- Page 5 Figure 12 Once connected, a message will pop-up shown in figure 13. Figure 13 Once the configuration has been done, the LP-1522 will connect automatically even though you disconnect it and connect it again. Important Recommendation (Optional) As shown in figure 14, proceed to change the administrative password of your equipment.
