- Page 1 INSTRUCTION MANUAL Cordless Pole Hedge Trimmer DUN500W DUN600L Read before use.
-
Page 2: Specifications
Noise Beware of electrical lines, risk of electrical The typical A-weighted noise level determined accord- shock. ing to EN62841-4-2: Keep distance at least 15 m. Model DUN500W Sound pressure level (L ) : 81.5 dB(A) Sound power level (L ) : 92.5 dB (A) Uncertainty (K) : 3 dB(A) Model DUN600L Sound pressure level (L ) : 82.5 dB(A) -
Page 3: Ec Declaration Of Conformity
Right hand (Rear grip) Uncertainty K Uncertainty K (m/s (m/s (m/s (m/s DUN500W 2.5 m/s less DUN600L NOTE: The declared vibration total value(s) has been measured in accordance with a standard test method and may be used for comparing one tool with another. NOTE: The declared vibration total value(s) may also be used in a preliminary assessment of exposure. The vibration emission during actual use of the power tool can differ from the declared WARNING: value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed. - Page 4 Power tools can produce electromagnetic fields Power tool use and care (EMF) that are not harmful to the user. However, Do not force the power tool. Use the correct users of pacemakers and other similar medical power tool for your application. The correct power tool will do the job better and safer at the devices should contact the maker of their device and/ or doctor for advice before operating this power tool.
-
Page 5: Additional Safety Instructions
Do not use a battery pack or tool that is dam- Always use two hands when operating the pole aged or modified. Damaged or modified batteries hedge trimmer. Hold the pole hedge trimmer with may exhibit unpredictable behaviour resulting in both hands to avoid loss of control. fire, explosion or risk of injury. 10. Always use head protection when operating Do not expose a battery pack or tool to fire or the pole hedge trimmer overhead. - Page 6 17. Hold the tool firmly when using the tool. Operation Always use two hands to operate the tool fitted 18. Do not operate the tool at no-load with two handles. Using one hand could cause unnecessarily. loss of control and result in serious personal injury. 19. Before checking the shear blades, taking care of faults, or removing foreign objects caught While operating the tool, always ensure that in the shear blades, always switch off the tool...
- Page 7 MISUSE or failure to follow the safety CAUTION: Only use genuine Makita batteries. rules stated in this instruction manual may cause Use of non-genuine Makita batteries, or batteries that serious personal injury. have been altered, may result in the battery bursting causing fires, personal injury and damage. It will Important safety instructions for...
-
Page 8: Parts Description

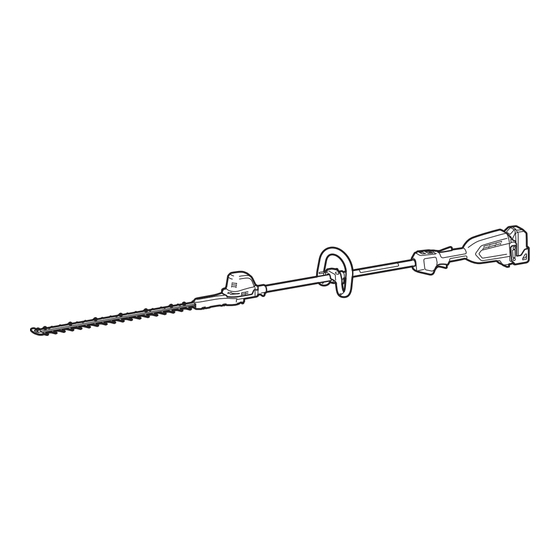

PARTS DESCRIPTION DUN500W DUN600L Head Front grip Hanger Lever Battery cartridge Rear grip Switch trigger Slide sleeve Shear blades Speed indicator Power lamp Reverse button Main power button Handle 8 ENGLISH... -
Page 9: Functional Description
Indicating the remaining battery FUNCTIONAL capacity DESCRIPTION Only for battery cartridges with the indicator CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge Always switch off the tool before CAUTION:... - Page 10 Tool / battery protection system Power switch action The tool is equipped with a tool/battery protection sys- WARNING: For your safety, this tool is equipped tem. This system automatically cuts off power to the with lever which prevents the tool from unintended motor to extend tool and battery life. The tool will auto- starting. NEVER use the tool if it runs when you sim- matically stop during operation if the tool or battery is ply pull the switch trigger without pressing the lever. placed under one of the following conditions: Return the tool to our authorized service center for proper repairs BEFORE further usage.
-
Page 11: Adjusting The Cutting Angle
2,000 min CAUTION: When folding the head, be careful not to pinch your fingers between the head and the slide sleeve. For DUN500W Reverse button for debris removal The angle of the head can be adjusted in 6 steps. To change the angle of the head, follow the steps below. WARNING:... - Page 12 NOTICE: When replacing the shear blades, do not wipe off grease from the gear and crank. NOTICE: For DUN500W Do not install 600 mm shear blades to your tool. If 600 mm shear blades are installed to the tool, you cannot fold the head of the tool. NOTE:...
- Page 13 Adjust the crank so that 2 holes are lined up on Remove the rod and the bearing. the alignment line. ► 1 . Rod 2. Bearing ► 1 . Hole 2. Alignment line NOTE: The rod or bearing may remain on the cover. Remove 2 bolts, 2 sleeves, and the felt pad, and Align the protrusions on the shear blades vertically then remove the shear blades. at the same position.
- Page 14 Insert the protrusion on the shear blades to the Attach the bearing and the rod. hole on the rod, then align the position of the felt pad with the holes on the tool, and then attach the sleeves. ► 1 . Rod 2. Small hole 3. Bearing NOTICE: Apply a small amount of grease to the inner periphery of the small hole of the rod.
-
Page 15: Operation
Install the shear blades again. NOTICE: If the parts other than the shear blades such as the rods are worn out, ask Makita Authorized Service Centers for parts replacement or repairs. OPERATION Attaching the shoulder harness... -
Page 16: Operating The Tool
Hold the tool with both hands. Operating the tool For DUN500W WARNING: Do not use the tool near any electrical power lines. Contacting with power lines or using the tool near power lines may cause serious injury or electric shock resulting in death. WARNING: Keep hands away from shear blades. WARNING: Be extremely careful to maintain control of the tool at all times. -
Page 17: Maintenance
For basic operation, tilt the shear blades toward the To maintain product SAFETY and RELIABILITY, trimming direction and move it calmly and slowly at the repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service speed rate of 3 to 4 seconds per meter. Centers, always using Makita replacement parts. Cleaning the tool 15 m Clean the tool by wiping off dust with a dry cloth or one dipped in soapy water and wrung out. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. -
Page 18: Grease Lubrication
Place the tool upside down, and then remove the Grinding the shear blades burrs from the shear blades with the file. NOTICE: If the shear blades have considerably deformed by grinding, replace the shear blades with new ones. Install the battery cartridge to the tool. Turn on and start the tool so that the upper blade and lower blade are positioned alternately. -
Page 19: Troubleshooting
Electric malfunction. Remove the battery immediately! service center for repair. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. If you need any assistance for more details regard- ing these accessories, ask your local Makita Service Center. - Page 20 Jan-Baptist Vinkstraat 2, Makita Europe N.V. 3070 Kortenberg, Belgium 3-11-8, Sumiyoshi-cho, Makita Corporation Anjo, Aichi 446-8502 Japan 885757-228 www.makita.com 20191011...
