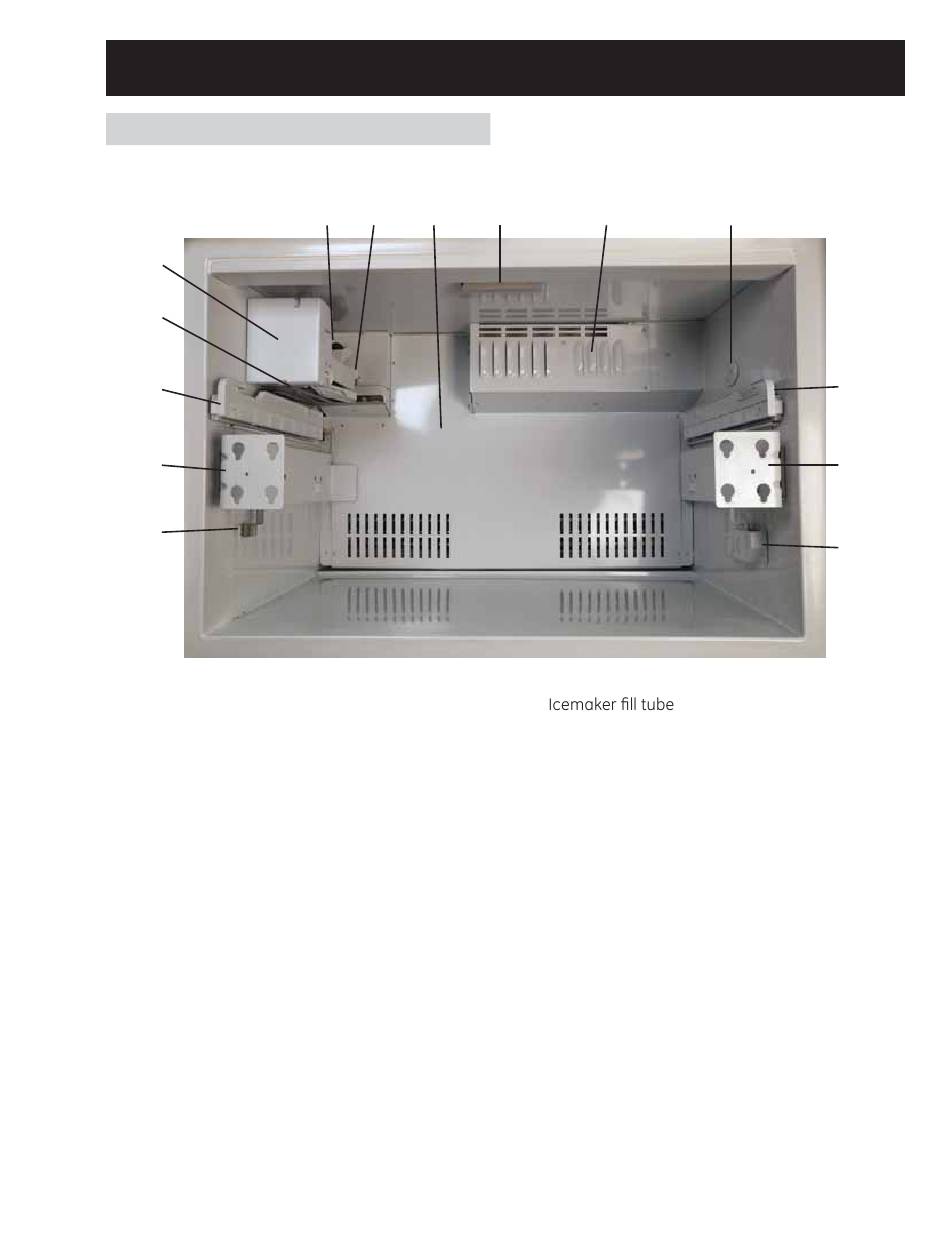

Freezer Interior Component Locator

6
5
4
3
2
1. Freezer drawer closer
2. Freezer drawer switch and actuator
3. Freezer drawer slides
4. Upper basket slides
5. Icemaker diverter
6. Icemaker

Freezer

7 8 9 10
– 25 –
11
7.
8. Icemaker electrical connector
9. Evaporator cover
10. Freezer LED lighting
11. Freezer fan cover
12. Freezer thermistor
12
4
3
1
