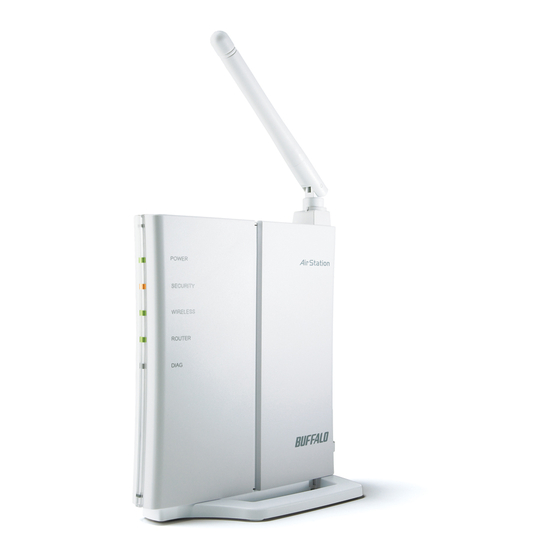

Buffalo WCR-HP-GN User Manual

Airstation n technology highpower wireless n150 router access point & bridge
Hide thumbs Also See for WCR-HP-GN:
Table of Contents

Advertisement

Quick Links

User Manual
WCR-HP-GN
AirStation N Technology HighPower
Wireless N150 Router,
Access Point, & Bridge
www.buffalotech.com
35011715 ver.01

Advertisement

Table of Contents
loading

Related Manuals for Buffalo WCR-HP-GN

Summary of Contents for Buffalo WCR-HP-GN

  • Page 1 User Manual WCR-HP-GN AirStation N Technology HighPower Wireless N150 Router, Access Point, & Bridge www.buffalotech.com 35011715 ver.01...

  • Page 2: Table Of Contents

    Automatic Setup ................16 WDS Setup (Manual) ..............18 Chapter 4 - Configuration ..........21 Accessing the Web-based Configuration Interface ....21 Configuration Menu (Router Mode) ......... 23 Configuration Menu (Bridge Mode) ......... 25 Setup ..................27 WCR-HP-GN User Manual...
  • Page 3 UPnP (Router Mode only) .............. 58 QoS (Router Mode only) ..............59 Admin Config ................60 Name ..................... 60 Password ..................61 Time/Date ..................62 NTP ....................63 Access ................... 64 Log ....................65 Save/Restore ................. 66 Initialize/Restart ................67 WCR-HP-GN User Manual...
  • Page 4 The link speed is slower than 150 Mbps (Maximum link speed is only 72Mbps)................85 Other Tips ................86 Appendix A - Specifications ..........89 Appendix B - Default Configuration Settings ....90 Appendix C - TCP/IP Settings .......... 95 WCR-HP-GN User Manual...
  • Page 5 Appendix D - Restoring the Default Configuration ..99 Appendix E - Regulatory Compliance Information ..100 Appendix F - Environmental Information ....... 105 Appendix G - GPL Information ........106 Appendix H - Warranty Information ........ 107 WCR-HP-GN User Manual...

  • Page 6: Chapter 1 - Product Overview

    • Privacy Separator • MAC address access restriction • Deny Any Connection/SSID stealth • Web configuration interface with password • Firewall with easy rules Automatic Channel Selection Monitors wireless interference and automatically assigns the clearest, best channel. WCR-HP-GN User Manual...

  • Page 7: Air Navigator Cd Requirements

    Following items are included in your AirStation. If any of the items are missing, please contact your vender. • Main unit ....................1 • Detachable antenna ................1 • Stand .....................1 • AC adapter ...................1 • LAN cable .....................1 • AirNavigator CD .................1 • Quick Setup Guide................1 WCR-HP-GN User Manual...

  • Page 8: Hardware Overview

    This indicates the status of the unit depending on the number of blinks per cycle. Note: When the unit is first turned on or restarted, the Diag LED will blink for almost a minute during boot. This is normal. WCR-HP-GN User Manual...
  • Page 9 Unplug the AC adapter from the wall socket, wait for a few seconds, and then plug it again. If the light still flashes, please contact technical support. Never unplug the AC adapter while the Diag LED is blinking continuously. WCR-HP-GN User Manual...

  • Page 10: Back Panel

    Internet (WAN) Port 10 Mbps and 100 Mbps connections are supported. POWER Note: In bridge/AP mode, the Internet port becomes a regular LAN port, for a total of 5 usable LAN ports. Power Connector Connect the included AC adapter. WCR-HP-GN User Manual...

  • Page 11: Bottom

    With the power on, hold down this button until the Diag LED comes on to initialize the AirStation’s settings to their default values. Right Side This sticker shows the AirStation’s SSID, default encryption key, Factory Default Settings and WPS PIN code. By default, encryption key is disabled for Asia Pacific. WCR-HP-GN User Manual...

  • Page 12: Chapter 2 - Placing Your Airstation

    Chapter 2 - Placing Your AirStation Antenna Placement The antenna is included in the package. Screw the antenna clockwise to install. Vertical Placement To place unit vertically, attach the stand as shown below. WCR-HP-GN User Manual...

  • Page 13: Horizontal Placement

    Chapter 2 Placing Your AirStation Horizontal Placement For horizontal placement, the stand is not used. WCR-HP-GN User Manual...

  • Page 14: Chapter 3 - Installation

    Plug the LAN cable from the modem into the Internet (WAN) port of your AirStation. Turn on the modem. modem LAN cable 1) connect 2) connect INTERNET port AirStation wireless router (rear side) WCR-HP-GN User Manual...
  • Page 15 If a user name and password screen are displayed, enter [root] (in lower case) for the user name, leave the password blank, and click [OK]. Follow the instructions on the screen to complete setup. You’ve completed initial setup of your AirStation. Refer to Chapter 4 for advanced settings. WCR-HP-GN User Manual...

  • Page 16: Wds Setup

    Extend the W ER wireless coverage RI TY LE SS W EI DI AG Internet modem wireless AP computer computer wireless connection blocked WCR-HP-GN (WDS enabled) computer WCR-HP-GN User Manual...

  • Page 17: Automatic Setup

    Chapter 3 Installation Automatic Setup Insert the AirNavigator CD into your PC. When the screen below screen appears, click [Start], then [Next]. Choose [WDS Setup]. WCR-HP-GN User Manual...
  • Page 18 , then push the AOSS button on the target AP. If the target AP is not a Buffalo AirStation, select [Manual Configuration]. Click [Scan for SSID]. A list of available wireless AP will be generated. Select the target AP’s SSID from the list and click [Next] to continue.

  • Page 19: Wds Setup (Manual)

    Wait for about a minute, until the AirStation’s LEDs are lit as described below: Power Green light is on Wireless Green light is on Router Green light is on Diag ※ Refer to page 7 for LED locations and other details. WCR-HP-GN User Manual...
  • Page 20 Select [AOSS] from [Connection type] and click the AOSS button. Also push the AOSS button on the unit intended to connect. Automatic configuration will take about a minute. To return the unit to its original IP address settings, refer to Appendix C. WCR-HP-GN User Manual...
  • Page 21 Revert your computer's IP address settings to their original values as scribed in Appendix C (page 95). ex) IP address obtain an IP address automatically Subnet mask obtain DNS server address automatically WDS setup is complete. Refer to Chapter 4 for advanced settings. WCR-HP-GN User Manual...

  • Page 22: Chapter 4 - Configuration

    ･ By default, the password is blank (not set). Note: ･ If you forget your password, hold down the Reset button (page 10) to initialize all settings. The password will then be blank. Note that all other settings will also revert to their default values. WCR-HP-GN User Manual...
  • Page 23 Chapter 4 Configuration The configuration interface is displayed. Help is always displayed on the right side of the configuration interface. Refer to the Help screens for more information on each page. WCR-HP-GN User Manual...

  • Page 24: Configuration Menu (Router Mode)

    Edit IP filters which relates to the packets passing through the LAN side page 54 and the Internet side Configure IPv6 passthrough, PPPoE passthrough, and PPTP passthrough page 55 Pass-through LAN Config Port Forwarding Configure port translation and exceptions for games and other programs page 56 WCR-HP-GN User Manual...
  • Page 25 72 Client Monitor View all devices currently connected to the AirStation page 73 Ping Test the AirStation’s connection to other devices on the network page 74 Logout Click this to log out of the AirStation’s configuration interfaces WCR-HP-GN User Manual...

  • Page 26: Configuration Menu (Bridge Mode)

    Update Update the AirStation’s firmware page 68 Diagnostic System Info View current system information for the AirStation page 69 Logs Check the AirStation’s logs page 71 Packet Info View all packets transferred by the AirStation page 72 WCR-HP-GN User Manual...
  • Page 27 Chapter 4 Configuration Client Monitor View all devices currently connected to the AirStation page 73 Ping Test the AirStation’s connection to other devices on the network page 74 Logout Click this to log out of the AirStation’s configuration interfaces WCR-HP-GN User Manual...

  • Page 28: Setup

    Click this tab to display the configuration interface for wireless set- interface for wireless set- for wireless set- tings. Security Click this tab to display the configuration interface for security. LAN Config Click this tab to display the configuration interface to open ports for games and applications. WCR-HP-GN User Manual...
  • Page 29 If Auto is selected, the same language displayed on the browser will be selected automatically. Logout Log out from the configuration interface of the AirStation. If the web configuration interface is not used for 5 minutes, it will log out automatically. WCR-HP-GN User Manual...

  • Page 30: Internet/Lan (Lan Config)

    Note: Configuring an improper MAC address may make the AirStation unusable. Change this setting at your own risk. MTU size of Internet Port The Internet (WAN) port’s MTU size may be set to any value from 578 to 1500 bytes. WCR-HP-GN User Manual...

  • Page 31: Pppoe (Router Mode Only)

    Fill in this field only when your provider specifies a Service Name. Leave blank otherwise. You may enter up to 32 alphanumerical characters and symbols. Connection Type Specifies the timing for the AirStation to connect to your provider. WCR-HP-GN User Manual...
  • Page 32 If enabled, the AirStation will request an LCP echo from the PPP server once a minute. If the connection server doesn't respond within 6 minutes, the Internet connection will be cut off. If the PPP connection is often cut off, disable this. WCR-HP-GN User Manual...

  • Page 33: Ddns (Router Mode Only)

    Enter your TZO key. TZO keys may have up to 64 alphanumerical characters and symbols. Only when selecting TZO Domain Name Enter your TZO domain name. You may enter up to 255 alphanumerical characters, hyphens, and periods. Only when selecting TZO WCR-HP-GN User Manual...
  • Page 34 DNS service provider. Domain Name The domain name assigned by the dynamic DNS Service provider. The AirStation can be accessed from the Internet using this domain name. Status Displays the current status of the dynamic DNS service. WCR-HP-GN User Manual...

  • Page 35: Lan

    Default Gateway Set the default gateway IP address for the DHCP server to issue to clients. Router Mode only DNS Servers Set the DNS server IP address for the DHCP server to issue to clients. Router Mode only WCR-HP-GN User Manual...
  • Page 36 Set the domain name for the DHCP server to issue to clients. You may enter up to 127 alphanumerical characters, hyphens, and Router Mode only periods. Default Gateway Set the default gateway IP address. Bridge Mode only DNS Server Address Set the DNS server IP address. Bridge Mode only WCR-HP-GN User Manual...

  • Page 37: Dhcp Lease (Router Mode Only)

    MAC Address Enter the MAC address which identifies the client. Current DHCP Client Information Displays information for current leases. An IP address which is leased automatically can be changed to be leased manually by clicking [Manual Assignment]. WCR-HP-GN User Manual...

  • Page 38: Nat (Router Mode Only)

    Configure NAT (network address translation) settings here. NAT is used to connect devices on the LAN side to the Internet. Parameter Meaning Address Translation Enable to use Network Address Translation. Log Output of Deleted Packets Enable logging for deleted packets (such as errors) during address translation. WCR-HP-GN User Manual...

  • Page 39: Route

    The metric is the maximum number of router hops a packet may take on the way to its destination address. Values between 1 and 15 may be entered. The default value is 15. Routing Information Entries will be listed here after being added. WCR-HP-GN User Manual...

  • Page 40: Wireless Config

    Displays the AirStation’s PIN code. Click [Generate PIN] to generate a new PIN code. This code can be entered into other WPS-compatible wireless devices. Enrollee PIN Enter the PIN code for the other wireless device and click [OK]. WPS status Displays WPS status as “configured” or “unconfigured”. WCR-HP-GN User Manual...

  • Page 41: Aoss

    AOSS button on your AOSS-compatible wireless client. Repeat for additional AOSS clients. Click this button to disconnect AOSS connections. Note : If AOSS connections are disconnected, the SSID and encryption keys will be restored to their most recent settings before using AOSS. WCR-HP-GN User Manual...
  • Page 42 EU/US only [Reset] Click to return the SSID, encryption key, and other wireless settings to their previous values. AOSS Client Information Displays status of connected AOSS clients. AOSS Connection only WCR-HP-GN User Manual...

  • Page 43: Basic

    Chapter 4 Configuration Basic Configure basic wireless settings here. WCR-HP-GN User Manual...
  • Page 44 When enabled, wireless devices connected to the AirStation can communicate only with the Internet, not with each other. This parameter does not function if WDS is enabled. SSID Set SSID using 1-32 alphanumeric character(s). Authentication Specify the type of wireless authentication. WCR-HP-GN User Manual...
  • Page 45 Enter an encryption key to encrypt wireless data. Keys may be character or hexadecimal. For a character key, use 5 or 13 alphanumeric characters (case-sensitive). For a hexadecimal key, enter 10 or 26 digits using 0 to 9 and a to f (not case-sensitive). WCR-HP-GN User Manual...
  • Page 46 Chapter 4 Configuration Parameter Meaning Rekey interval Choose an interval from 0 to 1440 minutes for keys to be updated. WCR-HP-GN User Manual...

  • Page 47: Advanced

    AirStation. Wireless devices will be able to connect to the Internet but not with each other. Devices that are connected to the AirStation with wired connections will still be able to connect to wireless devices normally. WCR-HP-GN User Manual...

  • Page 48: Wmm

    Chapter 4 Configuration Configure priorities for specific types of data. Don’t change these settings unless you know what you’re doing. WCR-HP-GN User Manual...
  • Page 49 The unit is 32 ms. The longer this time, the more frames can be sent per right to send. However, the queue may interfere with other packet transmissions. If TXOP Limit is set to 0 (zero), only one frame can be sent per right to send. WCR-HP-GN User Manual...

  • Page 50: Mac Filter

    Enter a MAC address of a wireless device you permit to connect to the AirStation. Click [Register] to add that MAC address to the list. List of all clients that are associated Display the list of all MAC addresses of wireless devices connected with this AirStation to the AirStation. WCR-HP-GN User Manual...

  • Page 51: Wds (Bridge Mode Only)

    AOSS button will appear. This button can be used for WDS connection only. Once AOSS connection is set up, the WCR- GN will have the same security setting as the other AP in the bridge. Refer to page 15 for setup directions. WCR-HP-GN User Manual...
  • Page 52 Enter the target AirStation's wireless authentication method. Encryption Enter the target AirStation's encryption type. WPA-PSK (Pre-shared key) Enter the target AP's Encryption key (if used). WEP encryption key setting Enter the target AP's WEP key (if used). WCR-HP-GN User Manual...

  • Page 53: Security (Router Mode Only)

    WAN and LAN sides of the router. You can configure this with PPPoE if you select [Use PPPoE Client] or [Use IP Unnumbered] in Method of Acquiring IP address (on page 29), or if Easy Setup identified a PPPoE connection during setup. WCR-HP-GN User Manual...
  • Page 54 If this is enabled, the AirStation will not respond to pings from the Internet side. You can configure this with PPPoE if you select [Use PPPoE Client] in Method of Acquiring IP address (page 29), or if Easy Setup identified a PPPoE connection during setup. WCR-HP-GN User Manual...

  • Page 55: Ip Filter (Router Mode Only)

    Specify the transmission direction of target packets. IP Address Specify the sender's IP address and receiver's IP address of the target packets. Protocol Select a protocol for target transmission packet. IP Filter Information Display the list of IP filters which have been registered. WCR-HP-GN User Manual...

  • Page 56: Vpn Pass-Through (Router Mode Only)

    LAN-side IP addresses from your provider using the PPPoE protocol because all PPPoE packets can pass through from the LAN to the WAN side. PPTP Pass-through Enable to use the PPTP pass-through for address translation. WCR-HP-GN User Manual...

  • Page 57: Lan Config (Router Mode Only)

    A group name can include up to 16 alphanumeric letters. Internet Side IP Address Enter the Internet side IP address (before translation) for the port translation table entry. Protocol Select the Internet side protocol (before translation) for the port translation table entry. WCR-HP-GN User Manual...

  • Page 58: Dmz (Router Mode Only)

    IP Address of DMZ Enter the IP address of the destination to which packets which are not routed by a port translation table are forwarded. Note: RIP protocol packets (UDP port number 520) will not be forwarded. WCR-HP-GN User Manual...

  • Page 59: Upnp (Router Mode Only)

    Chapter 4 Configuration UPnP (Router Mode only) Enable UPnP (Universal Plug and Play) here. Parameter Meaning UPnP Enable or disable Universal Plug and Play (UPnP) functionality. WCR-HP-GN User Manual...

  • Page 60: Qos (Router Mode Only)

    Enable Enable or disable this entry. application name Enter an application name. Names may use up to 32 alphanumeric characters, double or single tickmarks ("'), quotation marks (“), and semicolons (;). protocol Select either TCP or UDP. WCR-HP-GN User Manual...

  • Page 61: Admin Config

    * Packets whose type isn’t on the list are treated as a level between medium and low. Admin Config Name Configure the AirStation’s name. Parameter Meaning AirStation Name Enter a name for the AirStation. Names may include up to 64 alphanumeric characters and hyphens (-). WCR-HP-GN User Manual...

  • Page 62: Password

    You may change the login password for the configuration interface here. Parameter Meaning Administrator Name The username for login is fixed as “root”. Administrator Password This password is to log in to the AirStation’s configuration interface. It may contain up to 8 alphanumeric characters and underscores (_). WCR-HP-GN User Manual...

  • Page 63: Time/Date

    You may manually set the date of the AirStation’s internal clock. Local Time You may manually set the time of the AirStation’s internal clock. Time Zone Specify the time zone (offset of Greenwich Mean Time) of the AirStation's internal clock. WCR-HP-GN User Manual...

  • Page 64: Ntp

    IP address. Up to 255 alphanumeric characters, hyphens (-), and underscores (_) may be used. Update Interval How often should the AirStation submit a time request to the NTP server? Intervals of 1 - 24 hours may be set. WCR-HP-GN User Manual...

  • Page 65: Access

    AirStation Router mode only remotely from the Internet side. Permitted Port Displayed only if Internet side configuration is enabled. Set a port Router mode only number (1 - 65535) if configuring the AirStation from the Internet side. WCR-HP-GN User Manual...

  • Page 66: Log

    Identify the syslog server by host name, host name with domain name, or IP address. You may enter up to 255 alphanumeric characters, hyphens (-), and underscores (_). Transfer Logs Choose which logs will be transferred to the syslog server. WCR-HP-GN User Manual...

  • Page 67: Save/Restore

    [Browse] button, navigating to the configuration file, and then clicking Restore. If the configuration file was password protected, then put a check next to [To restore from the file you need the password], enter the password, and click [Open]. WCR-HP-GN User Manual...

  • Page 68: Initialize/Restart

    Chapter 4 Configuration Initialize/Restart Initialize or restart the AirStation from here. Parameter Meaning Restart Click [Restart Now] to restart the AirStation. Initialize Click [Initialize Now] to initialize and restart the AirStation. WCR-HP-GN User Manual...

  • Page 69: Update

    The screen to update the AirStation’s firmware. Parameter Meaning Firmware Version Displays the current firmware version of the AirStation. Firmware File Name Click [Browse] to specify a firmware file and click [Update Firmware]. This will update the firmware. WCR-HP-GN User Manual...

  • Page 70: Diagnostic

    Chapter 4 Configuration Diagnostic System Info System information for the AirStation is displayed here. WCR-HP-GN User Manual...
  • Page 71 Displays AirStation Name (as set on page 60). Operational Mode Displays the current operational mode of the AirStation. Internet Displays WAN port information. Router mode only Displays LAN port information. Wireless Displays wireless status. Displays the status of WDS. Bridge mode only WCR-HP-GN User Manual...

  • Page 72: Logs

    Chapter 4 Configuration Logs View the AirStation’s logs here. Parameter Meaning Display log info Choose the type of logs to display. Logs Displays the selected logs. WCR-HP-GN User Manual...

  • Page 73: Packet Info

    Sent Displays the number of packets sent to the WAN (Internet), the Ethernet LAN, and the wireless LAN. Received Displays the number of packets received from the WAN (the Internet), the Ethernet LAN, and the wireless LAN. WCR-HP-GN User Manual...

  • Page 74: Client Monitor

    This screen shows devices that are connected to the AirStation. Parameter Meaning Client Monitor Displays information ( MAC address, lease IP address, host name, communication method, wireless authentication and 802.11n) for devices that are connected to the AirStation. WCR-HP-GN User Manual...

  • Page 75: Ping

    A ping test checks whether the AirStation can communicate with a specific network device. Parameter Meaning Destination Address Enter an IP address or a hostname to ping, and click [Execute]. The result will be displayed in the [Result] field. WCR-HP-GN User Manual...

  • Page 76: Chapter 5 - Connect To A Wireless Network

    PC or Game console (AOSS Devices) • Before using AOSS/WPS to connect to a computer with a Buffalo wireless client, install Client Manager software from the included AirNavigator CD on the computer. Consult your wireless client’s documentation for more information.

  • Page 77: Windows 7 Or Vista (Client Manager V)

    AOSS or WPS compatible devices. Click the icon in the system tray, or navigate through the [Start] menu to [All Programs] > [BUFFALO] > [AirStation Utility] > [ClientManagerV]. When the screen at left is displayed, click [Create Profi le].

  • Page 78: Windows Xp (Client Manager 3)

    AOSS/WPS. When instructed, hold down the AOSS button (page 10) on the AirStation for 3 seconds. Automatic confi guration will take about a minute. When automatic confi guration is complete, the Security LED (page 7) will stop fl ashing and glow steadily. Your AOSS/WPS connection is now ready to use. WCR-HP-GN User Manual...
  • Page 79 With Windows 7, use WLAN AutoConfig to connect to the AirStation. Click on the network icon in the system tray . Select the target AirStation’s name and click [Connect]. If you will be connecting to this device in the future, checking [Connect automatically] is recommended. WCR-HP-GN User Manual...
  • Page 80 With Windows Vista, use WLAN AutoConfig to connect to the AirStation. Right click on the wireless network icon in the system tray. Click [Connect to a network]. When the screen at left is displayed, select the network to connect to and click [Connect]. WCR-HP-GN User Manual...
  • Page 81 Chapter 5 Connect to a Wireless Network If the screen below is displayed, click [I want to enter the network key or passphrase instead]. Otherwise,go to step 4. WCR-HP-GN User Manual...
  • Page 82 Chapter 5 Connect to a Wireless Network Enter the encryption key and click [Connect]. Step through the wizard to finish configuration. If the Set Network Location screen is displayed, select [Home], [Work], or [Public location] depending where you’re using the AirStation. WCR-HP-GN User Manual...
  • Page 83 Click [View Available Wireless Networks]. Select the network to connect to and click [Connect]. Enter the encryption key (twice) and click [Connect]. Wireless Zero Config will automatically connect you to the network. WCR-HP-GN User Manual...
  • Page 84 Enter the value for the KEY that was noted in step 1 into the Password entry box, insert a check mark into [Remember this network], and click [OK]. Follow the instructions displayed on the screen to finish configuration. WCR-HP-GN User Manual...

  • Page 85: Chapter 6 - Troubleshooting

    • Make sure that your computer is configured to [Obtain an IP Address Automatically]. (page 95) • Restart your AirStation. Cannot connect to the network wirelessly. • Configure your wireless device with the same SSID, encryption type, and encryption key as used by your AirStation. WCR-HP-GN User Manual...

  • Page 86: You Forgot Airstation's Ssid, Encryption Key, Or Password

    Chapter 6 Trouble Shooting The factory defaults are: SSID - BUFFALO-XXXXXX (the last 6 digits of the AirStation’s MAC address) Encryption Type - WPA/WPA2 mixed mode - PSK (Connect with either WPA-PSK TKIP or WPA2-PSK AES). Encryption Key - Printed on the label of the AirStation.

  • Page 87: Other Tips

    Log in to the wireless router with your browser. Go to the Wireless Config tab and then select the Basic tab. Buffalo recommends the use of WPA/WPA2 mixed for wireless encryption. The passphrase/ key should be at least 8 characters in length.
  • Page 88 Internet Service Provider who installed the modem. If an Internet connection IS available with a direct connection to the computer, please call our customer support. Issue: Where can I download the latest drivers, firmware, and instructions for my Buffalo wireless products? WCR-HP-GN User Manual...
  • Page 89 Chapter 6 Trouble Shooting Answer: The latest drivers and firmware are available online at www.buffalotech.com WCR-HP-GN User Manual...

  • Page 90: Appendix A - Specifications

    130 mm x 105 mm x 23 mm (5.1 x 4.1 x 0.9 in.) without antenna Weight 146 g (5.1 oz.) without stand and antenna Operating Environment 0 - 40° C (32 - 104° F), 20 - 80% (non-condensing) WCR-HP-GN User Manual...

  • Page 91: Appendix B - Default Configuration Settings

    LAN Side IP Address Router Mode: 192.168.11.1 (255.255.255.0) Bridge Mode 192.168.11.100 (255.255.255.0) DHCP Server Enabled Router Mode only DHCP IP Address Pool 192.168.11.2 for up to 64 addresses Router Mode only Lease Period 48 hours Router Mode only WCR-HP-GN User Manual...
  • Page 92 (Printed on the label of the AirStation) WPS Security Information WPS status: unconfigured AOSS Encryption Type of Exclusive none SSID for WEP Encryption level expansion Enabled function Dedicated WEP SSID isolation Disabled AOSS Button on the AirStation Enabled Unit WCR-HP-GN User Manual...
  • Page 93 SSID4: not used Separate feature SSID1: not used SSID2: not used SSID3: not used SSID4: not used Authentication No authentication Encryption No encryption Rekey interval 60 minutes Advanced Multicast Rate 1 Mbps DTIM Period Privacy Separator Disabled WCR-HP-GN User Manual...
  • Page 94 Reject IDENT Requests Enabled Block Ping from Internet Enabled IP Filter Log Output Disabled Router Mode only IP Filter Information none VPN Pass IPv6 Pass Through Disabled Through PPPoE Pass Through Disabled Router Mode only PPTP Pass Through Disabled WCR-HP-GN User Manual...
  • Page 95 Dynamic DNS, DHCP Client, DHCP Server, AOSS, Wireless Client, Authentication, Setting Changes, System Boot, NTP Client, and Wired Link Bridge Mode: IP Filter, DHCP Client, AOSS, Wireless Client, Au- thentication, Setting Changes, System Boot, NTP Client, and Wired Link WCR-HP-GN User Manual...

  • Page 96: Appendix C - Tcp/Ip Settings

    To set your IP address settings manually, enter values for each settings. Example: If the router’s IP address is 192.168.11.1, IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway 192.168.11.1 Preferred DNS server 192.168.11.1 Alternate DNS server blank Click [OK]. WCR-HP-GN User Manual...

  • Page 97: Windows Vista

    To set your IP address settings manually, enter values for each settings. Example: If the router’s IP address is 192.168.11.1, IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway 192.168.11.1 Preferred DNS server 192.168.11.1 Alternate DNS server blank Click [Close]. WCR-HP-GN User Manual...

  • Page 98: Windows Xp

    To set your IP address settings manually, enter values for each setting. Example:. If the router’s IP address is 192.168.11.1, IP address 192.168.11.80 Subnet mask 255.255.255.0 Default gateway 192.168.11.1 Preferred DNS server 192.168.11.1 Alternate DNS server blank Click [Close]. WCR-HP-GN User Manual...

  • Page 99: Mac Os X

    To set your IP address settings manually, select [Manually] in the Configure IPv4 field, and enter values for each setting. Example:. If the router’s IP address is 192.168.11.1, IP Address 192.168.11.80 Subnet Mask 255.255.255.0 Router 192.168.11.1 DNS Server 192.168.11.1 Search Domains blank Click [Apply]. WCR-HP-GN User Manual...

  • Page 100: Appendix D - Restoring The Default Configuration

    Appendix D - Restoring the Default Configura- tion Hold down this button for 3 seconds. The AirStation will be initialized. WCR-HP-GN User Manual...

  • Page 101: Appendix E - Regulatory Compliance Information

    The availability of some specific channels and/or operational frequency bands are country depen- dent and are firmware programmed at the factory to match the intended destination. The firmware setting is not accessible by the end user. WCR-HP-GN User Manual...
  • Page 102 This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France. WCR-HP-GN User Manual...
  • Page 103 Hereby, Buffalo Technology Inc. declares that this AirStation WCR-HP-GN is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Español[Spanish] Por medio de la presente Buffalo Technology Inc. declara que el AirStation WCR-HP-GN cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 104 Buffalo Technology Inc. declara que este AirStation WCR-HP-GN está conforme com os requisitos essenciais e outras disposições da Directiva 1999/5/CE. Slovensko[Slovenian] Buffalo Technology Inc. izjavlja, da je ta AirStation WCR-HP-GN v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 1999/5/ES. Slovensky[Slovak] Buffalo Technology Inc.
  • Page 105 50 ohms. 根據 NCC 低功率電波輻射性電機管制辦法： 第十二條： 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不得擅自變更頻率、加 大功率或變更原設計之特性及功能。 第十四條： 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停用， 並改善至無干擾時方得繼續使用。前項合法通信，指依電信法規定作業之無線電通信。低功率 射頻電機須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干擾。 이 기기는 가정용으로 전자파적합등록을 한 기기로서 주거지역에서는 물론 모든 지역에서 사 용할 수 있습니다 . 해당 무선설비는 전파혼신 가능성이 있으므로 인명안전과 관련된 서비스는 할 수 없음 WCR-HP-GN User Manual...

  • Page 106: Appendix F - Environmental Information

    • The take-back systems will reuse or recycle most of the materials of your end life equipment in a sound way. • The crossed-out wheeled bin symbol invites you to use those systems. • If you need more information on the collection, reuse and recycling systems, please contact your local or regional waste administration. WCR-HP-GN User Manual...

  • Page 107: Appendix G - Gpl Information

    Appendix G - GPL Information The source code for Buffalo products that use GPL code is available at http://opensource.buffalo.jp/ . WCR-HP-GN User Manual...

  • Page 108: Appendix H - Warranty Information

    Buffalo products. In no event shall Buffalo Technology/(Buffalo Inc.) liability exceed the price paid for the product from direct, indirect, special, incidental, or consequential damages resulting from the use of the product, its accompanying software, or its documentation.

Table of Contents
