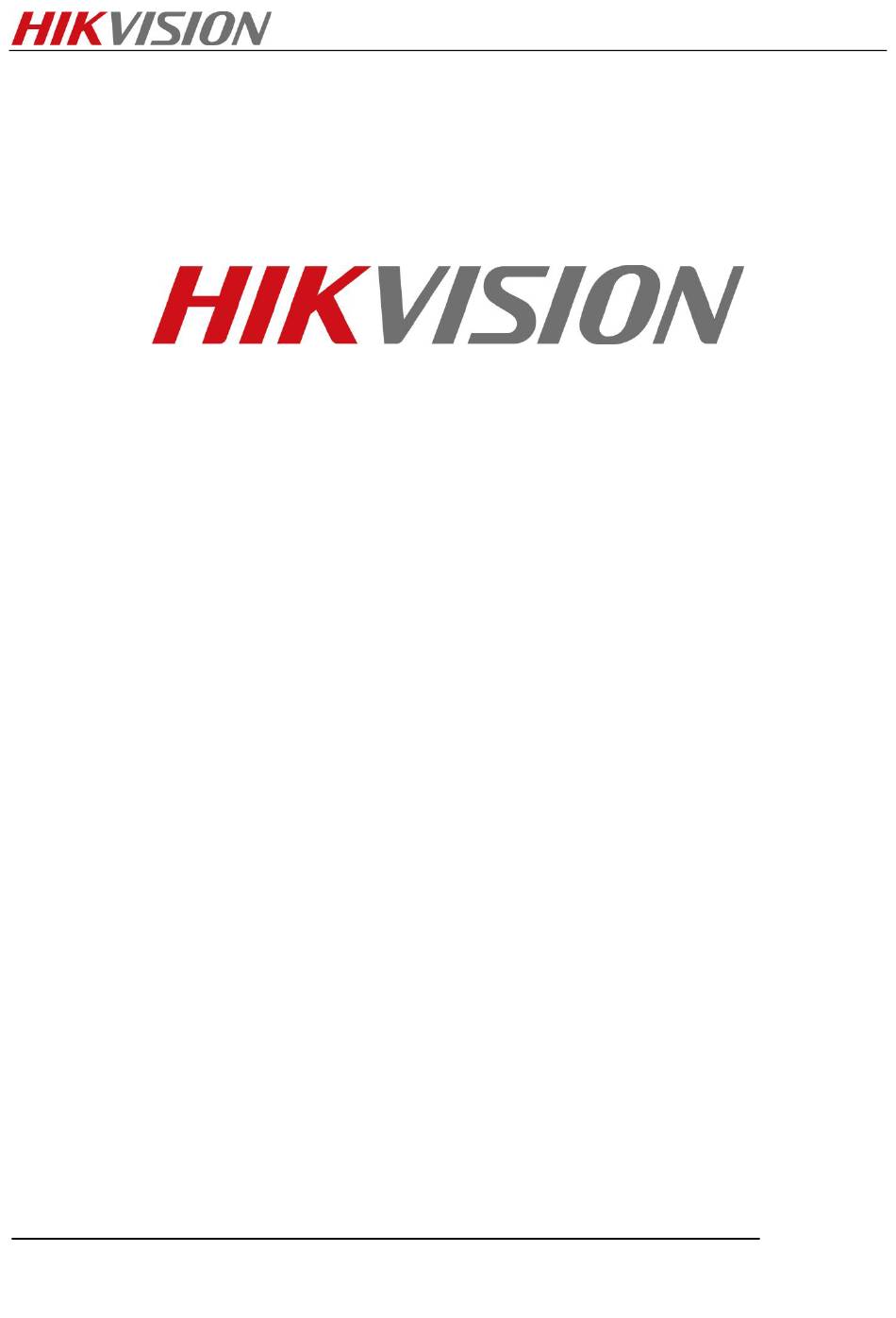

Page 1: Color Camera
Hikvision Technical Manual Color Camera Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved. - Page 2 It may not be reproduced in whole or in part, in any form, or by any means or be used for any other purpose without prior written consent of HIKVISION and then only on the condition that this notice is included in any such reproduction. No information as to the contents or...
-
Page 3: Key Features
560 TVL CCD ICR Weather-proof Vandal-proof Dome Camera Camera Image Sensor 1/3” SONY Super HAD CCD II Signal System PAL/NTSC PAL: 752 (H) × 582 (V) Effective Pixels NTSC: 768 (H) × 494 (V) ©2006 – 2011 by HIKVISION. All rights reserved. - Page 4 High Light Reversion Value Indoor/Outdoor/Off Anti-flicker On/Off Language English/Chinese SMART IR, Digital Wide Dynamic Range, High Light Reversion, Video Gamma Correction, Digital Zoom, Digital Noise Reduction, POS/NEG ,Mirror, Sharpness, Y, C, Blemish Detection ©2006 – 2011 by HIKVISION. All rights reserved.
-
Page 5: Order Models
IEC60068-2-75 test, Eh, 50J; EN50102, up to IK10. Dimension Φ 145.3 × 124.2 mm (Φ 5.72” × 4.89”) Weight 2000 g (4.40 lbs) Order Models DS-2CC5173P-VP DS-2CC5173P-VPIR DS-2CC5173P-VPH DS-2CC5173P-VPIRH DS-2CC5173N-VP DS-2CC5173N-VPIR DS-2CC5173N-VPH DS-2CC5173N-VPIRH Dimension Unit: mm Dimension with DS-1240ZJ: ©2006 – 2011 by HIKVISION. All rights reserved. - Page 6 Hikvision Technical Manual Unit: mm Accessories Vandal-proof wall mount Tilted wall-mount Unify Pendant mount Unify Pendant mount DS-1229ZJ DS-1240ZJ DS-1242ZJ DS-1243ZJ ©2006 – 2011 by HIKVISION. All rights reserved.
- Page 7 Hikvision Technical Manual ©2006 – 2011 by HIKVISION. All rights reserved.
