Cisco Model DPC2203 Cable Modem with Embedded MTA
®
The Cisco
Model DPC2203 Cable Modem (DPC2203) is a high-speed cable modem
with an embedded media terminal adapter (EMTA). The DPC2203 features two RJ-11
telephone ports for Voice over Internet Protocol (VoIP) service along with a 10/100BASE-
T Ethernet port and a USB 1.1 port for high-speed data connectivity.
The DPC2203 is designed to meet PacketCable™ 1.5, PacketCable 1.0, and DOCSIS
specifications as well as being backward compatible with DOCSIS 1.1 and DOCSIS 1.0 networks.
The DPC2203 uses advanced line-interface technology to provide multi-country, toll-quality,
telephone service using existing in-home wiring. The DPC2203 supports full 5 REN phone loading
on each phone line (10 REN total).
The DPC2203 fully supports the CODECs specified in PacketCable 1.5. Additional CODECs are
available through a software upgrade that includes a high fidelity CODEC option for toll-quality plus
service. Standard VoIP call signaling is compliant with PacketCable's (MGCP/NCS) specifications.
Software upgrades are available to support Session Initiation Protocol (SIP) call signaling.

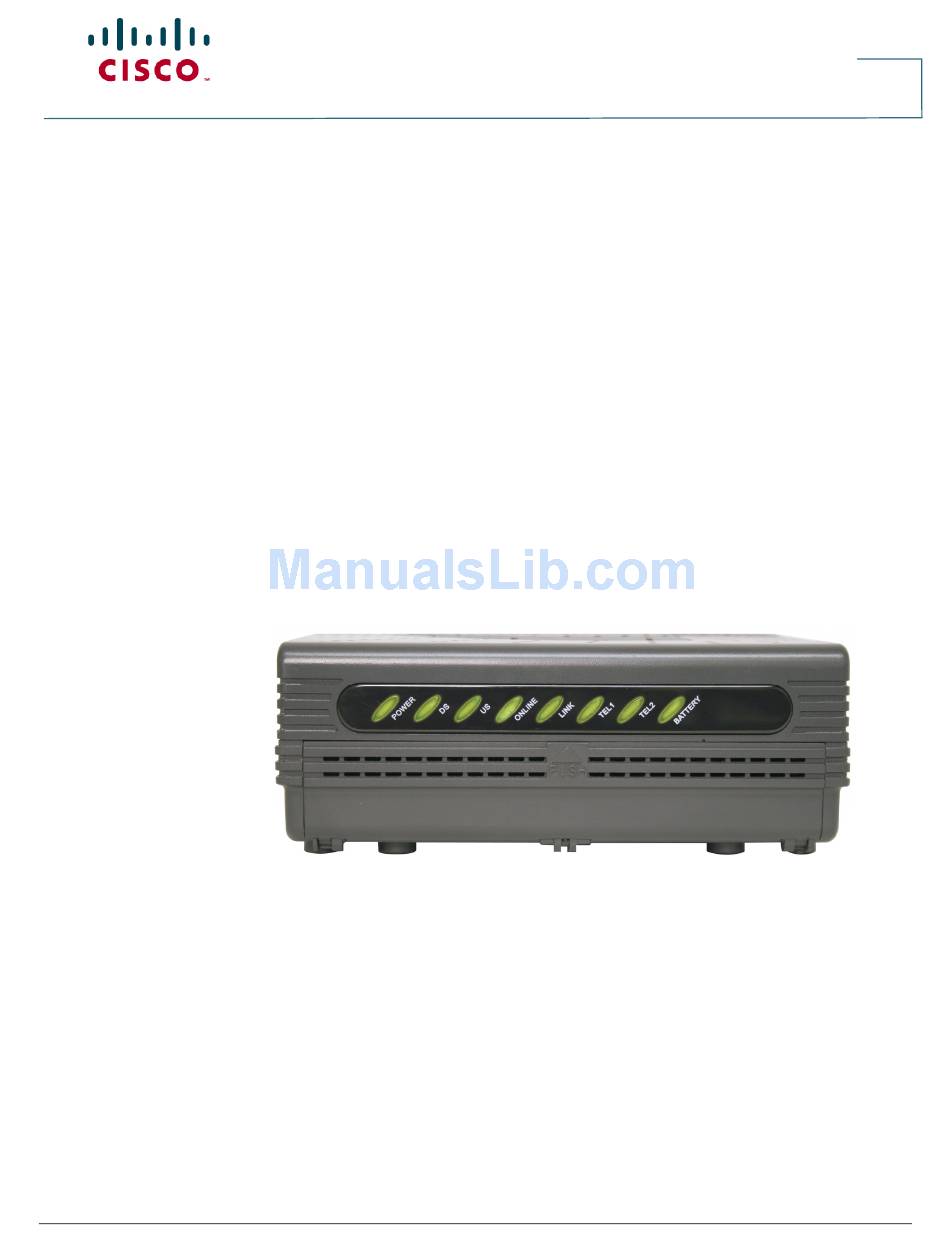

Figure 1.
DPC2203 Cable Modem with Embedded MTA (image may vary from actual product and
specification)
.
Data Sheet
®
2.0
Page 1 of 16

Advertisement

loading

Related Manuals for Cisco DPC2203

Summary of Contents for Cisco DPC2203

  • Page 1 DOCSIS 1.1 and DOCSIS 1.0 networks. The DPC2203 uses advanced line-interface technology to provide multi-country, toll-quality, telephone service using existing in-home wiring. The DPC2203 supports full 5 REN phone loading on each phone line (10 REN total).
  • Page 2 (CPE) Battery Backup (Optional models only) The DPC2203 can be ordered with or without the capability to provide battery backup powering. Units with battery backup capability are available in housings that have either one or two battery bays.
  • Page 3 Figure 2. DPC2203 Cable Modem with Embedded MTA Front Panel (image may vary from actual product and specification) Table 1. Front Panel Features Feature Description Indicators Power, DS, US, Online, Link, Tel1, Tel2, and Battery Color Dark gray housing, green lens, white text Figure 3.

  • Page 4: Product Specifications

    Figure 4. Models Available Models Available “ C” enclosure Support for one battery cartridge Product Specifications Table 3. Product Specifications Specification Value Voice Specifications ● MGCP/NCS including configurable IPsec encryption Call Signaling Protocol ● Configurable to support RFC2833 event signaling ●...

  • Page 5: Specification

    Specification Value ● Full PacketCable secure provisioning Provisioning Modes ● Kerberos support with NVRAM ticket caching ● Configurable PacketCable-lite (MTA config file provisioning without security) ● Configurable for non-PacketCable (MTA configuration using DOCSIS config file) CODECS Standard: G.711, T.38 Fax Relay, iLBC, and BV16 Software upgradeable to support other CODEC combinations including: ●...
  • Page 6 Specification Value ● Caller ID Call Feature Support ● Call Waiting with Caller ID ● Cancel Call Waiting ● Call Conferencing (3-way calls) ● Configurable hook flash support ● Distinctive Ringing (Configurable for up to 11 ring patterns per phone line) ●...
  • Page 7 Following Standards PacketCable 1.0 DOCSIS 2.0 Other Approvals WHQL Regulatory Approvals Certified as required per country where the DPC2203 will be used DOCSIS Mode +8 to +58 dBmV +8 to +55 dBmV +8 to +55 dBmV +8 to +54 dBmV...

  • Page 8: Ordering Information

    Ordering Information Table 4. Ordering Information Description “C” housing with one (1) battery bay 2-Line VoIP Cable Modem with EMTA for NTSC markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 ● Battery backup housing (1 battery bay, bottom loaded) ● 120 VAC / 60 Hz, 15 VDC / 1 A desktop style linear-switching power supply with attached power cord for North America ●...
  • Page 9 Description “C” housing with one (1) battery bay (continued) 2-Line VoIP Cable Modem with EMTA for NTSC markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 ● Battery backup housing (1 battery bay, bottom loaded) ● 120 VAC / 60 Hz, 15 VDC / 1 A desktop style linear-switching power supply with attached power cord for North America ●...
  • Page 10 Description “C” housing with one (1) battery bay (continued) 2-Line VoIP Cable Modem with EMTA for NTSC markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 ● Battery backup housing (1 battery bay, bottom loaded) ● 120 VAC / 60 Hz, 15 VDC / 1 A desktop style linear-switching power supply with attached power cord for North America, polarized ●...
  • Page 11 Description “C” housing with one (1) battery bay (continued) 2-Line VoIP Cable Modem with EMTA for International markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 (PAL/NTSC) ● Battery backup housing (1 battery bay, bottom loaded) ● 100-240 VAC / 50-60 Hz, 15 VDC / 1 A desktop style switching-regulated universal power supply with detachable power cord ●...
  • Page 12 Description Housing with no battery backup capability 2-Line VoIP Cable Modem with EMTA for NTSC markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 ● Standard housing (no battery backup capability) ● 120 VAC / 60 Hz, 12 VDC / 1 A desktop style linear power supply with attached power cord ●...
  • Page 13 Description Housing with no battery backup capability International Configuration - NTSC 1-Line VoIP Cable Modem with EMTA for NTSC markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 ● Standard housing (no battery backup capability) ● 220 VAC / 60 Hz, 12 VDC / 1 A desktop style linear power supply with attached power cord for Argentina ●...
  • Page 14 Description Housing with no battery backup capability (continued) International Configuration – PAL/NTSC 2-Line VoIP Cable Modem with EMTA for International markets. Includes: ● PacketCable 1.0 / DOCSIS 2.0 (NTSC) ● Standard housing (no battery backup capability) ● 100-240 VAC / 50-60 Hz, 12 VDC / 1 A desktop style switching-regulated universal power supply with detachable power cord ●...
  • Page 15 Description AC Power Supplies, 12 VDC (continued) 12 VDC, Linear, Class 2 120 VAC / 60 Hz, 12 VDC / 1 A desktop style linear power supply with attached power cord and connector (not for use in the United States) 220 VAC / 50 Hz, 12 VDC / 1 A desktop style linear power supply with attached power cord and connector for Argentina 220 VAC / 60 Hz, 12 VDC / 1 A desktop style linear power supply with attached power cord...
  • Page 16 Cables Ethernet cable, standard length, 48 inches long Ethernet cable, 2 meters long USB cable User Guide and USB Drivers CD-ROM with user guide and USB drivers Cisco, Cisco Systems, the Cisco logo, and the Cisco Systems logo are registered trademarks or trademarks of Cisco Systems, Inc.
