PRO

Quick Start Guide

August 2017
NETGEAR, Inc.
350 East Plumeria Drive
San Jose, CA 95134, USA
NETGEAR INTL LTD
Building 3, University Technology Centre
Curraheen Road, Cork, Ireland
© NETGEAR, Inc., NETGEAR and the NETGEAR Logo
are trademarks of NETGEAR, Inc. Any non-NETGEAR
trademarks are used for reference purposes only.

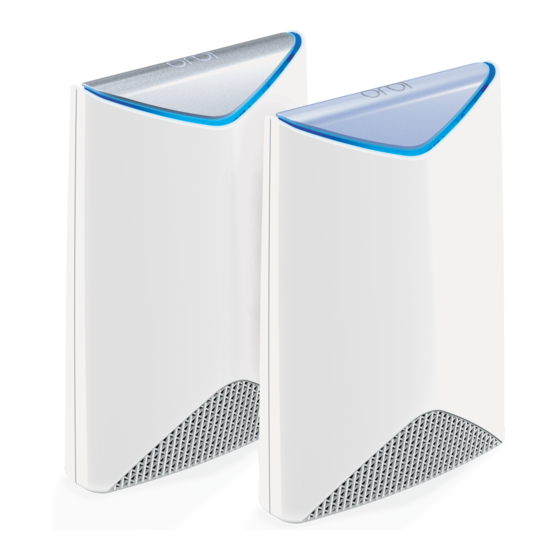

Orbi Pro Satellite
Overview
You can place the Orbi Pro satellite on a flat
surface, or you can wall-mount or ceiling-
mount it. For information about wall-
mounting and ceiling-mounting, see the
other side of this document.
To sync your Orbi Pro satellite with the Orbi
Pro router, you can use the NETGEAR Orbi
app or you can sync the satellite manually.
1
4
2
5
3
Ring LED (not shown in image)
1
Sync button (also used for WPS connection)
2
Ethernet ports
3
Power On/Off button and Power LED
4
DC Power connector
5
Reset button
6
Sync Your Satellite With
the NETGEAR Orbi App
1. Scan a QR code or search for NETGEAR
Orbi in the Apple App Store or Google
Play Store.
2. Download and launch the NETGEAR
Orbi app on your mobile device and
follow the prompts.
Orbi Pro Satellite Ring LED
The Orbi Pro satellite's ring LED lights white while the satellite attempts to sync with the Orbi
Pro router. After the Orbi Pro satellite's ring LED lights white, it lights one of the following colors
for about three minutes and then turns off:
Blue
6
The connection between the Orbi Pro router and Orbi Pro satellite is good.
Amber
The connection between the Orbi Pro router and Orbi Pro satellite is fair. Consider moving
the Orbi Pro satellite closer to the Orbi Pro router.
Magenta
The Orbi Pro satellite was unable to connect to the Orbi Pro router. Move the Orbi Pro
satellite closer to the Orbi Pro router.
Manually Sync Your
Satellite With Your Router
If you don't want to use the app to sync
your Orbi Pro satellite with your Orbi Pro
router, follow these steps:
1. Place the Orbi Pro satellite in a central
location for the best WiFi coverage.
2. Connect the Orbi Pro satellite to a
power source.
The Power LED on the back of the Orbi
Pro satellite lights green. If the Power
LED does not light, press the Power
On/Off button.
3. Press the Sync button on the back of
your satellite, and within two minutes,
press the Sync button on the back of
your router.
The Orbi Pro router's ring LED turns off
after the setup is complete.
