Honeywell Sensepoint XCD RTD Technical Manual

Remote toxic detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Technical Manual
Sensepoint XCD RTD (Remote Toxic Detector)
Technical Manual

Advertisement

Table of Contents
loading

Related Manuals for Honeywell Sensepoint XCD RTD

Summary of Contents for Honeywell Sensepoint XCD RTD

  • Page 1: Sensepoint Xcd Rtd Technical Manual Spxcdhmrten Issue

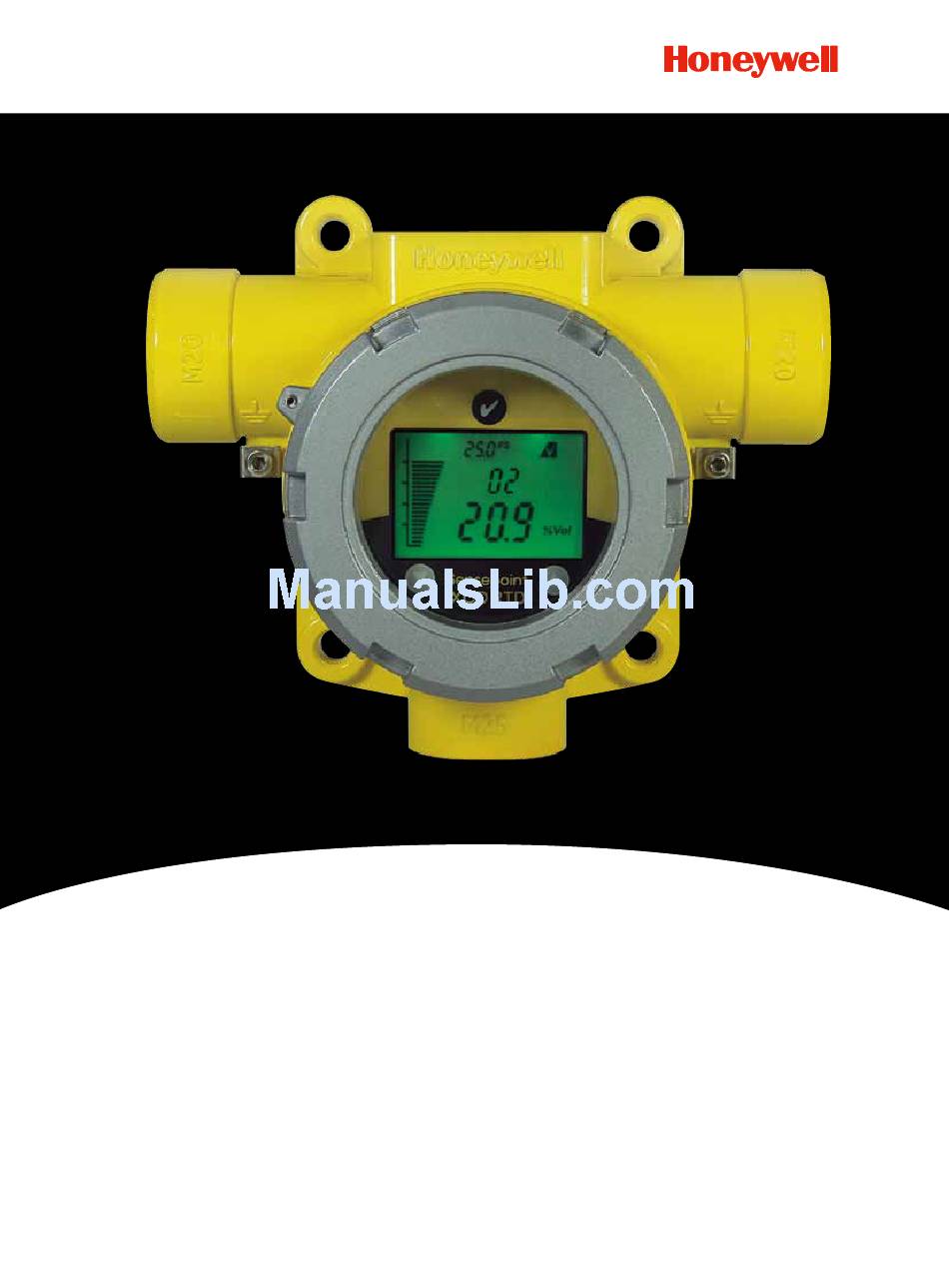

    Technical Manual Sensepoint XCD RTD (Remote Toxic Detector) Technical Manual...

  • Page 2: Safety

    Technical Manual. Cautions appear in the sections/sub-sections of the document where they apply. WARNINGS Sensepoint XCD RTD is designed for installation and use in Zone 1 or 2 hazardous areas in many countries including Europe and for Class 1 Division 1 or 2 area applications in North America.

  • Page 3: Information

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 2 Information This manual is applicable only for the Sensepoint XCD RTD version of the Sensepoint XCD product range. Where “Sensepoint Toxic” is mentioned throughout this manual, it refers to the Honeywell Analytics Sensepoint product range of Toxic AND Oxygen gas sensors.

  • Page 4: Table Of Contents

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 3 Table of contents 1 Safety 2 Information 3 Table of contents 4 Introduction 4.1 Transmitter 4.2 Sensepoint Toxic Gas Sensor 4.3 Accessories 5 Installation 5.1 Mounting and location 5.2 Mounting the transmitter 5.3 Installing the sensor...
  • Page 5 15 Ordering information 16 Warranty statement 17 Installation Drawing 17.1 Mechanical Installation Drawing 17.2 Electronic Connection Drawing 17.3 Sensepoint XCD RTD Typical Installation Drawing 17.4 Mounting Bolt Assy Drawing 17.5 Mounting Bracket Drawing 18 Certification 18.1 China GB Ex and PA 18.2 Korea KTL...

  • Page 6: Introduction

    SPXCDHMRTEN Issue 1 4 Introduction The Sensepoint XCD RTD comprises a gas detector transmitter and a choice of sensors for detecting toxic gas and oxygen. The construction of Sensepoint XCD allows it to be used in hazardous area locations; it may also be used in other areas not classified as hazardous.

  • Page 7: Transmitter

    Diagram 2: Sensepoint XCD RTD Display and Magnetic Switches 4.2 Sensepoint Toxic Gas Sensor The Sensepoint XCD RTD transmitter is designed to work with a range of Sensepoint toxic sensors (see section 7 for details of gases and ranges available) .

  • Page 8: Accessories

     4.3 Accessories A range of accessories are available to allow use of Sensepoint XCD RTD in a wide variety of applications. These include Pipe mounting bracket, Sunshade deluge cover, Sensor collecting cone, Sensor flow Housing and Remote sensor mounting junction ...

  • Page 9: Installation

    Disposal should be according to local waste management requirements and environmental legislation. Alternatively, old replaceable sensors may be securely packaged and returned to Honeywell Analytics clearly marked for environmental disposal.

  • Page 10: Mounting And Location

    The agreement reached on the location of detectors should be recorded. The Honeywell Analytics Gas Book may be referred to for further useful information regarding gas detector mounting and location. Please contact your local sales/service agent for a copy.
  • Page 11 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1         Diagram 5: Mounting arrangements   To mount the Sensepoint XCD transmitter to a Vertical or Horizontal pipe/structure, use the optional XCD Mounting Kit and following procedure: 1.

  • Page 12: Installing The Sensor

    5.3.1 Local Sensor Mounting To mount a sensor directly to the Sensepoint XCD RTD transmitter follow the procedure below 1. Remove the transmitter’s cover by loosening the locking screw and unscrewing the cover in a counter-clockwise direction.

  • Page 13: Remote Sensor Mounting

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 5.3.2 Remote Sensor Mounting A remotely mounted sensor should be mounted using a suitable junction box or approved electrical conduit scheme. For further details regarding mounting sensors to suitable junction boxes refer to the relevant sensor manual.

  • Page 14: Electrical Connections

    Disposal should be according to local waste management requirements and environmental legislation. Alternatively, old replaceable sensors may be securely packaged and returned to Honeywell Analytics clearly marked for environmental disposal.

  • Page 15: Terminal Connections

    Diagram 8: Sensepoint XCD RTD Terminal module 6.2 Transmitter Wiring Caution: All electrical connections should be made in accordance with any relevant local or national legislation, standards or codes of practice. 6.2.1 Wiring from Transmitter to Controller The Sensepoint XCD transmitter may be wired in either Current SOURCE or Current SINK configuration.

  • Page 16: Wiring From Transmitter To Sensepoint Toxic

    -VE(Blue) 4~20mA Unused Table 1: Sensepoint XCD RTD Terminal connections 6.2.2 Wiring from Transmitter to Sensepoint Toxic The sensor wiring for XCD RTD allows a mA input range of 0mA to 24mA max, and it will be saturated to 24mA when more than 24mA current is applied to the XCD RTD.

  • Page 17: Power

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 6.3 Power The Sensepoint XCD transmitter requires a power supply from the controller of between 18Vdc and 32Vdc. Ensure that a minimum supply of 18Vdc is measured at the sensor, taking into account the voltage drop due to cable resistance.

  • Page 18: Cabling

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 6.4 Cabling The use of industrial grade, suitably armoured field cable is recommended. For example, screened 3 cores (plus screen 90% coverage), suitably mechanically protected copper cable with a suitable M20 explosion-proof gland, or ¾” NPT steel conduit, with 0.5 to 2.5 mm2 (20 to 13 AWG) conductors.

  • Page 19: Ground Terminal Wiring

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 The Earth Screen of the field cable should be “tied to Earth” or connected to Ground at one point only. It is common practise to adopt a STAR EARTH connection regime where all instrumentation Screens are connected at one common point.

  • Page 20: Default Configuration

    G a s t y p e m u s t b e s e t u p m a n u a l l y d u r i n g commissioning, see section 9.1 for procedure Gas Type on how to set the Gas Type and measuring range of the sensor to be used with Sensepoint XCD RTD. Temperature Option to have C or * Alarm relays automatically reset when reading falls within alarm thresholds.
  • Page 21 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Lowest Displayed Lower Alarm Higher Alarm Gas Name Range Lower Alarm Higher Alarm alarm Name Type Type level 20.0 ppm 4.0ppm Rising 8.0ppm Rising 2.0ppm Hydrogen Sulfide 50.0 ppm 10.0ppm Rising 20.0ppm Rising 5.0ppm...

  • Page 22: Normal Operation

    SPXCDHMRTEN Issue 1 8 Normal Operation Sensepoint XCD RTD is supplied configured and ready for use according to the “Default Settings” table shown above. However these setting may be tailored to a specific application requirement using the Sensepoint XCD RTD configuration menu system.

  • Page 23: System Status

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 8.2 System Status Display indications, current output and relay states for various operational conditions are shown in the following table. For further details of error messages and trouble shooting see section 12.3.

  • Page 24: Magnetic Wand Activation

    Communication with the XCD RTD is achieved by positioning the Magnetic Wand at one of three different positions on the front glass window of the Sensepoint XCD RTD transmitter. Activation of the switches is verified by observing the Magnetic Wand Activation Icon on the LCD RTD display...

  • Page 25: First Time Switch On (Commissioning)

    Display Module. Ensure that the socket on the Display Module is fully engaged in the Display Module Connector on the Terminal Module. Caution: Ensure that power is removed from the Sensepoint XCD RTD transmitter when the display module is plugged into, (or unplugged from) the terminal module.
  • Page 26 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Note: For a full description of each screen shown in Diagram 14., please refer to Section 13.3 “Review Mode” of this Manual. Diagram 14: Normal Start up procedure (For the CO sensor version) 11.The warm up countdown of 60 seconds (depending on the gas type) is then...

  • Page 27: Gas Selection

    SPXCDHMRTEN Issue 1 9.1 Gas Selection The Sensepoint XCD RTD Transmitter is unable to automatically “know” the type of gas sensor that is connected to it. Therefore, manual set-up of the GAS TYPE and MEASURING RANGE is required. This is done in the following way.
  • Page 28 When using a Honeywell Analytics Sensepoint Toxic sensor, go to section 9.1.2. 9.1.1.1 USER Gas Type set up When a gas detector other than the Honeywell Analytics Sensepoint Toxic range of sensors is to be used with XCD RTD, please set the appropriate Unit of Measure from a pre-selected list and a ‘custom’...

  • Page 29: Gas Measuring Range Set Up

    () switch for one second and remove. Now go to step 13. 6. When a gas detector other than the Honeywell Analytics Sensepoint Toxic range of sensors is to be used, the display will then show 'dPnt' which means Decimal Point.
  • Page 30 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 9. If the lowest (initial) value of the measuring range is at zero (for example in “0 to 100”) then do not change this value from its default of 0. 10. Once the desired lower value is showing on the display, hold the magnet over the () switch for one second and remove.

  • Page 31: Response Check And Calibration

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 10 Response Check and Calibration It is recommended to periodically carry out a gas response check on the Sensepoint XCD RTD to ensure correct operation. This may be done in two ways;...
  • Page 32 If no residual gas is present then the background air can be used to perform the zero calibration. Contact your Honeywell Analytics representative for details of suitable calibration kits.
  • Page 33 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Note: Please refer to Section 3. (page 28) of Sensepoint Technical Manual MAN0514 for the detail procedure on how to adjust the Zero and Span potentiometer. 8. When the zero gas reading is stable use ‘...
  • Page 34 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18. When the reading is stable, use ‘ ’ to confirm span calibration.  19. If the sensor has been replaced the following display may be shown. 20. Use ‘  ’ to select ‘YES’ if the sensor has been replaced or ‘No’ if it has not been replaced.

  • Page 35: General Maintenance

    Electrochemical sensors should NOT be incinerated as this action may cause the cell to emit toxic fumes. Honeywell Analytics recommends that gas detectors are tested and re-calibrated on a six- monthly basis, or according to site practice. For Sensepoint Toxic sensors that are used either directly with XCD RTD transmitter or remotely mounted in a separate junction box, please refer to individual sensor manual for specific recommended calibration periods.

  • Page 36: Servicing

    Disposal should be according to local waste management requirements and environmental legislation. Alternatively, old replaceable sensors may be securely packaged and returned to Honeywell Analytics clearly marked for environmental disposal.
  • Page 37 11. Replace the filter housing/retainer or accessory. 12. In the event of an apparatus failure, return unit to Honeywell Analytics. WARNING Ensure that the same Gas Type and Range of Sensor is fitted in place of the old Sensor.

  • Page 38: Replacing Modules Within The Transmitter

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 12.2 Replacing Modules within the Transmitter Two replaceable module assemblies are located within the transmitter housing. The Display Module and the Terminal Module. The Display Module is simply removed by unplugging it from the Terminal Module (this procedure is done during normal installation).

  • Page 39: Faults And Warnings

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 12.3 Faults and Warnings The table below provides details of possible error. Message Description Action The unit has not been calibrated for the configured calibration interval W-01 Calibration needed Calibration is necessary due to change...

  • Page 40: Menu's And Advanced Configuration

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 13 Menu’s and Advanced Configuration 13.1 Abort Function In Review Mode or Configuration Mode the user can escape one step back from the current position using the Abort Function. To do this the user must activate the Enter switch for more than 3 seconds with the Magnetic Wand.
  • Page 41 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Menu Display Description Execute zero/span calibration Set calibration gas level Set Calibration After zero, the option exists to proceed with span calibration, or return to the Menu. Select the type of gas from the list.
  • Page 42 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Set location (or TAG number) Set Location Change temperature display unit. Set Temperature Unit °C (Celcius) or °F (Fahrenheit) Simulate alarm situation to check the alarm system without gas present at the sensor...

  • Page 43: Configuration Mode Operation Table

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1...
  • Page 44 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1...

  • Page 45: Review Mode

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 13.3 Review Mode The instrument will enter Review mode when the “Enter” switch is activated with the Magnetic Wand and held for around one second. Names, displays and descriptions for each review item in Review Mode are shown in the following table.
  • Page 46 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Location Location in which the transmitter is installed Power Power voltage* mA input value mA input signal from the sensor. Temperature Internal Transmitter temperature* Peak conc. Maximum concentration detected up to now Test Result There is no fault detected.
  • Page 47 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 Menu Switch (1s to 3s) Review Monitoring Mode Mode Abort Auto end to cycle S/W Version Test Result 2 second delay 2 second delay SRS Version Peak Reading 2 second delay 2 second delay...

  • Page 48: General Specification

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 14 General specification Sensepoint XCD Transmitter 3-wire, 4-20mA, gas detector transmitter for use with toxic gas sensors. For the protection of personnel and plant from toxic gas hazards. Electrical Input Voltage Range:...

  • Page 49: Ordering Information

    SPXCDHMRTEN Issue 1 15 Ordering information Part Number Description Sensepoint XCD RTD 4-20mA Input Transmitter (Select required Sensepoint Toxic Sensor from below). SPXCDASMTX4 ATEX, IECEx & AP approved SP XCD RTD 4-20mA Input Transmitter with 316SS, M20 Entry, without MODBUS SPXCDALMTX4 ATEX, IECEx &...

  • Page 50: Warranty Statement

    Analytics reserves the right to charge for any site attendance where any fault is not found with the equipment. Honeywell Analytics shall not be liable for any loss or damage whatsoever or howsoever occasioned which may be a direct or indirect result of the use or operation of the Contract Goods by the Buyer or any Party.

  • Page 51: Installation Drawing

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 17 Installation Drawing 17.1 Mechanical Installation Drawing...

  • Page 52: Electronic Connection Drawing

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 17.2 Electronic Connection Drawing...
  • Page 53 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1...

  • Page 54: Sensepoint Xcd Rtd Typical Installation Drawing

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 17.3 Sensepoint XCD RTD Typical Installation Drawing...

  • Page 55: Mounting Bolt Assy Drawing

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 17.4 Mounting Bolt Assy Drawing...

  • Page 56: Mounting Bracket Drawing

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 17.5 Mounting Bracket Drawing...

  • Page 57: Certification

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18 Certification 18.1 China GB Ex and PA China GB Ex (Chinese Version):...
  • Page 58 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 China GB Ex (English Version):...
  • Page 59 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 China PA Certification:...

  • Page 60: Korea Ktl

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18.2 Korea KTL...

  • Page 61: European Atex

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18.3 European ATEX ATEX For Transmitter:...
  • Page 62 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 ATEX Original Certificate For Transmitter:...
  • Page 63 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 ATEX for Sensor...

  • Page 64: International Iec

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18.4 International IEC IEC Ex for Transmitter...
  • Page 65 Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 IEC Ex for Sensor...

  • Page 66: Atex Name Plate

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 18.5 ATEX Name Plate...

  • Page 67: Cross Interference And Cross Calibration

    Sensepoint XCD RTD Technical Manual SPXCDHMRTEN Issue 1 19 Cross Interference Please refer Sensepoint Technical Handbook (PN: 2106M0502) for detail...
  • Page 68 Thank you for reading this data sheet. For pricing or for further information, please contact us at our UK Office, using the details below. UK Office Keison Products, P.O. Box 2124, Chelmsford, Essex, CM1 3UP, England. Tel: +44 (0)330 088 0560 Fax: +44 (0)1245 808399 Email: sales@keison.co.uk...
