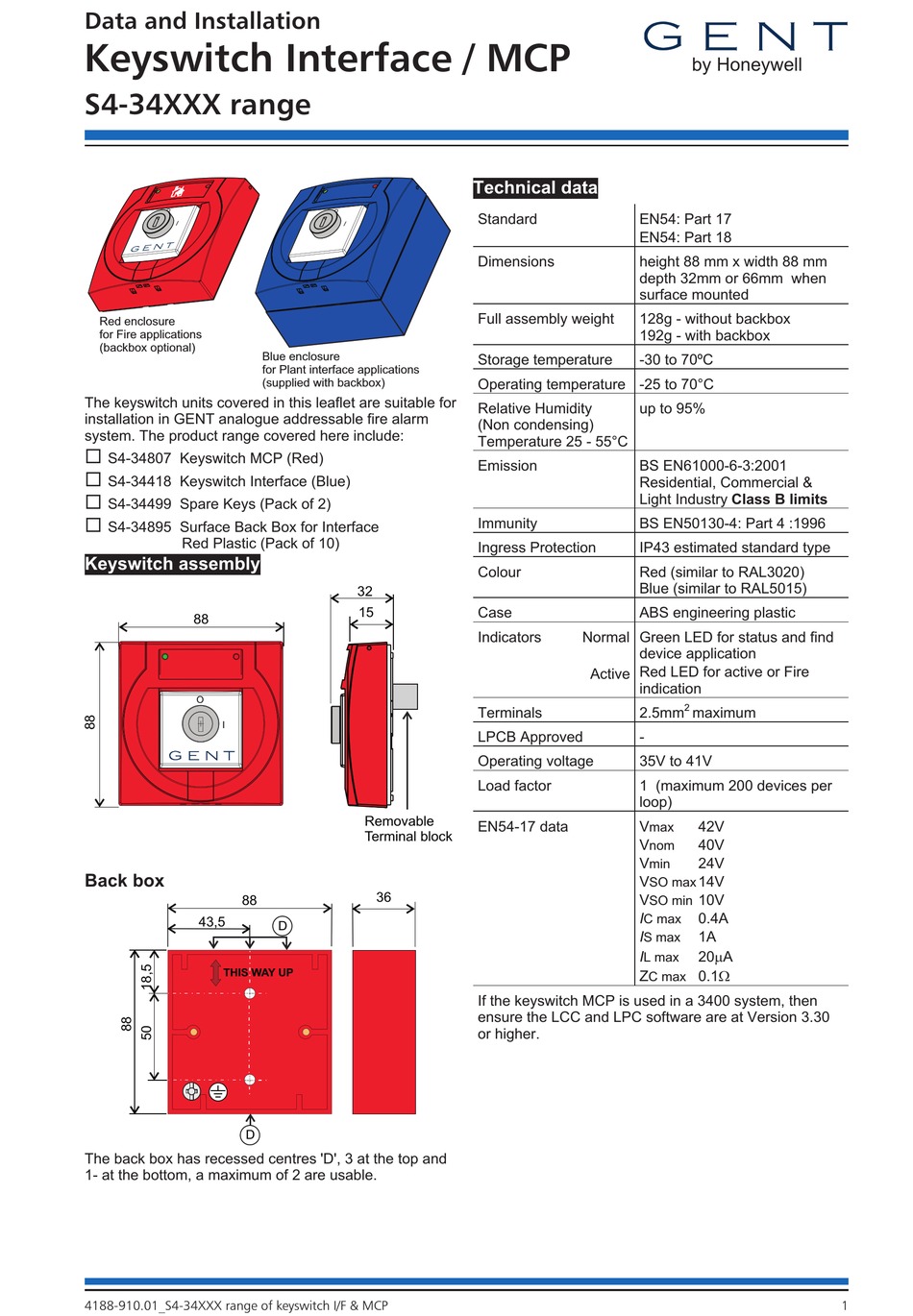

Data and Installation
Keyswitch Interface / MCP
S4-34XXX range
Red enclosure
for Fire applications
(backbox optional)
The keyswitch units covered in this leaflet are suitable for
installation in GENT analogue addressable fire alarm
system. The product range covered here include:
¨
S4-34807 Keyswitch MCP (Red)
¨
S4-34418 Keyswitch Interface (Blue)
¨
S4-34499 Spare Keys (Pack of 2)
¨
S4-34895 Surface Back Box for Interface
Red Plastic (Pack of 10)
Keyswitch assembly
88
O
I
Back box
88
43,5
THIS WAY UP
D
The back box has recessed centres 'D', 3 at the top and
1- at the bottom, a maximum of 2 are usable.
4188-910.01_S4-34XXX range of keyswitch I/F & MCP
Blue enclosure
for Plant interface applications
(supplied with backbox)
32
15
Removable
Terminal block
36
D
Technical data
Standard EN54: Part 17
EN54: Part 18
Dimensions height 88 mm x width 88 mm
depth 32mm or 66mm when
surface mounted
Full assembly weight 128g - without backbox
192g - with backbox
Storage temperature -30 to 70ºC
Operating temperature -25 to 70°C
Relative Humidity up to 95%
(Non condensing)
Temperature 25 - 55°C
Emission BS EN61000-6-3:2001
Residential, Commercial &
Light Industry Class B limits
Immunity BS EN50130-4: Part 4 :1996
Ingress Protection IP43 estimated standard type
Colour Red (similar to RAL3020)
Blue (similar to RAL5015)
Case ABS engineering plastic
Indicators Normal Green LED for status and find
device application
Red LED for active or Fire
Active
indication
Terminals 2.5mm
LPCB Approved -
Operating voltage 35V to 41V
Load factor 1 (maximum 200 devices per
loop)
EN54-17 data V
V
V
V
V
I
C max
I
S max
I
L max
Z
If the keyswitch MCP is used in a 3400 system, then
ensure the LCC and LPC software are at Version 3.30
or higher.
by Honeywell
2
maximum
42V
max
40V
nom
24V
min
14V
SO max
10V
SO min
0.4A
1A
20mA
0.1W
C max
