Honeywell S7751A Product Data

Excel 10 hand held tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R O W O N E
R O W T W O
R O W T H R E E
R O W F O U R
T O P
P R E V
M E N U
M E N U
A
B
F
N E T W O R K
O N
T E R M I N A T O R
O F F
SWITCH
N E T W O R K
T E R M I N A T O R
E - B U S
N E T W O R K
C A B L E P O R T
APPLICATION
The S7751A Hand Held Tool (HHT) is used with W7751A,C,E Excel 10 VAV 1 Controllers. (NOTE: The HHT phase 1 cannot
communicate with the phase 2 devices, such as; FCU, CVAHU, RIO and VAV 2. The HHT can be used to view or modify
points, setpoints or parameters, perform diagnostics, and balance Excel 10 controllers. In stand-alone applications (not used
in conjunction with Care/LiveCare), the HHT performs the application configuration (hardware inputs and outputs and
software points) and balancing.
® U.S. Registered Trademark
Copyright © 1997 Honeywell Inc. • All Rights Reserved

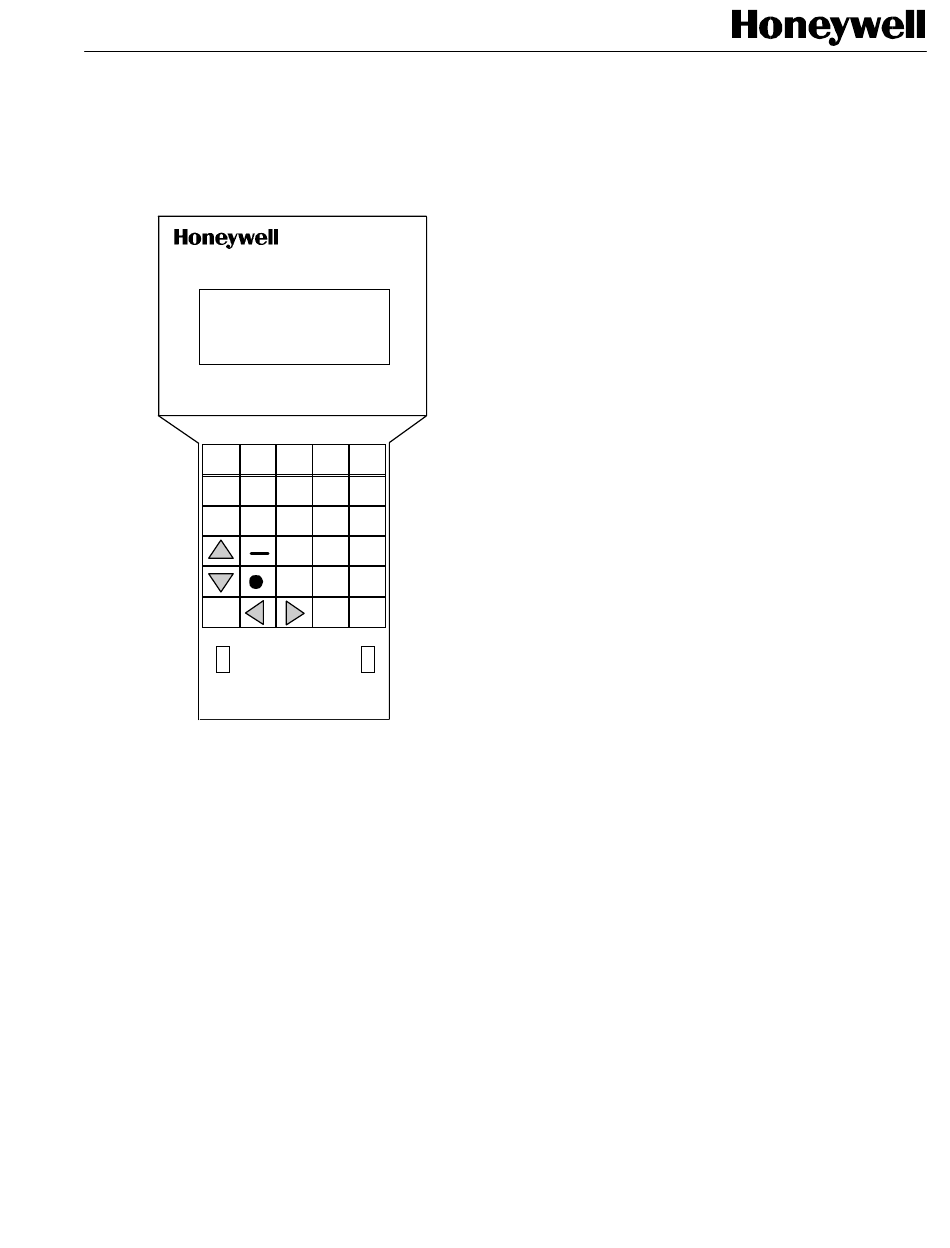

Excel 10 Hand Held Tool
R E -
F R E S H A B O R T
C
D
E
7
8
9
4
5
6
1
2
3
0
E N T E R
O N
O N / O F F
O F F
S W I T C H
P O W E R
D C
A D A P T E R
D C A D A P T E R
J A C K
FEATURES
• Four Line by 20 Character LCD display with 30 position
keypad.
• Operates from a DC adapter or an external battery
pack.
• Operates for 12 hours without battery recharge.
• Ambient temperature range: 40 to 120 °F (4 to 49 °C).
• Uses the part number 205979 SLTA Connector Cable
that connects directly to Excel 10 Controllers.
PRODUCT DATA
74-2566

Advertisement

Table of Contents
loading

Related Manuals for Honeywell S7751A

Summary of Contents for Honeywell S7751A

  • Page 1 APPLICATION The S7751A Hand Held Tool (HHT) is used with W7751A,C,E Excel 10 VAV 1 Controllers. (NOTE: The HHT phase 1 cannot communicate with the phase 2 devices, such as; FCU, CVAHU, RIO and VAV 2. The HHT can be used to view or modify points, setpoints or parameters, perform diagnostics, and balance Excel 10 controllers.

  • Page 2: Table Of Contents

    EXCEL 10 HAND HELD TOOL TABLE OF CONTENTS FEATURES ........................1 APPLICATION ........................1 TABLE OF CONTENTS ........................2 SPECIFICATIONS ........................4 Standard Model: ....................4 Electrical Ratings: ..................4 Power Supply: ..................4 Operating Temperature Range: ..............4 Operating Humidity Range: ...............4 ORDERING INFORMATION ........................4 BEFORE TESTING ........................5 Assumption: ....................5 Testing Procedure ..................5...
  • Page 3 EXCEL 10 HAND HELD TOOL Motor Speed ..................32 Valve Speed ..................32 Frequency Select ..................32 Damper Rotation ..................33 Bypass Duration ...................33 Miscellaneous ...................34 Damper Positions .................34 Night Purge ..................34 Morning Warm-up.................34 Pressurization..................35 Depressurization...................35 Closed Pos Offset.................35 Cooling Gains..................35 Reheat Gains..................36 Demand Limit Offset................36 Flow Tracking Offset................36 HHT Functions....................37 Assign Node Numbers ................37...

  • Page 4: Specifications

    Honeywell Inc., 1885 Douglas Drive North Minneapolis, Minnesota 55422-4386 (612) 951-1000 In Canada—Honeywell Limited/Honeywell Limitée, 155 Gordon Baker Road, North York, Ontario M2H 3n7. International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France, Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.

  • Page 5: Before Testing

    HHT and the other end of the cable (mini-phono plug) into the E-Bus Port on either an Excel 10 Controller or Wall Module. On power up, the following message displays. Copyright (C) Honeywell Inc. Ver. 1.0 1996 < Press Enter >...

  • Page 6: Hand Held Tool Keypad

    EXCEL 10 HAND HELD TOOL Hand Held Tool Keypad The 25 key keypad provides a way to enter data, answer prompted questions, and move the cursor around on a screen or to penetrate to new screens. Fig. 1 indicates the various key functions. K e y Description T o p...

  • Page 7: Operator Level And Password

    EXCEL 10 HAND HELD TOOL Press the Enter key with the cursor on HHT Functions to bring up the following screen. The operator must use the Up/Down Arrow keys to scroll through the list of menu items in order to view all items on the display screen. H H T F U N C T I O N S Assign Node Number Change Authorization...
  • Page 8 EXCEL 10 HAND HELD TOOL O P E R A T O R L E V E L Current Level = 1 New Level? 4 Password? 4444 The functions available at each password level (1 through 4) are shown in Table 1. Table 1.

  • Page 9: Select Excel 10

    EXCEL 10 HAND HELD TOOL Select Excel 10 IMPORTANT When connecting to an Excel 10 VAV Controller, make certain that the front end device is not accessing points at the same time that the HHT is or collisions can occur causing communications problems. The first step after assigning the Operator Level is to select the Excel 10 to communicate with.
  • Page 10 EXCEL 10 HAND HELD TOOL Neuron ID Select the Neuron ID menu item and then press the Enter key. The following screen appears that prompts the operator to enter a 12 character ID Number. N E U R O N I D E N T R Y Current 000107737800 New ID? Enter the valid 12 character Neuron ID number for the desired device and then press the Enter key.

  • Page 11: Service Excel 10

    EXCEL 10 HAND HELD TOOL Service Excel 10 I/O Points The Service Excel 10 menu item allows the operator to display/modify I/O points, display controllers alarms, go into the controller test mode to exercise hardware inputs/outputs, calibrate temperature sensors and display the controller type and software version.
  • Page 12 EXCEL 10 HAND HELD TOOL Table 4. Logical Group Points. HHT Point Name R/W Read Write or R/O Read Only Write Access Level Input/ Output Room Temp None Output Temp Control Point None Output Occupancy Status None Output Air flow Sensor None Output Flow Control Point...
  • Page 13 EXCEL 10 HAND HELD TOOL Temp Setpoints Select the Temp Setpoints menu item using the Up/Down Arrow keys and then press the Enter key. Under the Temp Setpoints heading the operator is able to display/modify the current value of the points listed in the Temp Setpoints table shown below, see Table 5.
  • Page 14 EXCEL 10 HAND HELD TOOL  Standby Heat: 67 ° F (19.4 ° C)  Unoccupied Heat: 55 ° F (12.8 ° C) NOTES: If a controller is configured for a wall module with a setpoint adjustment, the Occupied Heating and Cooling Setpoints are disabled and the Heat/Cool Deadband is enabled.
  • Page 15 EXCEL 10 HAND HELD TOOL Table 7. Commandable Points. HHT Point Name R/W Read Write or R/O Read Only Write Access Level Input/ Output Manual Occupancy Input Command Mode Input Manual Reheat Posit. Input Manual Damper/Flow Input Select the Manual Occupancy menu item from the list of points under the Commandable Points menu and then press the Enter key to display the state.
  • Page 16 EXCEL 10 HAND HELD TOOL As soon as the Enter key is pressed, the screen displays the current state as manual and the new value (as a percentage) as shown below. Manual Reheat Posit. Current State: Manual 50.0 % To command the Manual Reheat Posit. point to the Auto state, the operator presses the Prev Menu key to go back to the previous menu, then selects the Manual Reheat Posit.

  • Page 17: Alarms

    EXCEL 10 HAND HELD TOOL To enter a new state of Auto , the operator scrolls through the choices by using the Up/Down Arrow keys and then selects the state by pressing the Enter key. NOTE: The operator must be careful about leaving the controller in the Manual Mode or condition. When the HHT logs out of the Excel 10 controller, the Commandable Points will not revert back to the Auto Mode and must be manually commanded back for them to be under program control.
  • Page 18 EXCEL 10 HAND HELD TOOL Table 8. Excel 10 Alarm Messages. Alarm Description Error Present An error exists in the system. Flow Sens Fail Board electronics or flow sensor is bad. Temp Sens Fail Sensor wire open or shorted. Wall module disconnected or bad. Da Temp Sens Fail Sensor wire open or shorted.

  • Page 19: Damper

    EXCEL 10 HAND HELD TOOL Alarm Log Select the Alarm Log menu item under the ALARMS menu and then press the Enter key. The ALARM LOG displays the five most recent alarms with the most recent alarm on top. Each alarm that has returned to normal is preceded by the word Rtn: . Press the Refresh key to refresh the ALARM LOG display.
  • Page 20 EXCEL 10 HAND HELD TOOL From this screen the operator enters a New Position: (from 0.0 through 100.0 percent ) for the damper and then presses the Enter key to accept the value. When commanding the position of the damper use this value. To select the damper direction, press the Prev Menu key which displays the DAMPER menu screen.
  • Page 21 EXCEL 10 HAND HELD TOOL From this screen the operator can enter a new reheat valve position (from 0.0 through 100.0 % ) and then press the Enter key to accept the value. When commanding the position of the reheat valve use this value. To select the reheat valve direction, press the Prev Menu key which displays the REHEAT VALVE menu screen.

  • Page 22: Fan

    EXCEL 10 HAND HELD TOOL Stages were commanded On after pressing the Enter key. The operator has to press the Prev Menu key to go back to the TEST MODE Main Menu screen. Select the Fan menu item from the TEST MODE Main Menu and then press the Enter key. If the Excel 10 was not configured for a fan, the HHT speaker beeps to inform the operator and the display remains at the TEST MODE Main Menu.
  • Page 23 EXCEL 10 HAND HELD TOOL the controller to respond with and then update the new Current Value and Offset . The operator has to press the Prev Menu key to get back to the Service Excel 10 Main Menu. Controller Version The Service Excel 10 menu allows the operator to display the Excel 10 controller version.

  • Page 24: Normal

    EXCEL 10 HAND HELD TOOL B A L A N C E V A V Normal Zero M a x i m u m Minimum Full Open Defaults Normal The HHT puts the Excel 10 controller back into the Normal operating mode. If the operator chooses the Normal selection under the BALANCE VAV menu heading, the display remains at the BALANCE VAV menu after the Enter key is pressed.
  • Page 25 EXCEL 10 HAND HELD TOOL Maximum From the BALANCE VAV Main Menu, the operator would select the Maximum menu item and then press the Enter key. The HHT attempts to drive the box flow to the maximum setpoint. While the HHT is driving the control to maximum flow, the operator is prevented from entering a value until the air flow has stabilized.
  • Page 26 EXCEL 10 HAND HELD TOOL M I N I M U M Unable to Calibrate, Airflow Unstable If the air flow has stabilized (stabilization occurs when the air flow value is within a preprogrammed hysteresis of the setpoint for at least five seconds or three readings, whichever is greater), the speaker beeps and displays the following screen. M I N I M U M Min Setpt <setpt>...

  • Page 27: Configuration

    EXCEL 10 HAND HELD TOOL Configuration CAUTION Modifying configurations are for stand-alone applications only. Never use in conjunction with CARE/LiveCARE or the CARE database will be destroyed! NOTES: Level 4 operator is required to be able to modify the controller configuration. If the operator level is not high enough, the operator will only be able to view all configuration selections but not change them.

  • Page 28: Air Terminal Type

    EXCEL 10 HAND HELD TOOL A P P L I C A T I O N T Y P E Air Terminal Type Terminal Heat F a n Override Button Setpoint Type Discharge Air Sensor Optional Sensor Air Terminal Type The Air Terminal Type sub-menu item is view only and not configurable.

  • Page 29: Override Button

    EXCEL 10 HAND HELD TOOL Use the Up/Down Arrow keys to select the type of FAN required for the configuration and then press the Enter key. The operator has to press the Prev Menu key to get back to the APPLICATION TYPE Main Menu. Override Button Use the Up/Down Arrow keys to select the Override Button sub-menu item and then press the Enter key to display the two selections available.

  • Page 30: Parameters

    EXCEL 10 HAND HELD TOOL O P T I O N A L S E N S O R S O c c u p a n c y W i n d o w O p e n Use the Up/Down Arrow keys to select the Occupancy menu item from the APPLICATION TYPE Main Menu which displays the following two choices.
  • Page 31 The HHT displays the SELECT PICKUP SENSOR screen containing nine sub-menus. S E L E C T P I C K U P S E N S O R Carrier 35R Probe Honeywell C705 Sens Titus 6,8,10,12,14,16 Titus Pickup 4.5 in.

  • Page 32: Motor Speed

    EXCEL 10 HAND HELD TOOL S E L E C T D U C T D I A M E T E R The operator uses the Up/Down Arrow keys to select the correct Duct Diameter value and then presses the Enter key. The operator must press the Prev Menu key twice to get back to the PARAMETERS Main Menu.

  • Page 33: Damper Rotation

    EXCEL 10 HAND HELD TOOL Select the Frequency Select menu item from the PARAMETERS Main Menu and then press the Enter key to display the following FREQUENCY SELECT screen. F R E Q U E N C Y S E L E C T 60 Hz 50 Hz The operator selects between 60 Hz or 50 Hz operation by using the Up/Down Arrow keys to select the appropriate frequency...

  • Page 34: Miscellaneous

    EXCEL 10 HAND HELD TOOL Miscellaneous Select the Miscellaneous menu item from the Configuration Main Menu and then press the Enter key. This displays the following screens containing five sub-menu items. M I S C E L L A N E O U S Damper Positions Cooling Gains Reheat Gains...
  • Page 35 EXCEL 10 HAND HELD TOOL The HHT displays the current value for the MORNING WARM-UP damper position in <%> .(the range is 0 through 100 with a default of 50%). The operator enters a new value for the MORNING WARM-UP damper position and then presses the Enter key.

  • Page 36: Reheat Gains

    EXCEL 10 HAND HELD TOOL C O O L I N G G A I N S PI Control P Only From the Cooling Gains menu the operator can select either the PI Control or P Only selection. The operator can not change the actual gain value, but can select whether the Excel 10 controller uses PI or P control in the space temperature loop to determine the flow control point.

  • Page 37: Hht Functions

    EXCEL 10 HAND HELD TOOL HHT Functions Select the HHT Functions menu item from the MAIN MENU . The HHT FUNCTIONS menu allows the operator to assign node numbers, change authorization, modify passwords, clear node numbers and change/display engineering units. The following are the five HHT FUNCTIONS Main Menu selections.

  • Page 38: Balance Vav

    EXCEL 10 HAND HELD TOOL Each successive level allows the operator to perform all functions below that level, with level 4 being the highest. In addition, there is a separate option which enables the operator to perform air balancing of the VAV unit. If the operator attempts to access a function for which authorization has not been given (password not entered) the speaker beeps and the display shows the message Access level too low for entry .

  • Page 39: Operator Level

    EXCEL 10 HAND HELD TOOL A I R B A L A N C E P A S S W O R D Password is New Password The AIR BALANCE PASSWORD menu item allows the operator to change the air balance password. The operator has to enter the current password ( Password is ) for the AIR BALANCE PASSWORD and then press the Enter key.

  • Page 40: Engineering Units

    English or International mode and when receiving data from the operator. Home and Building Control Home and Building Control Home and Building Control Products Honeywell Inc. Honeywell Limited-Honeywell Limitee Honeywell AG Honeywell Plaza 155 Gordon Baker Road Böblinger Straße 17 P.O.
