6.0 USING THE DEVICE MANAGER

The radio contains a built-in management system known as a Device
Manager. This web-based tool is accessed with a PC connected to the
radio's Ethernet port as shown in Figure 23. It offers an intuitive, easy
to use method for managing your radio and performing common main-
tenance tasks.
NOTE: The Device Manager is the preferred method for managing the
transceiver. Menu-based Serial or Telnet management is also
possible. Refer to the SD Serial/Telnet Management Supple-
ment, Part No. 05-6193A01 for details.
If you are using the Device Manager for the first time, refer to "Initial
Configuration" on Page 27 for instructions on connecting a PC to the
radio and logging into the Device Manager for basic radio setup,
including use of the Setup Wizards.
PC Running Web Browser

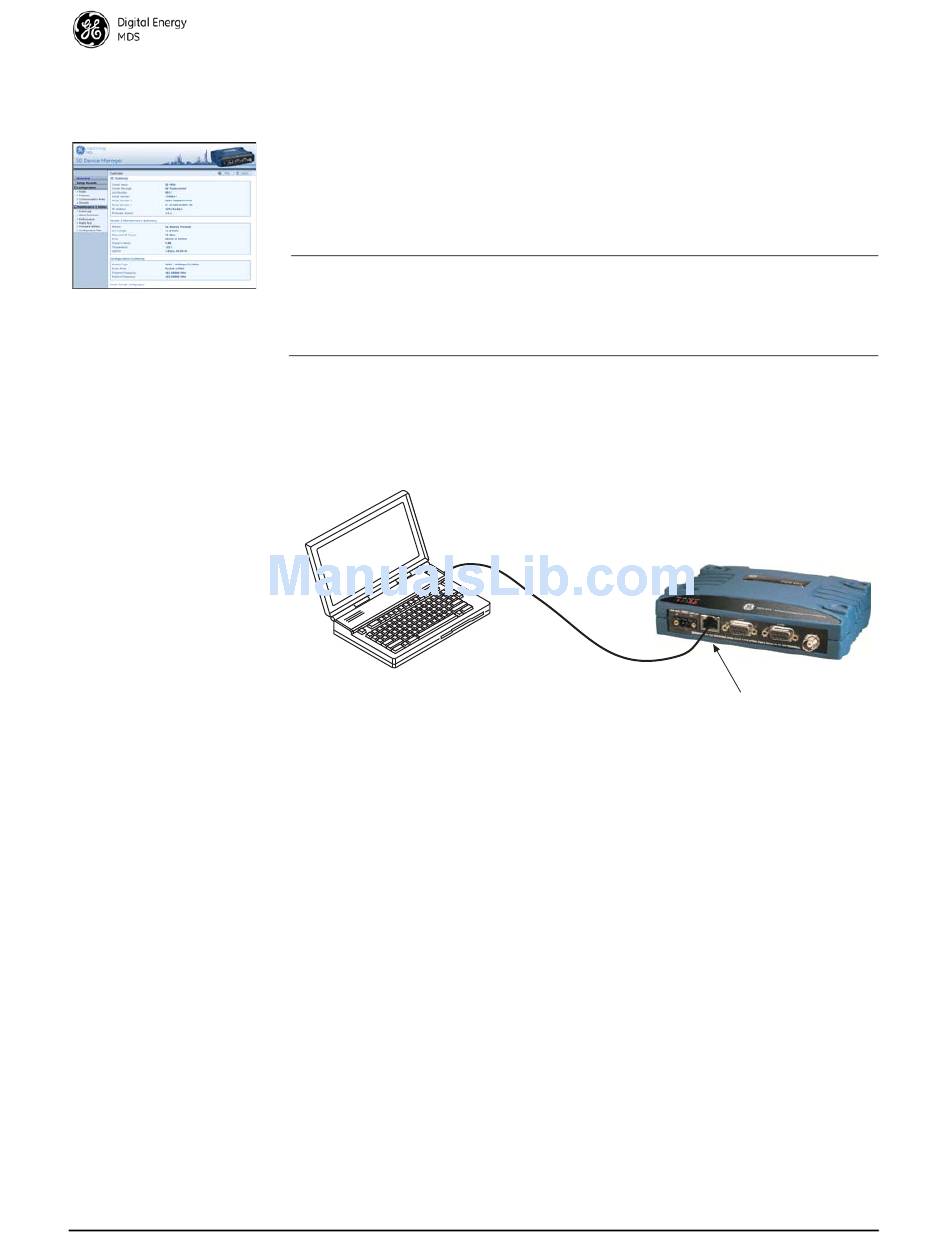

Figure 23. PC Connection to Radio for Web Management

6.1 Navigating the Screens

Upon login into the Device Manager, the Overview screen appears as
shown in Figure 24. The selection pane at the left side of this screen pro-
vides access to any of the available screens. Simply click an item of
interest, and the new screen appears. Sub-level screens are displayed
under the main heading, and may be clicked to open them.
With a desired screen displayed, simply scroll up or down to reach a
required setting or indication. Drop-down boxes or blank fields are pro-
vided for entering new information. Once a new parameter is entered,
Commit Configuration
click
Undo
the setting, or select
SD Series Technical Manual
RJ-45 to Ethernet Port
on the right-hand side of the screen to apply
to cancel it.
MDS 05-4846A01, Rev. F
Transceiver
