Page 9: About This Guide
About this Guide This Installation Guide pertains to the features and functionality that run on and/or that are associated with the Cisco® ASR 5500 platform. It describes how to unpack, install and initially configure the system. This guide also includes technical specifications and guidelines for monitoring system operation.
Page 10: Conventions Used
Click the File menu, then click New Dimensions Dimensions such as size, weight and temperature are first presented in their primary measurements (imperial or metric) followed by the converted measurement (metric or imperial) in parentheses. ▄ ASR 5500 Installation Guide...
Page 11: Related Documentation
Use the information in this section to contact customer support. Refer to the support area of http://www.cisco.com for up-to-date product documentation or to submit a service request. A valid username and password are required to access this site. Please contact your Cisco sales or service representative for additional information.
Page 13: Asr 5500 Hardware Platform Overview
Chapter 1 ASR 5500 Hardware Platform Overview This chapter describes the hardware components that comprise the ASR 5500 chassis. The ASR 5500 is designed to provide subscriber management services for high-capacity 4G wireless networks. This chapter includes the following sections: ...
Page 14: Chassis

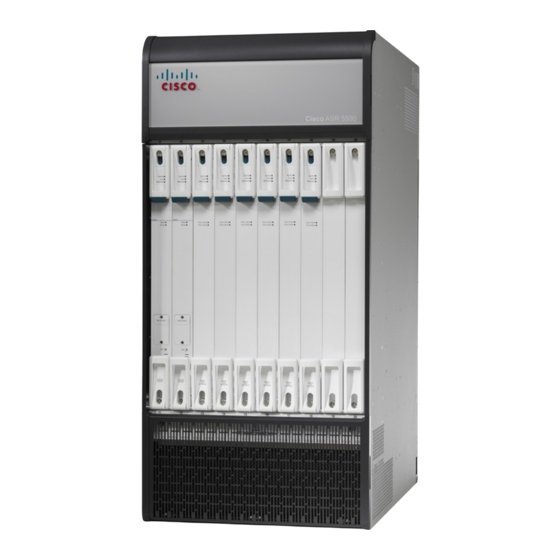

The ASR 5500 is a 21RU, 19" rack-mount midplane-based chassis with input/output (I/O) and processing cards in the rear, and fabric cards in the front. Two ASR 5500 chassis fit into 42RU of rack space. However, the typical deployment will be a single chassis per rack with other equipment in the same rack.
Page 15: Cooling
Cooling The ASR 5500 uses two types of fan tray units and a total of four fan trays per chassis – two front fan trays and two rear fan trays. Air is drawn from the front and sides of the chassis and exhausted out the top rear and sides. Two fan trays are mounted at the bottom of the chassis with another two at the top.
Page 16: Power Filter Units (Pfus)
Cable Management System The ASR 5500 cable management system consists of two components. The first is a tray that mounts at the rear of the chassis immediately below the card cage. The second is a cable management bracket that mounts to the front panel of each Management Input/Output (MIO) or Management Input/Output Universal (UMIO) card.
Page 17: Midplane
Midplane ▀ Midplane The midplane within the ASR 5500 chassis interconnects rear input/output ports and processing cards with front fabric cards. The larger rear cards support chassis management, input/output, and session processing. The smaller front cards provide fabric crossbars, persistent storage and system status monitoring.
Page 18: Card Types
I/O functions (traffic sources). Front cards determine the amount of bandwidth for the switching fabric (crossbars), and indicate the operating and alarm status of the ASR 5500. The figure below is a simplified block diagram showing the ASR 5500 card architecture.
Page 19 ASR 5500 Hardware Platform Overview Card Types ▀ Figure 6. ASR 5500 Circuit Cards Management I/O (MIO) Management I/O Universal (UMIO) Data Processing Card (DPC) Data Processing Universal (UDPC) Fabric and Storage Card (FSC) System Status Card (SSC) ASR 5500 Installation Guide ▄...
Page 20: Rear Cards
Cisco account representative for additional information. Management I/O The ASR 5500 chassis supports two MIO and/or UMIO cards placed in the rear facing slots of the chassis. These cards perform chassis management, as well as local context and non-local context external I/O operations.
Page 21: Data Processing Card
System Status Card (SSC) The crossbars that comprise the switching fabric are on the FSCs. The ASR 5500 supports multiple FSCs. Each FSC provides six physical fabric planes. When fully populated, there are 24 fabric planes in the system. A physical fabric plane provides full-mesh connectivity between all traffic sources.
Page 22: System Status Card (Ssc)
The array appears under /hd-raid and is available to all DPC/UDPCs and MIO/UMIOs. System Status Card (SSC) The ASR 5500 chassis supports two SSCs in front facing slots of the chassis. SSCs use dedicated slots in the left most slots of the front side of the chassis.
Page 23: Led Indicators
ASR 5500 Hardware Platform Overview LED Indicators ▀ LED Indicators All ASR 5500 circuit cards incorporate light emitting diode (LED) status indicators. A base group appears on all cards. Card-specific indicators show the status of ancillary functions. LED Indicators Common to All Cards Table 1.
Page 24 ASR 5500 Hardware Platform Overview ▀ LED Indicators Label State Meaning Interface Ports Link No link with network Amber – Blink Transitioning Green – Solid Linked with network Activity No activity Green – Blink Data exchange Drive 1 Activity No activity...
Page 25: Technical Specifications
Chapter 2 Technical Specifications This chapter defines the technical specifications related to the installation of an ASR 5500 system. It includes the following sections:  Physical Dimensions  Environmental Specifications  Mounting Requirements  Power Requirements  Central Office Alarm Interface ...
Page 26: Physical Dimensions
▀ Physical Dimensions Physical Dimensions The ASR 5500 can be mounted in any standard (EIA-310-D, IEC 60297) 19-inch (482.6 mm) equipment cabinet or telecommunications rack. The table below lists the dimensions for the chassis and each component that can be placed within the chassis.
Page 27: Environmental Specifications
Technical Specifications Environmental Specifications ▀ Environmental Specifications The ASR 5500 is designed for deployment in unattended sites equipped with redundant power systems, redundant data communications connections, environmental controls (air conditioning, fire suppression), security devices and controlled access. Environmental Parameters The table below lists the environmental parameters (operating and storage) for the ASR 5500 chassis.
Page 28: Environmental Standards
Technical Specifications ▀ Environmental Specifications Environmental Standards The ASR 5500 has been successfully tested for compliance with the environmental standards listed in table below. Table 5. Environmental Compliance Standards Type Standard Acoustic Noise Telcordia GR-63 Criterion [128] Airborne Contaminants, Indoor Levels...
Page 29: Chassis Air Flow
Environmental Specifications ▀ Chassis Air Flow Air flow within the ASR 5500 complies with Telcordia recommendations to ensure vertical convection cooling of the system. As shown in the figure below, the lower fan trays pull ambient air inward from the front and side intake vents located near the bottom of the chassis.
Page 30: Clearance
The rear clearance is also necessary for removing and replacing the rear cards and fan trays (see the figure below). These units are very large and require additional clearance from cable management bars, PDUs, etc. Figure 8. Rear Clearance Zone ▄ ASR 5500 Installation Guide...
Page 31: Mounting Requirements
Mounting Requirements ▀ Mounting Requirements Each ASR 5500 chassis occupies 21 RU (rack units) within any standard (EIA-310-D, IEC 60297) 19-inch (482.6 mm) equipment rack or cabinet using the mounting brackets supplied with the chassis. Extension brackets (not supplied) may be used in conjunction with the chassis mounting brackets to install the chassis in a standard 23-inch (584.2 mm)
Page 32: Power Requirements
The DC power Battery Return (BR) or positive terminal, must be grounded at the source end (power feed or mains power end). Important: The DC power BR input terminal of the ASR 5500 is not connected to the equipment frame (chassis) and is configured as DC-I in compliance with GR-1089-CORE (sec.9.8.3). ▄ ASR 5500 Installation Guide...
Page 33: Central Office Alarm Interface
SSC Alarm Cabling chapter for details. Chassis Grounding The ASR 5500 is suitable for installation as part of the Common Bonding Network (CBN) within a network telecommunications facility. It is not intended for installation in an Isolated Bonding Network (IBN).
Page 35: Installation Procedure Overview
The copper serial Console port, 1000Base-T management ports, and CO alarm interface of the ASR 5500 are suitable for connection to intra-building or unexposed wiring or cabling only. These ports MUST NOT be metallically connected to interfaces that connect to the outside plant (OSP) or its wiring. These interfaces are designed for use as intra-building interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 5) and require isolation from the exposed OSP cabling.
Page 36: Installation Sequence
Installation Procedure Overview ▀ Installation Sequence Installation Sequence Installation of the ASR 5500 requires the completion of the following procedures: 1. Unpack the chassis and cards. 2. Determine which chassis mounting option to use: flush or mid-mount. Reposition the mounting brackets if necessary.
Page 37: Required Tools And Equipment
During installation, maintenance, and/or removal, wear a grounding wrist strap connected to the ASR 5500 chassis to avoid ESD damage to the components. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty.
Page 38: Site Prerequisites
Clearance Adequate clearance must be maintained at the front and rear of the ASR 5500 chassis to assure proper air flow and allow maintenance access for the installation, removal and replacement of components. The recommended clearance is 36 inches (92 centimeters) at the front and rear of the chassis.
Page 39: Esd Precautions
Before the you can use the ESD jacks on the ASR 5500 chassis and its mounting brackets, you must first connect the chassis to ground according to the instructions in the Chassis Installation chapter of this document.
Page 40: Standards Compliance
Modifications to this product not authorized by Cisco could void the FCC approval and negate your authority to operate the product.
Page 41: Chassis Installation
Chapter 4 Chassis Installation This chapter describes how to install the ASR 5500 chassis and its components. Important: The ASR 5500 is suitable for installation in Network Telecommunication Facilities designed for unattended equipment operation. This chapter includes the following sections: ...
Page 42: Mounting Options
 When lifting any heavy object, remember to bend at the knees and lift with your legs. Bending at the waist and lifting with your back could cause personal injury. Important: The ASR 5500 chassis is shipped with no circuit cards installed. Only the PFUs, fan trays and air filters are installed. The circuit cards are shipped in separate cartons. Caution: If you are mounting two chassis in a single rack, verify that the rack is rated to handle the combined, fully loaded weight of both chassis and any ancillary equipment.
Page 43: Unpacking The Chassis
Chassis Installation Unpacking the Chassis ▀ Unpacking the Chassis The ASR 5500 chassis is shipped on a palletized container. Important: The front and rear circuit cards are packaged and shipped in separate cartons. Important: Locate the packing list for the shipment and verify that all components have been received.
Page 44: Unpack The Chassis
Step 1 Cut the straps that secure the cap and card board sleeve to the pallet. Remove the straps from the pallet and discard. Container sleeve Pallet Strap ▄ ASR 5500 Installation Guide...
Page 45 Chassis Installation Unpacking the Chassis ▀ Step 2 Remove the cardboard cap from the top of the container. Cardboard top Outer sleeve Inner Sleeve Accessory box Foam Cap End cap Pallet Plastic bag (not shown) ASR 5500 Installation Guide ▄...
Page 46: Reducing The Weight Of The Chassis Prior To Installation
During installation, maintenance and/or removal, wear a grounding wrist strap to avoid ESD damage to the components. Connect the strap to a ground point on the rack/cabinet frame. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty. ▄ ASR 5500 Installation Guide...
Page 47: Removing The Fan Trays
At the front of the chassis, remove the cover panel from the top of the chassis. Firmly grasp the side edges of the panel and pull up and away to unsnap the panel. Put the panel safely aside. Cover panel Access panel Front fan tray ASR 5500 Installation Guide ▄...
Page 48: Remove The Lower Front Fan Tray
Flip up and grasp the fan tray handle and pull. The fan tray should unseat from the midplane connector and slide out of the chassis. Support the bottom of the fan tray unit with one hand as you pull it away from the chassis. Step 5 Place the fan tray unit safely aside. ▄ ASR 5500 Installation Guide...
Page 49: Remove The Lower Rear Fan Tray
Put the panel safely aside. Cover panel Access panel Rear fan tray Step 2 Loosen the two screws and remove the access panel from the upper-front of the chassis. Place it safely aside. ASR 5500 Installation Guide ▄...
Page 50: Removing The Pfus
Pull the PFU toward you. The PFU should slide easily out of the chassis. Place it safely aside. Step 5 Repeat step 2 through step 4 for the PFU located in the right bay (Power B). ▄ ASR 5500 Installation Guide...
Page 51: Installing The Chassis
During installation, maintenance and/or removal, wear a grounding wrist strap to avoid ESD damage to the components. Connect the strap to a ground point on the rack/cabinet frame. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty. ASR 5500 Installation Guide ▄...
Page 52: Mounting The Chassis
Repeat step 1 and step 2 if you are installing an additional chassis in the equipment rack/cabinet. Step 4 If you took steps to reduce the weight of the chassis prior to installation, refer to Re-Installing Chassis Components. Otherwise, proceed to Grounding the Chassis. ▄ ASR 5500 Installation Guide...
Page 53: Mid Mount
Step 6 If you took steps to reduce the weight of the chassis prior to installation, refer to Re-Installing Chassis Components Otherwise, proceed to Grounding the Chassis. ASR 5500 Installation Guide ▄...
Page 54: Grounding The Chassis
Ground Cabling Important: The ASR 5500 is suitable for installation as part of the Common Bonding Network (CBN) in a network telecommunications facility. It is not intended for installation in an Isolated Bonding Network (IBN). A 2-hole lug (Panduit LCD4-14A-L) is supplied for grounding the chassis. The lug must be crimped to the end of a ground cable using Panduit crimp tool part number CT-720-1 (die color: gray, P29).
Page 55: Grounding Procedure
Insert the lug connected to the grounding cable over the two posts. Step 5 Secure the lug to the ground terminals with the Kep nuts and washers you removed in step 2. The nuts should be torqued to 50 in-lb (5.65 N-m). ASR 5500 Installation Guide ▄...
Page 56 Repeat step 2 through step 5 to connect the ground cable to the grounding posts on the lower-right corner at the rear of the chassis. Step 7 If you took steps to reduce the weight of the chassis prior to installation, refer to the instructions in Re-Installing Chassis Components. Otherwise, proceed to the Card Installation chapter. ▄ ASR 5500 Installation Guide...
Page 57: Re-Installing Chassis Components
During installation, maintenance, and/or removal, wear a grounding wrist strap connected to the ASR 5500 chassis to avoid ESD damage to the components. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty.
Page 58: Re-Install The Rear Fan Trays
Step 2 Reinstall the bottom cover panel by aligning the cover over the balled posts on the fan tray access panel and below the ground terminals. Push inwards to snap it in place. ▄ ASR 5500 Installation Guide...
Page 59: Cable Management System
Cable Management System The ASR 5500 chassis ships with a cable management tray. This tray can be used in conjunction with cable management brackets that mount on the MIO or UMIO cards to route and secure network cables to MIO/UMIO ports.
Page 61: Card Installation
Chapter 5 Card Installation This chapter describes how to install circuit cards in the ASR 5500 chassis. It includes the following sections:  Card Slot Assignments  Installing Cards  Baffle Cards  Save Shipping Cartons ASR 5500 Installation Guide ▄...
Page 62: Card Slot Assignments
Power Cabling chapter for additional information. Following the recommendations preserves redundant operation if input power is lost to one or more of the power circuits on the PFUs. Table 7. ASR 5500 Chassis Card Slot Assignments Slot Card Sequence...
Page 63: Installing Cards
Card Interlock Switch The top and bottom handles of ASR 5500 circuit cards incorporate hooks that fit behind the upper and lower rails of the card cage. Lifting the handles outwards ejects the card from the midplane. Pushing the handles inwards seats the card into the midplane.
Page 64: Card Installation Procedure
Determine in which chassis slot to install the card based on the information in the table at the beginning of this chapter. Step 3 Position both handles on the circuit card to be up and away (outwards) from the front panel of the card. ▄ ASR 5500 Installation Guide...
Page 65 Step 6 Raise the blue subhandle under the top handle to engage interlock switch. The subhandle also locks the top handle to the front panel. ASR 5500 Installation Guide ▄...
Page 66 Use a Phillips #2 screwdriver to tighten the captive screws within the top and bottom handles to secure the card to the chassis. Step 8 Repeat step 1 through step 7 for every card you are installing at the rear and front of the chassis. ▄ ASR 5500 Installation Guide...
Page 67: Baffle Cards
Baffle cards consist of a blank front panel mounted to a formed metal baffle. The baffle slides into the card slots and provides a directed path for air flow. There are two types of baffle cards – front and rear. Figure 12. Front and Rear Baffle Cards ASR 5500 Installation Guide ▄...
Page 68: Installing A Front Baffle Card
Save several of the shipping cartons and protective ESD bags in which the circuit cards were packaged. Use the cartons to package a circuit card for shipment back to Cisco for failure analysis and replacement. For additional information, refer to the Returning Failed Components in the Replacing Components chapter, and the RMA Shipping Procedures appendix.
Page 69: Mio Port Cabling
This chapter describes how to cable the interface ports on Management I/O (MIO) or Management I/O Universal (UMIO) cards. It includes the following sections:  Interface Ports  Cable Management System  Console Port  Ethernet Management Ports  10 GbE Optical Daughter Card Ports  Fiber Optical Connections ASR 5500 Installation Guide ▄...
Page 70: Interface Ports
The interface ports are selectively enabled based on their functions in the system – management versus non- management. Card Ports MIO or UMIO cards in slot 5 and slot 6 of the ASR 5500 chassis support the following twisted-pair copper interface ports:  one serial Console port (RJ45) ...
Page 71 MIO Port Cabling Cable Management System ▀ Figure 13. MIO or UMIO Ports Console port USB port 10 GbE ports, DC-1 10 GbE ports, DC-2 1 GbE ports (1000Base-T) ASR 5500 Installation Guide ▄...
Page 72: Console Port
A connection to the Console port is required if you wish to view boot messages whenever the ASR 5500 chassis is powered up or rebooted. Only the Console port on the Master MIO or UMIO supports logs and CLI sessions. The Console port on the Standby MIO or UMIO is inactive.
Page 73: Rj45 To Db9 Adapter
Configure the communications application on the workstation to support the following:  Baud Rate = 115200 bps  Data Bits = 8  Parity = None  Stop Bits = 1  Flow Control = None ASR 5500 Installation Guide ▄...
Page 74: Connect Console Port To Terminal Server
 Stop Bits = 1  Flow Control = None Important: For additional information on connecting the Console port to Cisco servers equipped with asynchronous interface modules, refer to the Console Port to Cisco Server Cabling appendix. ▄ ASR 5500 Installation Guide...
Page 75: Ethernet Management Ports
RJ45 Port Pinouts Table 10. 1000Base-T RJ45 Ethernet Pinouts 100Base-T 100Mbps Cat5 1000Base-T 1Gbps Cat5+ Pinout BI DA+ BI DA- BI DB+ — BI DC+ — BI DC- BI DB- — BI DD+ — BI DD- ASR 5500 Installation Guide ▄...
Page 76: Port Status Leds
Insert one end of the Cat-5 cable into the top MGMT connector (Port 1). Step 2 Attach the other end of the Cat-5 cable to the appropriate network interface. Step 3 Repeat Steps 1 and 2 to connect the bottom MGMT connector (Port 2). ▄ ASR 5500 Installation Guide...
Page 77: Gbe Optical Daughter Card Ports
The 10 Gigabit Ethernet ports on the daughter cards are only certified to work with SFP+ transceivers tested and approved by Cisco. MIO and UMIO cards ship with SFP+ transceivers installed. The 10 Gigabit Ethernet ports accept the following fiber optic to electrical signal Small Form-Factor Pluggable (SFP+) transceiver types: ...
Page 78: Fiber Optical Connections
Attach the other end of the network fiber-optic cable to the network device that you want to connect. Step 5 Repeat Step 1 through Step 4 for the remaining ports on the daughter card. Step 6 Repeat Step 1 through Step 4 for ports on the second DC. ▄ ASR 5500 Installation Guide...
Page 79: Ssc Alarm Cabling
This interface is designed for use as an intra-building interface only (Type 2 or Type 4 ports as described in GR-1089-CORE, Issue 5) and requires isolation from the exposed OSP cabling. The addition of Primary Protectors is not sufficient protection in order to connect these interfaces metallically to OSP wiring. ASR 5500 Installation Guide ▄...
Page 80: Co Alarm Interface
 Critical Alarm – This alarm is triggered when a degradation in service is detected. For example, if the system is supporting a large number of subscribers and DPCs are removed, the amount of available CPU and memory resources available for use are reduced. ▄ ASR 5500 Installation Guide...
Page 81: Alarm Cutoff (Aco)
The front panel of the SSC includes an audible system alarm and an Alarm Cutoff (ACO) switch. Press and release this switch to reset the system alarm speaker. Figure 14. SSC CO Alarm Interface Connector cover plate CO alarm interface (DB15) Alarm Cutoff (ACO) switch Audible alarm ASR 5500 Installation Guide ▄...
Page 82: Alarm Connector Pinout
Each of the three dry-contact, Form C relay switches is rated to support a maximum switching current of 1A@30VDC. Caution: Never connect a high voltage/high current device such as an audible alarm/siren or incandescent lamp directly to the EO alarm connector. ▄ ASR 5500 Installation Guide...
Page 83: Co Alarm Wiring Example
With all relays de-energized, the green LEDs are illuminated. If an alarm relay is energized, its NO (normally open) contact closes; the green LED is extinguished and the red LED is illuminated. Figure 15. CO Alarm Interface Schematic ASR 5500 Installation Guide ▄...
Page 85: Power Cabling
Chapter 8 Power Cabling This chapter describes how to connect -48 VDC power feeds to the Power Filter Units (PFUs) on the ASR 5500 chassis. It includes the following sections:  Power Considerations  Internal Power Planes  Power Cable Requirements ...
Page 86: Power Considerations
 Panduit LCC4-14AF-L, 4 AWG, 2-hole, 90-degree long barrel lug  Burndy YAZ2C2TC1490, 2 AWG, 2-hole, 90-degree long barrel lug If a DC power input should fail, the operating supply circuits continue to power the ASR 5500. ▄ ASR 5500 Installation Guide...
Page 87: Internal Power Planes
— Front Cards — — — — — — — — — — — — — — — — — — — — — — — — Reserved — — — Reserved — — — ASR 5500 Installation Guide ▄...
Page 88 Power Cabling ▀ Internal Power Planes Card Type Slot Plane 1 Plane 2 Plane 3 Plane 4 Fan Trays Upper — — — Lower Bottom — — — Figure 16. PFU Redundant Power Planes ▄ ASR 5500 Installation Guide...
Page 89: Power Feed Connections
The figure below shows a recommended method for connecting -48 VDC power feeds from the power distribution frame (PDF) through a power distribution panel (PDP) to the power filter units (PFUs) on the ASR 5500 chassis. This method preserves electrical redundancy from the PDF to the PFUs.
Page 90: Power Cable Requirements
 Each conductor between the PDF and PDP should be calculated assuming a 0.3 volt drop from the PDF to the panel.  Each cable between the PDP and ASR 5500 PFUs should be calculated a 0.3 volt drop from the panel to the chassis. This is a total voltage drop of 0.6 volts.
Page 91: Connect Power Feeds To The Pfus
Step 1 Remove the plastic power input cover from the top-rear of the ASR 5500 chassis. Use a Phillips #2 head screw driver to loosen the two captive screws securing the cover to the chassis. Removing this cover exposes the power feed terminals at the rear of the PFUs.
Page 92 To avoid the risk of personal injury and/or potential damage to the system, never operate the chassis without the power input cover. Step 12 Proceed to the System Power-up chapter for information and instructions on applying power to the chassis and verifying that the installation was successful. ▄ ASR 5500 Installation Guide...
Page 93 Power Cabling Connect Power Feeds to the PFUs ▀ Power input cover Insulating spacer 2-hole, 90 lug Flat washer Lock washer 7/16-inch hex nut Non-conductive wrap -48VDC Supply cable -48VDC return cable Cable access opening ASR 5500 Installation Guide ▄...
Page 95: System Power-Up
Verifying System Startup Important: The system boot process is governed by StarOS licenses. Refer to Chassis, UMIO and UDPC License Requirements for additional information on the effect licenses and card types have on the boot process. ASR 5500 Installation Guide ▄...
Page 96: System Boot Process
(boot.sys file). If this is the first time the system is powered on and there is no configuration file, the active MIO invokes the system's Quick Setup Wizard. Use the Quick Setup Wizard to configure basic system parameters that enable the system to communicate across the management network. ▄ ASR 5500 Installation Guide...
Page 97: Applying Power To The Chassis
Step 6 Turn ON all the circuit breakers on both PFUs. Step 7 Proceed to Verifying System Startup Step 8 When the initial checks are completed, reinstall the covers removed in step 1 and step 4. ASR 5500 Installation Guide ▄...
Page 98: Verifying System Startup
Table 14. MIO or UMIO Operating States and Status LED Indicators Label LED Color LED State Notes Card Transition Run/Fail Green Blink Card is booting, starting or initializing. Active — Redundant — Master — Busy — ▄ ASR 5500 Installation Guide...
Page 99 Card Active – Secondary Run/Fail Green Card is online and functioning as a Slave. Any port can be active. Active Green Any port may not be backed up by other MIO/UMIO. Redundant Amber Master — Busy — ASR 5500 Installation Guide ▄...
Page 100 Port Status Port – Link Green Port is in active mode. Amber Port is in standby mode. — Port is down. Port Activity Green Blink Data is being sent/received. — Data is not being sent/received. ▄ ASR 5500 Installation Guide...
Page 101: Checking Status Leds On Dpcs Or Udpcs
— Redundant Green Card Migrate Run/Fail Green Card is online and migrating from or to other DPC/UDPC. Active Green Blink Redundant Amber Card Failed Run/Fail Card has failed and is offline. Active — Redundant — ASR 5500 Installation Guide ▄...
Page 102: Checking Status Leds On Fscs
SSD 2 is being accessed. Card Active Run/Fail Green Non-redundant switch fabric Non-redundant storage Active Green Redundant Amber Drive 1 Active Green Blink SSD 1 is being accessed. Drive 2 Active Green Blink SSD 2 is being accessed. ▄ ASR 5500 Installation Guide...
Page 103: Checking Status Leds On Ssc
— Redundant — Card Active (Normal) Run/Fail Green Card is backed up by other SSC. Active Green Redundant Green Card Active Run/Fail Green Card is not backed up by other SSC. Active Green Redundant Amber ASR 5500 Installation Guide ▄...
Page 104: Show Leds Command
Offline or Transitioning System Status — SSC is offline. System Service — show leds Command The show leds command displays the current operating state (color) of the status LEDs of all cards in the system. ▄ ASR 5500 Installation Guide...
Page 105: Initial System Configuration
Chapter 10 Initial System Configuration This chapter describes how to configure initial system parameters for the ASR 5500. It includes the following sections:  Basic Configuration  Context-level Security Administrator and Hostname  MIO/UMIO Port Numbering  Configure the Ethernet Management Interface ...
Page 106: Basic Configuration
▀ Basic Configuration Basic Configuration After power is applied to the chassis and the ASR 5500 has successfully booted, the command line interface (CLI) appears on a terminal connected to the Console port of the Master MIO. The initial configuration requires completing the following tasks via the CLI: ...
Page 107: Context-Level Security Administrator And Hostname
Specifies the maximum amount of time that an operator session can remain idle before being timeout-idle <idle_time> automatically terminated. The <idle_time> is measured in seconds. Use any integer from 0 through 300000000. The default is 0. ASR 5500 Installation Guide ▄...
Page 108 63 alphanumeric characters and is case sensitive. Important: The new <hostname> replaces the default hostname “asr5500” that appears in the CLI prompt. It also becomes the system hostname parameter for SNMP. For example: [local]asr5500(config)# system hostname node1033 [local]node1033(config)# ▄ ASR 5500 Installation Guide...
Page 109: Mio/Umio Port Numbering
20 – 29 10GbE SFP+ Bottom Service Port The output of the show port table command reflects the port numbering scheme in the table above for MIOs or UMIOs equipped with two 10-port, 10 GbE daughter cards. ASR 5500 Installation Guide ▄...
Page 110: Configure The Ethernet Management Interface
CIDR is a bitwise, prefix-based standard for the interpretation of IP addresses. It facilitates routing by allowing blocks of addresses to be grouped into single routing table entries. These groups (CIDR blocks) share an initial sequence of bits in the binary representation of their IP addresses. ▄ ASR 5500 Installation Guide...
Page 111: Configuring The Ethernet Management Interface
Enter interface <interface_name> to specify a name for the interface. <interface_name> is the name of the interface. The interface name can be between 1 and 79 alphanumeric characters and is case sensitive. The following prompt appears as the system enters the Ethernet Interface Configuration mode: [local]host_name(config-ctx)# interface local01 [local]host_name(config-if-eth)# ASR 5500 Installation Guide ▄...
Page 112 Bind the port to the interface that you created in Step 2. Binding associates the port and all of its settings to the interface. Enter the following commands: [local]host_name(config-port-<slot#/port#>)# bind interface <interface_name> local [local]host_name(config-port-<slot#/port#>)# no shutdown <interface_name> is the name of the interface that you configured in Step 3. ▄ ASR 5500 Installation Guide...
Page 113: Configuring The Management Interface With A Second Ip Address
[local]host_name(config)# Step 2 Enter context local to enter the context configuration mode. The following prompt appears: [local]host_name(config)# context local [local]host_name(config-ctx)# Step 3 Enter interface <interface_name> to specify the previously named interface. [local]host_name(config-ctx)# interface local01 [local]host_name(config-if-eth)# ASR 5500 Installation Guide ▄...
Page 114 For example: [local]host_name(config-if-eth)# ip address 10.0.153.100 255.255.255.248 [local]host_name(config-if-eth)# ipv6 address 2620:0:60:48::10/64 Step 5 Leave the configuration mode by entering end: [local]host_name(config-if-eth)# end [local]host_name# Step 6 Confirm the interface ip addresses by entering show config context local. ▄ ASR 5500 Installation Guide...
Page 115: Configure The System For Remote Access
Enter server ftpd to allow FTP access. [local]host_name(config-ctx)# server ftpd Step 6 Enter server tftpd to allow TFTP access. [local]host_name(config-ctx)# server tftpd Step 7 Enter exit to exit the context configuration mode. [local]host_name(config-ctx)# exit [local]host_name(config)# ASR 5500 Installation Guide ▄...
Page 116 Initial System Configuration ▀ Configure the System for Remote Access Step 8 Enter to exit the configuration mode. [local]host_name(config)# end [local]host_name# Step 9 Proceed to Save the Basic Configuration. ▄ ASR 5500 Installation Guide...
Page 117: Set System Timing
Wednesday October 10 13:08:27 us-eastern 2012 Configuring Network Time Protocol Support This section describes how to enable the use of the Network Time Protocol (NTP) on the ASR 5500 chassis. Overview of NTP Support Many of the services offered by the ASR 5500 platform require accurate timekeeping derived through NTP. If the time reference(s) used by StarOS are not accurate, the services may be unreliable.
Page 118: Basic Ntp Configuration
A local clock with no external source is usually a last-resort clock when no better clock is available. It is typically configured on a site's intermediate NTP server so that when a WAN network outage occurs, hosts within the site can continue to synchronize amongst themselves. ▄ ASR 5500 Installation Guide...
Page 119: Using A Load Balancer
Round-trip delay (in milliseconds) for messages exchanged between the system and the NTP server. offset Number of milliseconds by which the system clock must be adjusted to synchronize it with the NTP server. jitter Jitter in milliseconds between the system and the NTP server. ASR 5500 Installation Guide ▄...
Page 120: Enable Cli Timestamping
This completes the basic configuration process. Additional Configuration Tasks Establishing the basic configuration allows an operator to access the ASR 5500 for management purposes. Additional configuration settings are required for full operational deployment within a provider network. To complete these tasks, refer to the following documents: ...
Page 121: Replaceable Components
Chapter 11 Replaceable Components This chapter describes how to remove and replace the following components:  Air Filters  Fan Tray Units   Circuit Cards  Returning Failed Components ASR 5500 Installation Guide ▄...
Page 122: Air Filters
Upper Front Fan Tray: State=Normal Speed=70% Temp=40 C Important: The safe operating temperature range for the chassis and its components is between -5 degrees C and 50 degrees C (23 degrees F and 122 degrees F). ▄ ASR 5500 Installation Guide...
Page 123 Card 12: Normal Card 14: Normal Card 15: Normal Card 16: Normal Card 17: Normal Fan Lower Rear: 26 C Fan Lower Front: 27 C Fan Upper Rear: 28 C Fan Upper Front: 40 C ASR 5500 Installation Guide ▄...
Page 124: Replacing An Air Filter
The plastic tabs should be hanging down. Step 8 Reinstall the fan tray access cover. Step 9 Reinstall the chassis cover panel by snapping it in place. Step 10 Discard the old air filter. ▄ ASR 5500 Installation Guide...
Page 125 Replaceable Components Air Filters ▀ Cover panel Access Cover Front air filter (ASR55-FLTR-AIR-F=) Pull tab ASR 5500 Installation Guide ▄...
Page 126: Rear Air Filter
The plastic tabs should be hanging down. Step 7 Reinstall the fan tray access cover. Step 8 Reinstall the chassis cover panel by snapping it in place. Step 9 Discard the old air filter. ▄ ASR 5500 Installation Guide...
Page 127 Replaceable Components Air Filters ▀ Cover panel Access Cover Rear air filter (ASR55-FLTR-AIR-R=) Pull tab ASR 5500 Installation Guide ▄...
Page 128: Fan Tray Units
Loosen the two screws that secure the fan tray to the chassis. Step 4 Grasp the center pull and pull the failed fan tray unit from the chassis. Step 5 Set the failed fan tray safely aside. ▄ ASR 5500 Installation Guide...
Page 129 Step 7 Slowly slide the fan tray into the chassis along the guides until the rear connector is firmly seated in the midplane. If the ASR 5500 is powered up, the fans should begin spinning. Step 8 Tighten the screws that secure the fan tray to the chassis.
Page 130: Replace The Lower Fan Tray
Align the replacement fan tray within the lower chassis opening. With the unit resting on the bottom rail of the opening, push inward until it is firmly seated in the rear connectors. If the ASR 5500 is powered up, the fans should begin spinning.
Page 131: Replace The Lower Fan Tray
Align the replacement fan tray within the upper chassis opening. With the unit resting on the bottom rail of the opening, push inward until the rear connector is firmly seated in the midplane. If the ASR 5500 is powered up, the fans should begin spinning.
Page 132 Replaceable Components ▀ Fan Tray Units Cover panel Access Cover Rear fan tray ▄ ASR 5500 Installation Guide...
Page 133: Determining That A Pfu Has Failed
Use a 7/16-inch nut driver or socket wrench to remove the nuts, lock washers and flat washers from each of the eight terminals and set them aside for reuse. Step c Remove the 2-hole lugs from each of the terminals. ASR 5500 Installation Guide ▄...
Page 134 To avoid the risk of personal injury and/or potential damage to the system, never operate the chassis without the plastic cover. Step 14 Reinstall the front top cover panel by aligning it over the balled posts and snapping it in place. Step 15 Refer to Returning Failed Components for additional instructions. ▄ ASR 5500 Installation Guide...
Page 135 Replaceable Components PFU ▀ Cover panel ASR 5500 Installation Guide ▄...
Page 136: Circuit Cards
Determining Whether a Card has Failed The ASR 5500 has several ways to indicate an application card failure. The first indicator is that the Status LED on the System Status Card (SSC) turns red to indicate the failure of a chassis component. Another indicator is the Run/Fail LED on an application card is red or turns off if that card has a problem.
Page 137 : 3.300 V (min 2.970 V, max 3.630 V) Voltage: 48V-A : 0.000 V Voltage: 48V-B : 0.000 V Current: 48V-A : 0.00 A Current: 48V-B : 0.00 A Airflow: Lower Left : 0 FPM Airflow: Lower Middle : 0 FPM ASR 5500 Installation Guide ▄...
Page 138: Snmp Traps
▀ Circuit Cards SNMP Traps The ASR 5500 supports SNMP traps that are triggered when conditions indicate status changes on application cards. To display SNMP trap statistics, run the show snmp trap statistics command. A sample output appears below. [local]asr5500# show snmp trap statistics...
Page 139: Replacing A Failed Card
During installation, maintenance, and/or removal, wear a grounding wrist strap connected to the ASR 5500 chassis to avoid ESD damage to the components. Failure to do so could result in damage to sensitive electronic components and potentially void your warranty.
Page 140: Remove And Replace The Circuit Card
Make sure a card or baffle panel is installed in every unpopulated chassis slot at all times. Important: If your ASR 5500 chassis is equipped with a cable management system, refer to the special instructions for Lowering the Cable Management Tray in the Cable Management System Installation appendix. Step 1 Use a Phillips #2 screwdriver to loosen the captive screws within the top and bottom handles of the failed card.
Page 141 From the CLI run the Exec mode filesystem synchronize all command. Step 14 Back up the system configuration (refer to Backing Up the System Configuration). Step 15 Refer to Returning Failed Components for additional instructions. MIO/UMIO card Screw Ejector handle Ejector subhandle ASR 5500 Installation Guide ▄...
Page 142: Swapping The Sdhc Memory Card Between Mio/Umio Cards
On the replacement MIO/UMIO, locate the SDHC card holder and remove the SDHC card. That card contains only a basic configuration for testing purposes; insert it into the failed card prior to returning the circuit card to Cisco. ▄ ASR 5500 Installation Guide...
Page 143: Returning Failed Components
If the failed component is still under Cisco warranty or a hardware maintenance contract, return it for repair or replacement. If the failed component is out of warranty or not covered by a maintenance contract, contact Cisco to determine if it can be sent in for repair at an additional cost.
Page 145: Spare Component Recommendations
This appendix provides a recommended quantity of spare components to be stocked as part of a sparing program for the ASR 5500. This information should only be used as a guideline for designing a sparing program that meets your company's design, deployment, and availability goals.
Page 146 4. Direct replacement for MIO card; requires U-PID license per installed UMIO. See Chassis, UMIO and UDPC Licenses Requirements for additional information. 5. Includes (20) 10GBASE-SR SFP+ modules. 6. Direct replacement for DPC; requires U-PID license per installed UDPC. See Chassis, UMIO and UDPC Licenses Requirements for additional information. ▄ ASR 5500 Installation Guide...
Page 147: Chassis, Umio And Udpc License Requirements
MIOs and DPCs, and UMIOs and UDPCs. Important: Support for universal licenses will be announced in StarOS Release Notes. Contact your Cisco account representative for detailed information regarding ASR 5500 license requirements. ASR 5500 Installation Guide ▄...
Page 148: License Types
DPC can be migrated to a standby UDPC and vice versa. Different combinations of licenses for universal cards and non-universal cards are supported in an ASR 5500 chassis. Some combinations may cause the system to be only partially operational or entirely non-operational.
Page 149: Staros License Support Matrices
MIO. Active MIO, UMIO and UDPCs will not boot and remain offline. Standby UMIO Active UMIO, UMIO will not boot and the MIO will become Active. Standby MIO ASR 5500 Installation Guide ▄...
Page 151: Cable Management System Installation
Appendix C Cable Management System Installation This appendix describes how to install the ASR 5500 Cable Management System (CMS) and route network cables to ports on the Management Input/Output (MIO) or Management Input/Output Universal (UMIO)cards. Important: Installation of CMS components is optional.
Page 152: Introduction
Introduction The ASR 5500 cable management system consists of two components. The first is a tray that mounts at the rear of the chassis immediately below the card cage. The second is a cable management bracket that mounts to the faceplate of each MIO or UMIO card.
Page 153 Cable Management System Installation Installing the Cable Management Tray ▀ Cable management tray Swing arm Shoulder screw Nylon washer Latch Hook-and-loop strap ASR 5500 Installation Guide ▄...
Page 154 You must install the cable management bracket on each MIO card before you can route and secure network cables. Refer to Installing the Cable Management Bracket on an MIO or UMIO Card for additional information. ▄ ASR 5500 Installation Guide...
Page 155: Removing Cable Guides
Step 7 Locate and remove the screws and washers. Step 8 Repeat Step 1 through Step 7 for the middle guide of the other group of three guides. Cable management tray Cable guide Phillips #1 screwdriver ASR 5500 Installation Guide ▄...
Page 156: Installing The Cable Management Bracket On An Mio Or Umio Card
The cable management bracket is packaged in the MIO/UMIO shipping box. Ideally, the bracket should be installed on an MIO/UMIO before it is installed in the ASR 5500 chassis. However, you can safely install the bracket on an MIO/UMIO in a powered-up ASR 5500 chassis.
Page 157 Cable Management System Installation Installing the Cable Management Bracket on an MIO or UMIO Card ▀ MIO/UMIO faceplate Cable management bracket Nylon sleeve Nylon pin ASR 5500 Installation Guide ▄...
Page 158: Routing And Securing Network Cables
Routing and Securing Network Cables Important: This procedure assumes that the cable management tray has been installed on the ASR 5500 chassis, and cable management brackets have been installed on the MIO/UMIO cards. The general procedure for using the CMS is to route network cables, including twisted-pair copper 1 GbE (1000Base- TX) and fiber optic 10 GbE, through either end of the cable management tray upwards toward the cable management brackets on the MIO/UMIOs.
Page 159 Cable Management System Installation Routing and Securing Network Cables ▀ Figure 19. CMS Cable Routing Cable management bracket Cable management tray Cable guides ASR 5500 Installation Guide ▄...
Page 160 Bottom DC (ports 20 to 29) — 1GbE (ports 1 and 2) 3E or 3F Top DC (ports 10 to 19) Future Notes: 1. If cable guide has been removed. 2. Already in use if cable guide has been removed. ▄ ASR 5500 Installation Guide...
Page 161: Cms Procedure For Replacing Asr 5500 Circuit Cards
CMS Procedure for Replacing ASR 5500 Circuit Cards When the cable management tray is installed, the procedure for removing circuit cards from the ASR 5500 chassis varies from that described in the Circuit Cards section of the Replaceable Components chapter.
Page 162: Raising The Cable Management Tray
Cable Management System Installation ▀ CMS Procedure for Replacing ASR 5500 Circuit Cards Raising the Cable Management Tray Step 1 Grasp the base and slowly raise the cable management tray upward. Step 2 Verify that the cable tray can be lifted upward and secured without pinching any of the network cables. If necessary increase the slack in a bundle to avoid damaging the cables.
Page 163: Console Port To Cisco Server Cabling
This appendix describes how to interconnect the Console port on the Management Input/Output (MIO) or Management Input/Output Universal (UMIO) card to a Cisco communication server or router equipped with an asynchronous interface module. When so equipped these devices can be configured to function as terminal servers in management networks.
Page 164: Introduction
▀ Introduction Introduction Cisco communication servers and routers can be equipped with asynchronous interface modules as shown in the table below. These modules accept one of two types of serial RJ45 “octopus” cables:  CAB-HD8-ASYNC – uses a single high-densityVHDC168M connector at the interface module end, ...
Page 165: Cabling
Cabling The figure and table below indicate how the MIO or UMIO Console port connects to an interface module via the asynchronous RJ45 adapter cable and a Cisco rollover cable or coupler. Figure 20. MIO or UMIO Console to Cisco CAB Assembly Cabling Table 25.
Page 166 Console Port to Cisco Server Cabling ▀ Cabling ▄ ASR 5500 Installation Guide...
Page 167: Configuration
Console Port to Cisco Server Cabling Configuration ▀ Configuration The MIO facing interface of the Cisco server should be configured via IOS as shown in the following example: line 0/0/0 0/0/14 exec-timeout 0 0 no exec transport input all speed 115200 For detailed information, refer to the Configuration guides supplied with the Cisco device and asynchronous interface module.
Page 169: Rma Shipping Procedures
Appendix E RMA Shipping Procedures This appendix describes the procedures for packaging and returning ASR 5500 chassis components via the Cisco Return Material Authorization (RMA) process. For detailed information on Cisco RMA policies (including detailed shipping instructions), go to the Product Online Web Returns (POWR) link on www.cisco.com.
Page 170: Rma Overview
The following general guidelines apply when packaging components:  It is best to use the original Cisco box and packaging in which your equipment was sent and received. You can use a shipping carton saved when the system and its components were installed. You can also use the packaging for a replacement component to repackage the original component.
Page 171: Sealing The Shipment
These reference numbers should also be listed on the shipper’s air bill. Important: Mislabelled or unlabeled RMAs delay the receiving and crediting processes. Cisco Return Locations For a list of authorized Cisco return centers, go to the Authorized Return Locations link on www.cisco.com. ASR 5500 Installation Guide ▄...
Page 172: Packaging Asr 5500 Cards
RMA Shipping Procedures ▀ Packaging ASR 5500 Cards Packaging ASR 5500 Cards This section provides detailed instructions for packaging ASR 5500 front and rear cards using Cisco shipping cartons. Front Cards The packing instructions in this section apply to the following cards: ...
Page 173: Rear Cards
RMA Shipping Procedures Packaging ASR 5500 Cards ▀ Rear Cards The packing instructions in this section apply to the following cards:  Management Input/Output (MIO) or Management Input/Output Universal (UMIO) card  Data Processing Card (DPC) or Data Processing Universal (UDPC) Important: Rear cards use the larger ESD bags and shipping cartons.

Cisco ASR 5500 Installation Manual

Quick Links

Related Manuals for Cisco ASR 5500

Summary of Contents for Cisco ASR 5500

Table of Contents
