Vigor3900 Series User's Guide
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: (0)330 088 0195 Fax: +44 (0)1245 808299
3 . 1 2 . 2 S e t a n e w f i r m
3 . 1 2 . 2 S e t a n e w f i r m
To create a new firmware upgrade profile, one CPE (e.g., 2830 in this case) must be
managed by Vigor3900 at least. Otherwise, the profile cannot be created successfully.

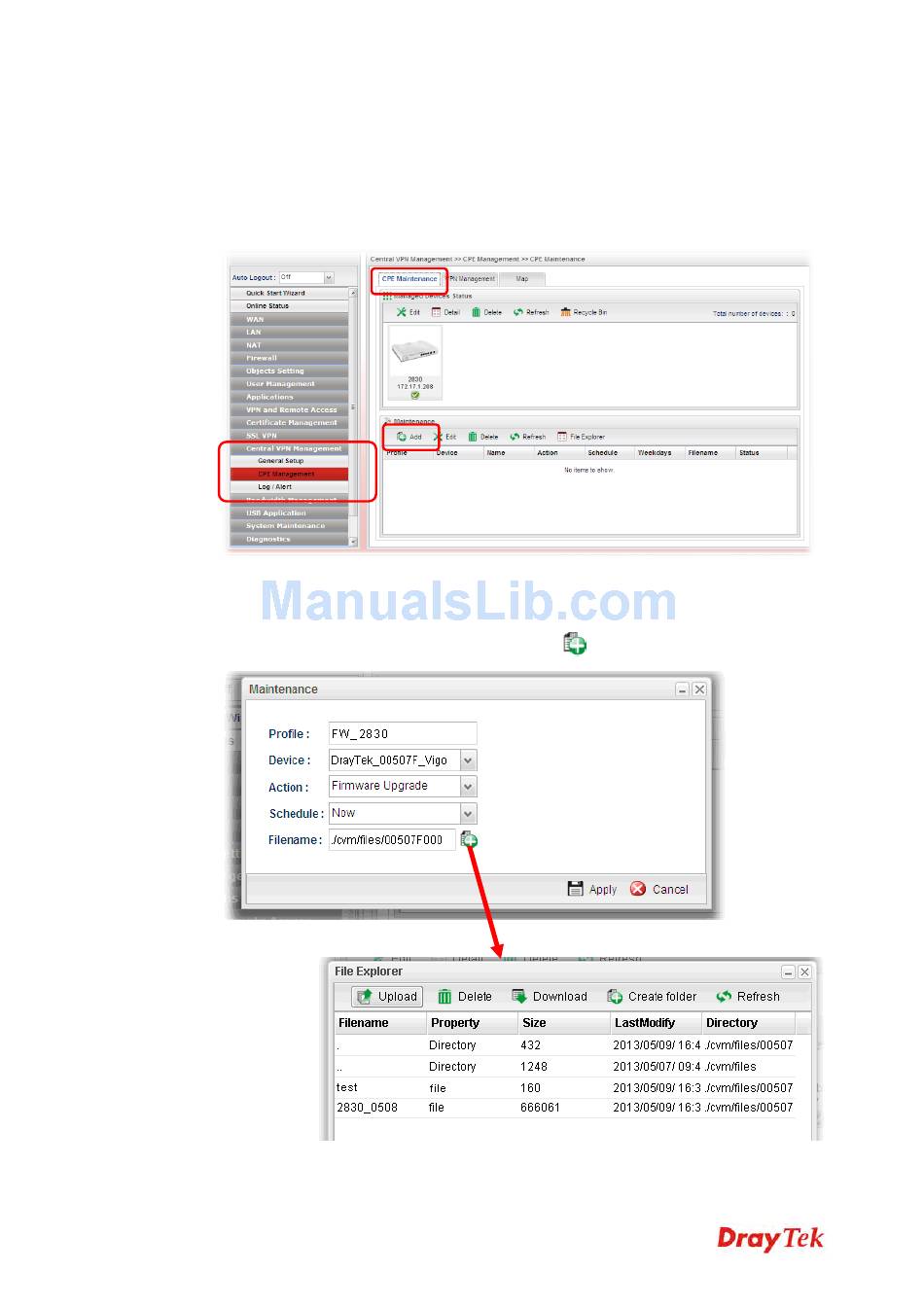

1. Open Central VPN Management>>CPE Management. Click CPE Maintenance. In
the Maintenance area, click Add.
2. In the following dialog, type the name for the new profile; specify the vigor router the
file will be applied to; choose Firmware Upgrade as the Action, choose Now as the
Schedule (it means the firmware upgrade will be performed after clicking Apply); and
type the string of the firmware filename or click
w a r e u p g r a d e p r o f i l e
w a r e u p g r a d e p r o f i l e
69
to choose a correct one.
