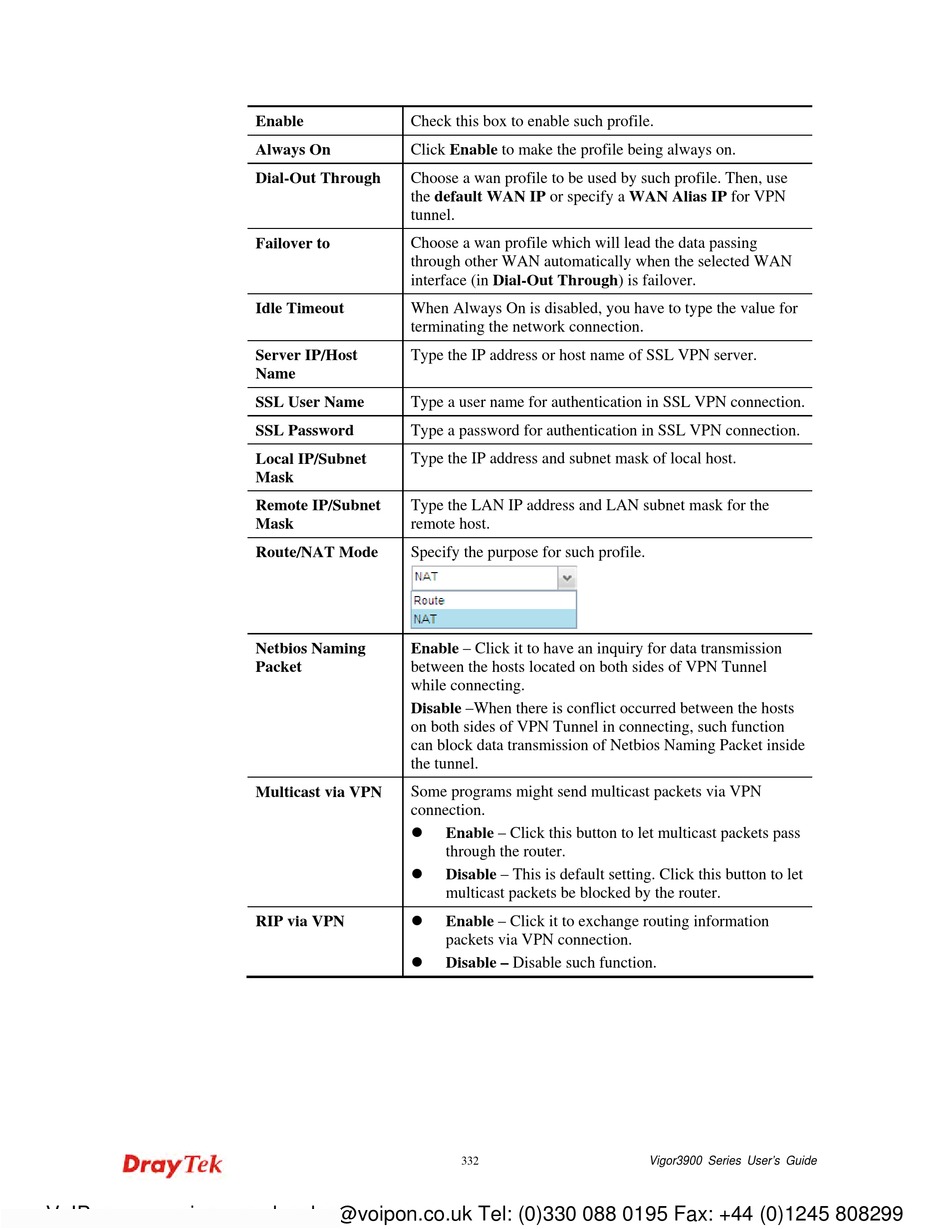

Enable Check this box to enable such profile.
Always On Click Enable to make the profile being always on.
Dial-Out Through Choose a wan profile to be used by such profile. Then, use
the default WAN IP or specify a WAN Alias IP for VPN
tunnel.
Failover to Choose a wan profile which will lead the data passing
through other WAN automatically when the selected WAN
interface (in Dial-Out Through) is failover.
Idle Timeout When Always On is disabled, you have to type the value for
terminating the network connection.
Server IP/Host Type the IP address or host name of SSL VPN server.
Name
SSL User Name Type a user name for authentication in SSL VPN connection.
SSL Password Type a password for authentication in SSL VPN connection.
Local IP/Subnet Type the IP address and subnet mask of local host.
Mask
Remote IP/Subnet Type the LAN IP address and LAN subnet mask for the
Mask remote host.
Route/NAT Mode Specify the purpose for such profile.
Netbios Naming Enable – Click it to have an inquiry for data transmission
Packet between the hosts located on both sides of VPN Tunnel
while connecting.
Disable –When there is conflict occurred between the hosts
on both sides of VPN Tunnel in connecting, such function
can block data transmission of Netbios Naming Packet inside
the tunnel.
Multicast via VPN Some programs might send multicast packets via VPN
connection.



RIP via VPN

Enable – Click this button to let multicast packets pass
through the router.
Disable – This is default setting. Click this button to let
multicast packets be blocked by the router.
Enable – Click it to exchange routing information
packets via VPN connection.
Disable – Disable such function.
332 Vigor3900 Series User's Guide
