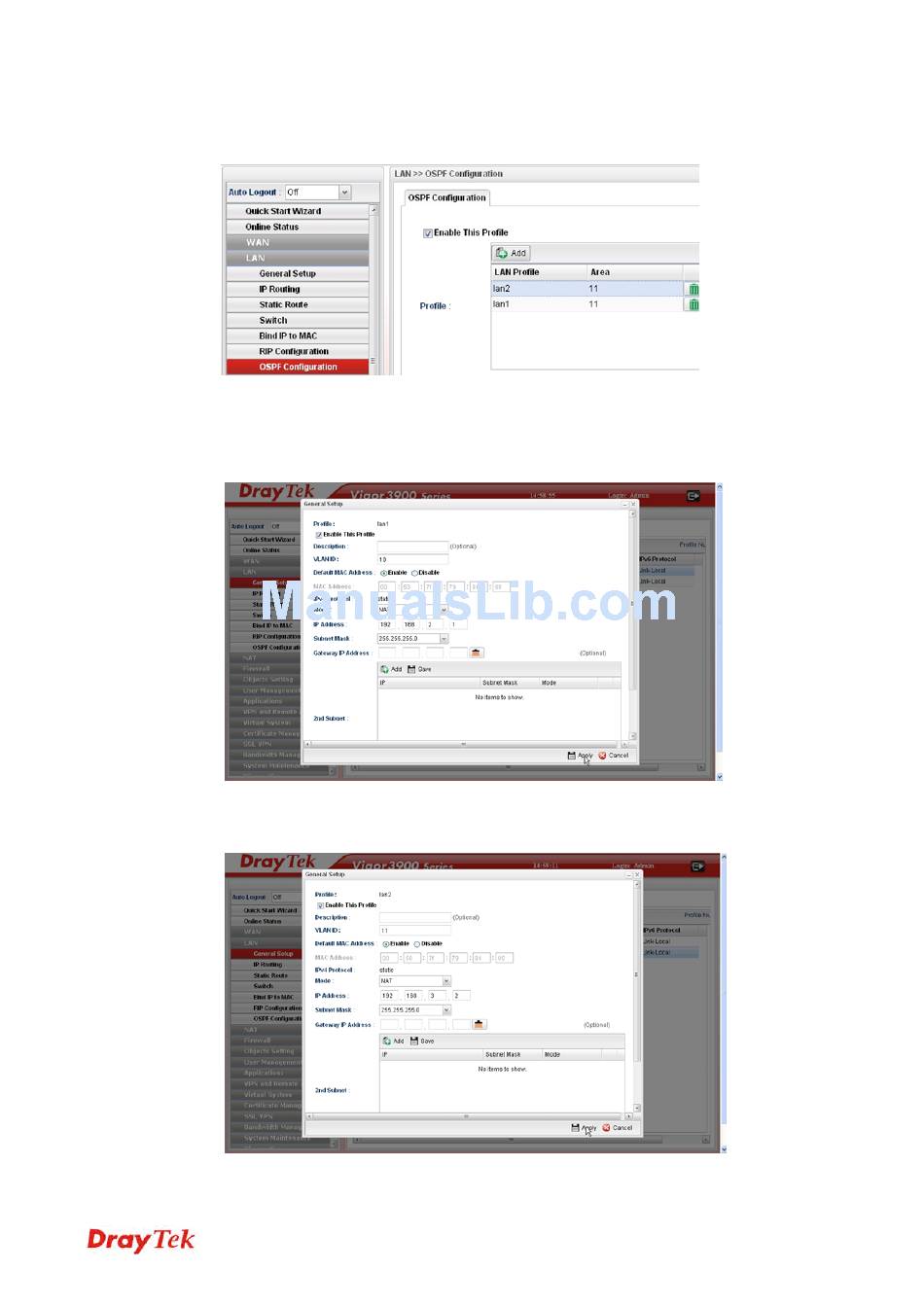

4. Open LAN >> OSPF Configuration to enable this profile. Click Add to make the LAN
Profiles lan2 area setting as 11 and lan1 area as 11. (As shown in the topology diagram.)
C o n f i g u r a t i o n f o r V i
C o n f i g u r a t i o n f o r V i
1. Open LAN >> General Setup to create a LAN (192.168.2.1/24) profile named lan1
with the settings shown below.
2. Next, continue to create a LAN (192.168.3.2/24) profile named lan2 with the settings
shown below.
g o r 3 9 0 0 B ,
g o r 3 9 0 0 B ,
