Enlarged version
12
DoE— Ho'okele ES—6/2015

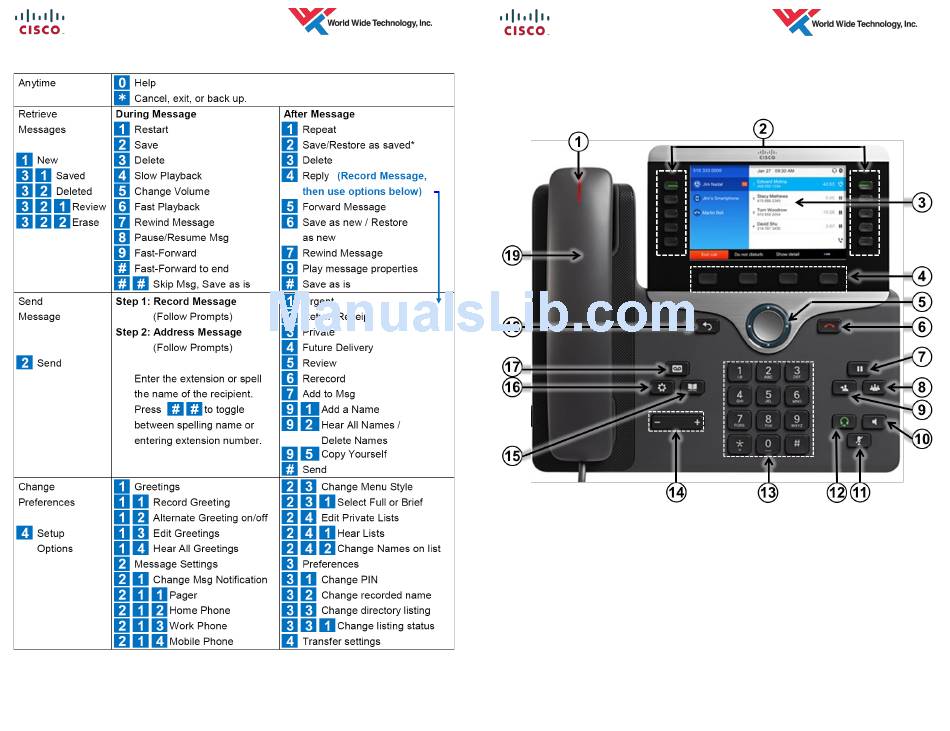

Cisco 8841 & 8851 IP Phone

Quick Reference

1. Handset Light Strip
2. Line / Session Buttons
3. Phone Screen
4. Soft Key Buttons*
5. Navigation and Select Button
6. Release Button
7. Hold / Resume Button
8. Conference Button
9. Transfer Button
10. Speaker Button
11. Mute Button
12. Headset Button
V 1.2
13. Keypad
14. Volume Button
15. Contacts Button
16. Applications Button
17. Messages Button
18. Back Button
19. Handset
* Soft Key labels change with different
phone states.
* Phone may go into a power save
mode, press any button or pick up
handset to turn on.
1
DoE— Ho'okele ES—6/2015

Advertisement

loading

Related Manuals for Cisco 8851

Summary of Contents for Cisco 8851

  • Page 1: Quick Reference

    Cisco 8841 & 8851 IP Phone Quick Reference V 1.2 1. Handset Light Strip 13. Keypad 2. Line / Session Buttons 14. Volume Button 3. Phone Screen 15. Contacts Button 4. Soft Key Buttons* 16. Applications Button 5. Navigation and Select Button 17.
  • Page 2 Easy PIN numbers are not allowed. The system will notify you if it is. 3. AC power cord (optional) 8. Analog Headset port 4. Network port (connects to the wall 9. USB Port (8851 Only) VOICEMAIL INDICATIONS or network switch – Yellow Cable) 10. Bluetooth (8851 Only—Not 1.
  • Page 3 TO PLACE A CALL Blank Page  but- Dial Tone — Lift Handset, or press the Speaker button, Line ton, Headset button, or the New Call softkey then dial number.  Pressing the New Call softkey activates the speaker if the speaker was previously used or the headset if the headset was previously used (headset icon displayed on top right of display).
  • Page 4 HEADSETS ENDING A CALL Various types of headsets can be used with this phone. 1. To disconnect from a call, place the Handset in the cradle, press the 1. Wired with RJ9 connector—Plug RJ9 connector into the headset port on Speaker button, Headset...
  • Page 5 VOLUME SETTINGS CONFERENCE CALL (Continued) Ring 4. Repeat steps 1 - 3 to add more parties (max people in conference). button to adjust the ring 1. With your phone idle, press the Volume Notes: volume.  Only the initiator can add additional parties to the conference. 2.
  • Page 6 DECLINE (Sends an incoming call to voicemail) CALL PARK 1. While phone is ringing, press the Decline softkey. Call is forwarded to your 1. While on an active call press the Park softkey. Your caller is put on hold in voicemail.
