Summary of Contents for Draytek vigor2760 series

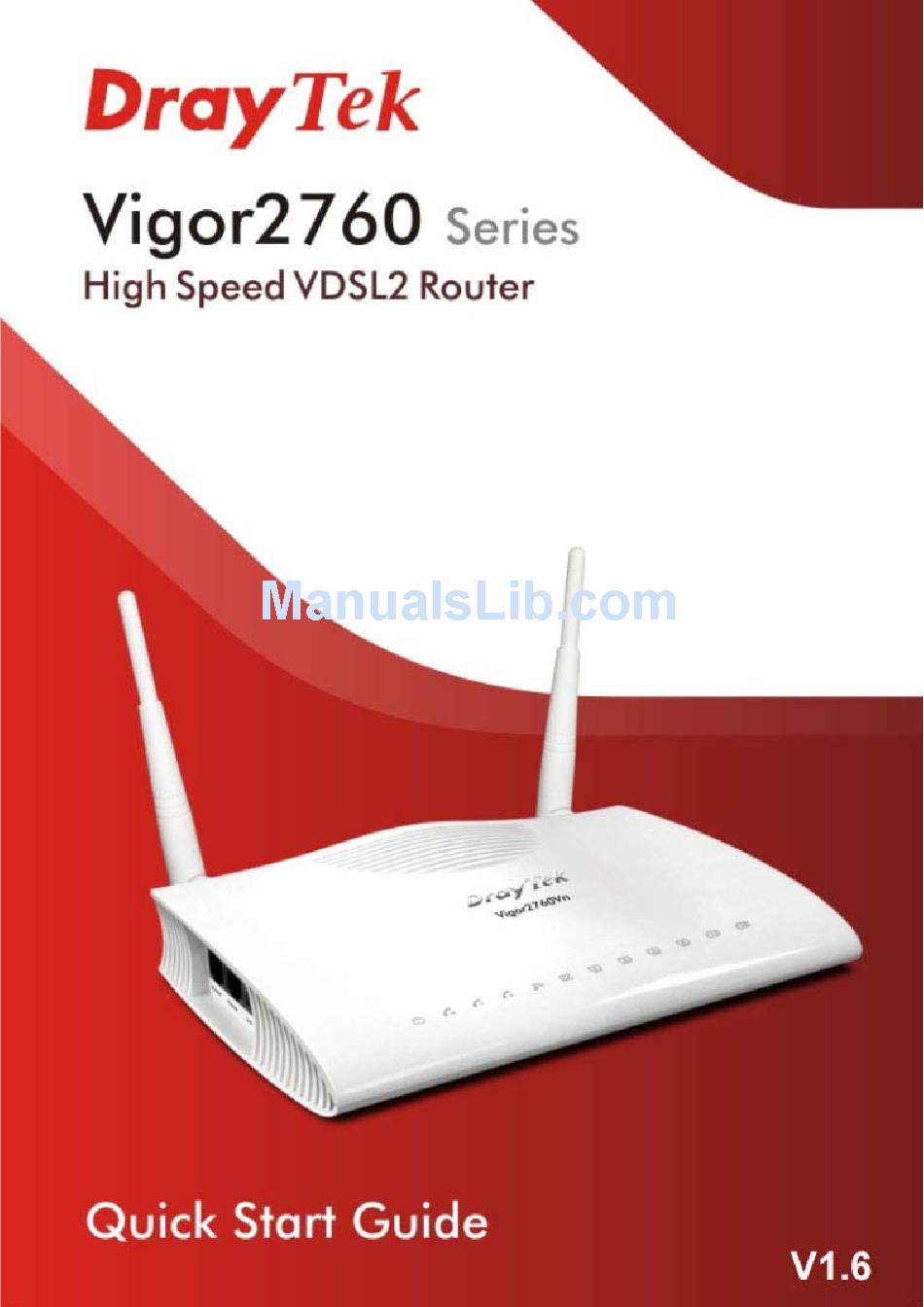

  • Page 2: Quick Start Guide

    Vigor2760 Series High Speed VDSL2 Router Quick Start Guide Version: 1.6 Firmware Version: V3.8.2.1 (For future update, please visit DrayTek web site) Date: January 20, 2017...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.

  • Page 4: European Community Declarations

    County, Taiwan 303 Product: Vigor2760 Series DrayTek Corp. declares that Vigor2760 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B.
  • Page 5 IC Regulatory Information Product: Vigor2760Vn, Vigor2760n IC: 20803-V2760 Canadian Representative: Company Name: Network Systems Solutions Canada Inc. Company Address: 56 Rory Road, North York, ON, M6L 3G1 Company Telephone: 1-647-930-9285 This radio transmitter (IC:20803-V2760) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated.
  • Page 6 être raccordés à une interface téléphonique. La terminaison d'une interface peut consister en une combinaison quelconque de dispositifs, à la seule condition que la somme des IES de tous les dispositifs n'excède pas cinq. More update, please visit www.draytek.com.
  • Page 7 Web registration is preferred. You can register your Vigor router via http://www.draytek.com. Firmware & Tools Updates Due to the continuous evolution of DrayTek technology, all routers will be regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents.

  • Page 8: Table Of Contents

    1. Introduction......................1 2. Package Content ....................2 3. Panel Explanation....................3 3.1 Vigor2760 ........................... 3 3.2 Vigor2760n ..........................5 3.3 Vigor2760Vn..........................7 4. Hardware Installation ................... 9 4.1 Network Connection ........................9 4.2 Wall-Mounted Installation ......................11 5. Software Configuration ..................12 6.

  • Page 9: Introduction

    The Vigor2760 series are the routers with high speed in data transmission through DSL port and LAN ports. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g.

  • Page 10: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor router Quick Start Guide RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Annex A) RJ-11 to RJ-45 Cable (Annex B) RJ-45 to RJ-45 Cable (Annex B) Antenna (for “n”...

  • Page 11: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) The DSL port is connected. Blinking The router is ready. (Slowly) Blinking The router is trying to connect to Internet. (Quickly) The LAN port is connected. Blinking The data is transmitting.
  • Page 12 Interface Description Connector for a power adapter. I / O Power Switch. Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button.

  • Page 13: Vigor2760N

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) On (Green) The wireless access point is ready. Blinking The data is transmitting via wireless (Green) connection. (Wireless LAN Blinking Blinks with one second cycle for two minutes. On/Off/WPS) (Orange) The WPS function is active.
  • Page 14 Interface Description Connector for a power adapter. I / O Power Switch. Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button.

  • Page 15: Vigor2760Vn

    Status Explanation Blinking The router is powered on and running normally. The router is powered off. (Activity) A PSTN phone call comes (in and out). However, when the phone call is disconnected, the LED will be off for awhile. (LINE) There is no PSTN phone call.
  • Page 16 Interface Description Connector for a power adapter. I / O Power Switch. Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button.

  • Page 17: Hardware Installation

    4 PCs directly. Connect Phone port to a conventional analog telephone (for V model only). Connect detachable antennas to the router for Vigor2760 series (for n model only). Connect one end of the power cord to the power port of this device.
  • Page 18 (For the detailed information of LED status, please refer to section 1.1.)

  • Page 19: Wall-Mounted Installation

    Vigor2760 has keyhole type mounting slots on the underside. A template is provided on the Vigor2760 packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction.

  • Page 20: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 21 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. The first screen of Quick Start Wizard is entering login password. After typing the password, please click Next.
  • Page 22 On the next page as shown below, please select the WAN interface that you use. If DSL interface is used, please choose WAN1; if Ethernet interface is used, please choose WAN2; if 3G USB modem is used, please choose WAN3. Then click Next for next step.
  • Page 23 After finished the above settings, simply click Next. Please manually enter the Username/Password provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown. Now, you can enjoy surfing on the Internet.
  • Page 24 Choose WAN1 as WAN Interface and click the Next button; you will get the following page. Please type in the IP address/mask/gateway information originally provided by your ISP. Then click Next for viewing summary of such connection. Click Finish. A page of Quick Start Wizard Setup OK!!! will appear. Then, the system status of this protocol will be shown.

  • Page 25: Customer Service

    If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com.
