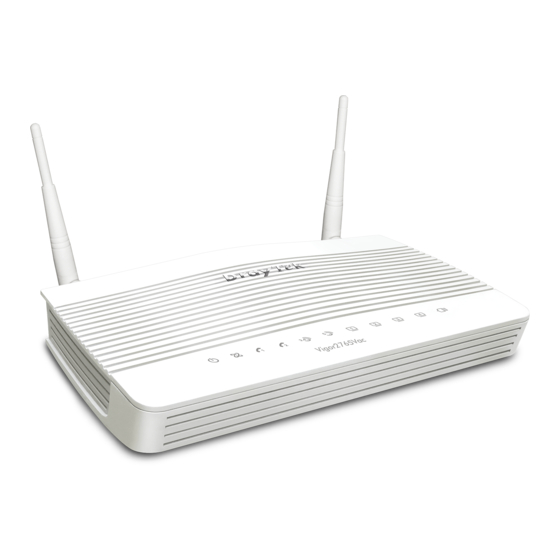

Draytek Vigor2765 Series Quick Start Manual
Vdsl2/g.fast security router
Hide thumbs
Also See for Vigor2765 Series:
- Quick start manual (31 pages) ,
- Quick start manual (24 pages) ,
- Quick start manual (16 pages)
Table of Contents
Advertisement
Quick Links
Vigor2765/2766 Series
VDSL2/G.fast Security Router
Quick Start Guide
(Wired models)
Guide Version:
1.3
Region: United Kingdom & Ireland
For updates and support, visit www.draytek.co.uk
August 2021 / Firmware V4.2.3_BT
Note: Product specification is subject to continuous evolution which may
not always be reflected in current documentation. For the formal specification
and details of the supported features of your product, please refer
only to the web site at
www.draytek.co.uk
Regional and Network Compatibility
For all models, please check that you have been supplied with a device intended for your geographic region and networks.
Hardware and software varies by region, as well as local support and warranty services. To be sure of compatibility and local
support, ensure that you are buying the correct product through authorized channels. The outside of the product's box will
state the region compatibility (e.g. "Applied Region: UK"). If you are unsure, check with DrayTek or your supplier. The use of
unofficial components (e.g. PSUs) or adapting interfaces or the use of unauthorized software/firmware may cause malfunction,
product damage or personal danger and invalidates your warranty and access to support services.
i
Advertisement
Table of Contents
Related Manuals for Draytek Vigor2765 Series
Summary of Contents for Draytek Vigor2765 Series
- Page 1 The outside of the product’s box will state the region compatibility (e.g. “Applied Region: UK”). If you are unsure, check with DrayTek or your supplier. The use of unofficial components (e.g.
- Page 2 We warrant to the original end user (purchaser) that the router will be free from any defects in workmanship or materials for a period of two (2) years from the date of purchase from a DrayTek authorized dealer in the UK/Ireland. Please keep your purchase receipt in a safe place as it serves as proof of date of purchase.
- Page 3 Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 303, Taiwan, declare under our sole responsibility that the product Product name: VDSL2 Security Router Model number: Vigor2765/Vigor2766 Series Manufacturer: DrayTek Corp.
-
Page 4: Table Of Contents
1. Package Contents....................1 2. Panel Explanation for Vigor2765/Vigor2766 ............2 3. Hardware Installation ................... 3 3.1 Connecting up the Vigor Router....................3 3.2 Wall-Mounting the Vigor Router ....................4 4. Setup & Configuration..................5 4.1 Accessing the Router Web Interface...................5 4.2 WAN1 – ADSL & VDSL Connection Setup .................8 4.2.1 PPPoE connection with FTTC VDSL2 ................8 4.2.2 DHCP / Static IP connection with FTTC VDSL2............11 4.2.3 PPPoA connection with ADSL / ADSL2+..............14... -
Page 5: Package Contents
DrayTek Vigor Router Quick Start Guide (This document) RJ-45 Cable (Ethernet) RJ-11 to RJ-11 Cable (Connects to your PC or Switch) (Connects to your DSL line) UK Power Adapter The maximum power consumption is 15 Watts. Important Remove the protective film from the router before use to Note ensure ventilation. -
Page 6: Panel Explanation For Vigor2765/Vigor2766
Status Explanation Blinking The router is ready and operating normally The router is powered off (Activity) DSL connection synchronised Blinking (Slowly) DSL connection not currently synchronizing or not (DSL) detected Blinking (Quickly) DSL connection is synchronising Ethernet LAN (RJ45) is connected Blinking Data is transmitting (sending/receiving) Ethernet LAN is disconnected... -
Page 7: Hardware Installation
Here we take Vigor2765 as an example. ADSL/VDSL Connections: Connect the DSL port to the Modem or DSL port of the external splitter/microfilter (not supplied) with the RJ-11 line cable. In some cases, your RJ-11 DSL socket will be built-into your phone line socket on the wall and you won’t have a separate microfilter/splitter. -
Page 8: Wall-Mounting The Vigor Router
DrayTek Vigor 2765/2766 series routers have keyhole type mounting slots on the underside to hang the router on, using screws attached to a wall or other surface. Drill two holes on the wall. The distance between the holes shall be 168mm. -
Page 9: Setup & Configuration
If the instructions in this quick start guide do not allow you to get online with your ISP or type of Internet connection, there are additional guides available from the Product Knowledgebase on www.draytek.co.uk. Note To access the router, your PC will need to either get its IP address using DHCP or have an IP address in the 192.168.1.x... - Page 10 - your connection is still encrypted. The router login prompt will then request a username and password to allow access. Here we take Vigor2765 series as an example. The factory default login details are: Username: admin...
- Page 11 Note If you cannot access the web interface, please go to the “Trouble Shooting” section in the User Guide to determine the cause of and solve your problem. Upon successful login, the router will display the Dashboard, which shows a summary of the router model, WAN status, front panel port status and other information: Note...
-
Page 12: Wan1 - Adsl & Vdsl Connection Setup
The VLAN tag value of 101 is required to connect to ISPs that operate on the Openreach VDSL2 network, if your ISP operates on a different VDSL2 network, this tag value may differ. Please check with your ISP or the DrayTek UK Knowledgebase for ISP specific guides. - Page 13 Click OK on that page to apply the changes. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA, then click the Details Page button to proceed: On the PPPoE / PPPoA settings tab: Select the Enable radio button at the top of the page to ensure that the PPPoE interface is enabled.
- Page 14 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...
- Page 15 The VLAN tag value of 101 is required to connect to ISPs that operate on the Openreach VDSL2 network, if your ISP operates on a different VDSL2 network, this tag value may differ. Please check with your ISP or the DrayTek UK Knowledgebase for ISP specific guides.
- Page 16 Click OK on that page to apply the changes. 3. Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to MPoA / Static or Dynamic IP, then click the Details Page button to proceed: 4. In the MPoA / Static or Dynamic IP settings: Select the Enable option and select Obtain an IP address automatically which will obtain an IP from the ISP using DHCP.
- Page 17 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. 5. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the VDSL information and DHCP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully:...
-
Page 18: Pppoa Connection With Adsl / Adsl2
Go to [WAN] > [Internet Access] Set the WAN1 Access Mode to PPPoE / PPPoA and click the Details Page button to proceed: On the PPPoE / PPPoA settings tab: The details for the VPI and VCI settings for ADSL should be correct for UK usage, with 0 and 38 being the defaults. - Page 19 Click OK on this page to apply the changes and the router will then prompt to restart. Click the OK button to restart the router. Once the router has restarted, the [Online Status] > [Physical Connection] page will display the ADSL information and PPP connection status, if the WAN1 section shows an IP address, it has connected to the internet successfully: Note...
-
Page 20: Wan2 - Ethernet Connection Setup
– – The WAN2 interface of the Vigor 2765 router can connect to an ISP supplied router or another network with an Internet connection. The Ethernet WAN port is shared with the LAN port P4 and must be configured to operate in WAN mode as shown in section 4.3.1 Enabling the Ethernet WAN Port If you are using a modem and your ISP has supplied you with a Username and... - Page 21 Set the Enable option for WAN2 to Yes, this enables the other options on this page. Set the Active Mode to Always On to make the Ethernet port the active Internet connection. Click OK to apply the change and the router will prompt to restart. Click OK to restart the router.
-
Page 22: Pppoe
This connection method will typically be used with a modem such as the Vigor 130 VDSL2 modem, which passes through the PPPoE connection from the ISP to the router. 1. Go to [WAN] > [Internet Access] Firstly set the WAN2 Access Mode to PPPoE, then click the Details Page button to proceed: 2. -
Page 23: Static Or Dynamic Ip
1. Go to [WAN] > [Internet Access] Firstly set the WAN2 Access Mode to Static or Dynamic IP, then click the Details Page button to proceed: 2. In the Static or Dynamic IP settings: Select the Enable option and select Obtain an IP address automatically which will obtain an IP from the ISP with DHCP. -
Page 24: Wan3 / Wan4 - 3G / 4G Usb Modem Setup
The list of supported modems can be found under: [USB Application] > [Modem Support List] or on the DrayTek UK site: https://www.draytek.co.uk/support/guides/usb-3g-4g-modem-support-list There are two USB modem connection modes available: PPP mode is used where the modem provides a dial-up interface and would typically require software to perform dialing and provide status information and diagnostics when used with a PC. - Page 25 To set the APN Name, enter the APN required by the SIM card / network into the APN Name field and click the Apply button: This will move the APN Name into the Modem Initial String to indicate that it has been saved.
-
Page 26: Dhcp Mode
To set up the USB WAN for DHCP mode, go to [WAN] > [Internet Access] Select 3G/4G USB Modem (DHCP mode) from the drop-down box Click the Details Page button to continue: In the USB WAN settings, select the Enable option to enable the WAN interface. Enter a SIM PIN code only if your SIM card has a PIN set on it, otherwise leave this blank. -
Page 27: Getting Further Help
Internet connectivity and more advanced features: https://www.draytek.co.uk/support/product-knowledgebase Now that you have your DrayTek product, you should keep up to date with product updates (firmware), security advisories and other product news, advice or special offers. Users in the UK/Ireland can subscribe to our mailing list. For... -
Page 28: Firmware Updates
- simple mistakes which could then be exploited by others. We've produced our free guide "Router Best Practice" which contains essential information for anyone installing, configuring or using a broadband router or wireless LAN. Available to download: https://www.draytek.co.uk/best...
