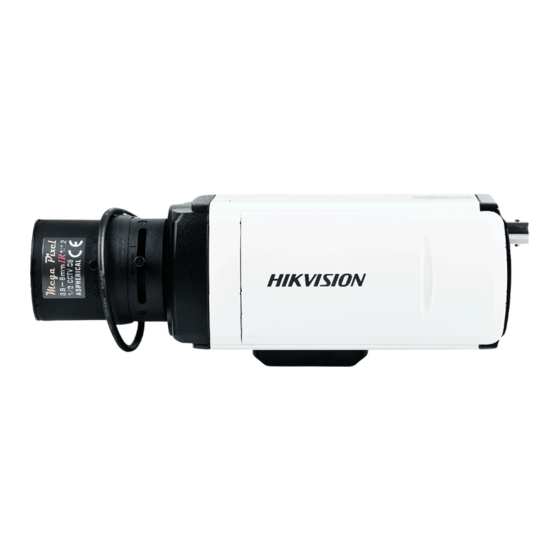

HIKVISION DS-2CD883F-E Installation Manual
  1. Manuals
  2. Brands
  3. HIKVISION Manuals
  4. Security Camera
  5. DS-2CD883F-E series
  6. Installation manual
HIKVISION DS-2CD883F-E Installation Manual

HIKVISION DS-2CD883F-E Installation Manual

Hide thumbs Also See for DS-2CD883F-E:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual , Installation Manual

Network Camera

Installation Manual
V4.0.3
Hangzhou Hikvision Digital Technology Co., Ltd.
http://www.hikvision.com

Advertisement

Table of Contents
loading

Related Manuals for HIKVISION DS-2CD883F-E

Summary of Contents for HIKVISION DS-2CD883F-E

  • Page 1: Network Camera

    Network Camera Installation Manual V4.0.3 Hangzhou Hikvision Digital Technology Co., Ltd. http://www.hikvision.com...
  • Page 2 Find the model of your camera in the following list. Then according to the structure Type on the left of your camera Model, you can find corresponding chapter for instructions of your camera. Type Model DS-2CD883F-E(W), DS-2CD855F-E, DS-2CD854F(WD)-E(W), Box camera DS-2CD853F-E(W), DS-2CD864F(WD)-E(W), DS-2CD863PF(NF)-E(W), DS-2CD893PFWD(NFWD)-E(W), DS-2CD833F-E(W), DS-2CD893PF(NF)-E(W)
  • Page 3 Installation Manual of Network Camera This manual may contain several technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual. DISCLAIMER STATEMENT “Underwriters Laboratories Inc.

  • Page 4: Safety Instruction

    Installation Manual of Network Camera Safety Instruction These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss. The precaution measure is divided into ‘Warnings’ and ‘Cautions’: Warnings: Serious injury or death may be caused if any of these warnings are neglected. Cautions: Injury or equipment damage may be caused if any of these cautions are neglected.
  • Page 5 Installation Manual of Network Camera Notice:  Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean cloth with a bit of ethanol and wipe it gently.

  • Page 6: Table Of Contents

    Installation Manual of Network Camera Table of Contents CHAPTER 1 INTRODUCTION ............................ 1 ................................1 PPLICATIONS ................................1 REPARATIONS CHAPTER 2 BOX CAMERA INSTALLATION ......................... 2 ............................2 PPEARANCE ESCRIPTION 2.1.1 Box Camera I ..............................2 2.1.2 Box Camera II ..............................3 2.1.3 Box Camera III ..............................
  • Page 7 Installation Manual of Network Camera CHAPTER 6 MINI DOME CAMERA INSTALLATION ....................57 ............................57 PPEARANCE ESCRIPTION ................................. 58 NSTALLATION...

  • Page 8: Chapter 1 Introduction

    Installation Manual of Network Camera Chapter 1 Introduction The network camera is a kind of embedded digital surveillance product that combines the features of both traditional analog camera and net DVS (Digital Video Server). With a built-in video server, the network camera is capable of providing real-time video stream compression, processing, video analysis and transmission simultaneously.

  • Page 9: Chapter 2 Box Camera Installation

    Installation Manual of Network Camera Chapter 2 Box Camera Installation 2.1 Appearance Description 2.1.1 Box Camera I Camera description: Overview Figure 2-1 Description Table 2-1 Description CS Lens mount Back focus ring Auto-iris interface 10M/100M self-adaptive Ethernet interface AUDIO IN: Audio input interface AUDIO OUT: Audio output interface SD: SD card slot VIDEO OUT: Video output interface...

  • Page 10: Box Camera Ii

    Installation Manual of Network Camera below: Auto-iris Interface Figure 2-2 Pins Table 2-2 DC-driven Damp- Damp+ Drive+ Drive- Damp+, Damp-, Drive+ and Drive- pins are used when the auto-iris is driven by DC. Camera wiring Diagram: Wiring Diagram Figure 2-3 2.1.2 Box Camera II Camera description:...
  • Page 11 Installation Manual of Network Camera Overview Figure 2-4 Overview Figure 2-5 Overview Figure 2-6 Description Table 2-3 Description CS Lens mount...
  • Page 12 Installation Manual of Network Camera Auto-iris interface Bracket mounting holes F1+ F1-, F2+ F2- ,F3+ F3-: Alarm output interface T1,T2,T3, T4,GND: Alarm input interface D+, D-: RS-485 interface 10M/100M self-adaptive Ethernet interface VIDEO OUT/HDMI: Video output interface RESET: Reset button TXD, RXD, GND: RS-232 interface Power supply interface POWER: Power LED indicator...

  • Page 13: Box Camera Iii

    Installation Manual of Network Camera Wiring Diagram Figure 2-8 2.1.3 Box Camera III Camera description: Overview Figure 2-9 Description Table 2-5 Description Lens mount...
  • Page 14 Installation Manual of Network Camera Back focus ring SD card slot Auto-iris interface 10M/100M self-adaptive Ethernet interface VIDEO OUT: Video output interface AUDIO OUT: Audio output interface POWER: Power LED indicator Power supply interface MIC IN: Audio input interface D+, D-: RS-485 interface IN, G: Alarm input interface 1A, 1B: Alarm output interface Ground...

  • Page 15: Installation

    Installation Manual of Network Camera Wiring Diagram Figure 2-11 2.2 Installation Box camera I, II, III can be installed to wall or ceiling. Ceiling mounting is taken as an example in this section; if you adopt wall mounting, you can also take the below procedure as a reference. 2.2.1 Lens Installation Steps: 1.

  • Page 16: Wiring

    Installation Manual of Network Camera Install the Lens Figure 2-12 3. Plug the cable of the lens to the 4-pin auto-iris interface on the side of the camera. 2.2.2 Wiring You can take the connection diagram of Figure 2-11 as a reference for connecting peripheral devices: ...
  • Page 17 Installation Manual of Network Camera Steps: 1. Attach the wall mount(not provided) to the wall and tighten the screws to fix it. Notes:  The wall mount should be longer than 1/2 of the camera length.  For cement ceiling mounting, you need to use the expansion screw to fix the bracket. The mounting hole of the expansion pipe on the wall should align with the mounting hole on the bracket.
  • Page 18 Installation Manual of Network Camera Mount the Camera Figure 2-15 Note: This camera is designed for indoor and outdoor use. To use the camera outdoors, it must be installed in an approved outdoor housing as shown in Figure 2-16. Wall Mounting with the Housing Figure 2-16 4.
  • Page 19 Installation Manual of Network Camera Tilting Figure 2-18...

  • Page 20: Chapter 3 Dome Camera Installation

    Installation Manual of Network Camera Chapter 3 Dome Camera Installation 3.1 Dome Camera I 3.1.1 Appearance Description Camera description: Overview Figure 3-1 Description Table 3-1 Description Video output interface Power LED indicator DIP switch 10M/100M self-adaptive Ethernet interface D+, D-: RS-485 interface Alarm IN: Alarm input interface Alarm OUT: Alarm output interface AIN: Audio input interface...

  • Page 21: Installation

    Installation Manual of Network Camera Function SHARP: Sharpness SOFT AES: Auto Shutter AI: Auto Iris BLC: Back Light Compensation FL: Anti-flicker NAGC: Normal AGC SAGC: Special AGC Camera wiring Diagram: Wiring Diagram Figure 3-2 3.1.2 Installation Various mounting methods can be applied to the dome camera installation, including ceiling mounting, pole mounting, etc.
  • Page 22 Installation Manual of Network Camera Mounting Base Figure 3-3 2. Insert the three mounting studs of dome camera into the three fix slots of the mounting base. Align the “I” mark on mounting base with the “I” mark on dome camera. Rotate the dome camera for 15 degrees counterclockwise until the dome camera is fixed.

  • Page 23: Dome Camera Ii

    Installation Manual of Network Camera Tighten the Dome Figure 3-5 3.2 Dome Camera II 3.2.1 Appearance Description Camera description: Overview Figure 3-6 Description Table 3-2...

  • Page 24: Installation

    Installation Manual of Network Camera Description 10M/100M self-adaptive Ethernet interface AUDIO IN: Audio input interface AUDIO OUT: Audio output interface D+, D-: RS-485 interface IN, G: Alarm input interface 1A, 1B: Alarm output interface Power supply interface Camera wiring Diagram: Wiring Diagram Figure 3-7 3.2.2 Installation...
  • Page 25 Installation Manual of Network Camera Remove the Lower Dome Figure 3-8 2. Secure the back box to the ceiling or wall with screws. Please apply water-proof measures between the ceiling surface and back box and around the cable slot. Screws Secure the Back Box Figure 3-9 Notes:...

  • Page 26: Dome Camera Iii

    Installation Manual of Network Camera Route Cable through side outlet Figure 3-11 3. After connecting the video cable and power cable, view the image of the camera on a monitor. Loosen the fixed screws, and adjust the panning position and tilting position to get optimum surveillance angle.
  • Page 27 Installation Manual of Network Camera Overview Figure 3-13 Description Table 3-3 Description 10M/100M self-adaptive Ethernet interface INITIAL SET: Reset button AUDIO OUT: Audio output interface MIC IN: Audio input interface D+, D-: RS-485 interface 1A, 1B, 2A, 2B: Alarm output interface IN1, GND, IN2, GND: Alarm input interface Power supply interface Note:...

  • Page 28: Installation

    Installation Manual of Network Camera Wiring Diagram Figure 3-14 3.3.2 Installation Ceiling mounting: Note: If required, you can use a plier to remove the clip (one or two) on the side of the back box and then route cables through the opening to secure the cables on the ceiling. Clips Remove the Clip Figure 3-15...
  • Page 29 Installation Manual of Network Camera Remove the Lower Dome Figure 3-17 3. Connect the RCA analog video output with a monitor to view the image of the camera. Loosen the lens set screw and pan, tilt or rotate the lens to get a desired surveillance angle. Adjust the lens focus to obtain a perfect image.
  • Page 30 Installation Manual of Network Camera Reinstall the Lower Dome Figure 3-19 In-ceiling mounting: Steps: 1. Secure the mounting base to the in-ceiling mounting base with screws. In-ceiling mounting base Mounting base Secure the Mounting Base Figure 3-20 2. Push the dome camera to the in-ceiling mounting base, rotate the dome camera for 10 degrees counterclockwise and then fasten the lock screws to fix the camera.
  • Page 31 Installation Manual of Network Camera ③ Lock screw ① ② Fix the Camera Figure 3-21 3. Cut a 176~180 mm diameter hole in the ceiling and push the dome camera with in-ceiling mounting base to the hole. Note: The thickness of the ceiling should be less than 30 mm. Mount the Camera Figure 3-22 4.
  • Page 32 Installation Manual of Network Camera Safety rope Safety rope Figure 3-23 5. Fasten the lock screws to secure the dome camera. Lock screw Secure the Camera Figure 3-24 6. Remove the lower dome and connect the RCA analog video output with a monitor to view the image of the camera.

  • Page 33: Dome Camera Iv

    Installation Manual of Network Camera 7. Install the trim plate with screws to finish the installation. Reinstall the Lower Dome Figure 3-26 3.4 Dome Camera IV 3.4.1 Appearance Description Camera description:...
  • Page 34 Installation Manual of Network Camera Overview Figure 3-27 Description Table 3-4 Description Video output interface LINK: Indicator is solid yellow when network is connected. ACT: Indicator flashes blue when network connection is functioning properly. PWR: Indicator is solid red when the device is powered on. Micro SD slot RESET: Reset button 10M/100M self-adaptive Ethernet interface...

  • Page 35: Installation

    Installation Manual of Network Camera Camera wiring Diagram: Wiring Diagram Figure 3-28 3.4.2 Installation Ceiling mounting: Steps: 1. Drill the screw holes on the ceiling with the supplied drilling template. If you need to route the cables from the bottom of the camera, cut a cable hole in the ceiling. Cable hole Drill Template Figure 3-29...
  • Page 36 Installation Manual of Network Camera Mount the Back Box Figure 3-30 3. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome liner. Remove the Lower Dome Figure 3-31 4. Install the dome module to the back box and pull the cables through the cable outlet on the bottom of the back box.
  • Page 37 Installation Manual of Network Camera Mount the Camera Figure 3-32 Note: If you need to pull the cable through the cable outlet from the side of the camera, please remove the cover and use water-proof joints and water-proof pipe to route the cables. Cover Route Cable through Side Outlet Figure 3-33...
  • Page 38 Installation Manual of Network Camera Rotate Lock screw Tilt Adjust Image Figure 3-34 6. Reinstall the dome liner and lower dome to finish the installation. Reinstall the Lower Dome Figure 3-35 In-ceiling mounting: Steps: 1. Drill the screw holes on the ceiling with the supplied drilling template.
  • Page 39 Installation Manual of Network Camera Screw hole Drill Screw Holes Figure 3-36 2. Cut the mounting holes on the ceiling with the supplied drilling template. Mounting hole Cut Mounting Hole Figure 3-37 3. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome liner.
  • Page 40 Installation Manual of Network Camera Remove the Lower Dome Figure 3-38 4. Rotate the toggle to remove it from the toggle bolt; insert the bolt into the toggle bolt hole on the dome module and use the screw driver to rotate the bolt slightly but not tightly; Reinstall the toggle and push the dome module to the mounting hole on the ceiling with toggle bolts aligned with the screw holes on the ceiling.
  • Page 41 Installation Manual of Network Camera Fasten the Bolts Figure 3-40 6. After connecting the network cable and power cable, view the image of the camera over the network. Loosen the lock screws; adjust the panning position and tilting position and rotate the lens to get the desired surveillance angle;...
  • Page 42 Installation Manual of Network Camera 7. Reinstall the dome liner and lower dome to finish the installation. Reinstall Figure 3-42 Wall mounting: Steps: 1. Drill the screw holes on the wall with the supplied drilling template. If you need to route the cables from the bottom of the camera, cut a cable hole in the wall.
  • Page 43 Installation Manual of Network Camera Cable hole Drill Template Figure 3-43 2. Secure the back box to the wall with screws. Note: Position the side cable outlet directly below to prevent moisture from getting inside the camera. Secure the Back Box Figure 3-44 3.
  • Page 44 Installation Manual of Network Camera Remove the Lower Dome Figure 3-45 4. Install the dome module to the back box and pull the cables through the cable outlet on the bottom of the back box. Note: If you need to pull the cable through the cable outlet from the side of the camera, please remove the cover and use water-proof joints and water-proof pipe to route the cables.
  • Page 45 Installation Manual of Network Camera Rotate Lock screw Tilt Adjust Image Figure 3-47 6. Reinstall the dome liner and lower dome to finish the installation. Outdoor mounting: You can use DS-1242ZJ or DS-1243ZJ for outdoor mounting. Front panel DS-1242ZJ DS-1243ZJ Steps: 1.
  • Page 46 Installation Manual of Network Camera 2. Loosen the set screws with the hex key (supplied) to remove the lower dome; remove the dome liner. Remove the Lower Dome Figure 3-48 3. Rotate the toggle to remove it from the toggle bolt; insert the bolt into the toggle bolt hole on the dome module and use the screw driver to rotate the bolt slightly but not tightly;...
  • Page 47 Installation Manual of Network Camera network. Loosen the lock screws; adjust the panning position and tilting position and rotate the lens to get the desired surveillance angle; fasten the lock screws. Rotate Lock screw Tilt Adjust Image Figure 3-50 6. Reinstall the dome liner and lower dome.
  • Page 48 Installation Manual of Network Camera Reinstall the Lower Dome Figure 3-51 7. Reinstall the front panel to finish the installation. Front panel Reinstall the Front Panel Figure 3-52...

  • Page 49: Chapter 4 Bullet Camera Installation

    Installation Manual of Network Camera Chapter 4 Bullet Camera Installation 4.1 Bullet Camera I 4.1.1 Appearance Description Camera description: Overview Figure 4-1 Overview Figure 4-2 Description Table 4-1 Description 10M/100M self-adaptive Ethernet interface Power supply interface IN, G: Alarm input interface 1A, 1B: Alarm output interface D+, D-: RS-485 interface AUDIO IN, G: Audio input interface...

  • Page 50: Installation

    Installation Manual of Network Camera Wiring Diagram Figure 4-3 4.1.2 Installation Bullet camera can be installed to wall or ceiling. Wall mounting is taken as an example in this section; if you adopt ceiling mounting, you can also take below procedure as a reference. Steps: 1.
  • Page 51 Installation Manual of Network Camera mounting hole of the expansion pipe on the wall should align with the mounting hole on the mounting base.  For wooden wall mounting, you can just use the self-tapping screw to fix the mounting base. ...
  • Page 52 Installation Manual of Network Camera Remove the Sun Shield Figure 4-7 7. Rotate to remove the front cover from camera and adjust the lens to get a clear image. Adjust the lens Front cover Adjust the Lens Figure 4-8 8. Fix the lens; reinstall the front cover and the sun shield to finish the installation. Note: Reinstall the front cover until aligning the mark on the front cover with the mark on the camera.

  • Page 53: Bullet Camera Ii

    Installation Manual of Network Camera 4.2 Bullet Camera II 4.2.1 Appearance Description Camera description: Figure 4-10 Overview Figure 4-11 Overview Table 4-2 Description Description 10M/100M self-adaptive Ethernet interface Power supply Sun shade Adjusting screw 4.2.2 Installation These bullet cameras can be installed to wall. Please refer to the steps below for installation. Steps: 1.
  • Page 54 Installation Manual of Network Camera mounting hole of the expansion pipe on the wall should align with the mounting hole on the bracket.  For wooden wall mounting, you can just use the self-tapping screw to fix the bracket.  The wall must be strong enough to withstand more than 3 times the weight of the camera and the bracket.
  • Page 55 Installation Manual of Network Camera Figure 4-14 Panning Figure 4-15 Tilting...

  • Page 56: Chapter 5 Cube Camera Installation

    Installation Manual of Network Camera Chapter 5 Cube Camera Installation 5.1 Cube Camera I 5.1.1 Appearance Description Camera description: Overview Figure 5-1 Description Table 5-1 Description Microphone Infrared light (Optional) Micro SD card slot LINK: Network status LED indicator. LED indicator is solid yellow when network connection is functioning properly.

  • Page 57: Installation

    Installation Manual of Network Camera Wiring Diagram Figure 5-2 5.1.2 Installation The cube camera can be installed to wall or ceiling. Ceiling mounting is taken as an example in this section; if you adopt wall mounting, you can also take below procedure as a reference. Steps: 1.
  • Page 58 Installation Manual of Network Camera Mount the Camera Figure 5-4 3. View the video image over the network. Loosen the knob on bracket to adjust the camera to the desired surveillance angle. Tighten the knob on bracket to secure the camera. Adjust Image Figure 5-5...

  • Page 59: Cube Camera Ii

    Installation Manual of Network Camera 5.2 Cube Camera II 5.2.3 Appearance Description Camera description: Overview Figure 5-6 Description Table 5-2 Description Photosensitive resistance Infrared light PIR sensor Microphone Lens Alarm: Indicator is solid red when the camera is armed with PIR and access control and it is solid blue when the camera is unarmed.

  • Page 60: Installation

    Installation Manual of Network Camera Note: To reset the default parameters to the camera, you need to press and hold the RESET button and power on the camera. After the power on of the camera, you must still press and hold the Reset button for about 20 seconds.
  • Page 61 Installation Manual of Network Camera Battery Battery cover Insert Battery Figure 5-9 3. Stick the drilling template to the ceiling. Notes:  For cement ceiling mounting, you need to use expansion screw to fix the camera, and the hole of the expansion pipe should align with the mounting hole of the drilling template. ...
  • Page 62 Installation Manual of Network Camera Secure the Camera Figure 5-11 5. Connect the network cable and power cable; reinstall the right cover and fixator. Note: If you need to pull the cable through the side cable outlet of the camera, pull the cables from the slot without reinstall the fixator.
  • Page 63 Installation Manual of Network Camera Packing nut 1 Tilt Packing nut 2 Adjust Image Figure 5-13...

  • Page 64: Chapter 6 Mini Dome Camera Installation

    Installation Manual of Network Camera Chapter 6 Mini Dome Camera Installation 6.1 Appearance Description Camera description: Overview Figure 6-1 Description Table 6-1 Description Cover Lens P: Power LED indicator, It is solid red when power is applied to the unit. Base plate Set screw hole Set screw of lens...
  • Page 65 Installation Manual of Network Camera Wiring Diagram Figure 6-2 6.2 Installation The ceiling mounting is recommended for this camera. Note: If required, you can use a plier to remove the clip on the side of the back box and then route cables through the opening to secure the cables on the ceiling.
  • Page 66 Installation Manual of Network Camera 2. Use the screws to fix the base plate on the ceiling. Fix the Base Plate Figure 6-5 3. View the video image of the camera over the network. 4. Loosen the lens set screws. Loosen the lens set screws.
  • Page 67 Installation Manual of Network Camera Adjust Image Figure 6-7 Notes:  As the lens of camera has already been factory adjusted to the best imaging effect, you just need to adjust the panning position and tilting position to get the desired surveillance angle. ...
  • Page 68 Installation Manual of Network Camera Reinstall Figure 6-8 Reinstall Figure 6-9...
