Page 1: Network Camera
Network Camera Quick Guide V3.0.0 Hikvision Digital Technology Co., Ltd. http://www.hikvision.com... - Page 2 UL MAKES NO REPRESENTATIONS, WARRANTIES CERTIFICATIONS WHATSOEVER REGARDING PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING RELATED FUNCTIONS OF THIS PRODUCT.” © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
-
Page 3: Table Of Contents
..................... 6 1.4 Cube Camera Interface Description ...................... 7 1.5 Mini Dome Camera Interface Description ................... 8 Chapter 2 Search and Modify IP ......................9 Chapter 3 Preview via WEB browser....................12 © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 4: Chapter 1 Interface Description
AUDIO OUT: Audio output interface SD: SD card slot VIDEO OUT: Video output interface Power supply PWR: Power LED indicator D+, D-: RS-485 interface Ground 1A, 1B: Alarm output interface IN, G: Alarm input interface © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -

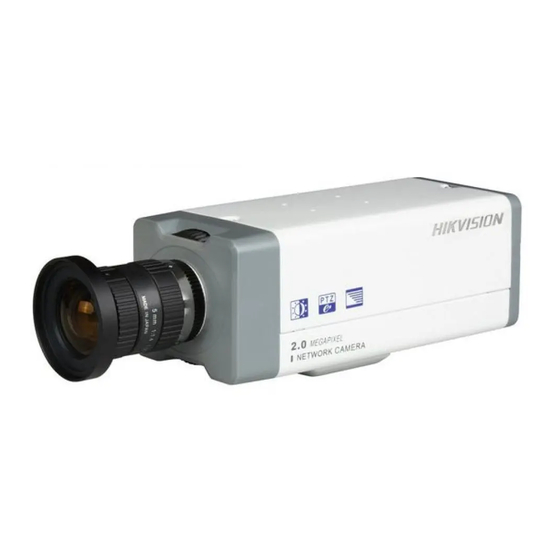

Page 5: Box Camera Ⅱ
VIDEO OUT: Video output interface RESET: Reset the camera TXD, RXD, GND: RS-232 interface Power supply PWR: Power LED indicator SD: SD card slot AUDIO IN: Audio input interface AUDIO OUT: Audio output interface Ground © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 6: Box Camera Ⅲ
AUDIO OUT: Audio output interface PWR: Power LED indicator Power supply MIC IN: Audio input interface D+, D-: RS-485 interface IN, G: Alarm input interface 1A, 1B: Alarm output interface Ground RESET: Reset the camera © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 7: Dome Camera Interface Description
PWR: Power LED indicator Dial switch 10M/100M self-adaptive Ethernet interface D+, D-: RS-485 interface Alarm IN: Alarm input interface Alarm OUT: Alarm output interface AIN: Audio input interface AOUT: Audio output interface Power supply © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 8: Dome Camera Ⅱ
10M/100M self-adaptive Ethernet interface AUDIO IN: Audio input interface AUDIO OUT: Audio output interface D+, D-: RS-485 interface ALARM IN, G: Alarm input interface 1A, 1B: Alarm output interface Power supply © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 9: Dome Camera Ⅲ
MIC IN: Audio input interface D+, D-: RS-485 interface 1A, 1B, 2A, 2B: Alarm output interface IN1, GND, IN2, GND: Alarm input interface Power supply 1.3 Bullet Camera Interface Description Figure 1.3.1 © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 10: Cube Camera Interface Description
Lens ETHERNET: 10M / 100M self-adaptive Ethernet interface RESET: Reset all parameters to factory default settings Speaker hole Power supply Bracket mounting holes, used to fix the camera to the bracket © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 11: Mini Dome Camera Interface Description
S & L: Network status LED indicator. When the network is connected, the “S” LED turns solid orange, while the “L” LED flickers in green. RESET: Reset all parameters to factory default settings. © Hikvision Digital Technology Co., Ltd. All Rights Reserved. -
Page 12: Chapter 2 Search And Modify Ip
It displays the total number and information of the searched devices in the Online Devices interface. Device information including the device type, IP address, port number, gateway, etc. will be displayed. © Hikvision Digital Technology Co., Ltd. All Rights Reserved. - Page 13 2. Edit the modifiable network parameters, e.g. IP address and port number. 3. Enter the password of the admin account of the device in the Password field and click to save the changes. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
- Page 14 Serial code is a series of characters combined by the start time and the serial number of the device. 2. Input the code in the Serial code field and click to restore the default password. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
-
Page 15: Chapter 3 Preview Via Web Browser
This chapter describes how to view the video from the camera via web browser, and operate as following: Figure 3.1 1. Open the IE browser, set the security level to [Medium] in *Tools/InternetOptions/Security/Custom Level…+ © Hikvision Digital Technology Co., Ltd. All Rights Reserved. - Page 16 Figure 3.2 2. Input the IP address of the camera and press [Enter], and then click the dialog box that pops up. Figure 3.3 3. Click [Run] to install the ActiveX control. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
- Page 17 “Port” (Default: 8000) of the camera, then click [Login] Figure 3.5 5. View the image Note: For detailed instructions of further configuration, please refer to the user manual of network camera. © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
- Page 18 Quick Guide of Network Camera First Choice for Security Professionals © Hikvision Digital Technology Co., Ltd. All Rights Reserved.
