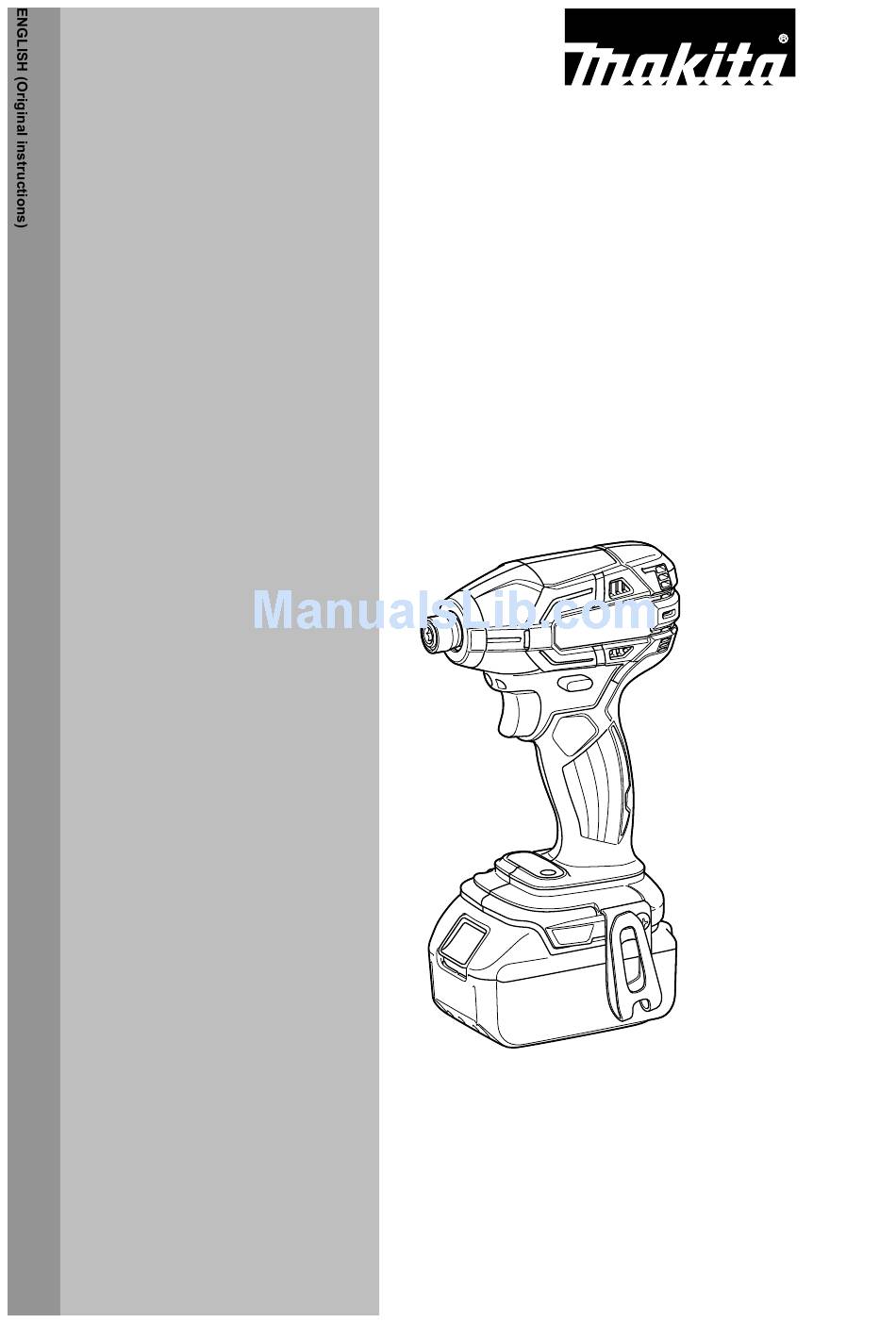

- Page 1 INSTRUCTION MANUAL Cordless Oil-Pulse Driver DTS131 DTS141 015149 IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model DTS131 DTS141 Machine screw 4 mm - 8 mm 4 mm - 8 mm Capacities Standard bolt 5 mm - 8 mm 5 mm - 8 mm Impact mode (Hard) 0 - 3,000 min 0 - 3,200 min... - Page 3 Avoid body contact with earthed or grounded EC Declaration of Conformity surfaces such as pipes, radiators, ranges and Makita declares that the following Machine(s): refrigerators. There is an increased risk of Designation of Machine: electric shock if your body is earthed or grounded.
- Page 4 14. Do not overreach. Keep proper footing and 25. Use power tools only with specifically balance at all times. This enables better control designated battery packs. Use of any other of the power tool in unexpected situations. battery packs may create a risk of injury and fire. 15.
-
Page 5: Functional Description
ENC007-9 FUNCTIONAL DESCRIPTION IMPORTANT SAFETY INSTRUCTIONS CAUTION: Always be sure that the tool is switched off and the • FOR BATTERY CARTRIDGE battery cartridge is removed before adjusting or Before using battery cartridge, read all checking function on the tool. instructions and cautionary markings on (1) Installing or removing battery cartridge battery charger, (2) battery, and (3) product... - Page 6 Indicating the remaining battery capacity Switch action (Only for battery cartridges with "B" at the end of the CAUTION: model number.) Before inserting the battery cartridge into the tool, always • check to see that the switch trigger actuates properly 1.
- Page 7 When the reversing switch lever is in the neutral position, the switch trigger cannot be pulled. Characteristics of Cordless Oil-impulse Driver The Makita Cordless Oil-impulse Driver is a hydraulically operated impact tool using oil viscosity to produce impacts. Since oil viscosity changes with the temperature, be aware of the following two points when operating the tool.
- Page 8 Maximum blows Impact force grade Application Work displayed on panel DTS131 DTS141 Hard Tightening in underwork 2,500 2,700 Tightening when force material / Tightening long (min (min and speed are desired. screws. Medium 2,200 2,200 Tightening when a good Tightening in the finishing...
- Page 9 ASSEMBLY Battery indicator status Remaining battery capacity Blinking CAUTION: Always be sure that the tool is switched off and the • 50% - 100% battery cartridge is removed before carrying out any work on the tool. Installing or removing driver bit or socket bit 20% - 50% 0% - 20% Charge the battery...
-
Page 10: Operation
To install the bit, pull the sleeve in the direction of the OPERATION arrow and insert the bit into the sleeve as far as it will go. Then release the sleeve to secure the bit. 1. Vent For tool with one-touch type sleeve To install the bit, insert the bit into the sleeve as far as it will go. -
Page 11: Maintenance
