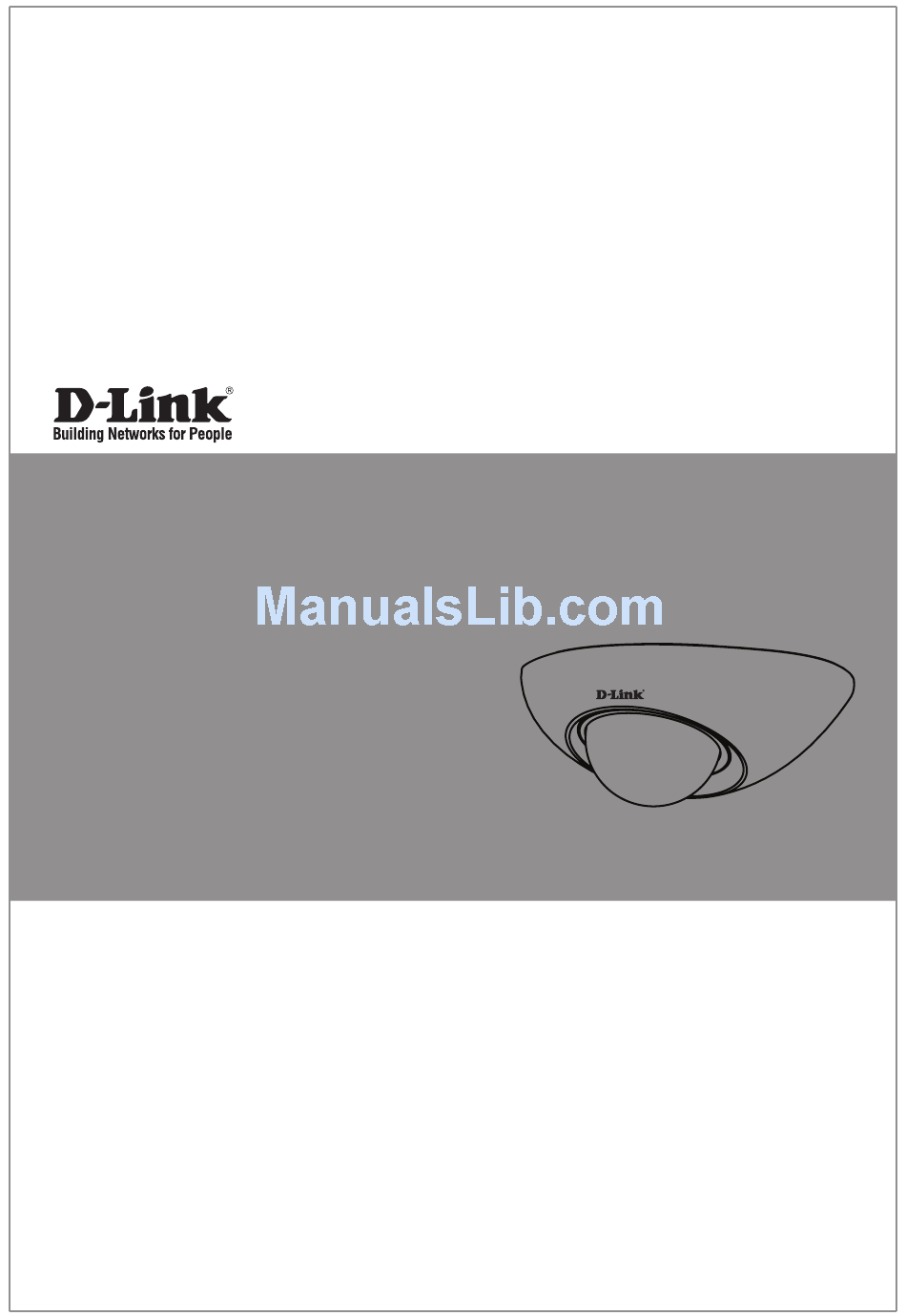

- Page 1 Quick Install Guide Full HD Mini Fixed-Dome Network Camera This document will guide you through the basic installation process for your new D-Link Network Camera. DCS-6210 Quick Installation Guide...
-
Page 2: Installation Steps
DCS-6210 Quick Install Guide This installation guide provides basic instructions for installing the DCS-6210 Full HD Mini Fixed-Dome Network Camera on your network. For additional information about how to use the camera, please see the User’s Manual, which is available on the CD included in this package or on the D-Link support website. -
Page 3: Hardware Overview
Install the SD Card Push the SD card into the camera with the gold contacts oriented towards the base of the camera. To eject the SD card, push the SD card into the slot. D-Link DCS-6210 Quick Install Guide... -
Page 4: Hardware Installation
4. Hardware Installation Mounting Installation Please see the User Manual for detailed instructions regarding installation and mounting of the camera. Figure 4.1 Figure 4.2 Figure 4.3 Figure 4.4 Figure 4.5 D-Link DCS-6210 Quick Install Guide... - Page 5 Connection with a PoE Switch If you are using a PoE switch, connect the camera to the switch via an Ethernet cable, which will provide transmission of both power and data over a single cable. D-Link DCS-6210 Quick Install Guide...
-
Page 6: Configuration With Wizard
5. Configuration with Wizard Insert the DCS-6210 CD into your computer's CD-ROM drive to begin the installation. If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive letter of your CD-ROM drive. - Page 7 Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > Programs > D-Link > Setup Wizard SE The Setup Wizard will appear and display the MAC address and IP address of your camera(s). If you have a DHCP server on your network, a valid IP address will be displayed.
-
Page 8: Viewing Camera Via Web Browser
Viewing Camera via Web Browser Click on the D-Link Setup Wizard SE icon that was created in your Windows Start menu. Start > Programs > D-Link > Setup Wizard SE Select the camera and click the Link button to access the web configuration. -
Page 9: Adjusting The 3-Axis Gimbal
Turn the lens module left and right until the desired position is achieved. Turn the lens up and down until the desired position is achieved. Turn the lens to adjust the camera’s image until the desired orientation is achieved. D-Link DCS-6210 Quick Install Guide... - Page 10 Notes D-Link DCS-6210 Quick Install Guide...
- Page 11 Notes D-Link DCS-6210 Quick Install Guide...
-
Page 12: Technical Support
Copyright ©2012 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead lower actual data throughput rate.
