Signal Selection

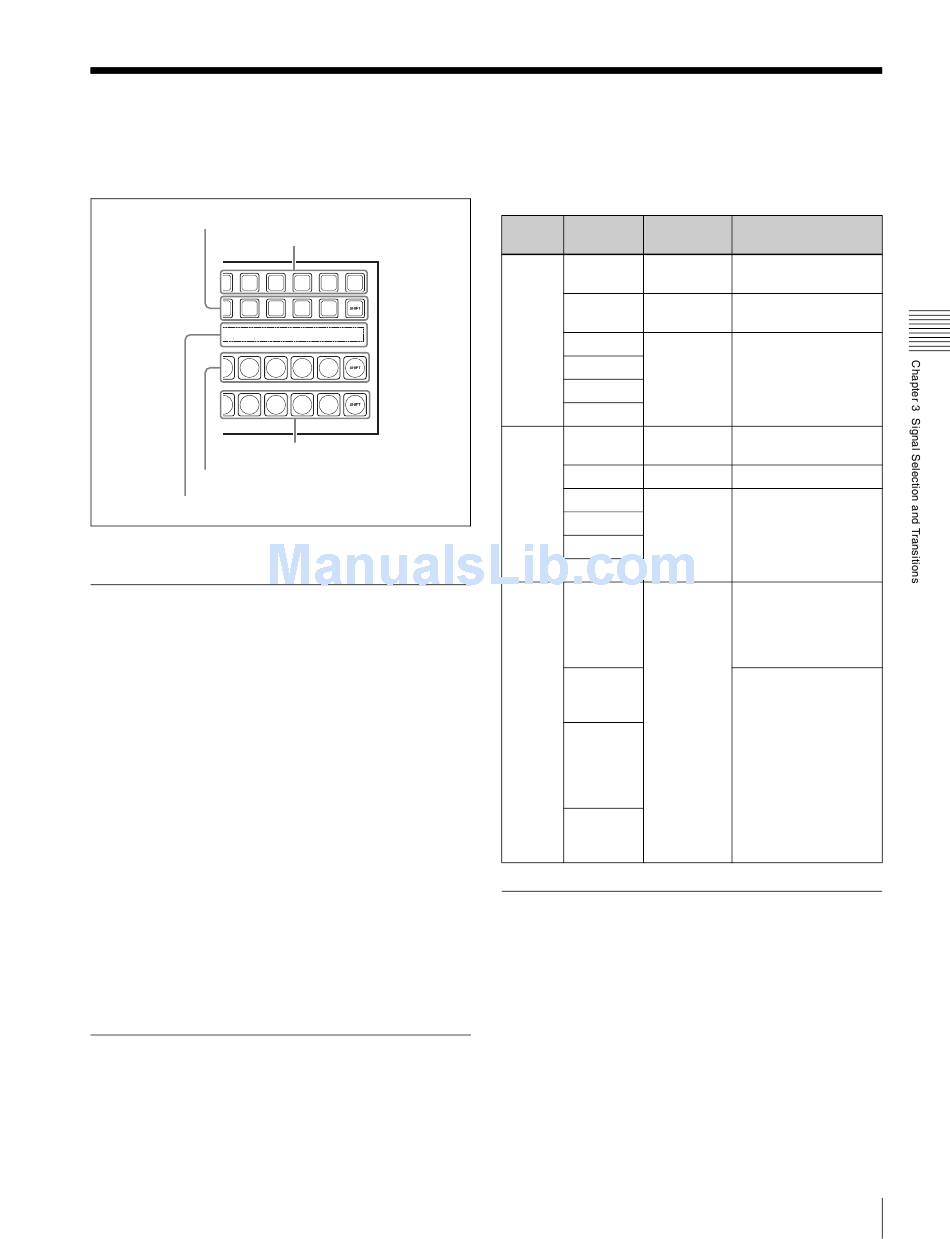

You carry out signal selection in the cross-point control
block of each bank.
2nd row
Background B row
Background A row
Source name display
Cross-point control block

Basics of Signal Selection

Each of the switcher banks have 24 cross-point buttons in
their cross-point control blocks.
These buttons are identified by numbers common to all of
the banks and blocks, and a signal is assigned to each
number.
The basis of signal selection is to select, in a cross-point
button row, the cross-point button to which the desired
signal is assigned.
M/E reentry signal selection
A video signal created on the M/E bank can be imported as
an input signal on the PGM/PST bank. These signals are
referred to as "M/E reentry input" signals.
To select an M/E reentry input signal using the cross-point
buttons, the signal must be assigned beforehand in the
Setup menu (1 p. 223).
For example, if the program output from the M/E-1 block
(M/E1 OUT) is assigned to an arbitrary cross-point button,
the signal can be used as input material at any time.

Bus Selection

Each row of the 24 cross-point buttons is shared by
multiple buses.
1st row
The following table illustrates the correspondence
between buses and cross-point button rows, and the
delegation operations.
Bank Bus name Cross-point
button row
M/E-1 Background Background
A bus A row
Background Background
B bus B row
Key 1 bus 2nd row
Key 2 bus
Key 3 bus
Key 4 bus
PGM/ Program Program
PST bus row
Preset bus Preset row
DSK 1 bus 2nd row
DSK 2 bus
DSK 3 bus
DSK 4 bus
M/E-1 Utility bus 2nd row
PGM/
PST
AUX1 to
AUX24
buses
Frame
memory
source 1
and 2
buses
Edit
preview
bus

Signal Assignment and Selection

Assigning signals to buttons
Each of the 24 cross-point buttons has a corresponding
button number, to which you assign a signal.
In addition to the signals input to the connectors at the rear
of the switcher processor, you can also select signals
generated within the switcher.
Each button has assigned to it a video signal and a key
signal, forming a pair. You can set these video and key
combinations in the Setup menu.
Delegation operation
–
–
In the 1st row, press
the button to which the
corresponding key
was assigned during
setup, turning it on.
–
–
In the 1st row, press
the button to which the
corresponding key
was assigned during
setup, turning it on.
In the 1st row, press
the button to which
UTIL1 was assigned
during setup, turning it
on.
In the 1st row, press
the button to which the
corresponding bus
was assigned during
setup, turning it on.
