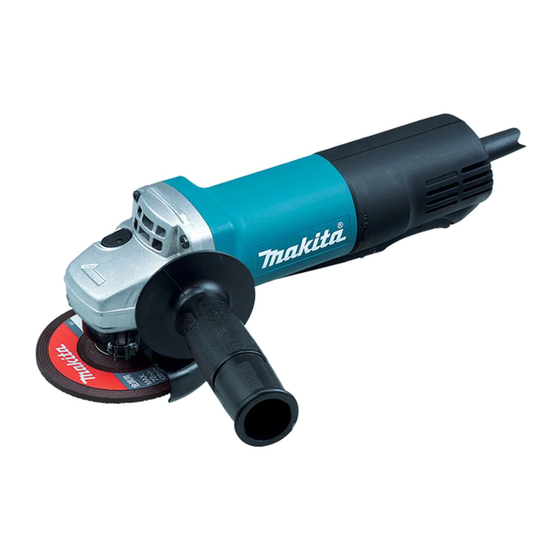

- Page 1 INSTRUCTION MANUAL Angle Grinder 9556HP 9557HP 9558HP 006110 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model 9556HP 9557HP 9558HP Depressed center wheel diameter 100 mm 115 mm 125 mm Max. wheel thickness 6.4 mm 6.4 mm 6.4 mm Spindle thread M14 or 5/8" (country specific) M14 or 5/8" (country specific) Rated speed (n) / No load speed (n... - Page 3 EC Declaration of Conformity Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any We Makita Corporation as the responsible manufacturer adapter plugs with earthed (grounded) power declare that the following Makita machine(s): tools.
-
Page 4: Grinder Safety Warnings
