Static Route - Draytek Vigor 110 User Manual

IP Address
Subnet Mask
DHCP Server
Configuration
There are two common scenarios of LAN settings that stated in Chapter 4. For the
configuration examples, please refer to that Chapter to get more information for your
necessity.
3 . 2 . 3 S t a t i c R
3 . 2 . 3 S t a t i c R

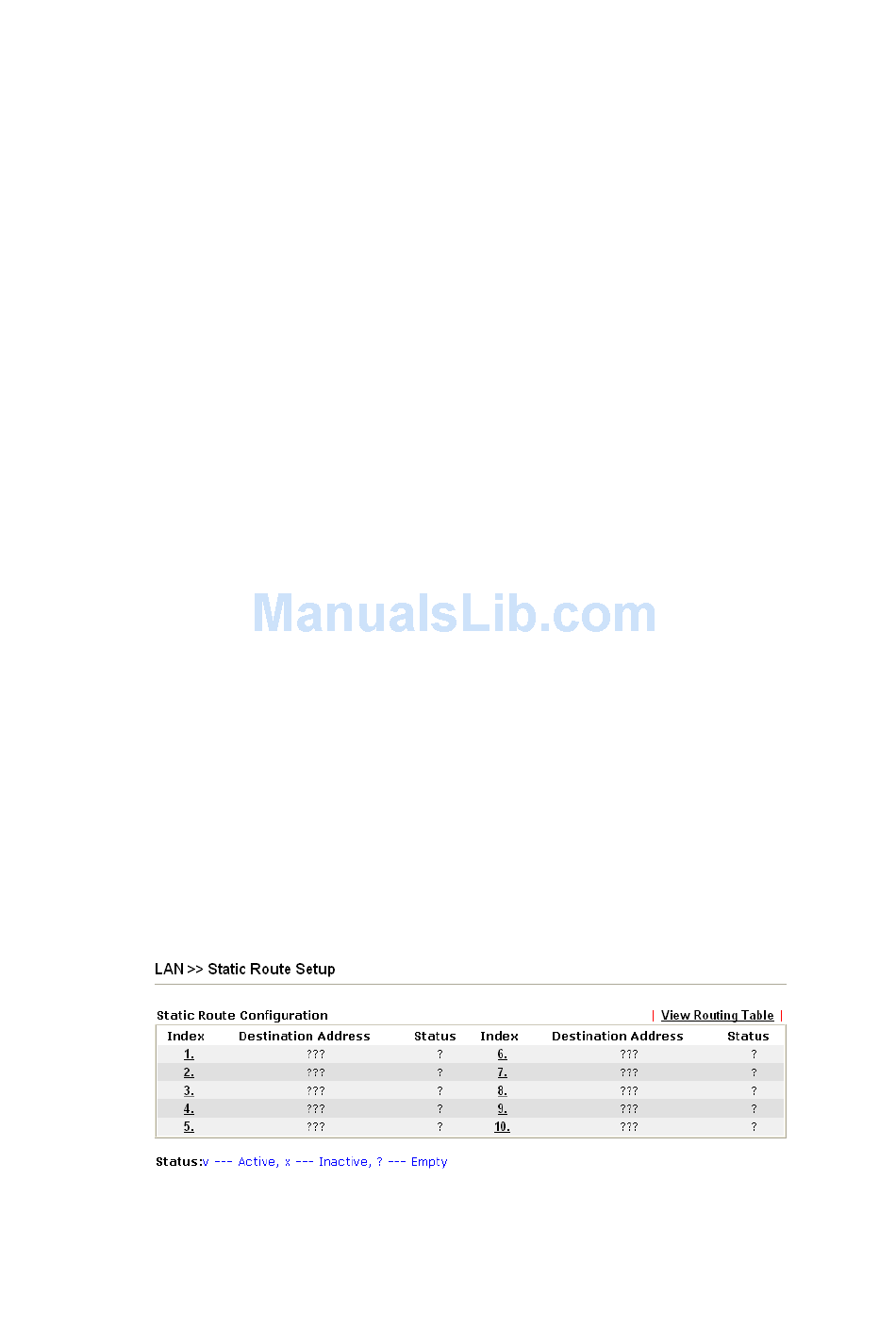

Go to LAN to open setting page and choose Static Route.
Index
18
Type in private IP address for connecting to a local private network
(Default: 192.168.1.1).
Type in an address code that determines the size of the network.
(Default: 255.255.255.0/ 24)
DHCP stands for Dynamic Host Configuration Protocol. The
router by factory default acts a DHCP server for your network so it
automatically dispatch related IP settings to any local user
configured as a DHCP client. It is highly recommended that you
leave the router enabled as a DHCP server if you do not have a
DHCP server for your network.
If you want to use another DHCP server in the network other than
Vigor Router's, you can let Relay Agent help you to redirect the
DHCP request to the specified location.
Enable Server - Let the router assign IP address to every host in the
LAN.
Disable Server – Let you manually assign IP address to every host
in the LAN.
Relay Agent – Specify the subnet that DHCP server is located the
relay agent should redirect the DHCP request to.
Start IP Address - Enter a value of the IP address pool for the
DHCP server to start with when issuing IP addresses. If the 1st IP
address of your router is 192.168.1.1, the starting IP address must be
192.168.1.2 or greater, but smaller than 192.168.1.254.
IP Pool Counts - Enter the maximum number of PCs that you want
the DHCP server to assign IP addresses to. The default is 50 and the
maximum is 253.
Gateway IP Address - Enter a value of the gateway IP address for
the DHCP server. The value is usually as same as the 1st IP address
of the router, which means the router is the default gateway.
DHCP Server IP Address for Relay Agent - Set the IP address of
the DHCP server you are going to use so the Relay Agent can help to
forward the DHCP request to the DHCP server.
o u t e
o u t e
The number (1 to 10) under Index allows you to open next page to
setup static route.
Vigor110 User's Guide
