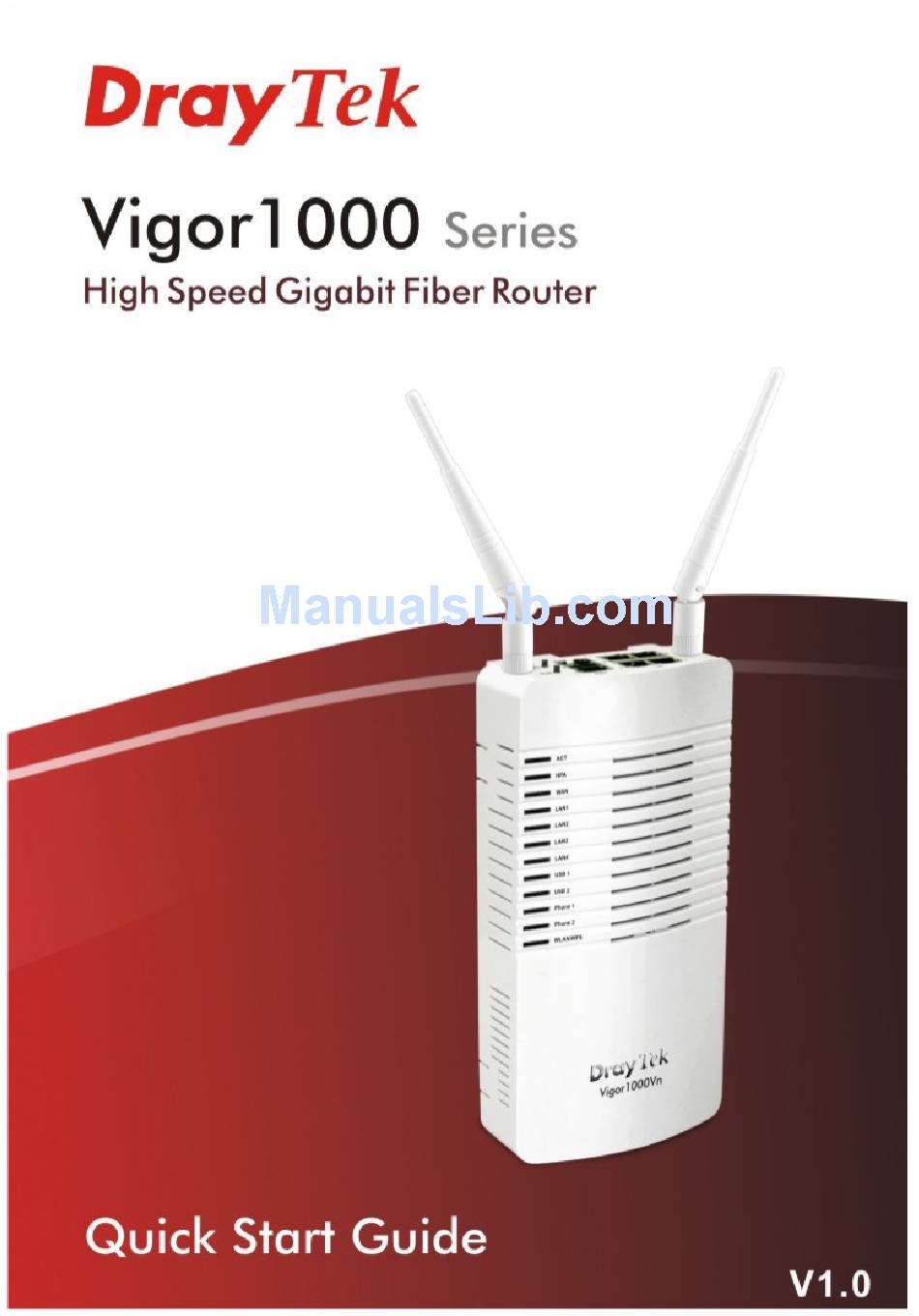

- Page 1 Vigor1000 Series Quick Start Guide...
-
Page 2: Quick Start Guide
Vigor1000 Series High Speed Gigabit Fiber Router Quick Start Guide Version: 1.0 Firmware: V1.5.2_RC1a Date: 19/12/2011 Vigor1000 Series Quick Start Guide... -
Page 3: Copyright Information
Web registration is preferred. You can register your Vigor router via Owner http://www.draytek.com. Firmware & Tools Due to the continuous evolution of DrayTek technology, all routers will be Updates regularly upgraded. Please consult the DrayTek web site for more information on newest firmware, tools and documents. -
Page 4: European Community Declarations
No. 26, Fu Shing Road, HuKou Township, HsinChu Industrial Park, Hsin-Chu, Taiwan Product: Vigor1000 Series Router DrayTek Corp. declares that Vigor1000 Series of routers are in compliance with the following essential requirements and other relevant provisions of R&TTE Directive 1999/5/EEC. The product conforms to the requirements of Electro-Magnetic Compatibility (EMC) Directive 2004/108/EC by complying with the requirements set forth in EN55022/Class B and EN55024/Class B. -
Page 5: Table Of Contents
4.3 Pinging the Router from Your Computer .................. 26 4.4 Checking If the ISP Settings are OK or Not ................27 4.5 Backing to Factory Default Setting If Necessary..............27 4.6 Contacting Your Dealer ......................28 Vigor1000 Series Quick Start Guide... -
Page 7: Introduction
The Vigor1000 series are the routers with high speed in data transmission through WAN port and LAN ports. With the development of NGN (Next Generation Network), you may recently hear the news about FTTx deployment in your local area or even have already subscribed the unbundling last mile service (e.g. -
Page 8: Panel Explanation
Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. USB (1-2) Connector for accessing the Internet. Vigor1000 Series Quick Start Guide... -
Page 9: For Vigor1000N
Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. USB (1-2) Connector for accessing the Internet. Vigor1000 Series Quick Start Guide... -
Page 10: For Vigor1000Vn
Then the router will restart with the factory default configuration. Connector for a power adapter. Power switch. ON/OFF Connector for USB storage device (Pen Driver/Mobile HD) or printer or 3G backup. USB (1-2) Connector for accessing the Internet. Vigor1000 Series Quick Start Guide... -
Page 11: Package Content
The type of the power adapter depends on the country that the router will be installed. * The maximum power consumption is 17-23 Watt. UK-type Power Adapter EU-type Power Adapter USA/Taiwan-type Power Adapter AU/NZ-type Power Adapter Vigor1000 Series Quick Start Guide... -
Page 12: Installing Your Router
Power on the router. Check the ACT and WAN, LAN LEDs to assure network connections. (For the detailed information of LED status, please refer to section 1.1.) Vigor1000 Series Quick Start Guide... -
Page 13: Printer Installation
You can install a printer onto the router for sharing printing. All the PCs connected this router can print documents via the router. The example provided here is made based on Windows XP/2000. For Windows 98/SE/Vista, please visit www.draytek.com. Before using it, please follow the steps below to configure settings for connected computers (or wireless clients). - Page 14 Next. Click Local printer attached to this computer and click Next. In this dialog, choose Create a new port Type of port and use the drop down list to select Standard TCP/IP Port. Click Next. Vigor1000 Series Quick Start Guide...
- Page 15 In the following dialog, type 192.168.1.1 (router’s LAN IP) in the field of Printer Name or IP Address and type IP_192.168.1.1 as the port name. Then, click Next. Click Standard and choose Generic Network Card. Then, in the following dialog, click Finish. Vigor1000 Series Quick Start Guide...
- Page 16 11. Select "LPR" on Protocol, type p1 (number 1) as Queue Name. Then click OK. Next please refer to the red rectangle for choosing the correct protocol and LPR name. Vigor1000 Series Quick Start Guide...
- Page 17 Note 1: Some printers with the fax/scanning or other additional functions are not supported. If you do not know whether your printer is supported or not, please visit www.draytek.com to find out the printer list. Open Support >FAQ; find out the link of Printer Server and click it.
- Page 18 This page is left blank. Vigor1000 Series Quick Start Guide...
-
Page 19: Configuring Web
The web page can be logged out according to the chosen condition. The default setting is Auto Logout, which means the web configuration system will logout after five minutes without any operation. Change the setting for your necessity. Vigor1000 Series Quick Start Guide... -
Page 20: Basic Configuration
The Main Screen will appear as follows. Click Quick Start Wizard. The home page will change slightly in accordance with the router you have. The welcome page will be shown as below. Please click Next. Vigor1000 Series Quick Start Guide... - Page 21 Confirm Password. Then click Next to continue. After restarting the router, new password must be typed for accessing into router web page. On the next page as shown below, please choose time zone for your router. Then click Next for next step. Vigor1000 Series Quick Start Guide...
- Page 22 PPPoE mode if the ISP provides you PPPoE interface. Static IP: if you click Static IP, you will get the following page. Please type in the IP address information originally provided by your ISP. Then click Next for next step. Vigor1000 Series Quick Start Guide...
- Page 23 DHCP: if you click DHCP, you will get the following page. Simply click Next to continue. PPPoE: if you click PPPoE as the protocol, please manually enter the Username/Password provided by your ISP and all the required information. Then, click Next. Vigor1000 Series Quick Start Guide...
- Page 24 Then, click Next. For the user of Vigor1000, please skip this step. Select an appropriate encryption mode to improve the security and privacy of your wireless data packets. WEP: if you choose WEP as the security configuration, you have to specify encryption key and authentication mode. Vigor1000 Series Quick Start Guide...
- Page 25 WPA-PSK: if you choose WPA-PSK as the security configuration, you have to specify WPA mode, algorithm and pre-shared key. Vigor1000 Series Quick Start Guide...
- Page 26 WPA mode, algorithm, Radius server, Radius server port and Radius server secret respectively. WPS: if you choose WPS as the security configuration, you can press Start WPS PIN and Start WPS PBC to complete the wireless connection. Vigor1000 Series Quick Start Guide...
- Page 27 Click Next to continue. Now you can see the following screen. It indicates that the setup is complete. Different types of connection modes will have different summary. Click Finish and then restart the router. Now, you can enjoy surfing on the Internet. Vigor1000 Series Quick Start Guide...
- Page 28 This page is left blank. Vigor1000 Series Quick Start Guide...
-
Page 29: Trouble Shooting
Turn on the router. Make sure the ACT LED blink once per second and the correspondent LAN LED is bright. If not, it means that there is something wrong with the hardware status. Simply back to “2.1 Hardware Installation” to execute the hardware installation again. And then, try again. Vigor1000 Series Quick Start Guide... - Page 30 Go to Control Panel and then double-click on Network Connections. Right-click on Local Area Connection and click on Properties. Select Internet Protocol (TCP/IP) and then click Properties. Vigor1000 Series Quick Start Guide...
- Page 31 Double click on the current used Mac OS on the desktop. Open the Application folder and get into Network. On the Network screen, select Using DHCP from the drop down list of Configure IPv4. Vigor1000 Series Quick Start Guide...
-
Page 32: Pinging The Router From Your Computer
Open the Application folder and get into Utilities. Double click Terminal. The Terminal window will appear. Type ping 192.168.1.1 and press [Enter]. If the link is OK, the line of “64 bytes from 192.168.1.1: icmp_seq=0 ttl=255 time=xxxx ms” will appear. Vigor1000 Series Quick Start Guide... -
Page 33: Checking If The Isp Settings Are Ok Or Not
Warning: After pressing factory default setting, you will loose all settings you did before. Make sure you have recorded all useful settings before you pressing. You can reset the router to factory default via Web page. Vigor1000 Series Quick Start Guide... -
Page 34: Contacting Your Dealer
If the router still cannot work correctly after trying many efforts, please contact your dealer for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Vigor1000 Series Quick Start Guide...
