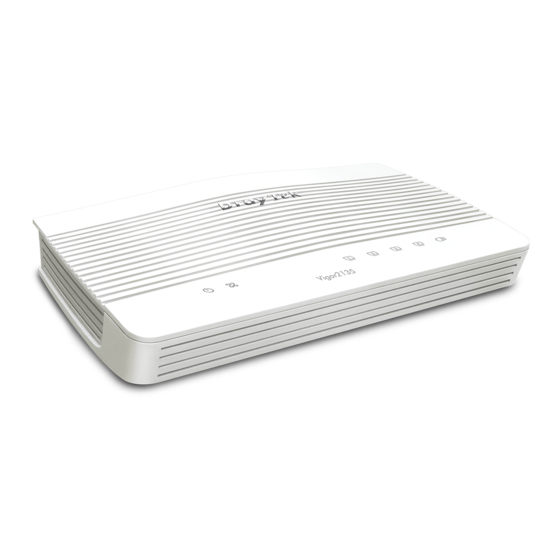

Draytek Vigor2135 Series Quick Start Manual
  1. Manuals
  2. Brands
  3. Draytek Manuals
  4. Network Router
  5. Vigor2135 Series
  6. Quick start manual

Draytek Vigor2135 Series Quick Start Manual

Gigabit broadband router
Hide thumbs Also See for Vigor2135 Series:

Advertisement

Quick Links

Download this manual
i

Advertisement

loading

Related Manuals for Draytek Vigor2135 Series

Summary of Contents for Draytek Vigor2135 Series

  • Page 2 Vigor2135 Gigabit Broadband Router Quick Start Guide Version: 1.0 Firmware Version: V4.2.1.2 (For future update, please visit DrayTek web site) Date: December 16, 2020...
  • Page 3 Intellectual Property Rights (IPR) Information © All rights reserved. This publication contains information that is protected Copyrights by copyright. No part may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language without written permission from the copyright holders. The following trademarks are used in this document: Trademarks Microsoft is a registered trademark of Microsoft Corp.
  • Page 4 EU Declaration of Conformity We DrayTek Corp. , office at No.26, Fushing Rd., Hukou, Hsinchu Industrial Park, Hsinchu 300, Taiwan, declare under our sole responsibility that the product  Product name: Gigabit Broadband Router  Model number: Vigor2135 Series  Manufacturer: DrayTek Corp.
  • Page 5 86.2% 87.6% 87.8% 89.8% 83.7% 85.4% 88.6% 88.2% efficiency Efficiency at low load 73.6% 78.0% 81.3% 83.3% 83.7% 74.5% 80.5% 86.4% 85.4% No-load power 0.07W 0.07W 0.07W 0.07W 0.07W 0.07W 0.10W 0.07W 0.10W consumption For more update, please visit www.draytek.com.

  • Page 6: Table Of Contents

    1. Package Content ....................1 2. Panel Explanation....................2 3. Hardware Installation ................... 4 3.1 Network Connection........................4 3.2 Wall-Mounted Installation ......................5 4. Software Configuration ..................6 5. Customer Service ....................11...

  • Page 7: Package Content

    Take a look at the package content. If there is anything missed or damaged, please contact DrayTek or dealer immediately. Vigor Router Quick Start Guide RJ-45 Cat-5 Ethernet Cable The type of the power adapter depends on the country that the router will be installed.

  • Page 8: Panel Explanation

    Status Explanation Blinking The router is powered on and running normally. (Activity) The router is powered off. Internet connection is ready. Blinking The data is transmitting. Internet connection is not ready. The phone connected to this port is off-hook. 1, 2 The phone connected to this port is on-hook.
  • Page 9 Interface Description Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking). Press the hole and keep for more than 5 seconds. When you see the ACT LED begins to blink rapidly than usual, release the button. Then the router will restart with the factory default configuration.

  • Page 10: Hardware Installation

    This section will guide you to install the router through hardware connection and configure the router’s settings through web browser. Before starting to configure the router, you have to connect your devices correctly. Here we take Vigor2135 as an example. Connect the cable Modem/DSL Modem/Media Converter to any WAN port of router with Ethernet cable (RJ-45).

  • Page 11: Wall-Mounted Installation

    Vigor2135 series has keyhole type mounting slots on the underside. A template is provided on the Vigor2135 packaging box to enable you to space the screws correctly on the wall. Place the template on the wall and drill the holes according to the recommended instruction.

  • Page 12: Software Configuration

    To access Internet, please finish basic configuration after completing the hardware installation. The Quick Start Wizard is designed for you to easily set up your router for Internet access. You can directly access the Quick Start Wizard via Web Configurator. Make sure your PC connects to the router correctly.
  • Page 13 Now, the Main Screen will pop up. Click Wizards>>Quick Start Wizard. Note The home page will change slightly in accordance with the router you have. Enter the login password on the field of New Password and retype it on the field of Confirm Password.
  • Page 14 On the next page as shown below, please select the WAN interface that you use and click Next. If Ethernet interface is used, please choose WAN1; if 3G USB modem is used, please choose WAN3. Then click Next for next step. On the following page, please select the appropriate protocol according to the information from your ISP.
  • Page 15 PPPoE: If you click PPPoE as the protocol, after clicking Next, you will get the following web page. Please manually enter the Username/Password provided by your ISP. Then click Next. PPTP/L2TP: if you click PPTP/L2TP, you will get the following page. Please type in all the information originally provided by your ISP.
  • Page 16 DHCP: if you click DHCP, you will get the following page. Simply click Next to continue.

  • Page 17: Customer Service

    Finish and then restart the router. Afterward, you will enjoy surfing on the Internet. If the router cannot work correctly after trying many efforts, please contact your dealer/DrayTek for further help right away. For any questions, please feel free to send e-mail to support@draytek.com. Be a Registered Owner Web registration is preferred.
