Chapter 2
Replacing the Rear Chassis Blower/Bracket and
Air Flow Guide
To replace the rear chassis blower/bracket and air flow guide, simply reverse the steps
described in the preceding procedure.

Removing the PCI Card Cage

The PCI card cage contains the 3 PCI card slots on a riser board, and must be removed in
order to access PCI cards. Remove the air flow guide before removing the PCI card cage
(see "Removing the Air Flow Guide" earlier in this chapter).
1. Disconnect the PCI card cage fan from the system board.
See Figure 2-5.
2. Grip the PCI card cage by the fan and back edge, and firmly lift the cage
straight up to remove it. See Figure 2-5.
In lifting the card cage, you will feel initial resistance as the riser card
disconnects from the system board.

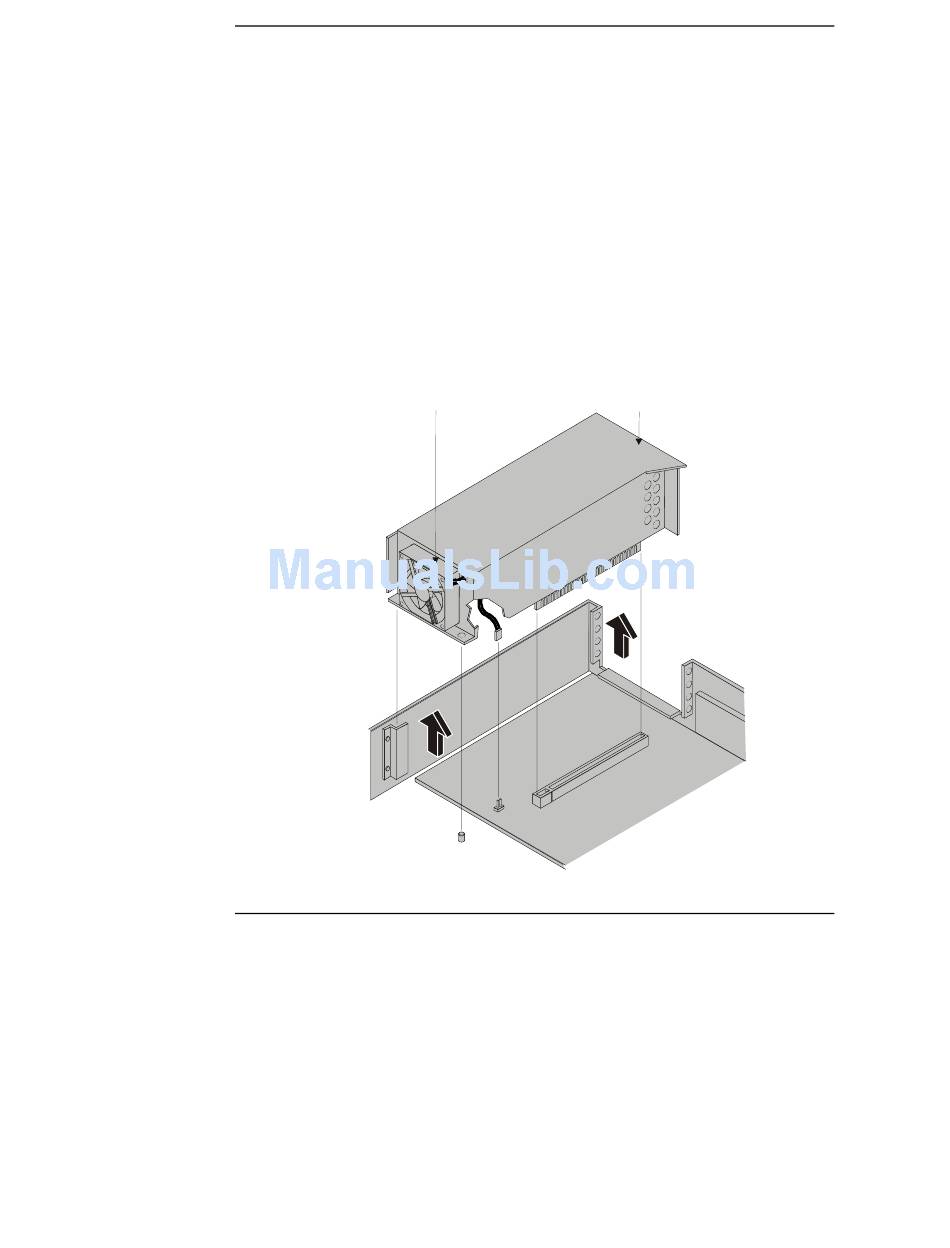

Figure 2-5. Removing the PCI Card Cage
14
Opening and Closing the HP Netserver
Lift Cage by Fan and Back Edge
