9. Push the board down into its connector on the I/O baseboard. See Figure
6-4.
10. Screw the board's I/O bracket to the HP NetServer's I/O panel.
If the board is in one of the PCI Hot Plug slots (P7 through P10):
a. Put the board's I/O bracket in place on the I/O panel. Line the screw
hole on the bracket up with the matching hole on the I/O panel, but do
not screw it in.
b. Replace the Hot Plug board bracket. It fits over the board's own I/O
bracket. The captive screw in the Hot Plug board bracket must line up
with the screw hole in the board's I/O bracket and the matching hole
on the server.
c. Fasten both brackets in place with the captive screw. See Figure 6-5.
56

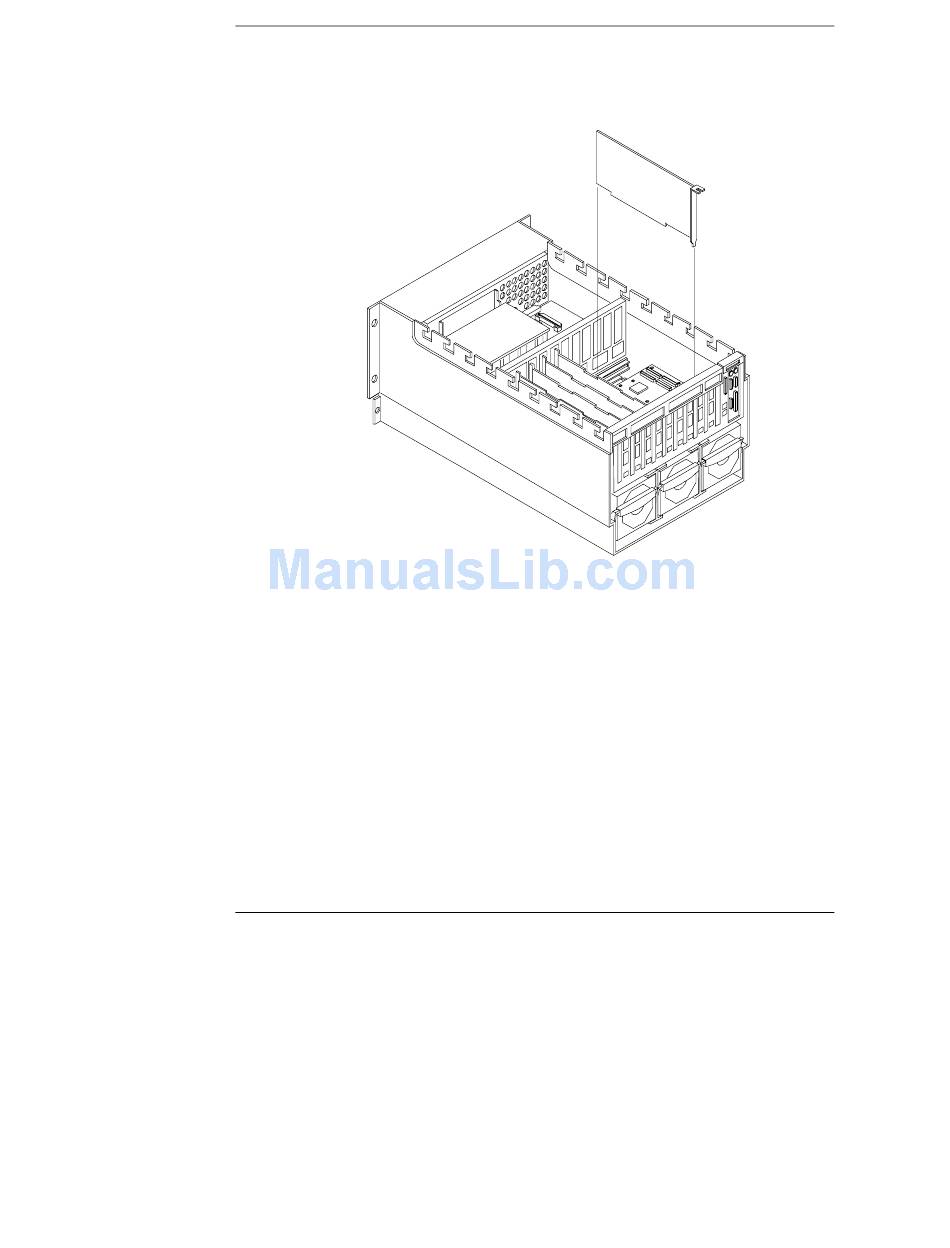

Figure 6-4. Inserting the Board
Installing Additional Boards
