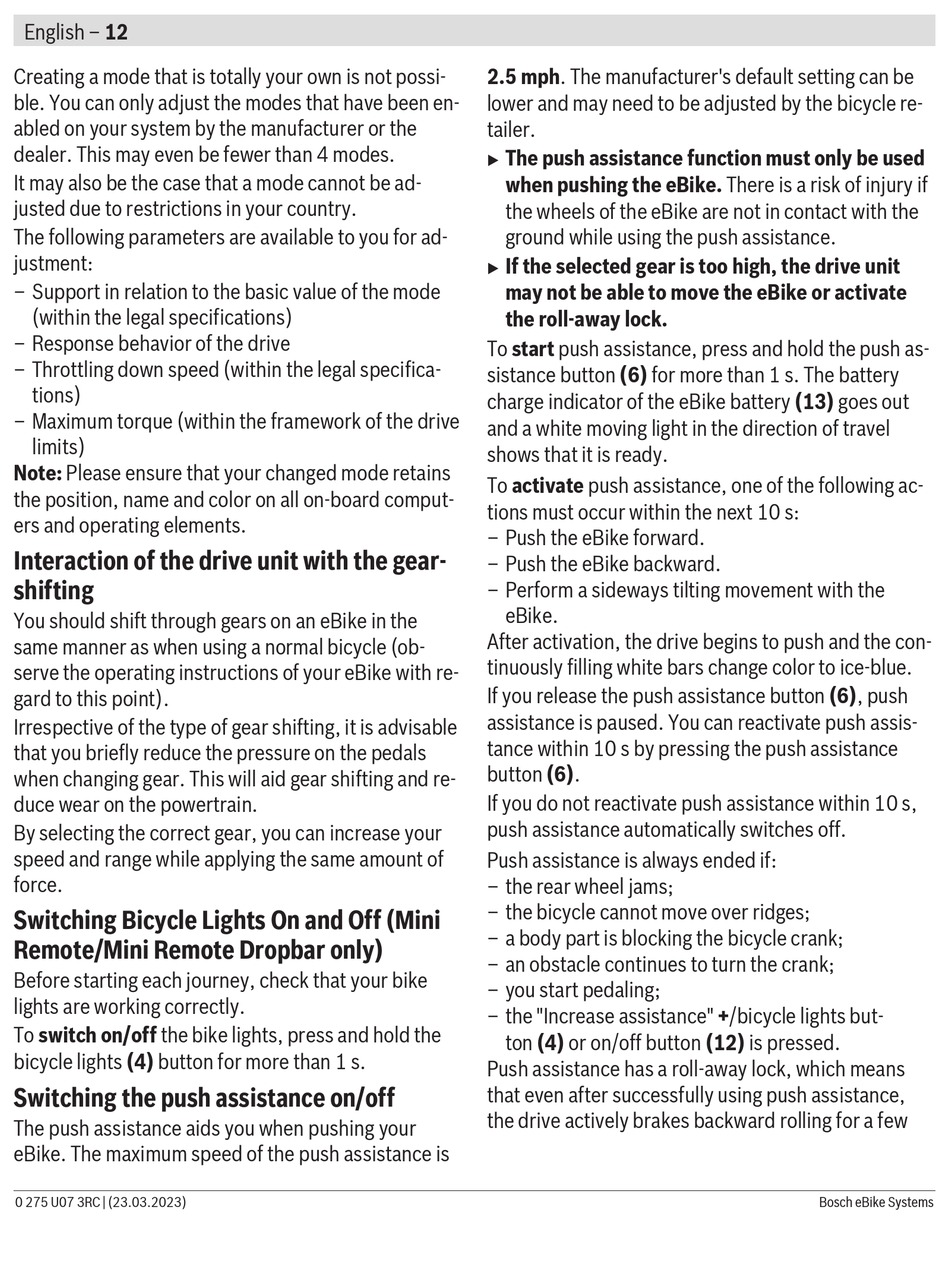

Bosch BDU314Y Owner's Manual page 293

English – 12
Creating a mode that is totally your own is not possi-
ble. You can only adjust the modes that have been en-
abled on your system by the manufacturer or the
dealer. This may even be fewer than 4 modes.
It may also be the case that a mode cannot be ad-
justed due to restrictions in your country.
The following parameters are available to you for ad-
justment:
– Support in relation to the basic value of the mode
(within the legal specifications)
– Response behavior of the drive
– Throttling down speed (within the legal specifica-
tions)
– Maximum torque (within the framework of the drive
limits)
Note: Please ensure that your changed mode retains
the position, name and color on all on-board comput-
ers and operating elements.
Interaction of the drive unit with the gear-
shifting
You should shift through gears on an eBike in the
same manner as when using a normal bicycle (ob-
serve the operating instructions of your eBike with re-
gard to this point).
Irrespective of the type of gear shifting, it is advisable
that you briefly reduce the pressure on the pedals
when changing gear. This will aid gear shifting and re-
duce wear on the powertrain.
By selecting the correct gear, you can increase your
speed and range while applying the same amount of
force.
Switching Bicycle Lights On and Off (Mini
Remote/Mini Remote Dropbar only)
Before starting each journey, check that your bike
lights are working correctly.
To switch on/off the bike lights, press and hold the
bicycle lights (4) button for more than 1 s.
Switching the push assistance on/off
The push assistance aids you when pushing your
eBike. The maximum speed of the push assistance is
0 275 U07 3RC | (23.03.2023)
2.5 mph. The manufacturer's default setting can be
lower and may need to be adjusted by the bicycle re-
tailer.
The push assistance function must only be used
u
when pushing the eBike. There is a risk of injury if
the wheels of the eBike are not in contact with the
ground while using the push assistance.
If the selected gear is too high, the drive unit
u
may not be able to move the eBike or activate
the roll-away lock.
To start push assistance, press and hold the push as-
sistance button (6) for more than 1 s. The battery
charge indicator of the eBike battery (13) goes out
and a white moving light in the direction of travel
shows that it is ready.
To activate push assistance, one of the following ac-
tions must occur within the next 10 s:
– Push the eBike forward.
– Push the eBike backward.
– Perform a sideways tilting movement with the
eBike.
After activation, the drive begins to push and the con-
tinuously filling white bars change color to ice-blue.
If you release the push assistance button (6), push
assistance is paused. You can reactivate push assis-
tance within 10 s by pressing the push assistance
button (6).
If you do not reactivate push assistance within 10 s,
push assistance automatically switches off.
Push assistance is always ended if:
– the rear wheel jams;
– the bicycle cannot move over ridges;
– a body part is blocking the bicycle crank;
– an obstacle continues to turn the crank;
– you start pedaling;
– the "Increase assistance" +/bicycle lights but-
ton (4) or on/off button (12) is pressed.
Push assistance has a roll-away lock, which means
that even after successfully using push assistance,
the drive actively brakes backward rolling for a few
Bosch eBike Systems
