Configuration for 120/208 4-Wire WYE Synchro/Power Control Connection

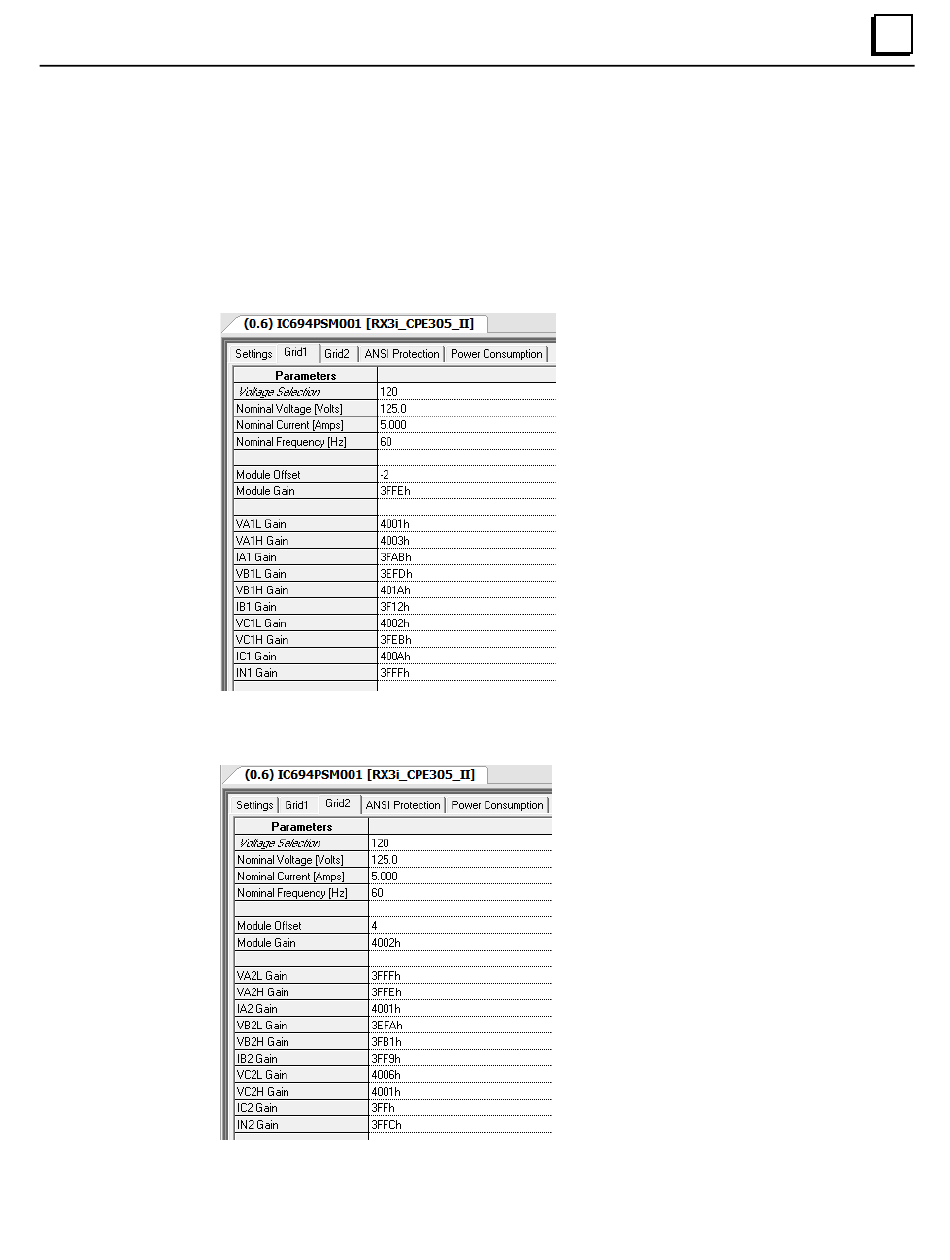

Grid 1 Tab
Grid 2 Tab
GFK-2749
The following shows a typical hardware configuration for a 3-phase, 4-wire WYE power
paralleling/synchronizing application. Note that the offset and gain values were found on
the IC694PSM001 module faceplate label and on the IC694ACC200 terminal assembly
label. The Voltage Selection is set to 120, since the PSM can measure up to 150VAC in
this range. The Nominal Voltage is the anticipated Phase-to-Neutral voltage in the WYE
configuration.
Chapter 3 Configuration and Data Transfer
3
3-41
