Configuration for 120/208 3-Wire Delta system with Two PTs (Two Wattmeter Method),
B-Common
Grid 1 or Grid 2 Tab
GFK-2749

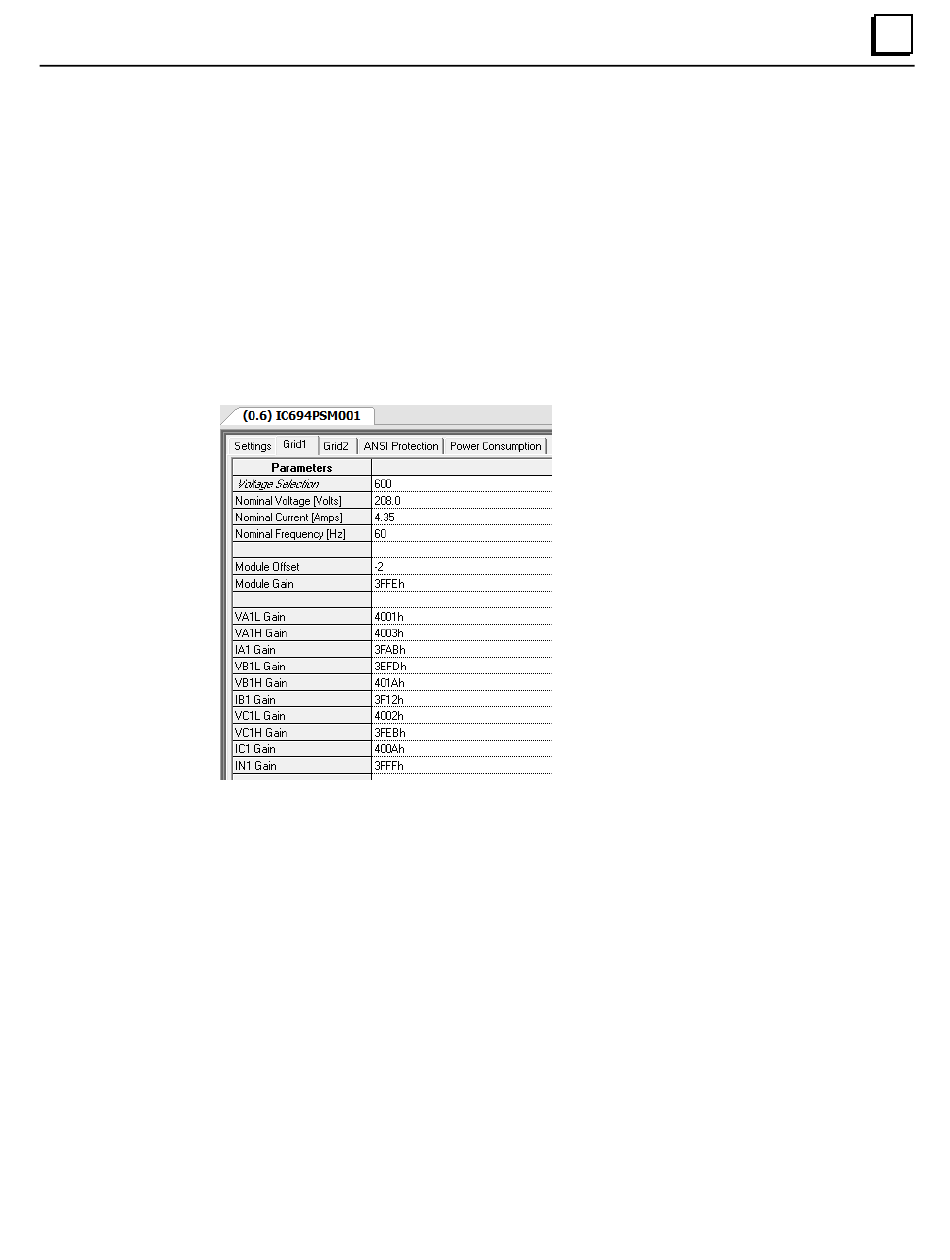

The following shows a typical hardware configuration for a 3-phase, 3-wire Delta power
monitoring application with the B-Phase used as common. This example shows settings
for Grid 1; all the settings can be applied to the respective Grid 2 parameters. Note that
the offset and gain values were found on the IC694PSM001 module faceplate label and
on the IC694ACC200 terminal assembly label. The Nominal Voltage is the anticipated
Phase-to-Phase voltage in the Delta configuration. Though phase-to-ground is 120VAC,
the 1:1 PTs will be connected from phase-to-phase, so the range must be set to 600VAC
to accommodate the 208V phase-to-phase voltage. The maximum Load Current of 87.0A,
through 100:5 CTs will deliver 4.350A to the IC694ACC200 Terminal Assembly.
