Installing the storage tank

1. Transfer drilling holes from the flat roof frame onto the ground.
1. 1.

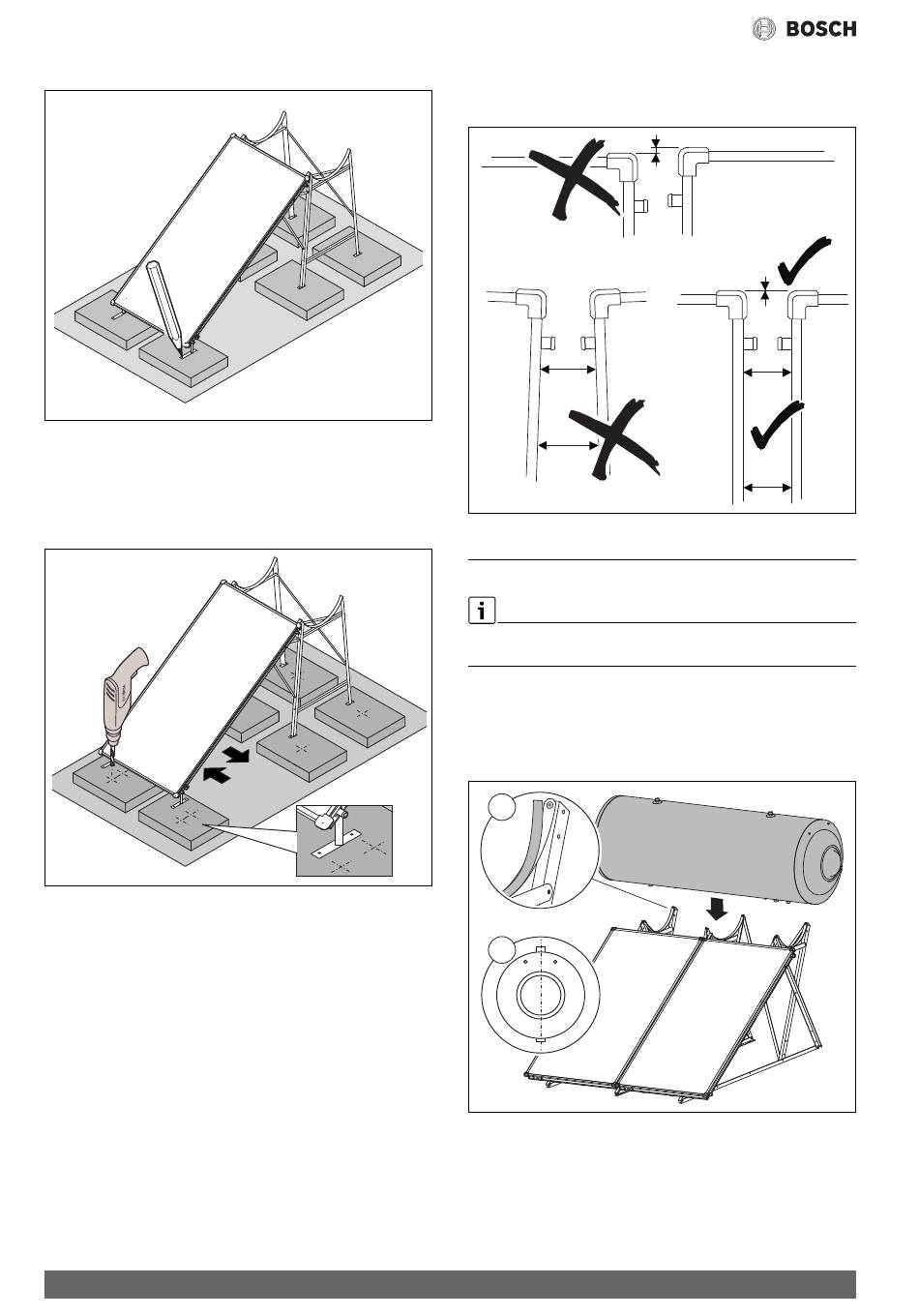

Fig. 59 Example: Example: Installation on concrete slabs, marking the
drilling holes
2. To ensure there is sufficient space for drilling, move the flat roof
frame slightly to one side.
3. Drill sufficiently large holes.
4. Slide the flat roof frame over the drilling holes.
3.
0010016160-02
Fig. 60 Example: Installation on concrete slabs
22
0010016159-01
4.
2.
When the collectors have been aligned exactly:
▶ Tighten the flat roof frame with screws to be provided by the
customer.
x mm
y mm
0010016145-01
Fig. 61 Align the collectors correctly
9 Installing the storage tank
The storage tank is heavy and awkward to handle. Note the position of
the storage tank on the installation set before carrying it.
▶ Adhere the adhesive strips to the bent flat profiles as tank
protection [1].
▶ Place the storage tank in the centre of the storage tank supports of
the flat roof frame and rotate it until the storage tank connections are
vertical [2].
1
2
Fig. 62 Place and align the storage tank on the flat roof frame
0 mm
=
=
0010014958-01
