To facilitate installation, first tighten all screws by hand.
1. Screw profiles 1380 mm to profile 2215 mm.
2. Screw profiles 1380 mm together in the centre.
A
M8x20
[mm]

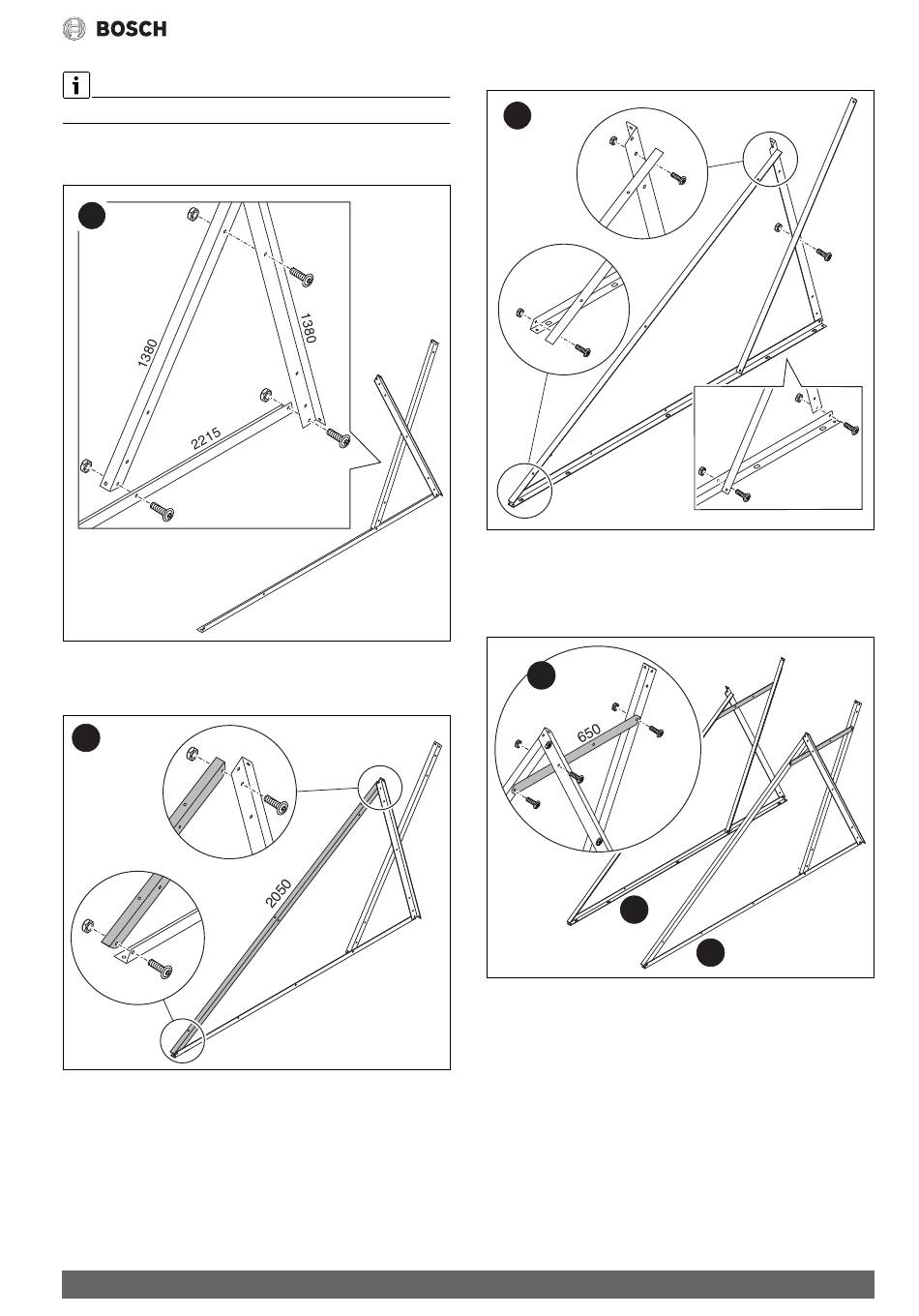

Fig. 21 Fitting cross on profile 2215 mm (triangle A)
3. Screw profile 2050 mm to the top of the cross.
4. Screw profile 2050 mm at the bottom to profile 2215 mm.
A
3.
4.
[mm]
Fig. 22 Fitting profile 2050
TSS – 6720887696 (2018/05)
2.
1.
0010014817-01
0010014820-01
▶ Screw triangle B with the same profiles, in mirror-image to triangle A.
B
0010014821-01
Fig. 23 Fitting triangle B
▶ TSS300: Fit another triangle A.
6.2

Fitting flat profiles

▶ Screw flat profile 650 mm to profiles 1380 mm and 2050 mm.
A
B
[mm]
Fig. 24 Fitting flat profile 650 mm
Fitting the WSF flat roof frame
A
0010014822-01
