▶ For the pipes on the right and left of the collector array, allow an extra
0.5 m on either side.
▶ Allow sufficient space for maintenance and repair work at a later date.
[mm]

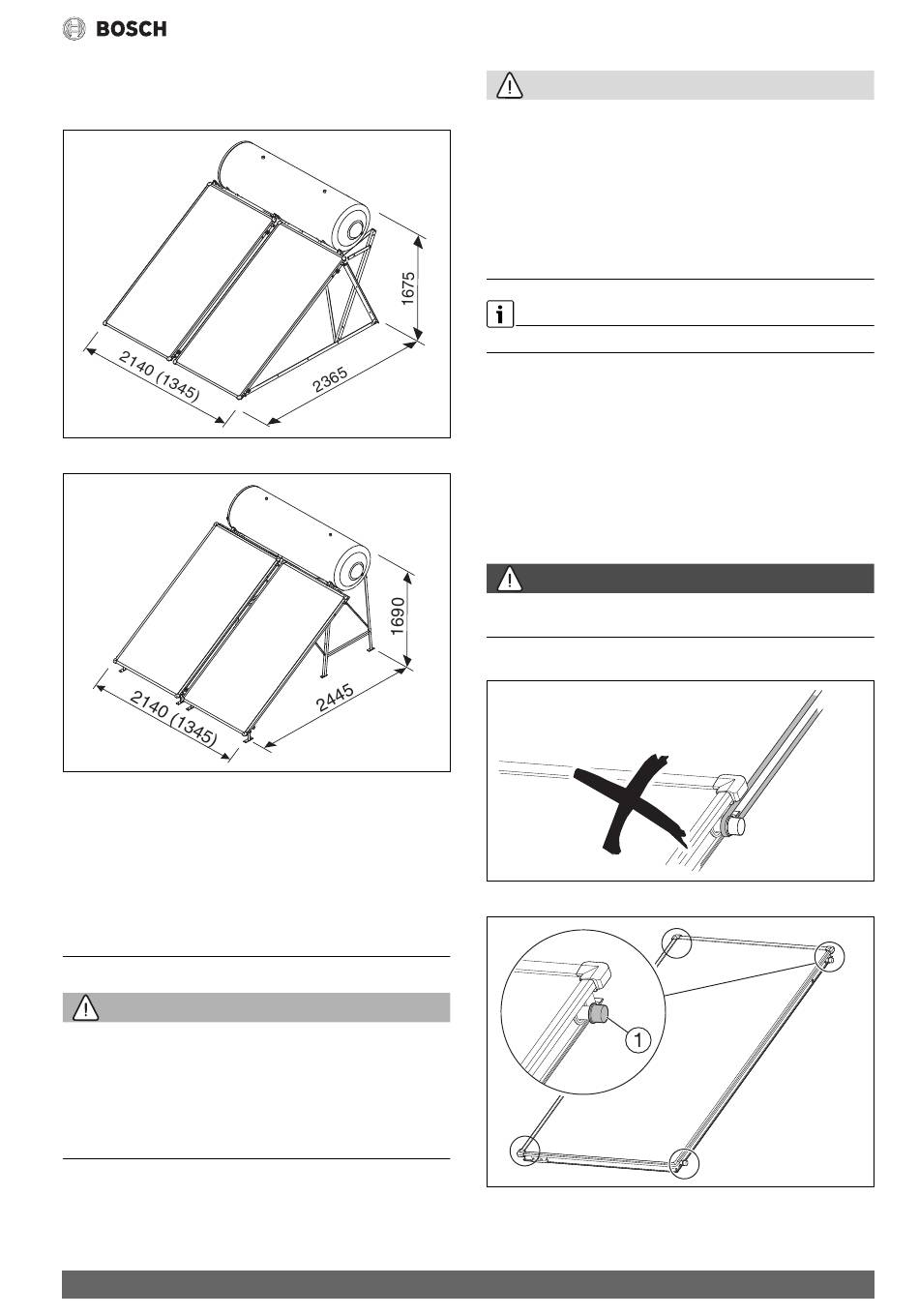

Fig. 13 WSF dimensions (value in brackets: TSS150/200)
[mm]
Fig. 14 MTSS dimensions (value in brackets: TSS150/200)
4.3

Required tools

Installation set:
• Allen key, 5 mm, with rounding
• Spanner 13 mm
Connection set:
• Spanner 27, 30 and 37 mm
5

Transport

WARNING:
Risk to life from falling from roof!
▶ Never use a ladder to move components to the roof because the
installation material and collectors are heavy and difficult to handle.
▶ Whilst working on the roof, take all necessary precautions against a
possible fall.
▶ If there is not any independent anti-fall safety device, wear personal
protective equipment.
TSS – 6720887696 (2018/05)
CAUTION:
Risk of injury from carrying heavy weights!
Incorrect lifting and carrying of heavy loads can cause injuries.
▶ Observe the transport instructions on the packaging.
▶ Only lift the appliance at the points provided for this purpose.
▶ Lift and carry the device with a sufficient number of persons.
- or -
▶ Use suitable means of transportation, (e. g. a pallet truck, hand truck
with strap).
▶ Secure the appliance to prevent it slipping, tilting and falling.
All packaging materials used are environmentally friendly and reusable.
▶ Dispose of shipping packaging by environmentally compatible means.
▶ To make it easier to transport the components, you can use the
following aids, which have sufficient load-bearing capacity:
0010014937-01
– Lifting/transportation devices as used by professional roofers
– Handles for the storage tank (accessories)
– Lifting belt
– 3-point suction lift
– Roofing ladder or equipment for sweeping chimneys
Transporting the collector
DANGER:
Risk to life from falling load.
▶ Never use the collector connections as lifting points!
▶ Collectors must always be carried by two people.
0010016184-01
Fig. 15 Do not place any load on collector connections
Fig. 16 Only remove caps once on the roof
[1] Caps on the collector connection
Transport
0010015284-01
0010015285-01
