Installing the collectors
▶ Tighten the screw of the double-sided collector clamp [1].

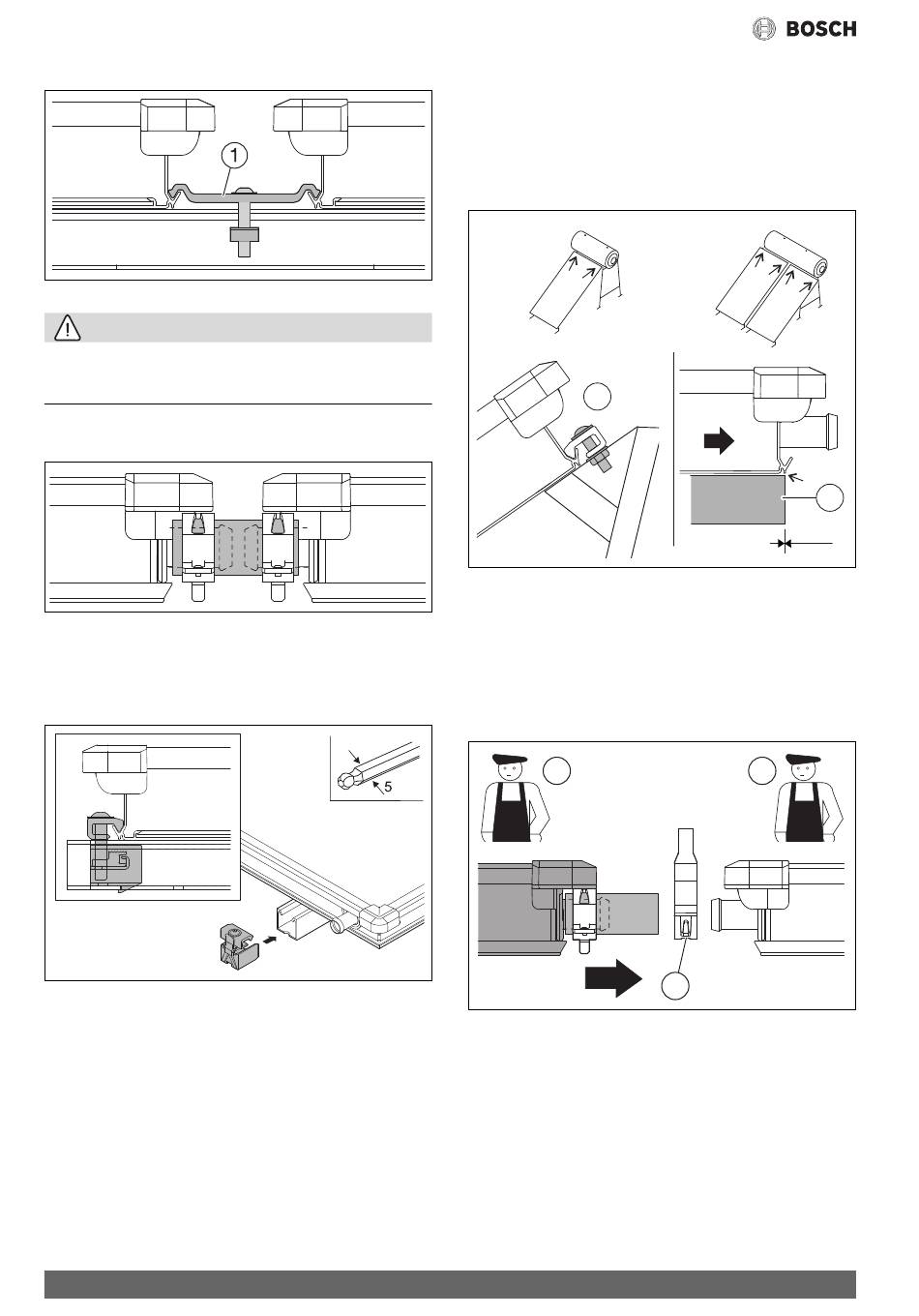

Fig. 50 Double-sided collector clamp
CAUTION:
Risk of injury and leaks from escaping solar heat transfer medium as
a result of unsecured solar hoses.
▶ Secure every solar hose to the collector connection using a hose clip.
▶ Tighten the circlip when the hose clip is located directly in front of the
bead.
Fig. 51 Fully assembled connection hose
8.2.5

Installing the collector clamp on the left

▶ Push the collector clamp into the profile rail and let it click
into the slot.
▶ Tighten the screw of the collector clamp.
Fig. 52 Installing the collector clamp on the left
20
8.3

Installing collectors, MTSS

8.3.1

Installing the collector

▶ MTSS1: Lay the collector in the centre at the top and screw to the
assembly stand using both clamps [1].
▶ MTSS2: Put the first collector on the top right of the stand and slide it
to the end of the angle profile [2]. Then screw down using both
clamps [1].
0010014498-01
2 x
0010016143-01
Fig. 53 Securing the collector at the top
0010014499-01
8.3.2

Installing the second collector

▶ Place the second collector on the assembly stand.
▶ Push the second hose clip [2] onto the solar hoses.
To push the second collector to the first:
▶ Hold the first collector in place [1].
▶ Push the collector up to the first collector so that the solar hoses are
pushed onto the collector connections [3].
0010014500-01
Fig. 54 Collectors should be installed by two people
4 x
1
3
2
TSS – 6720887696 (2018/05)
2
0 mm
