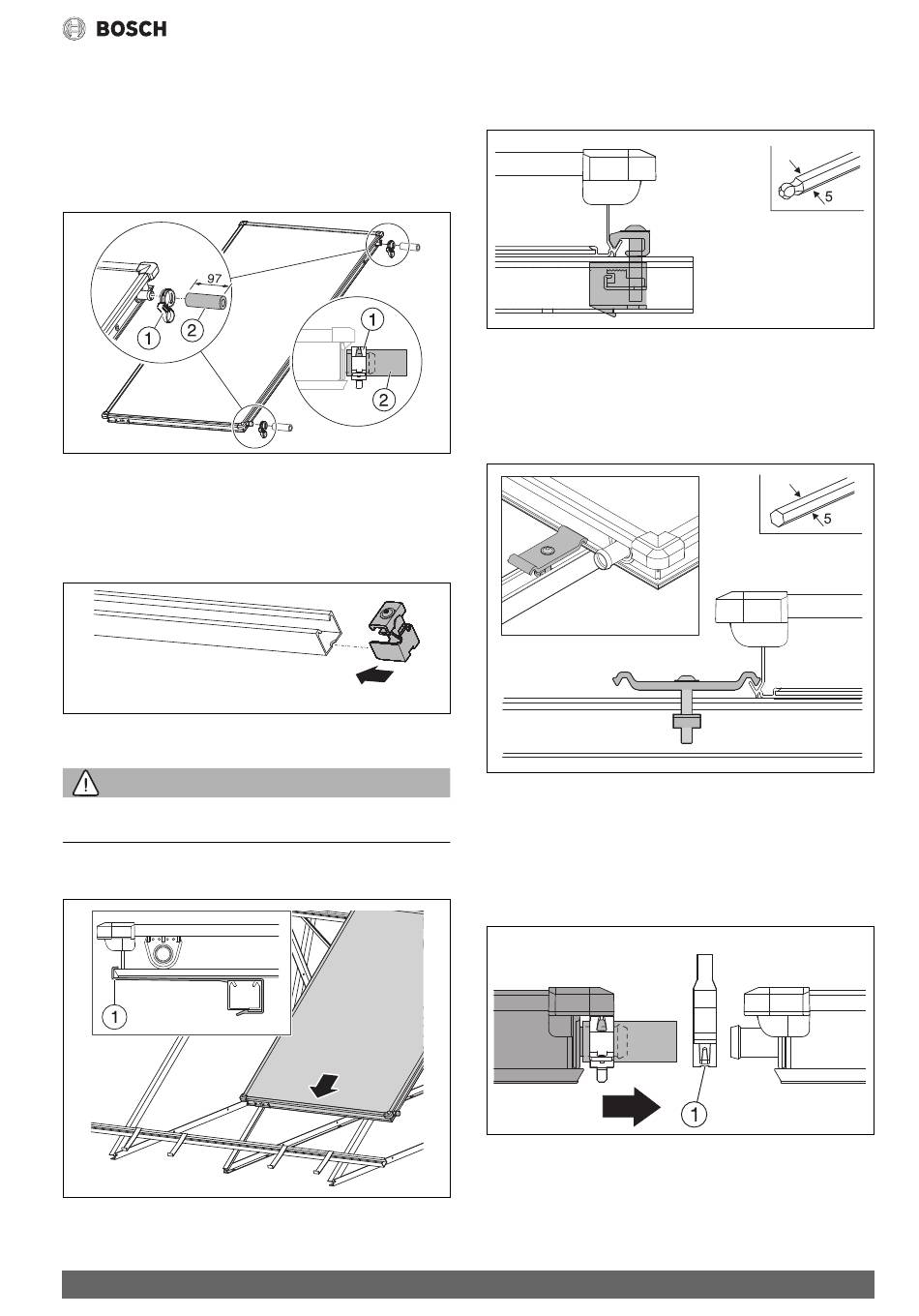

Installing connection set for 2 collectors
The first collector is installed on the right (A). Then the collector is
installed on the left (B).
▶ Push solar hose [2] with hose clips onto the collector connection of
the collector on the left side.
▶ Tighten the circlip when hose clip [1] is located directly in front of the
bead.
Fig. 44 Installing the connection set on the collector on the left side
8.2

Installing collectors, WSF

8.2.1

Installing the collector clamp on the right side

▶ Slide the one-sided collector clamp into the profile rail and let it click
into the slot (only on the right; the left side is done later).
Fig. 45 Installing the collector clamp on the right side
8.2.2

Place first collector on the profile rail

WARNING:
Risk of injury from falling collectors.
▶ Ensure that the collector profile engages in the anti-slip protector.
▶ Place the collector on the right onto the profile rails and allow it to
slide into the anti-slip protector.
Fig. 46 Let the collector on the right slide into the anti-slip protectors
TSS – 6720887696 (2018/05)
B
0010014492-01
0010014493-01
0010014494-01
▶ Carefully push the collector up against the collector clamp and level
horizontally.
▶ Tighten the screw of the collector clamp.
A
Fig. 47 Tightening the screw of the collector clamp
If only one collector is installed, then install the collector clamp on the left.
8.2.3

Inserting the double-sided collector clamp

If two collectors are installed:
▶ Place the double-sided collector clamp on the profile rail and push up
to the collector. Do not tighten yet.
Fig. 48 Only insert a double-sided collector clamp
8.2.4

Placing the second collector on the profile rails

▶ Place second collector along with the pre-assembled solar hoses
onto the profile rails and let it slide into the anti-slip protectors.
▶ Push the second hose clip [1] onto the solar hoses.
▶ Push the collector up to the first collector so that the solar hoses are
pushed onto the collector connections.
Fig. 49 Push the left collector to the right collector
Installing the collectors
0010014495-01
0010014496-01
0010014497-01
19
