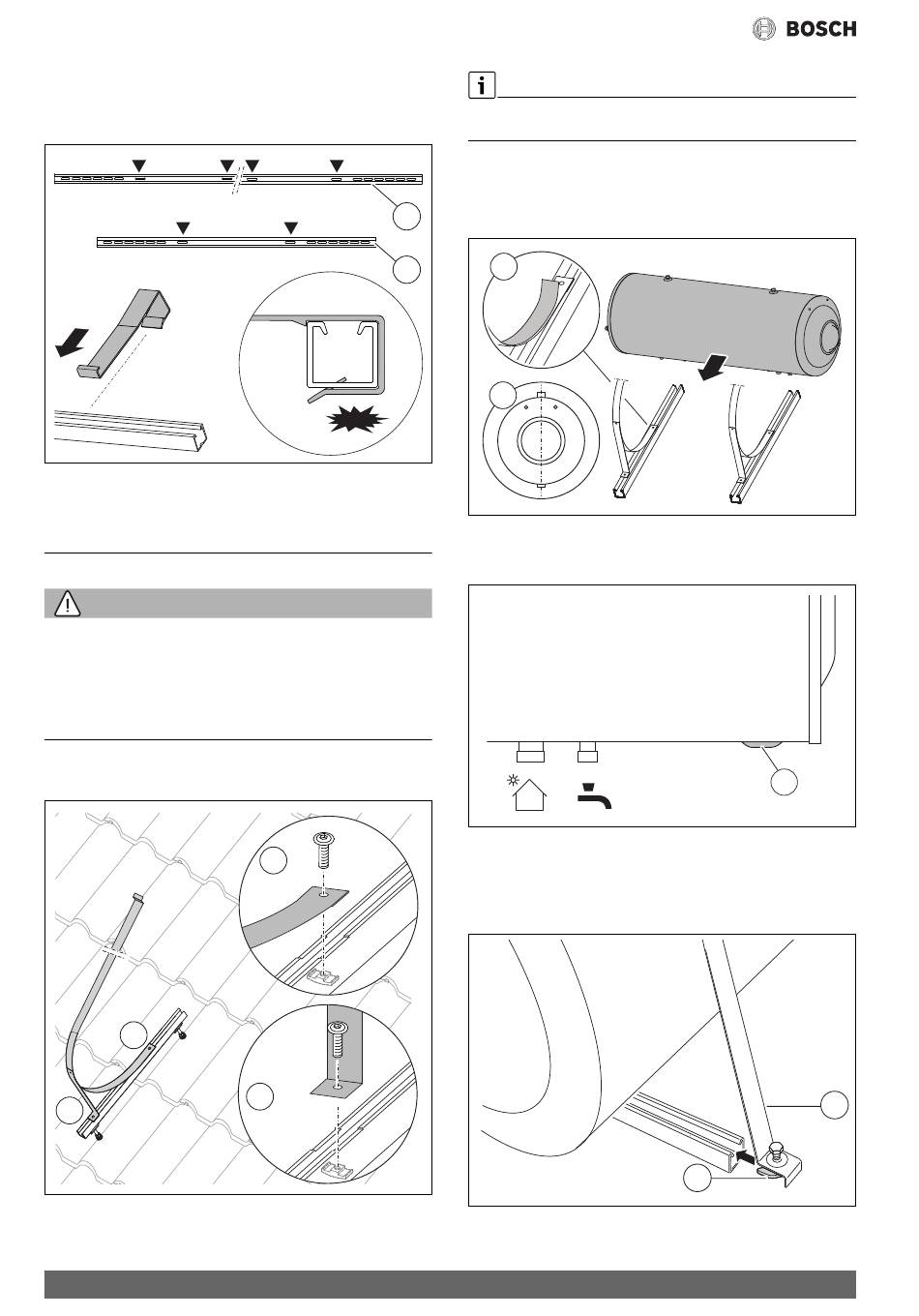

Installing the storage tank

The triangles above the elongated holes mark the position of the anti-slip
protectors.
▶ Push the anti-slip protector down over the profile rail and let it click
into the slot.
Fig. 32 Installing anti-slip brackets on the lower profile rails
[1] Lower profile rail for two collectors
[2] Lower profile rail for one collector
7 Installing the storage tank
WARNING:
Risk to life from falling parts!
The accumulation of snow above the storage tank generates
considerable forces.
▶ Install a snow guard above the storage tank (maintain a clearance of
no more than 1 m between the storage tank and the snow guard).
▶ Alternatively: regularly clear snow build-up.
▶ Place the storage tank strap into the recesses of the short profile rails
and tighten.
1
2
0010015744-01 0010015744-01
Fig. 33 Installing the storage tank strap
16
click!
0010014827-01
M8x20
1
M8x20
2
The storage tank is heavy and awkward to handle. Note the position of
the storage tank on the installation set before carrying it.
▶ Adhere the adhesive strips to the storage tank straps as tank
protection [1].
▶ Place the storage tank in the middle of the storage tank straps and
1
rotate it until the storage tank connections are vertical [2].
1
2
2
Fig. 34 Placing and aligning the storage tank in the storage tank straps
▶ Align the storage tank so that the drainage pipe [1] is not closed off
at the bottom by the storage tank strap.
Fig. 35 Do not block the drainage pipe
▶ Install a hexagon bolt M8 × 50 with a flat washer and aluminium nut
[2] on the storage tank [1].
▶ Slide the aluminium nut into the profile rail and tighten the
connection.
0010016090-01
Fig. 36 Tightening the storage tank strap
0010015745-01 0010015745-01
1
0010016282-01
1
2
