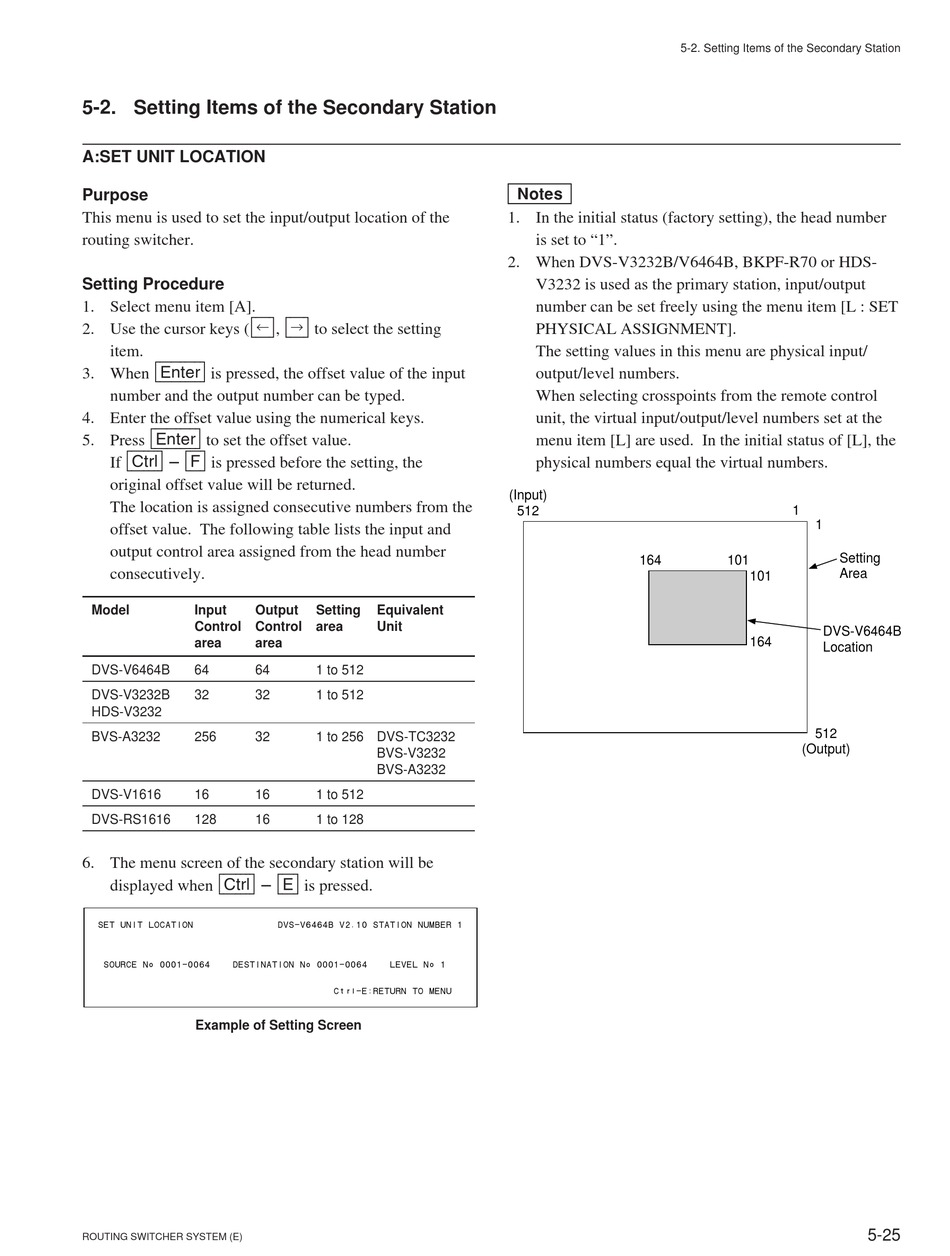

5-2. Setting Items of the Secondary Station

A:SET UNIT LOCATION

Purpose
This menu is used to set the input/output location of the
routing switcher.
Setting Procedure
1. Select menu item [A].
2. Use the cursor keys ([&], [*] to select the setting
item.
3. When [Enter] is pressed, the offset value of the input
number and the output number can be typed.
4. Enter the offset value using the numerical keys.
5. Press [Enter] to set the offset value.
If [Ctrl] _ [F] is pressed before the setting, the
original offset value will be returned.
The location is assigned consecutive numbers from the
offset value. The following table lists the input and
output control area assigned from the head number
consecutively.
Model Input Output
Control Control area
area area
DVS-V6464B 64 64
DVS-V3232B 32 32
HDS-V3232
BVS-A3232 256 32
DVS-V1616 16 16
DVS-RS1616 128 16
6. The menu screen of the secondary station will be
displayed when [Ctrl] _ [E] is pressed.
SET UNIT LOCATION
SOURCE No 0001-0064 DESTINATION No 0001-0064
Example of Setting Screen
ROUTING SWITCHER SYSTEM (E)
Setting Equivalent
Unit
1 to 512
1 to 512
1 to 256 DVS-TC3232
BVS-V3232
BVS-A3232
1 to 512
1 to 128
DVS-V6464B V2.10 STATION NUMBER 1
LEVEL No 1
Ctrl-E:RETURN TO MENU
5-2. Setting Items of the Secondary Station
m
1. In the initial status (factory setting), the head number
is set to "1".
2. When DVS-V3232B/V6464B, BKPF-R70 or HDS-
V3232 is used as the primary station, input/output
number can be set freely using the menu item [L : SET
PHYSICAL ASSIGNMENT].
The setting values in this menu are physical input/
output/level numbers.
When selecting crosspoints from the remote control
unit, the virtual input/output/level numbers set at the
menu item [L] are used. In the initial status of [L], the
physical numbers equal the virtual numbers.
(Input)
512
164
1
1
Setting
101
Area
101
DVS-V6464B
164
Location
512
(Output)
