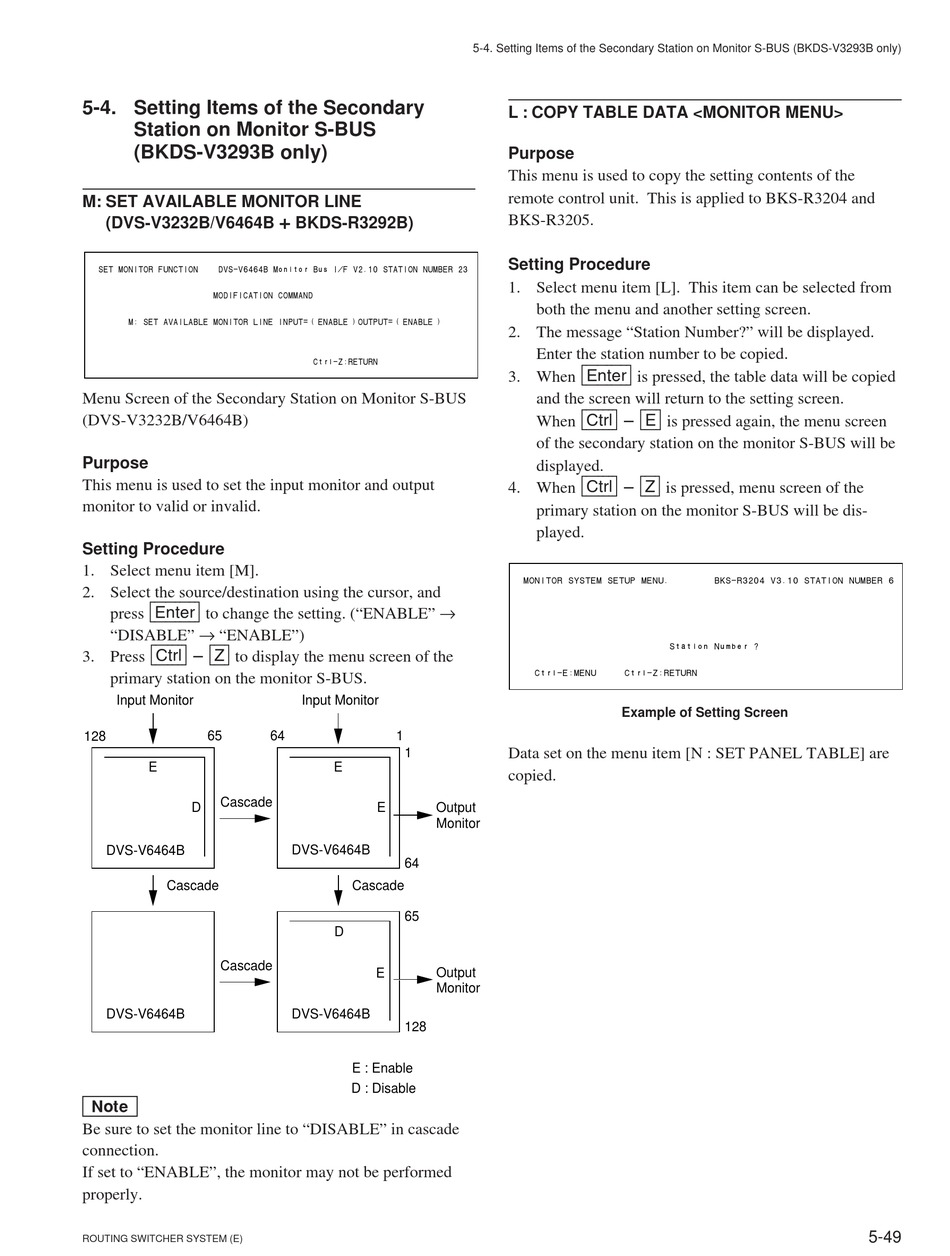

5-4. Setting Items of the Secondary
Station on Monitor S-BUS
(BKDS-V3293B only)
M: SET AVAILABLE MONITOR LINE
(DVS-V3232B/V6464B + + + + + BKDS-R3292B)
SET MONITOR FUNCTION DVS-V6464B Monitor Bus I/F V2.10 STATION NUMBER 23
MODIFICATION COMMAND
M: SET AVAILABLE MONITOR LINE INPUT=( ENABLE )OUTPUT=( ENABLE )
Menu Screen of the Secondary Station on Monitor S-BUS
(DVS-V3232B/V6464B)
Purpose
This menu is used to set the input monitor and output
monitor to valid or invalid.
Setting Procedure
1. Select menu item [M].
2. Select the source/destination using the cursor, and
press [Enter] to change the setting. ("ENABLE"
"DISABLE" "ENABLE")
3. Press [Ctrl] _ [Z] to display the menu screen of the
primary station on the monitor S-BUS.
Input Monitor
128 65
E
Cascade
D
DVS-V6464B
Cascade
Cascade
DVS-V6464B
n
Be sure to set the monitor line to "DISABLE" in cascade
connection.
If set to "ENABLE", the monitor may not be performed
properly.
ROUTING SWITCHER SYSTEM (E)
Ctrl-Z:RETURN
Input Monitor
64 1
1
E
E Output
Monitor
DVS-V6464B
64
Cascade
65
D
E Output
Monitor
DVS-V6464B
128
E : Enable
D : Disable

5-4. Setting Items of the Secondary Station on Monitor S-BUS (BKDS-V3293B only)

L : COPY TABLE DATA <MONITOR MENU>
Purpose
This menu is used to copy the setting contents of the
remote control unit. This is applied to BKS-R3204 and
BKS-R3205.
Setting Procedure
1. Select menu item [L]. This item can be selected from
both the menu and another setting screen.
2. The message "Station Number?" will be displayed.
Enter the station number to be copied.
3. When [Enter] is pressed, the table data will be copied
and the screen will return to the setting screen.
When [Ctrl] _ [E] is pressed again, the menu screen
of the secondary station on the monitor S-BUS will be
displayed.
4. When [Ctrl] _ [Z] is pressed, menu screen of the
primary station on the monitor S-BUS will be dis-
played.
MONITOR SYSTEM SETUP MENU.
Ctrl-E:MENU Ctrl-Z:RETURN
Example of Setting Screen
Data set on the menu item [N : SET PANEL TABLE] are
copied.
BKS-R3204 V3.10 STATION NUMBER 6
Station Number ?
