1-2. System Control

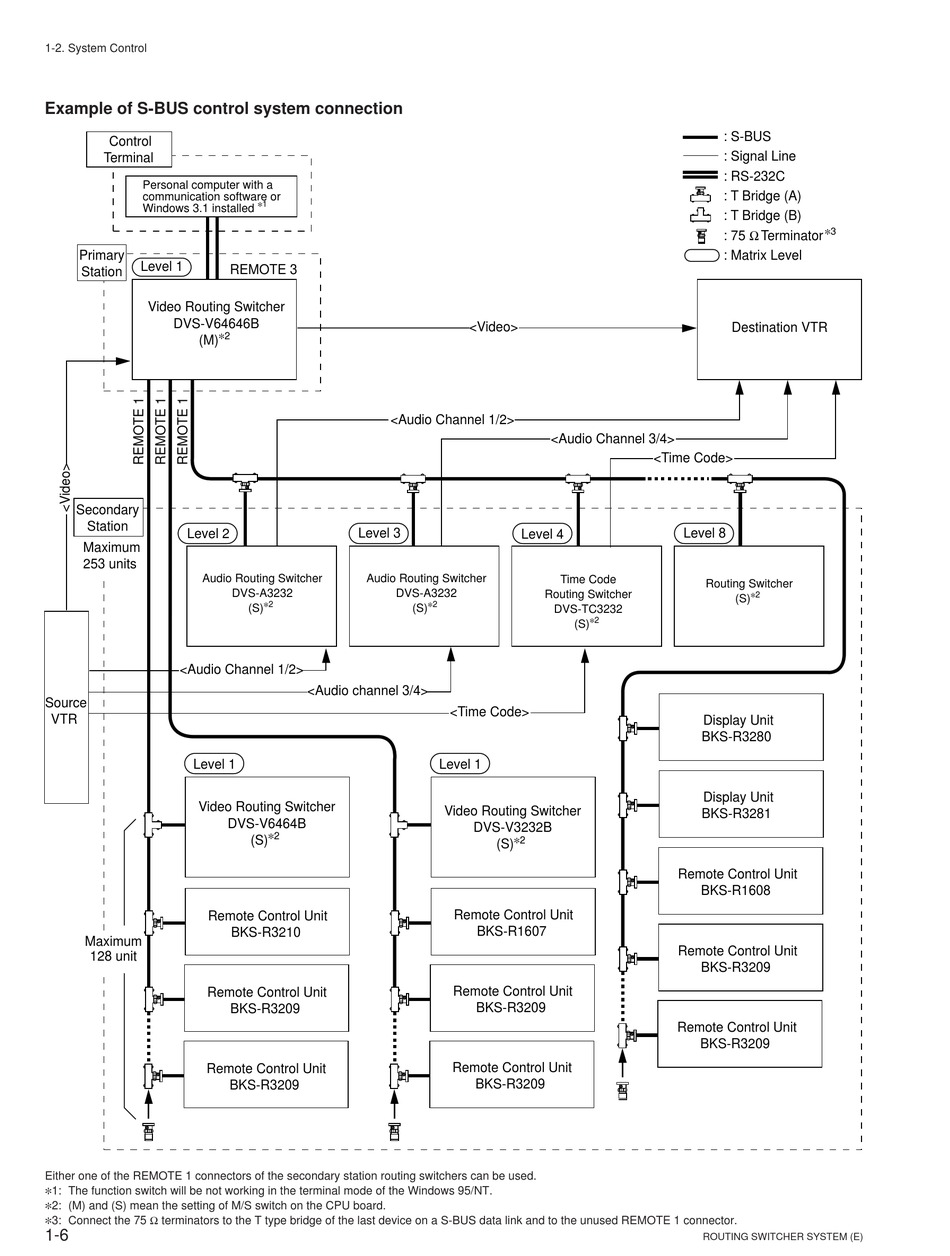

Example of S-BUS control system connection
Control
Terminal
Personal computer with a
communication software or
Windows 3.1 installed
Primary
Level 1
Station
Video Routing Switcher
DVS-V64646B
*2
(M)
Secondary
Station
Level 2
Maximum
253 units
Audio Routing Switcher
<Audio Channel 1/2>
Source
VTR
Level 1
Video Routing Switcher
Remote Control Unit
Maximum
128 unit
Remote Control Unit
Remote Control Unit
Either one of the REMOTE 1 connectors of the secondary station routing switchers can be used.
*1: The function switch will be not working in the terminal mode of the Windows 95/NT.
*2: (M) and (S) mean the setting of M/S switch on the CPU board.
*3: Connect the 75 Z terminators to the T type bridge of the last device on a S-BUS data link and to the unused REMOTE 1 connector.
1-6
*1
REMOTE 3
<Audio Channel 1/2>
Level 3
Audio Routing Switcher
DVS-A3232 DVS-A3232
*2
(S)
<Audio channel 3/4>
DVS-V6464B
*2
(S)
BKS-R3210
BKS-R3209
BKS-R3209
<Video>
<Audio Channel 3/4>
Level 4
Time Code
Routing Switcher
*2
(S)
DVS-TC3232
*2
(S)
<Time Code>
Level 1
Video Routing Switcher
DVS-V3232B
*2
(S)
Remote Control Unit
BKS-R1607
Remote Control Unit
BKS-R3209
Remote Control Unit
BKS-R3209
: S-BUS
: Signal Line
: RS-232C
: T Bridge (A)
: T Bridge (B)
*3
: 75 Z Terminator
: Matrix Level
Destination VTR
<Time Code>
Level 8
Routing Switcher
*2
(S)
Display Unit
BKS-R3280
Display Unit
BKS-R3281
Remote Control Unit
BKS-R1608
Remote Control Unit
BKS-R3209
Remote Control Unit
BKS-R3209
ROUTING SWITCHER SYSTEM (E)
