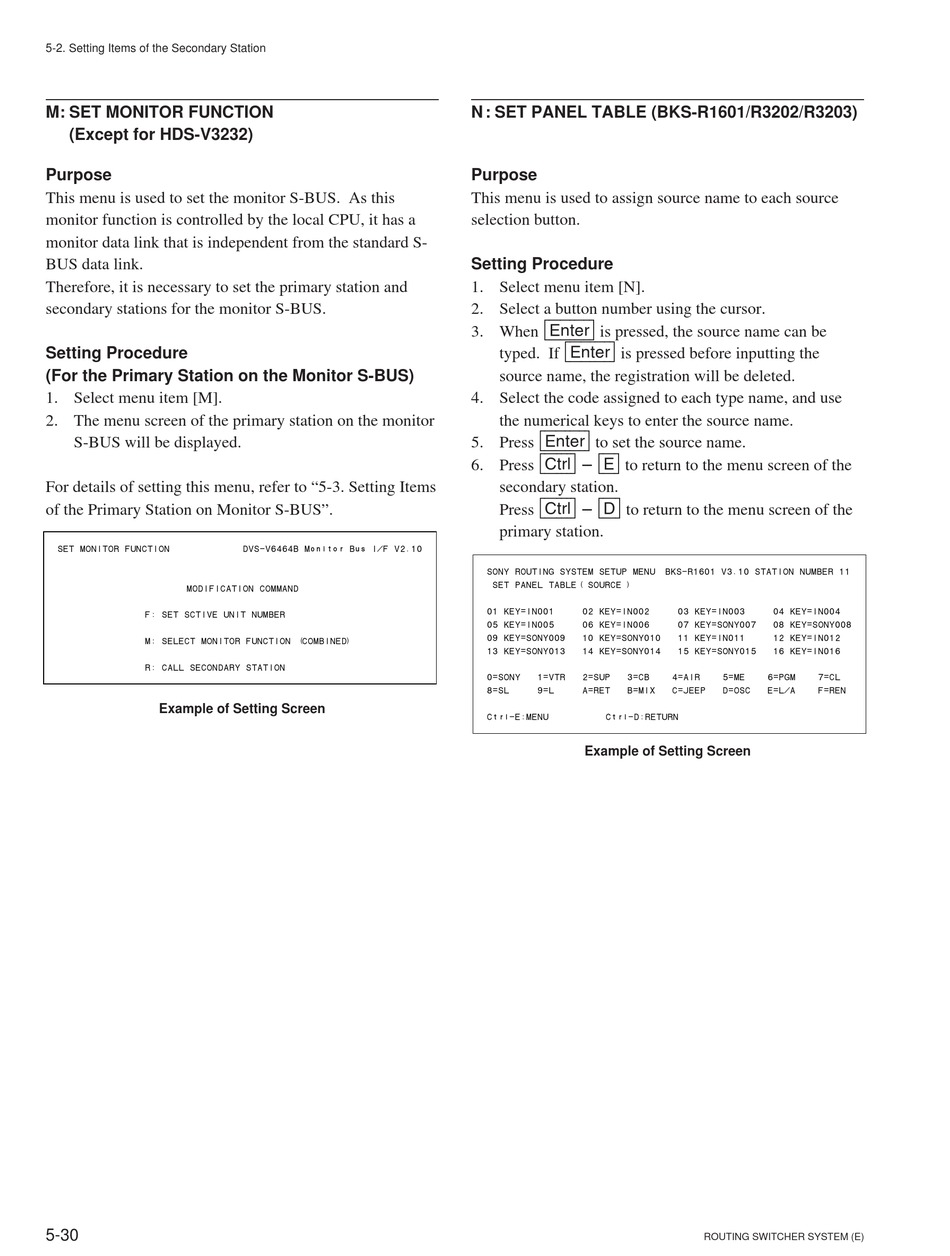

5-2. Setting Items of the Secondary Station
M: SET MONITOR FUNCTION
(Except for HDS-V3232)
Purpose
This menu is used to set the monitor S-BUS. As this
monitor function is controlled by the local CPU, it has a
monitor data link that is independent from the standard S-
BUS data link.
Therefore, it is necessary to set the primary station and
secondary stations for the monitor S-BUS.
Setting Procedure
(For the Primary Station on the Monitor S-BUS)
1. Select menu item [M].
2. The menu screen of the primary station on the monitor
S-BUS will be displayed.
For details of setting this menu, refer to "5-3. Setting Items
of the Primary Station on Monitor S-BUS".
SET MONITOR FUNCTION
MODIFICATION COMMAND
F: SET SCTIVE UNIT NUMBER
M: SELECT MONITOR FUNCTION (COMBINED)
R: CALL SECONDARY STATION
Example of Setting Screen
5-30
DVS-V6464B Monitor Bus I/F V2.10

N : SET PANEL TABLE (BKS-R1601/R3202/R3203)

Purpose
This menu is used to assign source name to each source
selection button.
Setting Procedure
1. Select menu item [N].
2. Select a button number using the cursor.
3. When [Enter] is pressed, the source name can be
typed. If [Enter] is pressed before inputting the
source name, the registration will be deleted.
4. Select the code assigned to each type name, and use
the numerical keys to enter the source name.
5. Press [Enter] to set the source name.
6. Press [Ctrl] _ [E] to return to the menu screen of the
secondary station.
Press [Ctrl] _ [D] to return to the menu screen of the
primary station.
SONY ROUTING SYSTEM SETUP MENU BKS-R1601 V3.10 STATION NUMBER 11
SET PANEL TABLE( SOURCE )
01 KEY=IN001 02 KEY=IN002
05 KEY=IN005 06 KEY=IN006
09 KEY=SONY009 10 KEY=SONY010
13 KEY=SONY013 14 KEY=SONY014
0=SONY 1=VTR 2=SUP 3=CB
8=SL 9=L A=RET B=MIX
Ctrl-E:MENU Ctrl-D:RETURN
Example of Setting Screen
03 KEY=IN003 04 KEY=IN004
07 KEY=SONY007 08 KEY=SONY008
11 KEY=IN011 12 KEY=IN012
15 KEY=SONY015 16 KEY=IN016
4=AIR 5=ME 6=PGM 7=CL
C=JEEP D=OSC E=L/A F=REN
ROUTING SWITCHER SYSTEM (E)
