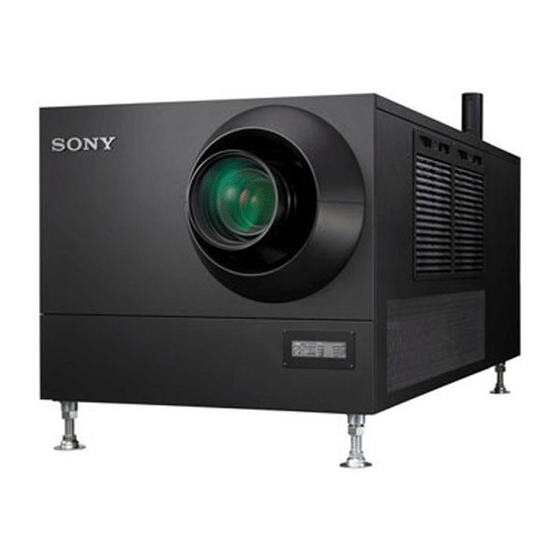

DIGITAL CINEMA PROJECTOR SRX-R320 SRX-R320S SERVICE MANUAL 1st Edition (Revised 2)
Page 2
électrique, d’incendie ou de blessure n’effectuer que les réparations indiquées dans le mode d’emploi à moins d’être qualifi é pour en effectuer d’autres. Pour toute réparation faire appel à une personne compétente uniquement. SRX-R320...
Page 3
Batterien nur durch den vom Hersteller empfohlenen Kasser batteriet i henhold til gjeldende avfallsregler. oder einen gleichwertigen Typ ersetzen. Wenn Sie die Batterie entsorgen, müssen Sie die Gesetze der jeweiligen Region und des jeweiligen Landes befolgen. 注意 注意 如果更换的电池不正确,就会有爆炸的危险。 只更换同一类型或制造商推荐的电池型号。 处理电池时,必须遵守相关地区或国家的法律。 1 (P) SRX-R320...
Manual Structure Purpose of this manual This manual is the service manual of Digital Cinema Projector SRX-R320/R320S. This manual contains the service overview, adjustments, spare parts, block diagram, schematic diagrams, and board layouts. The service of the CPU-438 assembly is basically performed by the replacement of assembly.
1. Release the lock on the panel (U7) block assembly. Panel (U7) block assembly 2. Remove the panel (U7) block assembly in the direction Hooks of the arrow with attention to the three hooks. Lock 3. To install, reverse the removal procedure. Fig. 1-3-2 1-3 (E) SRX-R320...
Page 12
3. Remove the nut (A), then remove the washer and lock plate. 4. Remove the nut (B), then remove the panel lock (U7). Panel lock (U7) 5. To install, reverse the removal procedure. Panel (U7) block assembly Nut (B) Lock plate Washer Nut (A) Fig. 1-3-3 1-4 (E) SRX-R320...
2. Remove the panel (U2) block assembly. (Refer to Section 1-3-3.) 3. Remove the three screws, then remove the panel (U3) in the direction of the arrow. 4. To install, reverse the removal procedure. Panel (U3) Screws Fig. 1-3-5 1-5 (E) SRX-R320...
When removing the panel (U5), be sure to remove only the three screws attached to the center frame (L). 4. To install, reverse the removal procedure. Panel (U5) Center frame (L) Screws Fig. 1-3-7 1-6 (E) SRX-R320...
4. Remove the panel (U1B). (Refer to Section 1-3-7.) 5. Remove the eight screws, then remove the panel (U1) in the direction of the arrow. 6. To install, reverse the removal procedure. Screws Screws Panel (U1) Screws Screws Fig. 1-3-9 1-7 (E) SRX-R320...
3. Raise the panel (U4) block assembly to remove it from the two hinge portions. 4. To install, reverse the removal procedure. Panel (U4) About block assembly 80 degrees Panel (U4) Hinge portions block assembly Lock Fig. 1-3-10 1-8 (E) SRX-R320...
Page 17
Washer Panel lock (U4) Lock Attach the panel lock (U4) with the keyhole facing downward. Fig. 1-3-11 5. To install, reverse the removal procedure. When attaching the panel lock (U4), attach it with the keyhole facing downward. 1-9 (E) SRX-R320...
6. Open the panel (U4) block assembly. (Refer to steps 1 and 2 in Section 1-3-9.) 7. Remove the four screws, then remove the panel (U4B) in the direction of the arrow with attention to the two hooks. 8. To install, reverse the removal procedure. Screws Hooks Screws Panel (U4B) Fig. 1-3-12 1-10 (E) SRX-R320...
5. Remove the panel (U5). (Refer to Section 1-3-6.) 6. Remove the two screws, then remove the STL cover. 7. Remove the eight screws, then remove the panel (U8). Screws 8. To install, reverse the removal procedure. STL cover Screws Panel (U8) Screws Fig. 1-3-13 1-11 (E) SRX-R320...
10. Disconnect the harness from the connector (CN1) on the PC-107 board. 11. Release the three harnesses from the two edge clamps and two wiring clips. PSW4 x 10 Unit cover (TOP) Harnesses Edge clamp Wiring clips PS-773 board TM-57 board PC-107 board Edge clamp Harness Fig. 1-4-1a 1-12 (E) SRX-R320...
Page 21
14. Push the fl exible wiring boards into the hole of the Shield case assembly (2) shielding case assembly (2). LPD-2 board LPD-2 board (Side A) CN2002 CN2003 CN2001 CN2000 CN2103 CN2100 CN2102 CN2101 CN2200 CN2201 CN2203 CN2202 Fig. 1-4-1b 1-13 (E) SRX-R320...
Page 22
Hook Connectors Connector Lens bracket shield Fig. 1-4-1c 17. Disconnect the connector. 18. Remove the four hexagonal head bolts. 19. Remove the shift block assembly. Hexagonal head bolts Hexagonal head bolts Shift block assembly Connector Fig. 1-4-1d 1-14 (E) SRX-R320...
Page 23
24. To install, reverse the removal procedure. Insert a position pin for positioning when installing the shift block assembly. ) x 25 mm Position pin: 8 mm dia.g6 ( _0.005 _0.014 Position pin Shift block assembly Fig. 1-4-1f 1-15 (E) SRX-R320...
Page 24
9. Disconnect the harness from the connector (CN1) on the PC-107 board. 10. Release the three harnesses from the two edge clamps and two wiring clips. PSW4 x 10 Unit cover (TOP) Harness Wire clips TM-57 board PC-107 board Edge clamp Harness Fig. 1-4-1g 1-16 (E) SRX-R320...
Page 25
14. Temporarily fi x the fl exible wiring boards with the tapes as shown in the fi gure. Tapes LPD-2 board (Side A) CN2002 CN2003 CN2001 CN2000 CN2103 CN2100 CN2102 CN2101 CN2200 CN2201 CN2203 CN2202 Flexible wiring boards Shield case assembly (2) LPD-2 board 4 x 10 Fig. 1-4-1h 1-17 (E) SRX-R320...
Page 26
20. Remove the two screws (P4 x 10), then remove the G dichroic mirror. PC-107 board (Side A) PC-107 board Board holder Ground wires PSW3 x 6 Hexagonal head bolts PSW3 x 6 Tape Harnesses P4 x 10 Ground G dichroic mirror wire Fig. 1-4-1i 1-18 (E) SRX-R320...
Page 27
23. Slide the PRD-001/001S in the direction of the arrow B until it touches the portion A of the optical support. 24. Remove the PRD-001 in the direction of the arrow C. PRD-001 Hexagonal head bolt Portion A Optical support Fig. 1-4-1k 1-19 (E) SRX-R320...
Page 28
25. To install, reverse the removal procedure. When attaching the board holder, attach it so that there is no clearance in the portion B. Arrow A view Board holder Portion B Board holder Hexagonal bolts Fig. 1-4-1l 1-20 (E) SRX-R320...
1. Remove the panel (U7) block assembly. (Refer to Section 1-3-2.) 2. Remove the panel (U2) block assembly. (Refer to Section 1-3-3.) 3. Remove the fi ve screws. Panel duct block assembly PSW4 x 10 Fig. 1-4-3a 1-22 (E) SRX-R320...
Page 31
DC fan (60 mm) PSW4 x 45 (60 mm) Finger guard PSW4 x 10 PS duct Fig. 1-4-3b 8. To install, reverse the removal procedure. When attaching the DC fans (60 mm), pay attention to the direction of them. 1-23 (E) SRX-R320...
3. Open the panel duct block assembly. (Refer to steps 3 and 4 in Section 1-4-3.) 4. Remove the unit cover (TOP). (Refer to step 7 in Section 1-4-1.) 5. Remove the three screws, then remove LRD-001. 6. To install, reverse the removal procedure. 4 x 16 LRD-001 Fig. 1-4-4 1-24 (E) SRX-R320...
6. Remove the eight screws, then remove the four lamp fan block assemblies. PSW4 x 10 Lamp base cover PSW4 x 10 DST-27 board DST-27 board (Side A) Lamp fan block assemblies CN10 CN12 Fig. 1-4-5a 1-25 (E) SRX-R320...
Page 34
7. Remove the two screws, then remove the DC fan (sirocco, 150 mm). DC fan (sirocco, 150 mm) 8. To install, reverse the removal procedure. PSW4 x 45 PSW4 x 45 Fig. 1-4-5b 1-26 (E) SRX-R320...
When attaching the DC fans (sirocco, 97 mm), attach them with the label side facing the fan fi xing plate Relay harnesses (PWB). DC fans (sirocco, 97 mm) PSW4 x 40 Label sides Fan fixing plate (PWB) Fig. 1-4-6 1-27 (E) SRX-R320...
4. Remove the four screws, then remove the fi nger guard and the DC fan (60 mm). Relay harness Label side DC fan (60 mm) 4 x 45 Finger guard Fig. 1-4-7 5. To install, reverse the removal procedure. When attaching the DC fan (60 mm), pay attention to the direction of it. 1-28 (E) SRX-R320...
1-4-8. Filter Assembly 1. Remove the two grilles. (Refer to step 2 in Section 1-3-3.) 2. Remove the six hooks, then remove the three fi lter assemblies. 3. To install, reverse the removal procedure. Hooks Filter assemblies Fig. 1-4-8 1-29 (E) SRX-R320...
4. Disconnect the seven harnesses from the seven connectors of the power unit. 5. Remove the four screws, then remove the power unit. Connector PSW4 x 10 Power unit Connectors Fig. 1-4-9 6. To install, reverse the removal procedure. 1-30 (E) SRX-R320...
9. Remove the two supplied bolts, the two supplied spring washers and the two supplied washers from the two terminals of the power unit (for lamp). 10. Remove the supplied screw, then remove the harness. 11. Remove the four screws (PSW4 x 16), then remove the inverter (for lamp). 1-31 (E) SRX-R320...
Page 40
Washer Supplied screws Terminals Spring washer Harness Washer Spring Hexagonal head washer bolt (M10 x 15) Inverter (for lamp) Hexagonal head bolt (M10 x 15) Supplied washers Inverter Supplied spring Supplied (for lamp) washers bolts Fig. 1-4-10a 1-32 (E) SRX-R320...
Page 42
. If the harnesses are incorrectly connected, the power unit Center frame (L) Harness (for lamp) will be broken. Be sure to connect the har- nesses correctly. . When attaching the center frame (L), be careful not to catch the harness. Portion A Fig. 1-4-10d 1-34 (E) SRX-R320...
C. 5. Remove the cover assembly from the hook of the portion D. Cover assembly PSW3 x 8 Portion A Portion D Cover assembly Hook Fig. 1-4-12 6. To install, reverse the removal procedure. 1-36 (E) SRX-R320...
. When attaching the cold mirror, pay attention to the direction of it. . When attaching the cold mirror, be careful not to damage or soil it. Cold mirror assembly Mirror spring Cold mirror PSW3 x 6 Mirror spring Notch Cold mirror assembly Fig. 1-4-13 1-37 (E) SRX-R320...
2. Remove the panel (U6). (Refer to Section 1-3-5.) 3. Remove the two screws, then remove the CN-3225 board. CN-3225 board 4. Hook the CN-3225 board in the hole of the frame. Hole PSW4 x 10 Hook in the hole. Fig. 1-4-14a 1-38 (E) SRX-R320...
Page 47
8. Pull the lever toward you and remove the shielding case assembly (1). SY-378 board PSW4 x 10 PSW4 x 10 Lever RS-232C connector Harness LAMP CONTROL connector Harness Shielding case assembly (1) Relay harnesses PSW4 x 10 Fig. 1-4-14b 9. To install, reverse the removal procedure. 1-39 (E) SRX-R320...
TM-57 board. 11. Remove the screw (PSW4 x 10), then remove the TM-57 board. Harness 12. To install, reverse the removal procedure. TM-57 board PSW4 x 10 3 x 6 PC-107 board (Side A) PC-107 board Fig. 1-5-1 1-40 (E) SRX-R320...
4 x 10 TM-57 board 4 x 10 Hooks PSW4 x 10 Guard plate CT-259 board Filter assembly CT-259 board (Side A) CN228 CN213 CN221 CN201 CN231 CN207 Fig. 1-5-2 9. To install, reverse the removal procedure. 1-41 (E) SRX-R320...
Page 50
CN15, CN16, CN201 and CN202) on the DST-27 board. 4. Remove the four screws, then remove the DST-27 board. DST-27 board (Side A) CN15 CN16 PSW4 x 10 DST-27 board CN201 CN12 CN10 CN11 CN202 Fig. 1-5-3 5. To install, reverse the removal procedure. 1-42 (E) SRX-R320...
The adjustment data of PR-300 board of 4 is different from that of 5, therefore do not change them. 1DIF-188 board 2Blank slot 3IPM-105 board 8CPU-438 board 7SY-378 board 6MX-113 board 5PR-300 board 4PR-300 board Fig. 1-5-4a 1-43 (E) SRX-R320...
Page 52
6. To install, reverse the removal procedure. When installing the IPM-105 board and DIF-188 board, securely insert them into the connectors on the MX-113 board. Panel cover (IF) 4 x 10 4 x 10 Guide rail IPM-105 board Handles Blank panel Fig. 1-5-4b 1-44 (E) SRX-R320...
Page 53
When installing the PR-300 board and MX-113 board, securely insert them into the connectors on the SY-378 board. PSW4 x 10 SY-378 board Connector PR-300 board MX-113 board PR-300 board Board lever Guide rail Board lever Fig. 1-5-4c 1-45 (E) SRX-R320...
Page 54
(IF). 8. Remove the four screws (PSW3 x 6), then remove the CPU-438 assembly. 9. To install, reverse the removal procedure. PSW3 x 6 Hooks CPU-438 4 x 10 assembly PSW4 x 10 SY-378 board Fig. 1-5-4d 1-46 (E) SRX-R320...
(D) in the direction of the arrow.. (with a groove) 8. Disconnect the two harnesses from the connectors (CN1300 and CN1301) on the SY-378 board. Connector screw (without a groove) PSW4 x 10 Shielding case (D) CN1301 CN1300 SY-378 board Harnesses Fig. 1-5-4e 1-47 (E) SRX-R320...
Page 56
When installing the SY-378 board, install it in the SY-378 board procedure below. Screw B 1. Tighten the eleven screws tentatively. 2. Tighten the screws A fully. 3. Tighten the screws B fully. 4. Tighten the remaining screws fully. Fig. 1-5-4g 1-48 (E) SRX-R320...
Page 57
5. Remove the seven screws, then remove the LPD-2 board. 6. To install, reverse the removal procedure. 4 x 8 LPD-2 board PSW4 x 8 LPD-2 board (Side A) CN2002 CN2003 CN2001 CN2000 CN2103 CN2100 CN2102 CN2101 CN2200 CN2201 CN2203 CN2202 Fig. 1-5-5 1-49 (E) SRX-R320...
8. Remove the four screws, then remove the CN bracket. CN-3225 board PSW4 x 10 9. To install, reverse the removal procedure. CN bracket When installing the CN-3225 board, insert it securely into the connector (CN600) on the SY-378 board. PSW4 x 10 Fig. 1-5-6b 1-50 (E) SRX-R320...
1-5-7. LCD Panel and LED-488 Board S/N 100001 to 111678: SRX-R320 1. Open the panel (U4) block assembly. (Refer to steps 1 and 2 in Section 1-3-9.) 2. Remove the screw (PSW4 x 10), then remove the cover (LCD). Cover (LCD) 3.
Page 60
8. Disconnect the two harnesses from the connectors (CN1 and CN2) on the LED-488 board, then remove the LED-488 board. Harness DST-27 board CN202 Harnesses LED-488 board LCD panel PS3 x 6 PS3 x 6 Cover (LCD) Harness 4 x 10 Fig. 1-5-7b 9. To install, reverse the removal procedure. 1-52 (E) SRX-R320...
8. Remove the fi ve screws (PSW3 x 6), then remove the Light blocking sheet LGT-14 board and the light blocking sheet in the direction of the arrow. B3 x 6 9. To install, reverse the removal procedure. 3 x 6 Harness Status light cover 2 Fig. 1-5-8b 1-53 (E) SRX-R320...
For connecting the power cord, refer to Section 1 in Installation Manual. 1-7. Replacing the Projection Lens For replacing the projection lens, refer to Section 1 in Installation Manual. 1-8. Replacing the Lamp Bulb For replacing the lamp bulb, refer to Section 1 in Installation Manual. 1-54 (E) SRX-R320...
1. Remove the SY-378 board. (Refer to Section 1-5-4.) 2. Remove the lithium battery in the direction of the arrow. 3. To install, reverse the removal procedure. SY-378 board Side A Lithium battery (CR2032) Battery holder Fig. 1-9 1-55 (E) SRX-R320...
Marking (black) Marking (red) LRD-001 Unit cover (B) 3 x 12 Second flyeye PS converter Fig. 1-10 1-11. Replacing the Optional Board For replacing the optional board in INPUT A/B slot, refer to Section 1 in Installation Manual. 1-56 (E) SRX-R320...
You can attach the long pipe as well as the short pipe to the front and rear of this unit. The pipe cannot be attached to the front, rear, right and left of this unit at a time. Pipe (long) Pipe (short) Fig. 1-13a 1-57 (E) SRX-R320...
Page 66
B. 2. Tighten the nut to secure the handle arm. 3. Attach the handle arms to the adjusters of the other three portions in the same way as steps 1 and 2. Adjuster Handle arm Fig. 1-13b 1-58 (E) SRX-R320...
Page 67
5. Insert the pipe (long) into the handle arm, then secure it with the two M8 bolts (stopper). 6. Attach the pipe (long) on the other side of this unit in the same way. M8 bolts Handle arm Pipe (long) Handle arm Pipe (long) Pipe (long) Fig. 1-13c 1-59 (E) SRX-R320...
Page 68
B. 2. Tighten the nut to secure the handle arm. 3. Attach the handle arms to the adjusters of the other three portions in the same way as steps 1 and 2. Adjuster Handle arm Fig. 1-13d 1-60 (E) SRX-R320...
Page 69
5. Insert the pipe (short) into the handle arm, then secure it with the two M8 bolts (stopper). 6. Attach the pipe (short) on the other side of this unit in the same way. M8 bolts Pipe (short) Pipe (short) Pipe (short) Fig. 1-13e 1-61 (E) SRX-R320...
2. Dampen the croser with the alcohol and lightly wipe the projector so that there is no uncleaned area. 3. Put a small amount of the alcohol on the croser and thoroughly wipe the projector. 4. Wipe the projector with the new dry croser. 5. Check that there is no contaminated area being left uncleaned. 1-62 (E) SRX-R320...
5. Clean the dust adhered to the wire mesh using the air blower and brush being careful not to touch the refl ector. When the wire mesh is clogged, the lamp is not cooled, which may cause lamp troubles such as; no light up, black out, or short life of lamp. 1-63 (E) SRX-R320...
Cold mirror (surface) 7. Attach the new lamp. 1-15-3. Cleaning of PRD-001 Required tools . Dehydrated alcohol (ethanol: 99.5% or more, propanol: 99.5% or more) . Wash bottle, air blower, fi ngertip, long screwdriver, ratchet screwdriver, cotton swab. 1-64 (E) SRX-R320...
Page 73
7. Remove the screw (B3 x 10), then remove the trimming fi lter holder and R trimming fi lter. B3 x 10 PRD-001 R trimming filter B3 x 10 G trimming filter G dichroic mirror P4 x 10 B trimming filter B3 x 10 1-65 (E) SRX-R320...
Page 74
When moving from 1 to 2 and from 2 to 3 , use a clean side of the croser by refolding it. Lastly, wipe the mirror portion using the new dry croser in the direction of the arrows. 1-66 (E) SRX-R320...
Page 75
Wipe both sides of the trimming filter in the direction of the arrows using the new croser dampened with alcohol. When moving from 1 to 2 , use a clean side of the croser by refolding it. Lastly, wipe the trimming filter using the new dry croser in the direction of the arrows. 1-67 (E) SRX-R320...
Page 76
Wipe each Pre-PBS on the trimming filter side in the direction of the arrows using the new croser dampened with alcohol. Use a clean side of the croser by refolding it every time you wipe from back to front. Lastly, wipe each Pre-PBS using the new dry croser in the direction of the arrows. 1-68 (E) SRX-R320...
Page 77
Lastly, wipe the surfaces using the new dry cleaning wiper (not dampened with alcohol). 18. After completing the cleaning of all R/G/B and assembling procedures, blow air to the Main PBS, trimming fi lter and G dichroic mirror using the air blower. 1-69 (E) SRX-R320...
PS converter Marking C reflecting mirror R reflecting mirror Collimator First fly-eye Aperture Second Second fly-eye collecting lenses PS converter First collecting lens R reflecting mirror C reflecting mirror Second collecting lens Second collecting lens 1-70 (E) SRX-R320...
Page 80
5. Remove the R refl ecting mirror and C refl ecting mirror, then clean them. Four-fold croser R reflecting mirror Croser C reflecting mirror Notch R reflecting mirror Notch 1-72 (E) SRX-R320...
Page 81
7. To install, reverse the removal procedure. . Before attaching the covers (A) and (B), blow air to the respective parts using the air blower. . When attaching the cover (A), make sure that the R/C refl ecting mirrors are pinched. 1-73 (E) SRX-R320...
When the dust and foreign particles cannot be cleaned by the air blower, wipe with the croser damp- ened with alcohol. Wire mesh portion of the lamp house exhaust vent Inside of reflector Projection window (both sides) Cold mirror (surface) 3. Load the lamp. 1-74 (E) SRX-R320...
Check if there is any uncleaned area by putting the light (such as fl uorescent light) to the lens surface. When there is any contaminated area being left uncleaned, change the croser and wipe the lens thoroughly. Four-fold croser Projection lens 1-75 (E) SRX-R320...
4. Perform the CSC adjustment. (Refer to Installation Manual.) Before adjusting CSC, be sure to perform a reset. When you repeat the CSC adjustment without performing a reset, the luminance may be decreased. 1-76 (E) SRX-R320...
Page 85
100% . Measuring point: Points determined in steps 5 and 6 . Measuring pattern: gray10 (screen center) . Pre-aging: Perform measurement after leaving it for more than 15 minutes after lighting up. . Measuring device: CS100, etc. 1-77 (E) SRX-R320...
Page 86
Measure the width of the projected image using the distance meter. When evaluating the luminance of the projector, use the image size without the electrical mask- ing. In the case of the keystone image, measure the width at the center as shown below. 1-78 (E) SRX-R320...
Page 87
SG3 = SG1 x SG0/SG2 In the case of 3D, the lens positions are different between L and R. Therefore, perform the mea- surement with the Muting of Right Image set to ON for convenience of measurement. 1-79 (E) SRX-R320...
Page 88
15000lm . 2 kw: 10000lm . For obtaining “Common input item” and “Flat screen case”, contact your local Sony Sales Offi ce/ Service Center. 13. Compare the simulation values with the actual measurement values. Compare the measurement results in step 7 with the calculation results in step 12.
The probable causes of the difference between the initial luminance and the luminance measurement results are the variation in lamp and the measurement error. When the difference is 15% or more, contact your local Sony Sales Offi ce/Service Center. 1-81 (E)
Microsoft Windows XP Professional SP3 (except for x64 Edition): English version Microsoft Windows Vista SP2 (except for x64 Edition): English version Microsoft Windows 7: English version 2-2. Connection RS-232C Personal computer To RS-232C To RS-232C connector connector Connection cable (Inter-link cross cable) Fig. 2-2a 2-1 (E) SRX-R320...
The adjustments can be performed by operating this unit from a personal computer (PC) when the SRX Controller is installed in PC. For installing and starting up of SRX Controller, refer to Section 2 in Installation Manual. 2-2 (E) SRX-R320...
. FirmwareUpdater.exe . SerialLoader.exe Required equipment . SRX Service Tool For obtaining the SRX Service Tool, please contact your local Sony Sales Offi ce/Service Center. . PC (Refer to Section 2-1.) Installation 1. Turn on the power of PC. 2. Copy SRX Service Tool to any place of PC.
. Documentation: FilterTimerTool_J.ppt, FilterTimerTool_E.ppt Required equipment . Filter Timer setting tool For obtaining the Filter Timer setting tool, please contact your local Sony Sales Offi ce/Service Center. . PC (Refer to Section 2-1.) Installation 1. Turn on the power of PC.
Before replacement, prepare the data fi le (LUT, 3Dγ and WB data fi le). When replacing the prism block, use the S/N data (on CD-ROM supplied with the prism block) of the prism block. For others, please contact your local Sony Sales Offi ce/Service Center. Required equipment .
2. Install SRX Service Tool. (Refer to Section 2-3-2.) 3. Make this unit standby state. (Refer to Section 2 in Installation Manual.) n Quit SRX Controller if it is activated. 4. Double-click “NVMMemoryUtility.exe”. The following window is displayed. [Connect] button Fig. 2-6a 2-6 (E) SRX-R320...
Page 97
The destination and file name of the saved file are displayed. Fig. 2-6c . Save the data in any place. . The saved date is written again after the replacement procedure is completed. Therefore be sure not to lose it. 2-7 (E) SRX-R320...
Page 98
[Open] button [Write] button Fig. 2-6d 16. Click the [Write] button. Fig. 2-6e 17. Click the [Yes] button. The writing starts. 18. After the writing is completed, click the [Close] button. 19. Disconnect the connection of each equipment. 2-8 (E) SRX-R320...
2. Install SRX Service Tool. (Refer to Section 2-3-2.) 3. Make this unit standby state. (Refer to Section 2 in Installation Manual.) Quit SRX Controller if it is activated. 4. Double-click “FirmwareUpdater.exe”. The following window is displayed. Fig. 2-7a 2-9 (E) SRX-R320...
Page 100
When upgrading only the MAIN fi rmware version, perform steps 9 to 14 and 24. When upgrading only the NETWORK fi rmware version, perform steps 9 and 17 to 24. 9. Select “CPU” in “Target Firmware”. Fig. 2-7d 2-10 (E) SRX-R320...
Page 101
10. Select “MAIN” in “Firmware Type”. 11. Click the [>>] button. 12. Select the version upgrade fi le (XXXXX.mot). For obtaining the version upgrade fi le, please contact your local Sony Sales Offi ce/Service Center. 13. Click the [Update] button. The version upgrade starts.
Required equipment . SerialLoader.exe . Filter Timer setting tool For using of the Filter Timer setting tool, refer to the documentation supplied with the tool. . PC (Refer to Section 2-1.) . RS-232C cable or Ethernet cable 2-12 (E) SRX-R320...
Page 103
3. Make this unit standby state. (Refer to Section 2 in Installation Manual.) Quit SRX Controller if it is activated. 4. Double-click “SerialLoader.exe”. The following window is displayed. [Connect] button Fig. 2-8a 5. Click the [Connect] button. [OK] button Fig. 2-8b 2-13 (E) SRX-R320...
Page 104
Keep the P/S converter box in blank. 11. Perform steps 2 to 11 of Section 2-5, and then perform the writing of white balance (WB) data of the prism block. 12. After the writing is completed, disconnect the connection of each device. 2-14 (E) SRX-R320...
Therefore, specifi ed parts should be used in the case of な部品です。したがって,交換する時は必ず指定 replacement. の部品を使ってください。 2. Standardization of Parts 2. 部品の共通化 Some repair parts supplied by Sony differ from those ソニーから供給する補修用部品は,セットに使われて used for the unit. These are because of parts common- いるものと異なることがあります。 ality and improvement. これは部品の共通化,改良等によるものです。...
A-1860-967-A s PANEL (U2) ASSY (RP) A-1860-968-A s PANEL (U3) (RP) A-1860-972-A s PANEL (U7) ASSY (RP) 2-580-603-01 s SCREW, +PSW M4X16 3-650-537-01 s WASHER 4-154-055-01 s GRILLE 4-157-360-02 s LOCK (U7), PANEL 7-682-260-09 s SCREW +K 4X6 7-682-962-01 s SCREW +PSW 4X10 SRX-R320...
Page 107
A-1769-937-A s MOUNTED CIRCUIT BOARD, LGT-14(C) 4-154-925-02 s COVER AC A-1860-969-A s PANEL (U4) ASSY (RP) A-1860-970-A s PANEL (U5) (RP) A-1860-971-A s PANEL (U6) (RP) 7-682-547-09 s SCREW +B 3X6 7-682-947-01 s SCREW +PSW 3X6 7-682-962-01 s SCREW +PSW 4X10 SRX-R320...
Page 108
B2 x 3 E-3.0 HEXAGON PSW3 x 10 SOCKET BOLT 4 x 8 2 x 10 3 x 6 PSW4 x 10 PSW4 x 10 2 x 10 PSW4 x 10 Front side 3 x 6 PSW3 x 10 SRX-R320...
Page 109
Part No. SP Description A-1229-650-C s DRIVE ASSY, SHUTTER A-1276-548-A s SHUTTER ASSY A-1443-440-A s PRD-001 (RP) (For SRX-R320) A-1830-949-A s PRD-001S (RP) (For SRX-R320S) A-1443-441-A s BCH PRE PBS BLOCK (RP) A-1769-931-A s MOUNTED CIRCUIT BOARD, TM-57(C) A-1769-932-A s MOUNTED CIRCUIT BOARD, PC-107(C)
Page 110
PSW4 x 10 4 x 8 PS2 x 10 4 x 8 4 x 10 Front side 4 x 8 PSW4 x 10 4 x 8 PSW4 x 10 4 x 10 4 x 10 4 x 10 4 x 10 SRX-R320...
Page 111
A-1443-439-A s LRD-001(RP) X-2188-463-3 s FILTER ASSY 1-786-831-11 s SENSITIVE SWITCH 1-787-923-11 s FAN, DC (60 SQUARE) 3-270-612-01 s SCREW(M4X45),PSW 7-628-253-45 s SCREW +PS 2X10 7-682-961-01 s SCREW +PSW 4X8 7-682-962-01 s SCREW +PSW 4X10 7-682-965-01 s SCREW +PSW 4X16 SRX-R320...
Page 112
1-200-105-11 s FILTER, NOISE (RSAN-2030) 1-786-831-11 s SENSITIVE SWITCH 4-260-065-01 s SPRING, MIRROR 4-641-552-01 o SADDLE, LOCK EDGE 7-628-253-45 s SCREW +PS 2X10 7-682-947-01 s SCREW +PSW 3X6 7-682-949-01 s SCREW +PSW 3X10 7-682-962-01 s SCREW +PSW 4X10 7-682-970-09 s SCREW +PSW 4X40 SRX-R320...
Page 113
X-2514-648-1 s BASE (N) ASSY, HOLDER X-2548-654-1 s COVER ASSY 7-623-215-22 s SW 10,TYPE 2 7-628-253-45 s SCREW +PS 2X10 7-682-961-01 s SCREW +PSW 4X8 7-682-962-01 s SCREW +PSW 4X10 7-682-948-01 s SCREW +PSW 3X8 7-688-008-11 o W10, MIDDLE SRX-R320...
Page 114
4 x 10 4 x 10 SW10 4 x 10 4 x 10 4 x 10 SW10 MIDDLE 4 x 10 4 x 10 4 x 10 Rear side PS2.6 x 5 3-210-155-01 s LABELER, FLEXIBLE 3-210-155-01 s LABELER, FLEXIBLE A-10 SRX-R320...
Page 115
A-1872-732-A s MOUNTED CIRCUIT BOARD, LPD-2(C) 1-787-635-21 s D.C. FAN (SIROCCO, 97 SQUARE) 3-209-400-01 s SHEET, RADIATION (LPD) 4-641-552-01 o SADDLE, LOCK EDGE 7-682-961-01 s SCREW +PSW 4X8 7-682-962-01 s SCREW +PSW 4X10 7-682-970-09 s SCREW +PSW 4X40 A-11 SRX-R320...
Page 116
4 x 10 PSW4 x 10 Part No. SP Description A-1769-936-A s MOUNTED CIRCUIT BOARD, MOUNT, CN-3225(C) 2-133-531-11 s SCREW, CONNECTOR 3-673-910-32 s SCREW, CONNECTOR 4-157-355-01 s COVER, PANEL (IF) 7-628-254-05 s SCREW +PS 2.6X5 7-682-962-01 s SCREW +PSW 4X10 A-12 SRX-R320...
Page 117
A-1283-138-A s IPM-105 ASSY (R220) A-1739-013-D s MOUNTED CIRCUIT BOARD, SY-378 A-1784-092-B s CPU-438(C) ASSY 3-172-089-01 o HANDLE 4-159-162-01 s PLATE (DIF), FIXED 320 7-682-547-04 s SCREW +B 3X6 7-682-947-01 s SCREW +PSW 3X6 7-682-962-01 s SCREW +PSW 4X10 A-13 SRX-R320...
Page 118
Inlet Panel Block Serial No 120001 and higher (SRX-R320) Serial No 800001 and higher (SRX-R320S) 1009 1005 1001 1009 4 x 10 Serial No 100001 to 111678 (SRX-R320) PSW3 x 6 1005 1004 1009 4 x 10 1001 1009 4 x 10...
1102 1-474-188-12 s POWER UNIT (FOR LAMP) 1103 1-480-179-12 s INVERTER (FOR LAMP) 1104 4-121-169-11 s BOLT (M10X15), HEXAGON 7-623-215-22 s SW 10,TYPE 2 7-682-962-01 s SCREW +PSW 4X10 7-682-965-01 s SCREW +PSW 4X16 7-688-008-11 o W10, MIDDLE A-15 SRX-R320...
Page 121
1-966-792-13 s HARNESS, SUB (CT-FAN2) 1240 1-966-817-11 s HARNESS, SUB (CN-TMP U1T) 1241 1-966-819-11 s HARNESS, SUB (CN-TMP U2) 1242 1-966-820-11 s HARNESS, SUB (CN-TMP U6) 1243 1-966-821-11 s HARNESS, SUB (DST-FAN) 1244 1-966-889-11 s HARNESS, SUB (TERMINAL2-FILTER2) A-17 SRX-R320...
1-414-864-21 s FERRITE, EMI (SMD) (1608) FB121 1-414-864-21 s FERRITE, EMI (SMD) (1608) C203 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 FB122 1-414-864-21 s FERRITE, EMI (SMD) (1608) C204 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-20 SRX-R320...
Page 125
R107 1-218-965-81 s RES, CHIP 10K 1005 R108 1-220-242-91 s RES, SQUARE TYPE CHIP 22(3225) R109 1-220-242-91 s RES, SQUARE TYPE CHIP 22(3225) R110 1-220-242-91 s RES, SQUARE TYPE CHIP 22(3225) R111 1-243-975-81 s RES, CHIP 4.7M (1005) A-21 SRX-R320...
Page 126
1-100-597-91 s CAP, CHIP CERAMIC 0.1MF B 1608 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C254 1-100-597-91 s CAP, CHIP CERAMIC 0.1MF B 1608 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C255 1-112-797-11 s CAP, ELECT 470MF A-22 SRX-R320...
Page 127
6-703-109-01 o IC NJM2730F(TE1) C354 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 IC15 6-703-109-01 o IC NJM2730F(TE1) IC16 6-703-109-01 o IC NJM2730F(TE1) 1-815-206-21 s PIN, CONNECTOR 50P IC17 6-703-109-01 o IC NJM2730F(TE1) CN201 1-766-176-11 o PIN, CONNECTOR (PC BOARD) 6P A-23 SRX-R320...
Page 128
8-729-054-35 s TRANSISTOR HAT2070R-EL 1-208-927-81 s RES, CHIP 47K (1005) 8-729-230-49 s TRANSISTOR 2SC2712-YG-TE85L 1-220-870-81 s RES, CHIP 10 (1005) 8-729-230-49 s TRANSISTOR 2SC2712-YG-TE85L 1-208-915-81 s RES, CHIP 15K (1005) 8-729-054-35 s TRANSISTOR HAT2070R-EL 1-208-905-81 s RES, CHIP 5.6K (1005) A-24 SRX-R320...
Page 129
1-208-887-81 s RES, CHIP 1.0K (1005) R143 1-208-879-81 s RES, CHIP 470 (1005) 1-208-935-81 s RES, CHIP 100K (1005) R144 1-208-887-81 s RES, CHIP 1.0K (1005) 1-208-935-81 s RES, CHIP 100K (1005) R145 1-208-887-81 s RES, CHIP 1.0K (1005) A-25 SRX-R320...
Page 130
1-208-911-81 s RES, CHIP 10K (1005) R313 1-208-911-81 s RES, CHIP 10K (1005) R227 1-208-887-81 s RES, CHIP 1.0K (1005) R314 1-208-911-81 s RES, CHIP 10K (1005) R228 1-208-887-81 s RES, CHIP 1.0K (1005) R315 1-208-911-81 s RES, CHIP 10K (1005) A-26 SRX-R320...
Page 131
1-208-913-81 s RES, CHIP 12K (1005) R1313 1-218-843-91 s RES, CHIP 680 (1608) R386 1-219-611-21 s RES, CHIP (SQUARE TYPE) 0.047 R1314 1-218-843-91 s RES, CHIP 680 (1608) R387 1-208-715-11 s RES, CHIP 22K (1005) R1315 1-218-843-91 s RES, CHIP 680 (1608) A-27 SRX-R320...
Page 132
1-535-757-21 s CHIP, CHECKER TP205 1-535-757-21 s CHIP, CHECKER TP206 1-535-757-21 s CHIP, CHECKER TP207 1-535-757-21 s CHIP, CHECKER TP300 1-535-757-21 s CHIP, CHECKER TP301 1-535-757-21 s CHIP, CHECKER TP302 1-535-757-21 s CHIP, CHECKER X300 1-813-426-11 s VIBRATOR, CRYSTAL (16.384 MHz) A-28 SRX-R320...
Page 133
8-729-928-19 s TRANSISTOR 2SA1774TL-QR 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 8-729-927-99 s TRANSISTOR 2SC4617TL-QR 8-729-928-19 s TRANSISTOR 2SA1774TL-QR 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 6-550-843-02 s TRANSISTOR 2SJ599-Z-E2-AZ C206 1-100-611-91 s CAP, CERAMIC 22MF C (2012) A-29 SRX-R320...
Page 134
1-208-911-81 s RES, CHIP 10K (1005) 1-535-757-21 s CHIP, CHECKER 1-208-903-81 s RES, CHIP 4.7K (1005) 1-535-757-21 s CHIP, CHECKER 1-208-721-11 s RES, CHIP 39K (1005) 1-535-757-21 s CHIP, CHECKER 1-208-927-81 s RES, CHIP 47K (1005) 1-813-426-11 s VIBRATOR, CRYSTAL (16.384 MHz) A-30 SRX-R320...
Page 135
1-220-870-81 s RES, CHIP 10 (1005) 1-220-870-81 s RES, CHIP 10 (1005) 1-220-870-81 s RES, CHIP 10 (1005) 1-220-870-81 s RES, CHIP 10 (1005) 1-220-870-81 s RES, CHIP 10 (1005) 1-208-903-81 s RES, CHIP 4.7K (1005) 1-208-895-81 s RES, CHIP 2.2K (1005) A-31 SRX-R320...
Page 136
1-218-369-91 s RES,SQUARE TYPE CHIP 2.2K 4532 1-220-273-91 s RES,SQUARE TYPE CHIP 1.0K 4532 1-218-231-91 s RES,SQUARE TYPE CHIP 1.0(4532) 1-218-369-91 s RES,SQUARE TYPE CHIP 2.2K 4532 1-220-273-91 s RES,SQUARE TYPE CHIP 1.0K 4532 1-220-273-91 s RES,SQUARE TYPE CHIP 1.0K 4532 A-32 SRX-R320...
Page 137
1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C539 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C615 1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C540 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C616 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 A-33 SRX-R320...
Page 138
1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C715 1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C828 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C716 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 C829 1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) A-34 SRX-R320...
Page 139
1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C1246 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1322 1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C1247 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1323 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 A-35 SRX-R320...
Page 140
1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C1422 1-115-339-91 s CAP, CERAMIC 0.1MF B (2012) C1535 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C1423 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 C1536 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225) A-36 SRX-R320...
Page 141
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1953 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2029 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1954 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2030 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 A-37 SRX-R320...
Page 142
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2129 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2303 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2130 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C2304 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 A-38 SRX-R320...
Page 143
1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C2620 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 C2831 1-165-875-91 s CAP, CHIP CERAMIC 10MF B 3216 C2621 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2832 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-39 SRX-R320...
Page 144
6-711-246-01 s IC AD8387JSVZ 1-535-877-22 s CHIP, CHECKER IC703 6-711-246-01 s IC AD8387JSVZ 1-535-877-22 s CHIP, CHECKER IC704 6-708-762-01 s IC PQ200WNA1ZPH 1-535-877-22 s CHIP, CHECKER IC800 8-759-338-95 s IC NJM2903V(TE2) 1-535-877-22 s CHIP, CHECKER IC801 8-759-388-23 s IC TL431BCDR2 A-40 SRX-R320...
Page 145
L2801 1-416-758-21 s COIL, CHOKE (SMD) 22UH R302 1-208-863-81 s RES, CHIP 100 (1005) Q800 8-729-928-91 s TRANSISTOR DTC114EE-TL R303 1-208-863-81 s RES, CHIP 100 (1005) Q801 8-729-013-28 s TR HN1B01FU R304 1-208-863-81 s RES, CHIP 100 (1005) A-41 SRX-R320...
Page 146
1-208-889-81 s RES, CHIP 1.2K (1005) R701 1-218-941-81 s RES, CHIP 100 R853 1-218-929-81 s RES, CHIP 10 R703 1-218-941-81 s RES, CHIP 100 R854 1-218-929-81 s RES, CHIP 10 R705 1-218-941-81 s RES, CHIP 100 R855 1-218-941-81 s RES, CHIP 100 A-42 SRX-R320...
Page 147
1-208-863-81 s RES, CHIP 100 (1005) R1526 1-208-911-81 s RES, CHIP 10K (1005) R1034 1-208-863-81 s RES, CHIP 100 (1005) R1527 1-208-911-81 s RES, CHIP 10K (1005) R1035 1-208-863-81 s RES, CHIP 100 (1005) R1528 1-208-911-81 s RES, CHIP 10K (1005) A-43 SRX-R320...
Page 148
1-208-863-81 s RES, CHIP 100 (1005) R2109 1-208-907-81 s RES, CHIP 6.8K (1005) R1707 1-208-863-81 s RES, CHIP 100 (1005) R2110 1-208-923-81 s RES, CHIP 33K (1005) R1708 1-208-863-81 s RES, CHIP 100 (1005) R2111 1-208-889-81 s RES, CHIP 1.2K (1005) A-44 SRX-R320...
Page 149
R2258 1-218-965-81 s RES, CHIP 10K 1005 R2415 1-218-990-81 s CONDUCTOR, CHIP (1005) R2259 1-218-953-81 s RES, CHIP 1.0K R2416 1-218-990-81 s CONDUCTOR, CHIP (1005) R2260 1-218-965-81 s RES, CHIP 10K 1005 R2417 1-218-990-81 s CONDUCTOR, CHIP (1005) A-45 SRX-R320...
Page 150
1-234-370-21 s RES, NETWORK 22 (1005X4) RB104 1-234-375-21 s RES, NETWORK 1K (1005X4) RB624 1-234-370-21 s RES, NETWORK 22 (1005X4) RB625 1-234-370-21 s RES, NETWORK 22 (1005X4) RB105 1-234-375-21 s RES, NETWORK 1K (1005X4) RB626 1-234-370-21 s RES, NETWORK 22 (1005X4) A-46 SRX-R320...
Page 151
1-234-370-21 s RES, NETWORK 22 (1005X4) RB1401 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1111 1-234-370-21 s RES, NETWORK 22 (1005X4) RB1402 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1112 1-234-370-21 s RES, NETWORK 22 (1005X4) RB1403 1-234-371-21 s RES, NETWORK 47 (1005X4) A-47 SRX-R320...
Page 152
1-234-369-21 s RES, NETWORK 10 (1005X4) RB2114 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1824 1-234-369-21 s RES, NETWORK 10 (1005X4) RB2115 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1825 1-234-369-21 s RES, NETWORK 10 (1005X4) RB2116 1-234-371-21 s RES, NETWORK 47 (1005X4) A-48 SRX-R320...
Page 153
1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225) C538 1-135-960-91 s CAP, CHIP CERAMIC 10MF B(3225) C539 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C540 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C541 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-49 SRX-R320...
Page 154
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C729 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1020 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C730 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1201 1-165-989-91 s CAP, CERAMIC 10MF (2012) A-50 SRX-R320...
Page 155
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1415 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1730 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1416 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1731 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-51 SRX-R320...
Page 156
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2201 1-165-989-91 s CAP, CERAMIC 10MF (2012) C2416 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2202 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2417 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-52 SRX-R320...
Page 157
C2901 1-128-360-21 s CAP, CHIP ELECT 220MF C2804 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 C2902 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2805 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C2903 1-137-894-21 s CAP, CHIP ELECT 470MF A-53 SRX-R320...
Page 158
6-713-830-01 s IC EPCS4SI8N(11ST) IC2703 6-707-849-01 s IC TC74LCX244FT(EKJ) D2812 8-719-077-09 s DIODE CL-196HR-CD-T IC2801 6-702-510-01 s IC TPS5120DBTRG4 D2813 8-719-077-09 s DIODE CL-196HR-CD-T D2814 8-719-077-09 s DIODE CL-196HR-CD-T IC2802 6-702-510-01 s IC TPS5120DBTRG4 IC2901 6-708-758-01 s IC PCA9517DP.118 A-54 SRX-R320...
Page 159
R805 1-218-965-81 s RES, CHIP 10K 1005 R806 1-218-965-81 s RES, CHIP 10K 1005 R432 1-218-933-81 s RES, CHIP 22 R807 1-218-929-81 s RES, CHIP 10 R433 1-218-933-81 s RES, CHIP 22 R808 1-218-929-81 s RES, CHIP 10 A-55 SRX-R320...
Page 160
1-218-965-81 s RES, CHIP 10K 1005 R1503 1-218-929-81 s RES, CHIP 10 R1113 1-218-965-81 s RES, CHIP 10K 1005 R1504 1-218-929-81 s RES, CHIP 10 R1122 1-208-863-81 s RES, CHIP 100 (1005) R1507 1-218-929-81 s RES, CHIP 10 A-56 SRX-R320...
Page 161
1-218-953-81 s RES, CHIP 1.0K R1835 1-218-933-81 s RES, CHIP 22 R2314 1-218-953-81 s RES, CHIP 1.0K R1836 1-218-933-81 s RES, CHIP 22 R2315 1-218-929-81 s RES, CHIP 10 R1837 1-218-933-81 s RES, CHIP 22 R2316 1-218-929-81 s RES, CHIP 10 A-57 SRX-R320...
Page 162
1-218-953-81 s RES, CHIP 1.0K R2802 1-208-911-81 s RES, CHIP 10K (1005) R2613 1-218-990-81 s CONDUCTOR, CHIP (1005) R2803 1-208-927-81 s RES, CHIP 47K (1005) R2614 1-218-990-81 s CONDUCTOR, CHIP (1005) R2804 1-208-927-81 s RES, CHIP 47K (1005) A-58 SRX-R320...
Page 163
1-234-370-21 s RES, NETWORK 22 (1005X4) RB1412 1-234-370-21 s RES, NETWORK 22 (1005X4) RB401 1-234-378-21 s RES, NETWORK 10K (1005X4) RB1413 1-234-370-21 s RES, NETWORK 22 (1005X4) RB402 1-234-378-21 s RES, NETWORK 10K (1005X4) RB1414 1-234-372-21 s RES, NETWORK 100 (1005X4) A-59 SRX-R320...
Page 164
1-234-372-21 s RES, NETWORK 100 (1005X4) RB2603 1-234-378-21 s RES, NETWORK 10K (1005X4) RB2008 1-234-372-21 s RES, NETWORK 100 (1005X4) RB2604 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2009 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2605 1-234-370-21 s RES, NETWORK 22 (1005X4) A-60 SRX-R320...
Page 165
1-535-757-21 s CHIP, CHECKER TP2803 1-535-757-21 s CHIP, CHECKER TP2804 1-535-757-21 s CHIP, CHECKER TP2805 1-535-757-21 s CHIP, CHECKER TP2806 1-535-757-21 s CHIP, CHECKER X401 1-813-537-11 s OSCILLATOR, CRYSTAL (77.000MHZ X402 1-813-538-11 s OSCILLATOR, CRYSTAL (82.000MHZ X2601 1-795-177-21 s OSCILLATOR, CRYSTAL A-61 SRX-R320...
Page 166
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C408 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C319 1-112-717-91 s CAP, CERAMIC 1UF B (1005) C409 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C410 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-62 SRX-R320...
Page 167
C745 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 C524 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C746 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C525 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C747 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 A-63 SRX-R320...
Page 168
C977 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 C919 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C978 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C920 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C979 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 A-64 SRX-R320...
Page 169
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1151 1-112-746-11 s CAP, CERAMIC 4.7MF B (1608) C1324 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1152 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1325 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-65 SRX-R320...
Page 170
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1383 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 C1456 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1384 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1457 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-66 SRX-R320...
Page 171
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1657 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1805 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 C1658 1-112-717-91 s CAP, CERAMIC 1UF B (1005) C1806 1-100-159-91 s CAP, CERAMIC 22MF B (SMD) 3216 A-67 SRX-R320...
Page 172
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1864 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C2105 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C1865 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C2106 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-68 SRX-R320...
Page 173
1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C2213 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C2302 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 C2214 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 C2303 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-69 SRX-R320...
Page 174
6-502-197-01 s DI SML-D12M8WT86SM C2512 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 D2200 6-502-197-01 s DI SML-D12M8WT86SM C2513 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 D2201 6-502-197-01 s DI SML-D12M8WT86SM C2514 1-114-582-91 s CAP, CERAMIC 0.1MF B 1005 A-70 SRX-R320...
Page 175
1-414-864-21 s FERRITE, EMI (SMD) (1608) IC311 8-759-338-95 s IC NJM2903V(TE2) FB1400 1-414-864-21 s FERRITE, EMI (SMD) (1608) IC312 8-759-338-95 s IC NJM2903V(TE2) IC313 8-759-338-95 s IC NJM2903V(TE2) FB1401 1-400-461-21 s FERRITE, EMI (SMD) (1005) IC314 8-759-338-95 s IC NJM2903V(TE2) A-71 SRX-R320...
Page 176
R246 1-218-937-81 s RES, CHIP 47 R122 1-208-895-81 s RES, CHIP 2.2K (1005) R247 1-218-990-81 s CONDUCTOR, CHIP (1005) R248 1-218-933-81 s RES, CHIP 22 R123 1-208-887-81 s RES, CHIP 1.0K (1005) R250 1-218-933-81 s RES, CHIP 22 A-72 SRX-R320...
Page 177
1-208-927-81 s RES, CHIP 47K (1005) R429 1-208-863-81 s RES, CHIP 100 (1005) R346 1-208-895-81 s RES, CHIP 2.2K (1005) R430 1-208-863-81 s RES, CHIP 100 (1005) R347 1-218-933-81 s RES, CHIP 22 R431 1-208-863-81 s RES, CHIP 100 (1005) A-73 SRX-R320...
Page 178
1-218-933-81 s RES, CHIP 22 R610 1-218-933-81 s RES, CHIP 22 R806 1-218-933-81 s RES, CHIP 22 R611 1-218-933-81 s RES, CHIP 22 R812 1-218-933-81 s RES, CHIP 22 R612 1-218-933-81 s RES, CHIP 22 R813 1-218-933-81 s RES, CHIP 22 A-74 SRX-R320...
Page 179
1-218-933-81 s RES, CHIP 22 R1007 1-218-933-81 s RES, CHIP 22 R1203 1-218-933-81 s RES, CHIP 22 R1008 1-218-933-81 s RES, CHIP 22 R1204 1-218-933-81 s RES, CHIP 22 R1009 1-218-933-81 s RES, CHIP 22 R1205 1-218-933-81 s RES, CHIP 22 A-75 SRX-R320...
Page 180
1-218-933-81 s RES, CHIP 22 R1335 1-218-953-81 s RES, CHIP 1.0K R1547 1-218-933-81 s RES, CHIP 22 R1400 1-218-933-81 s RES, CHIP 22 R1548 1-218-933-81 s RES, CHIP 22 R1401 1-218-933-81 s RES, CHIP 22 R1549 1-218-933-81 s RES, CHIP 22 A-76 SRX-R320...
Page 181
1-218-933-81 s RES, CHIP 22 R1918 1-218-933-81 s RES, CHIP 22 R2200 1-218-933-81 s RES, CHIP 22 R1919 1-218-933-81 s RES, CHIP 22 R2201 1-218-933-81 s RES, CHIP 22 R1920 1-218-933-81 s RES, CHIP 22 R2202 1-218-953-81 s RES, CHIP 1.0K A-77 SRX-R320...
Page 182
1-234-371-21 s RES, NETWORK 47 (1005X4) R2348 1-218-933-81 s RES, CHIP 22 R2349 1-218-933-81 s RES, CHIP 22 RB0620 1-234-371-21 s RES, NETWORK 47 (1005X4) R2350 1-218-933-81 s RES, CHIP 22 RB0621 1-234-371-21 s RES, NETWORK 47 (1005X4) A-78 SRX-R320...
Page 183
1-234-371-21 s RES, NETWORK 47 (1005X4) RB1214 1-234-371-21 s RES, NETWORK 47 (1005X4) RB913 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1215 1-234-371-21 s RES, NETWORK 47 (1005X4) RB914 1-234-371-21 s RES, NETWORK 47 (1005X4) RB1216 1-234-371-21 s RES, NETWORK 47 (1005X4) A-79 SRX-R320...
Page 184
1-234-370-21 s RES, NETWORK 22 (1005X4) RB2106 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2107 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2400 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2401 1-234-370-21 s RES, NETWORK 22 (1005X4) RB2402 1-234-370-21 s RES, NETWORK 22 (1005X4) A-80 SRX-R320...
Page 185
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C224 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C225 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C226 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C227 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 A-81 SRX-R320...
Page 186
1-163-037-91 s CAP, CERAMIC 22000PF B (2012) C518 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C741 1-125-898-91 s CAP, CERAMIC 0.22MF B (3216) C519 1-100-597-91 s CAP, CHIP CERAMIC 0.1MF B 1608 C742 1-163-037-91 s CAP, CERAMIC 22000PF B (2012) A-82 SRX-R320...
Page 187
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1206 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1334 1-100-567-81 s CAP,CHIP CERAMIC 0.01MF B 1005 C1207 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1335 1-112-298-91 s CAP, CERAMIC 1MF B (1608) A-83 SRX-R320...
Page 188
1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1400 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2010 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C1601 1-125-777-81 s CAP, CHIP CERAMIC 0.1MF B 1005 C2011 1-112-692-81 s CAP,CHIP CERAMIC1000PF CH 1005 A-84 SRX-R320...
Page 189
1-400-382-21 s EMI FERRITE (SMD) (1608) D1303 8-719-077-09 s DIODE CL-196HR-CD-T FB507 1-400-382-21 s EMI FERRITE (SMD) (1608) D1304 8-719-077-09 s DIODE CL-196HR-CD-T FB508 1-400-382-21 s EMI FERRITE (SMD) (1608) D1305 8-719-077-09 s DIODE CL-196HR-CD-T FB1101 1-400-382-21 s EMI FERRITE (SMD) (1608) A-85 SRX-R320...
Page 190
1-208-863-81 s RES, CHIP 100 (1005) IC1206 8-759-338-95 s IC NJM2903V(TE2) R102 1-220-875-81 s RES, CHIP 16 (1005) IC1207 6-707-880-01 s IC TC74VHC573FT(EKJ) R103 1-208-863-81 s RES, CHIP 100 (1005) R104 1-218-949-81 s RES, CHIP 470 IC1208 6-707-880-01 s IC TC74VHC573FT(EKJ) A-86 SRX-R320...
Page 191
1-218-953-81 s RES, CHIP 1.0K R236 1-218-961-81 s RES, CHIP 4.7K R530 1-218-941-81 s RES, CHIP 100 R237 1-218-953-81 s RES, CHIP 1.0K R531 1-218-990-81 s CONDUCTOR, CHIP (1005) R238 1-218-965-81 s RES, CHIP 10K 1005 R532 1-218-977-81 s RES, CHIP 100K A-87 SRX-R320...
Page 192
1-218-961-81 s RES, CHIP 4.7K R902 1-218-941-81 s RES, CHIP 100 R1118 1-218-961-81 s RES, CHIP 4.7K R903 1-218-941-81 s RES, CHIP 100 R1120 1-218-961-81 s RES, CHIP 4.7K R904 1-218-941-81 s RES, CHIP 100 R1123 1-218-990-81 s CONDUCTOR, CHIP (1005) A-88 SRX-R320...
Page 193
R1301 1-218-957-81 s RES, CHIP 2.2K R1361 1-208-715-11 s RES, CHIP 22K (1005) R1302 1-218-965-81 s RES, CHIP 10K 1005 R1362 1-218-953-81 s RES, CHIP 1.0K R1303 1-218-957-81 s RES, CHIP 2.2K R1363 1-218-953-81 s RES, CHIP 1.0K A-89 SRX-R320...
Page 194
1-218-949-81 s RES, CHIP 470 R1766 1-218-929-81 s RES, CHIP 10 R2016 1-218-961-81 s RES, CHIP 4.7K R1767 1-218-929-81 s RES, CHIP 10 R2017 1-218-990-81 s CONDUCTOR, CHIP (1005) R1768 1-218-973-81 s RES, CHIP 47K R2019 1-218-961-81 s RES, CHIP 4.7K A-90 SRX-R320...
Page 195
1-234-377-21 s RES, NETWORK 4.7K (1005X4) RB1101 1-234-378-21 s RES, NETWORK 10K (1005X4) RB402 1-234-377-21 s RES, NETWORK 4.7K (1005X4) RB1102 1-234-378-21 s RES, NETWORK 10K (1005X4) RB403 1-234-377-21 s RES, NETWORK 4.7K (1005X4) RB1103 1-234-378-21 s RES, NETWORK 10K (1005X4) A-91 SRX-R320...
Page 196
1-813-052-21 s VIBRATOR, CRYSTAL (25 MHz) X2000 1-813-052-21 s VIBRATOR, CRYSTAL (25 MHz) RB1504 1-234-380-21 s RES, NETWORK 47K (1005X4) RB1505 1-234-380-21 s RES, NETWORK 47K (1005X4) RB1506 1-234-380-21 s RES, NETWORK 47K (1005X4) RB1507 1-234-380-21 s RES, NETWORK 47K (1005X4) A-92 SRX-R320...
1-966-785-11 s HARNESS(DSUB-TAMP) THP1 1-803-384-11 s THERMISTOR (1608) 4pcs 2-590-262-02 s BOLT(M8X25) HEXAGON PSW 4-158-783-03 s OPERATING INSTRUCTIONS (JAPANESE, ENGLISH) 4-160-159-01 s BASE TPC 4-160-160-01 s BRACKET TPC 6pcs 7-682-947-09 s SCREW +PSW 3X6 10pcs 7-682-962-01 s SCREW +PSW 4X10 A-93 SRX-R320...
CN-3225 (OPTION) SERIAL TM-57 ETHER RS-232C BALLAST GPIO D-Sub D-Sub D-Sub POWER UNIT POWER UNIT THERMISTOR D-Sub (FOR LAMP) (FOR OPTICAL UNIT) AC INPUT NOISE BREAKER THERMISTOR TERMINAL FILTER (FOR INTAKE) NOISE LAMP MOTOR INVERTER FILTER Overall LAMP HOUSE SRX-R320...
Page 203
ON : Enable JTAG_CN_SW2 CL239 C211 0.1uF JTAG_SW(TCK/TMS/TDI/TDO) S201 RS232C CL236 C204 0.1uF RB204 OPEN NS OPEN ON IFA/B/C/D POWER SUPPLY UNIT OPEN ON OPEN OPEN ON OPEN CN205 +24V C221 CN-3225 (2/3) C222 47uF 0.01uF RS232C_MODE_CN BOARD NO. 1-880-820-11 SRX-R320...
Page 213
Normal High PS2_FAN_ERR CL-196HR-CD-T CN12 LMP_A_FAN_ERR 4.7uF LAMP FAN A LAMP_FAN_A_B+ CN15 Normal Low 1500mA, 20mohm 1608 LAMP_FAN_A_ERR CMY_TH_IN CL43 CL101 CMY_TH_OUT DST-27 (1/2) CHIMNEY DET 5.6k 0.1uF All Normal=High, error =Low to CPU 2012 BOARD NO. 1-880-819-11 C-13 C-13 SRX-R320...
Page 346
SML-D12M8WT86SM SML-D12M8WT86SM PR-300 (22/25) EP3C40F780C6N(60) AS Fast POR(3.3V) MODE1 MODE0 AS Fast POR(3.0/2.5V) LED1_TX_B 022-J2 Tx FPGA mode LED2_TX_B 022-J3 GREEN BOARD NO. 1-873-515-15 The MSEL[3..0] pins have 9kohm internal pull-down resistors that are always active. BLUE C-146 C-146 SRX-R320...
CN1400 CN502 CN1300 CN1301 TM-57 POWER SUPPLY AREA D-SUB 9 PIN INVERTER POWER UNIT POWER UNIT RS-232C (FOR LAMP) (FOR LAMP) AC FILTER Frame GND TERMINAL AC FILTER (FOR THREE-PHASE) BREAKER AC INPUT TERMINAL LMT-300 Frame Wiring C-171 C-171 SRX-R320...
Page 405
20 V AC range are suitable. (See Fig. A) To Exposed Metal Parts on Set 1.5 k Z 0.15 μF voltmeter (5.25V) Earth Ground Fig A. Using an AC voltmeter to check AC leakage. SRX-R320...
