USING THE MUB-UPM U-BRACKET

The MUB-UPM U-bracket (Figure 6.3) allows a UPM-1P or
UPM-2P loudspeaker to be mounted to a wall, ceiling or
floor.

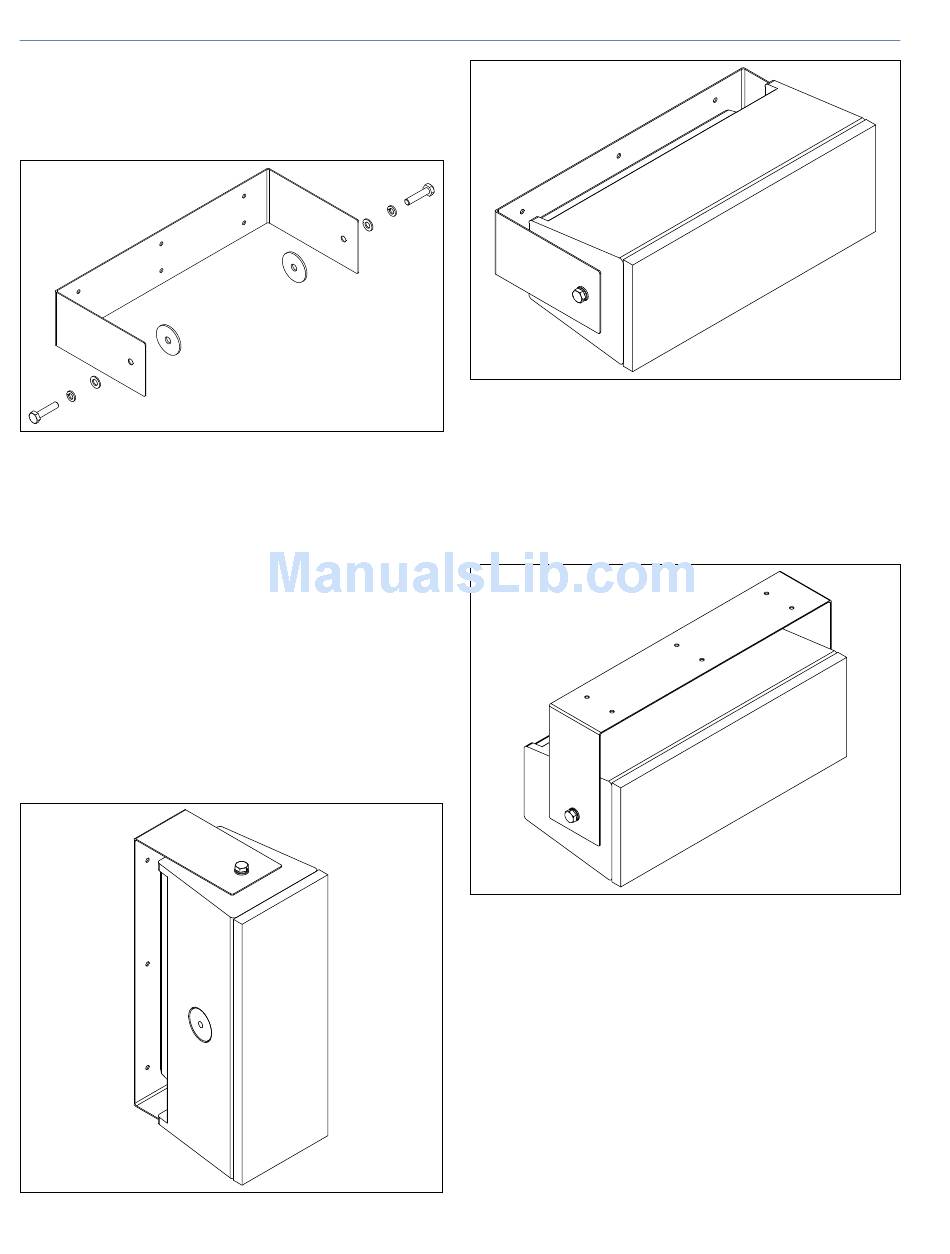

Figure 6.3. MUB-UPM U-bracket
A single MUB-UPM U-bracket provides maximum flexibility
for positioning and securing the U-bracket according to the
needs of the design and/or the venue.
To secure the bracket, attach the adhesive backed cork
washer onto the inside walls of the bracket and bolt the
loudspeaker to the MUB-UPM bracket using the bolts and
washers as shown on figure 6.3. Make sure the bolts are
well tightened.

Wall Mount

The MUB-UPM allows you to mount the UPM-1P or UPM-
2P in both a vertical (Figure 6.4) and horizontal orientation
(Figure 6.5) for wall mounting.
Figure 6.4. Vertically wall-mounting the UPM-1P
20
Figure 6.5. Horizontally wall-mounting the UPM-1P

Ceiling Mount

For mounting the UPM-1P or UPM-2P loudspeaker on a
ceiling, underbalcony or canopy area, the MUB-UPM U-
bracket is effective and stable (Figure 6.6).
Figure 6.6. Ceiling-mounting the UPM-1P
